OWNERS MANUAL
1
Introduction...................................................................................1
Front Panel Controls & Features..................................................2
Rear Panel Features ....................................................................2
Connections & Quick Set-up Guide..............................................3
How The Controls Work ...............................................................4
Master Volume Section.................................................................4
Data Entry / Program Section.......................................................4
Program Change ..........................................................................5
MIDI TX, RX Channels .................................................................5
Utilities ..........................................................................................5
Save & Load (Sysex Dumps) .......................................................9
Editing & Writing Sounds..............................................................10
Analogue Voice Architecture ........................................................11
LFO Section..................................................................................12
Oscillators l&2 Section..................................................................13
Oscillators 1&2 Mod/Sync. Section ..............................................14
Filter Section.................................................................................15
Envelopes 1&2 Section ................................................................16
MIDI Control .................................................................................18
Filter / Envelope Controllers .........................................................18
LFO to MIDI Clock Sync...............................................................18
CV! Gate to MIDI Convertor .........................................................18
Appendix.......................................................................................19
Roland TB303 Emulation & Troubleshooting Guide.....................19
Specication .................................................................................20
Midi Implementation Chart............................................................21
Factory Programs List ..................................................................22
CONTENTS INTRODUCTION
Thank you for buying the Novation BassStation Rack Analogue Bass Synthesizer.
The module you have purchased is ideal for producing the kind of bass sounds
which have returned to popularity in recent years, hut it is capable of far more
than just that. Analogue synthesis is also suitable for melody lines and lead solos
as well as sound eects.
The MIDI specication on the BassStation Rack allows for real-time transmission
and reception of controller information. This means that the live ‘tweaking’ of con-
trols during a performance, which is particularly appropriate for analogue sounds,
can be recorded into a sequencer along with the notes played and the entire per-
formance recreated on playback. Bulk or individual dumps of the 100 Memory
locations can also be sent and received, allowing you to build a large library of
analogue sounds for dierent applications.
The BassStation Rack also adds several features over and above the specica-
tion of the successful BassStation keyboard. The Oscillator Sync. feature is very
popular with traditional synthesists allowing very vocal timbres. The CVIGate -
MIDI converter can be used to trigger the Rack froni a vintage analogue
synth/sequencer or as a translator for a MIDI sequencer to trigger other analogue
devices. The external input to the Rack’s lter means that you can process any
other instrument - including an analogue synth being triggered by the CV/Gate -
MIDI converter
Welcome to an expanded "Analogue for the 90’s".
2
1 Master Volume Section
This section contains the Master Volume and Portamento controls, Headphone output
socket and the Program write enable switch.
2 Data Entry I Program Section
This section contains the 12 Data Entry buttons, Display and Menu LEDs,
Audition/Demo and Mode Buttons.
3 LFO Section
This section contains the LEO Speed, Depth and Waveform Shape controls.
4 Oscillator 1- 2 Sections
This section contains the Oscillator 1 Waveform, Oscillator 2 Waveform, Range,
Detune and Semi-tone transposition controls. It also contains the control to mix
Oscillators 1 & 2 with the external audio input.
5 Oscillator 1 & 2 Mod/Sync Section
This section contains the Oscillator 1-2 Sync, Oscillator Mod select, PWM Source,
Envelope Modulation, LEO Modulation and Pulse Width Depth controls.
6 Filter Section
This section contains the Frequency, Resonance, Modulation Depth, Cut-o slope and
Modulation Source controls.
7 Envelope Section
This section contains the Envelope select, Triggering, Attack, Decay, Sustain, Release
and Velocity controls.

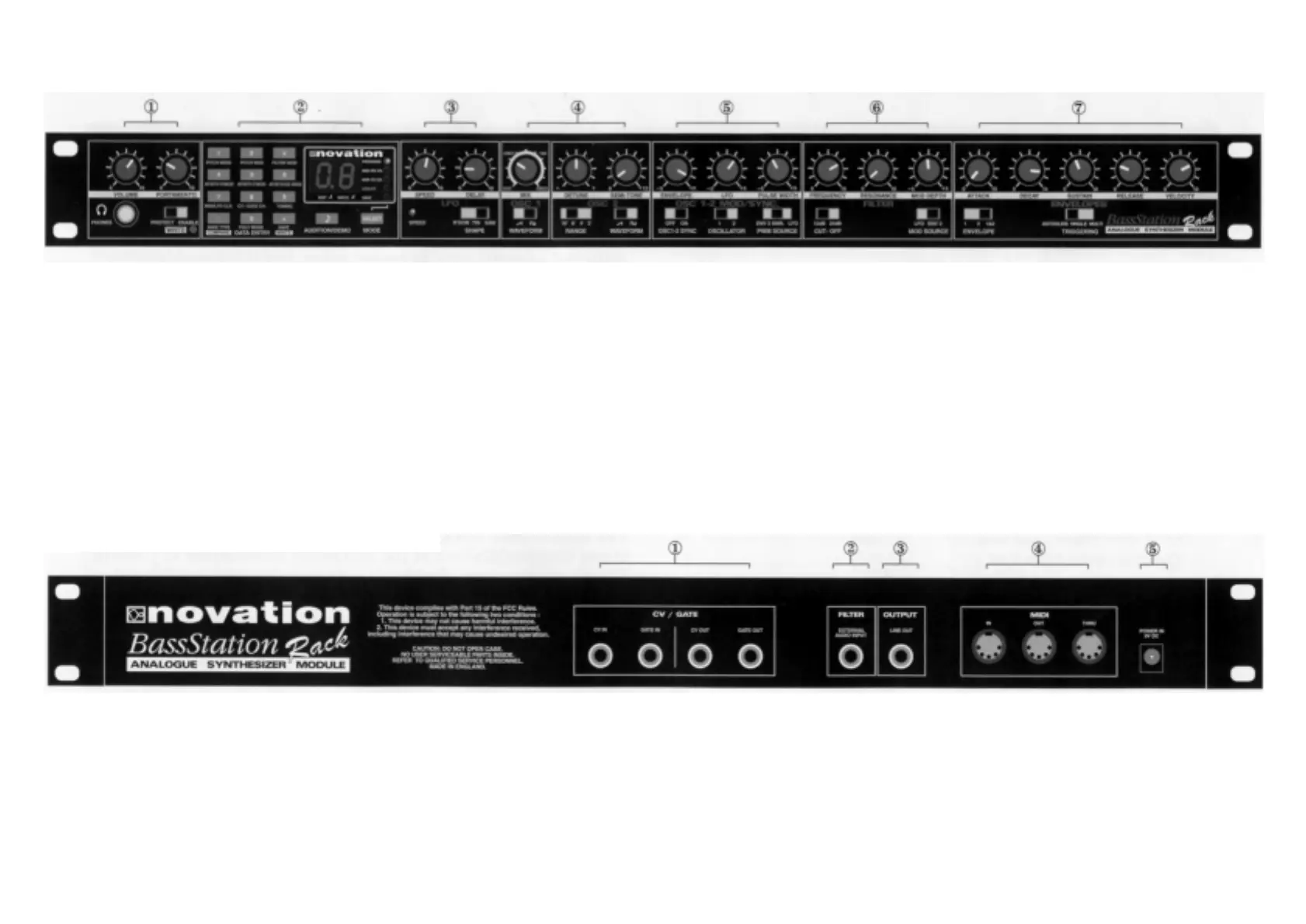

FRONT PANEL
1 CV / Gate ln & Out
The connectors in this section are used to interface vintage analogue synthesisers
with CV / Gate in/outs to MIDI.
2 Filter Input
This connector is used to process an external MIDI triggered sound source through
the lter and envelope sections of the BassStation Rack.
3 Output
This 1/4 jack delivers a line-level output signal for connection to a mixing desk or
amplier input.
4 MIDI
IN - This connector is used to receive MIDI data from an external device
OUT - This connector is used to transmit MIDI data to an external device.
THRU - This connector re-transmits MIDI data received by the MIDI IN socket to an
external device.
5 9vDC Input
Connect the output plug of the AC adapter supplied with the BassStation Rack to this
socket.
REAR PANEL
