Sida 1/3

25 (optional) 24

68910 11 12 13 14

21 (hidden)

4/5

Figure

Reinforced Lock Bar PR 1

Assembly Manual

Reinforced Lock Bar PR 1

■Anti-burglary protection for inward opening doors

■Secures the door on the lock and hinge sides

■Protection against break-ins from the outside

■Bolt throw of 80 mm with one turn of the key

■Lockable from the inside and outside

■Prepared for a prole double cylinder

■30/55 mm prole double cylinder included in the

package for door thickness of 40 mm

Subject to change without prior notice.

Reinforced Lock Bar PR 1

v1.0, 10.2018

Art. No. 7045

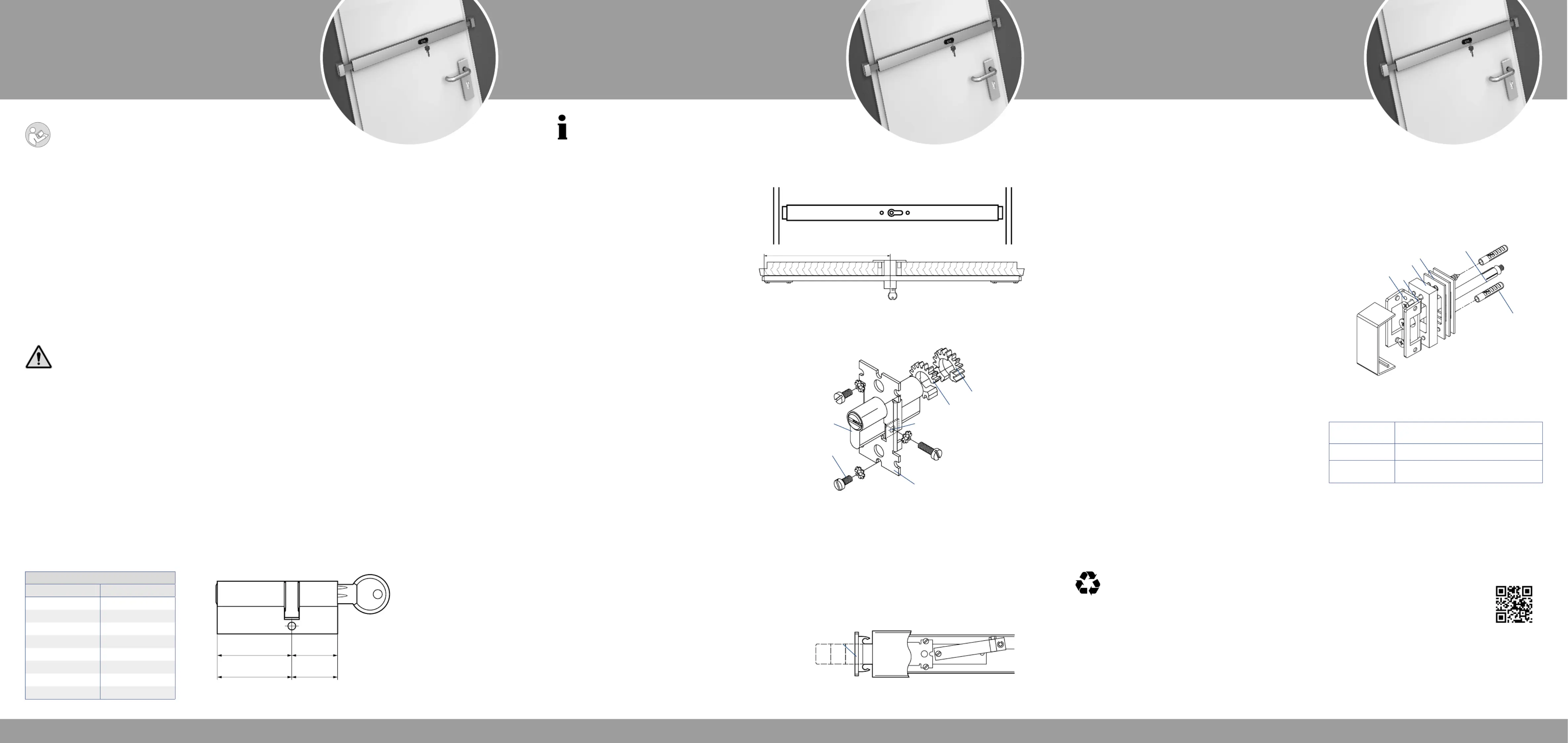

Preparing for a Prole Double Cylinder

Assembling the Reinforced Lock Bar Assembling the Strike Plates

General

Assembly Information

*Suitable prole double cylinder

Door thickness Version

40 mm 30/55 mm

45 mm 30/60 mm

50 mm 30/65 mm

55 mm 30/70 mm

60 mm 30/75 mm

65 mm 30/80 mm

70 mm 30/85 mm

75 mm 30/90 mm

Area of use for

door leaf width

800 to 950 mm

Lock bar Triple adjustment on both sides

Bolt throw 80 mm with one turn of the key, lockable

from inside and outside

outside inside

min. 12 + door width 30

1 Remove the housing cover (7) from the reinforced

lock bar and lay it with its inner side centred on the

door leaf so that the distance to the edges of the

door leaf are the same.

Before beginning any assembly work, ensure

that the reinforced lock bar is suitable for the

structural conditions. Order an appropriate

prole double cylinder, if necessary.

To prevent overtightening the retaining

screws, tighten them by hand using an ap-

propriate screwdriver.

Read the assembly manual thoroughly and observe the information contained

during installation. Keep the assembly manual in a safe place for future refer-

ence.

Scope of Delivery

Technical Data

Tools Required

387

Check the package supplied is complete:

■1x reinforced lock bar (1)

■1x 30/55 mm prole double cylinder for a

door thickness of 40 mm (22)

■ 2x side pieces, plastic (6)

■ 1x outside escutcheon PZ, metal (16)

■ 1x inside escutcheon, plastic (15)

■ 2x spring washer (23)

■ 2x screw M5x35 (17)

■ 4x screw M5x15 (20)

■ 4x screw M4x10 (cylinder head) (19)

■ 4x screw M6x75 (10)

■ 4x dowel 8x40 (8)

■ 2x expansion dowel 10x112 (9)

■ 2x strike plate (13) with cover (14)

■ 12x spacer plate 2 mm (11)

■ 2x spacer plate 12 mm (12)

■ 3x key

21 (hidden)

13 10

Intended Use

The PR1 reinforced lock bar provides additional protection against unauthorised access to rooms. It is intended for inward opening doors made

of wood, metal and plastic with widths between 800 and 950 mm. The best protective eect can only be achieved when you complete the instal-

lation according to this assembly manual.

A condition for complying with the intended use is that the equipment is installed correctly and the information in the manual is observed and

maintained.

Any other use is considered unintended use. Unauthorised modication or reconstruction not described in this assembly manual are not permit-

ted and could cause the product to be damaged.

■Various screwdrivers

■Drill

■Metal bits: Ø 13.0mm

(also for use with wood)

Ø13.5mm, Ø15.0mm,

Ø18.5mm, Ø10.0mm

■Masonry bits: Ø 10.0mm,

min. 180mm

■Hole cutter/saw: Ø 35 mm

■Spirit level, tape measure

2 Mark the position for the hole for the cylinder and

drill a hole with a diameter of 35 mm in the door

leaf at the required height.

Note: The distance to the centre of the

prole double cylinder is 387 mm.

If the prole double cylinder is already installed, continue with Step 10. Otherwise, assem-

ble the prole double cylinder as follows:

3 Remove the screws and spring washers (19) from the cylinder plate (18).

4 Remove the cylinder plate and remove the plastic insert.

5 Remove the cog wheel (4, 5) from under the cylinder plate.

6 Slide one part (4) of the cog wheel from the left and the other part (5)

from the right on the prole double cylinder. The broader segment

of the cog wheel parts must be against the lock bit (21) of the prole

double cylinder. Both parts, together with the locking catch, produce

an interlocking connection.

7 Insert the prole double cylinder in the cylinder plate (18) and x the

cylinder in place with the screw M5x15(20) and spring washer (23).

8 Slide the toothed rods (2, 3) against the stop so that the bar is in the

position it will be when opened later. The lock bit must run into the

wide recess of the toothed rod.

9 Now t the assembled cylinder with the cylinder plate in the rein-

forced lock bar and screw the plate tight with the screws and spring

washers (19).

You can now x the reinforced lock bar on the door:

10 Position the reinforced lock bar with the assembled prole double

cylinder so that the cylinder is in the hole in the door.

11 Align the bar using the spirit level and mark the two holes to x

the outside escutcheon (16).

12 Drill the holes using a bit with 12 mm Ø.

13 Reassemble the reinforced lock bar, slide the metallic outside

escutcheon (16), or the optionally available protective escutcheon

(SR 100 ZA) (25), on the outside of the door above the lock cylinder

and x the escutcheon using the spring washers and screws

M4x10 (19) (cylinder head).

1 Position the strike plates (13) at the height of the lock in the door

frame or on the wall on both sides.

Tip: When you lock the reinforced lock bar, you can slide the strike plate

over the extended lock bar. This simplies alignment.

2 Mark the holes.

3 Remove the strike plates, unlock the lock, drill the plug holes and

insert the wall dowels (8).

4 Place the necessary number of spacer plates (11, 12) between the wall

and strike plate until the lock bar slides into the strike plate easily and

without any strain. When doing so, pay attention that the "catches" of

the spacer plates engage in the corresponding recesses of the following

spacer plate.

5 Fix the strike plates in place with the screws M6x75 (10).

6 Now drill the holes for the expansion dowels (9). Insert the expansion

dowels and tighten them.

7 Finally, press the covers (14) on the strike plates (13).

Guarantee

The period of guarantee is 24 months. The period of guarantee

begins on the date of purchase. It is essential to keep the purchase

receipt and original packaging. If a problem arises, please refer to

our Return Merchandise Authorisation portal (RMA) in the Support

section of our website at www.olympia-vertrieb.de.

In the case of further queries, please contact our hotline

01805007514 (costs via German landline at time of going to

print: 14 ct/min., max. 42 ct/min. via a mobile network).

Olympia Business Systems Vertriebs GmbH

Zum Kraftwerk 1 - 45527 Hattingen

Disposal

Help protect the environment and dispose of the

product and packaging materials according to the

applicable local regulations.

Safety Instructions

Further Information

Further information on this product is available at

http://productip.com/?f=84f41

Or scan this QR code.

Avoid any personal injury by paying attention

to the following information!

WARNING! Risk of suoca-

tion! Children can swal-

low small parts, packag-

ing and protective foils.

Keep the product and

packaging out of reach of

children!

IMPORTANT! Improper assembly can

lead to property damage. Install

the reinforced lock bar as illus-

trated in this assembly manual.

Only use the assembly material

supplied.

Assembly Manual

Reinforced Lock Bar PR 1

Assembly Manual

Reinforced Lock Bar PR 1

Assembly Manual

Reinforced Lock Bar PR 1

14 Check the alignment using a spirit level and then mark the holes

on the ends (24).

15 Drill the holes and x the reinforced lock bar on the door leaf

using the screws M5x35 (17).

16 Replace the cover (7) and press in the side pieces (6) and the plas-

tic inside escutcheon (15).

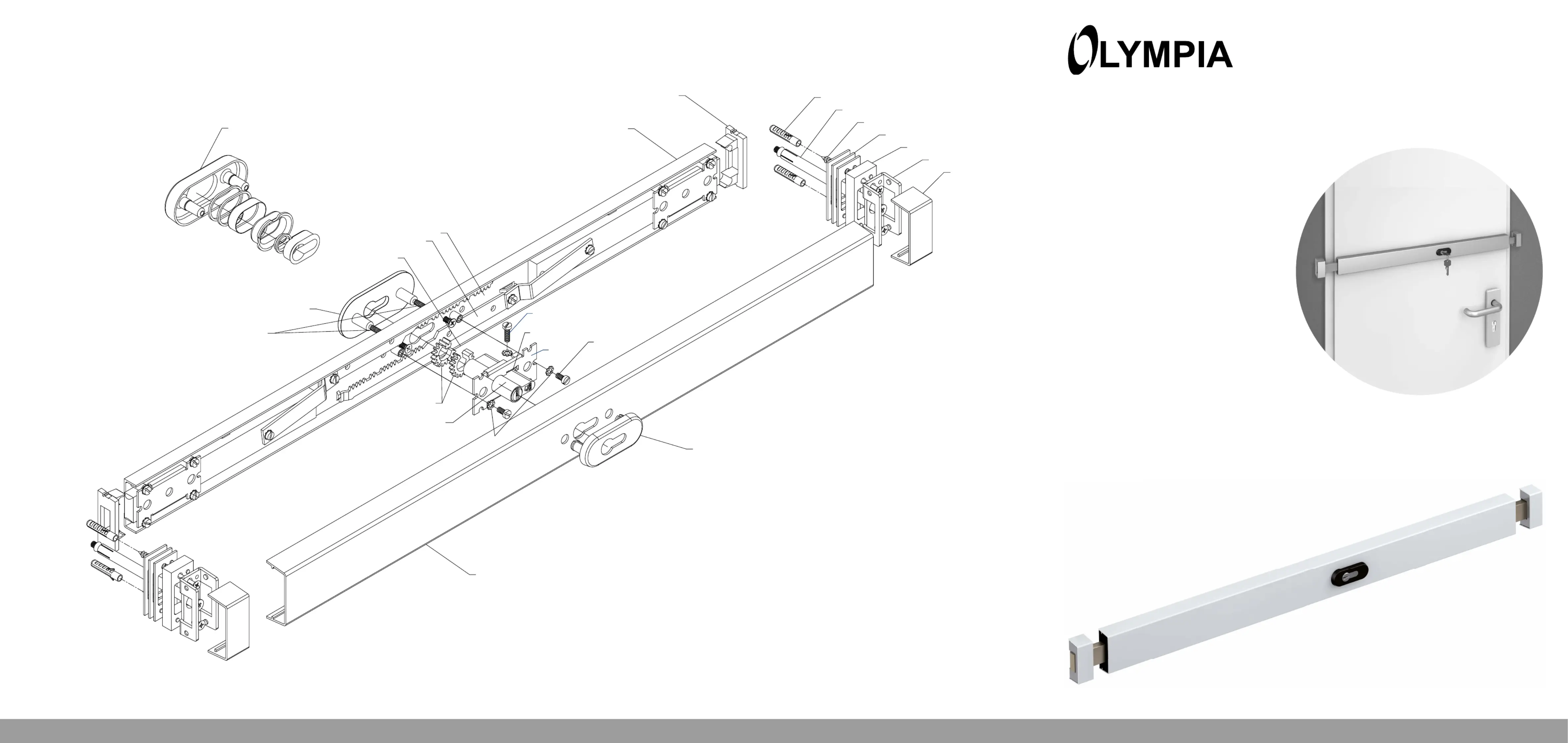

A large diagram is provided on the rear side to help you arrange the

individual elements.
