Sida 1/36
E
n

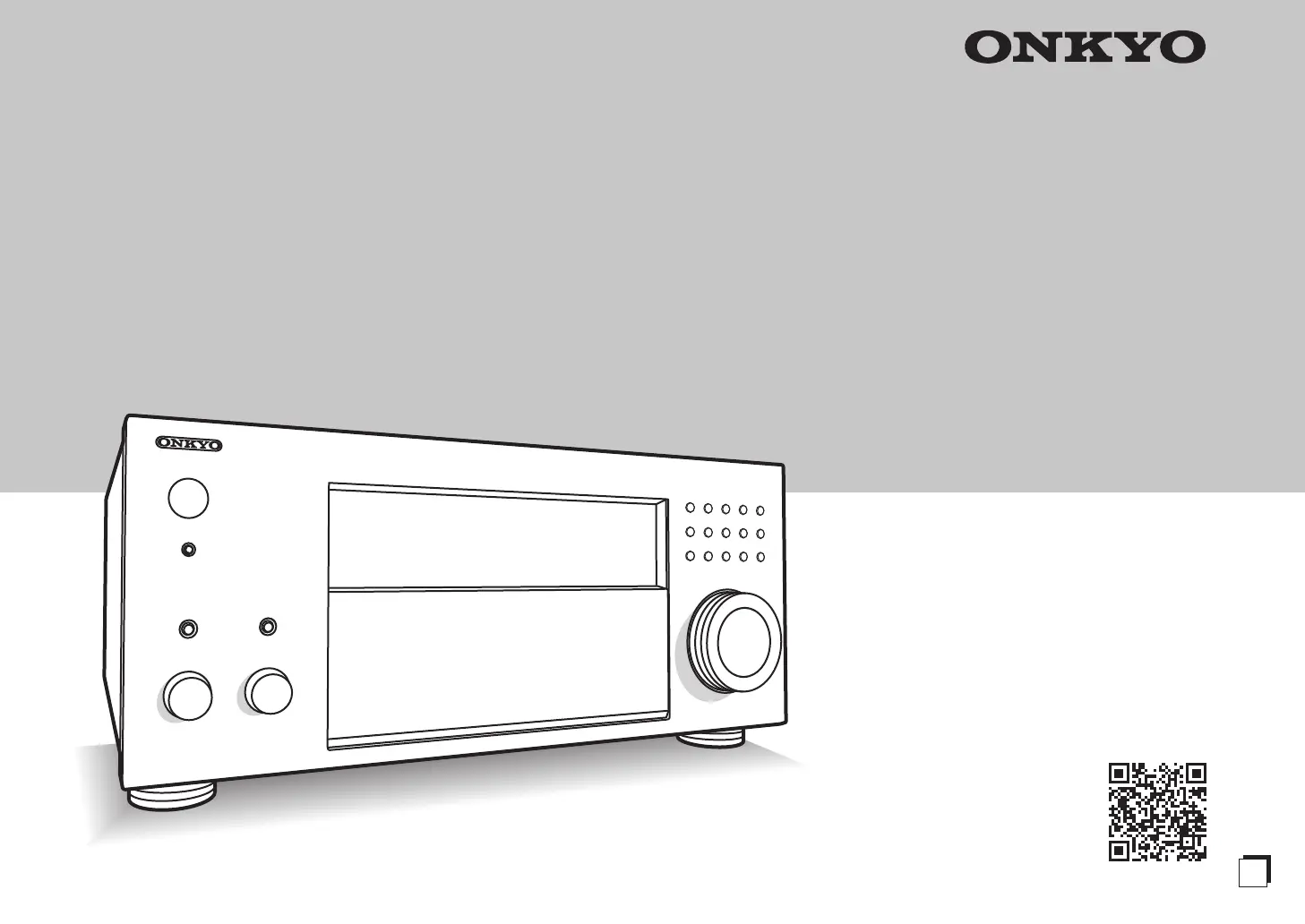

TX-RZ900/TX-RZ800
AV RECEIVER
This manual includes information needed when
starting up and also instructions for frequently
used operations. The Advanced Manual is
published on the web for ecological reasons and
has more detailed information and advanced
settings.
Basic Manual
http://www.onkyo.com/manual/txrz900800/adv/en.html
Advanced Manual
found here
En-2
ContentsFeatures
TX-RZ900/TX-RZ800:
･Equipped with 7 ch amplifier
･Supports playback in Dolby Atmos format and has Dolby
Surround listening mode
･Supports playback in DTS:X format and has DTS
Neural:X listening mode
･THX Select2 Plus certified
･Equipped with 4K compatible HDMI IN/OUT jacks
･Equipped with 2 HDMI output jacks
･Supports the HDMI Standby Through function which
allows transmission from players to the TV in standby
state
･Supports HDCP2.2 (supported by HDMI IN1 to IN5/
HDMI OUT MAIN/SUB)
･Supports ARC (Audio Return Channel)
･Supports variety of network functions such as Internet
Radio, DLNA, AirPlay, etc.
･Supports Wi-Fi and BLUETOOTH®
･Bi-Amping capability
･A/V Sync Function to correct deviation of audio and
video
･Multi-zone function (Zone 2 and Zone 3) which allows
you to play something in the main room while enjoying
a different source in a separate room (Video and audio
can also be output to Zone 2 through HDMI)
･Music Optimizer™ for compressed digital music files
･Phase Matching Bass System
･Automatic speaker setup available using supplied
calibrated microphone (AccuEQ Room Calibration)
･Supports playback of MP3, WMA, WMA Lossless,
FLAC, WAV, Ogg Vorbis, Apple Lossless, DSD, Dolby
TrueHD via network and USB storage device (the
supported formats will differ depending on the use
environment)
TX-RZ900:
･The two front channels have parallel push-pull circuits
for reproducing powerful bass
･Equipped with a high-class toroidal transformer as an
independent power source for the audio circuitry
Advanced Manual (on the web)
Advanced Manual is always updated with the latest
information and its user friendly interface, which does not
matter whether you access from PC or Smartphone, helps
you to understand more deeply about the AV Receiver.
Advanced Manual is consisted of the following chapters.
･Details on AM/FM reception
･Playing Music Files on a USB Storage Device
･Listening to Internet Radio
･Playing Music with DLNA
･Playing Music Files in a Shared Folder
･Operating Music Files with the Remote Controller
･Using the Listening Modes
･Advanced Settings (Setup Menu)
･Operating Other Components with the Remote
Controller
･Advanced Connection
･Connecting and Operating Onkyo RI Components
･Control Function between the Unit and External
Component
･Firmware Update
･Troubleshooting
･Reference Information
Advanced Manual found here
http://www.onkyo.com/manual/txrz900800/adv/en.html
Basic Manual (this document)
Front Panel 3 ..........................................................................
Display 4 .................................................................................
Rear Panel...........................................................................5
Step 1: Connections 6 ..............................................
1 Connecting speakers........................................................6
･Speaker layout 6 ..............................................................
･Height speaker types 7 ....................................................
･Instructions on how to connect speakers 8 ......................
2 Connecting the TV and players 9 ........................................
･HDMI cable connection 9 .................................................
･Connecting Components without HDMI 10 ......................
3 Other connections ..........................................................11
Step 2: Initial Setup 12 .............................................
1 AccuEQ Room Calibration 12 .............................................
2 Source Connection 13 .........................................................
3 Remote Mode Setup 14 ......................................................
4 Network Connection 14 .......................................................
Step 3: Playing Back 16 ...........................................
1 Basic operations 16 .............................................................
･Remote controller parts name 16 .....................................
2 Network Functions 17 ..........................................................
3 AirPlay® ..........................................................................17
4 BLUETOOTH® function 18 ..................................................
5 AM/FM Radio 18 .................................................................
6 Multi-zone 19 .......................................................................
･Making Multi-zone Connection 19 ....................................
･Performing Multi-zone Playback 20 .................................
7 Quick Setup menu 21 ..........................................................
8 Other useful functions 22 ....................................................
Troubleshooting 23 .................................................................
Specifications 24 ....................................................................
Table of display resolutions 25 ...............................................
Resolutions supported by HDMI 25 ........................................
Supplied Accessories ..........................................Back cover
En-3
1 962 4 5 7 8
ON S TQ RP
3
G H I J L MK U XV W
F
(European, Australian
and Asian models)
Front Panel
1 zON/STANDBY button: Turns the unit on or into
standby mode.
2 PURE AUDIO button and indicator: The display and
analog video circuits are turned off to switch the unit to
PURE AUDIO mode and provide purer sound.
3 HYBRID STANDBY indicator: Lights if the unit enters
standby mode when the HDMI Standby Through,
USB Power Out at Standby, Network Standby or
BLUETOOTH Wakeup function is enabled.
4 DTS:X indicator: Lights when playing DTS:X.
5 DOLBY ATMOS indicator: Lights when playing Dolby
Atmos.
6 Display
7 Remote control sensor: Receives signals from the
remote controller.
8 Input selector buttons: Switches the input to be
played. Each button is assigned to the following jacks.
Button Jack Button Jack
BD BD/DVD G2 GAME 2
CBL CBL/SAT AUX AUX
STM STRM BOX CD CD
PC PC PHN PHONO
G1 GAME 1 TV TV
･Use the TUN button for AM/FM radio, the NET button
for network features such as Internet radio and
USB playback, and the button for BLUETOOTH
features.
･The assigned jacks can be changed. For how to
make settings, see "1. Input/Output Assign" in
"Advanced Settings (Setup Menu)" in the Advanced
Manual.
9 ZONE2/3 button: Controls the multi-zone function.
F MASTER VOLUME: Allows you to adjust the volume.
G LISTENING MODE button/dial: Allows you to select
the listening mode. Press the button repeatedly to select
a category from "MOVIE/TV", "MUSIC", "GAME", then
turn the dial to change the mode.
H TONE button/dial: Adjusts the high tone and low tone.
Press the button repeatedly to select the item to adjust
from "Bass", "Treble" and "Phase Matching Bass", and
turn the dial to adjust.
I Front flap
J SLEEP button: Allows you to specify a time period after
which the unit enters standby automatically.
K PHONES jack: Stereo headphones with a standard plug
are connected.
