Operating Instructions
Air-to-Water Hydromodule + Tank
Model No.
Indoor Unit
WH-ADC0309K3E5UK
Outdoor Unit
WH-UDZ03KE5
WH-UDZ05KE5
WH-UDZ07KE5
WH-UDZ09KE5
ENGLISH
Before operating the system, please read these
operating instructions thoroughly and keep them
for future reference.
WEB-ACXF55-34150-EN
2
Table of contents
Safety precautions .......................................................4-16
Remote Controller buttons and display .....................17-18
Initialization .....................................................................19
Quick Menu ....................................................................20
How to use the Quick Menu ......................................21-25
Menus ........................................................................26-47
For user
1 Function setup ...................................................26-27
1.1 Weekly timer
1.2 Holiday timer
1.3 Quiet timer
1.4 Quiet priority
1.5 Room heater
1.6 Tank heater
1.7 Sterilization
1.8 DHW mode
2 System check ......................................................... 28
2.1 Energy monitor
2.2 System information
2.3 Error history
2.4 Compressor
2.5 Heater
3 Personal setup ...................................................29-30
3.1 Remote control No.
3.2 Touch sound
3.3 LCD contrast
3.4 Backlight
3.5 Backlight intensity
3.6 Clock format
3.7 Date & Time
3.8 Language
3.9 Unlock password
4 Service contact .......................................................30
4.1 Contact 1 / Contact 2
For installer
5 Installer setup > System setup ..........................31-41
5.1 Optional PCB connectivity
5.2 Zone & Sensor
5.3 Heater capacity
5.4 Anti freezing
5.5 DHW capacity
5.6 Buffer tank connection
5.7 Base pan heater
5.8 Alternative outdoor sensor
5.9 Bivalent connection
5.10 External SW
5.11 Solar connection
5.12 External error signal
5.13 Demand control
5.14 SG ready
5.15 External compressor SW
5.16 Circulation liquid
5.17 Heat-Cool SW
5.18 Force heater
5.19 Force defrost
5.20 Defrost signal
5.21 Pump fl owrate
5.22 DHW Defrost
5.23 Heating control
5.24 External meter
5.25 Electrical anode
6 Installer setup > Operation setup ......................42-46
6.1 Heat
6.2 Cool
6.3 Auto
6.4 Tank
7 Installer setup > Service setup ..........................46-47
7.1 Pump maximum speed
7.2 Pump down
7.3 Dry concrete
7.4 Service contact
8 Installer setup > Remote control setup ...................47
Cleaning instructions .................................................48-49
Troubleshooting .........................................................50-51
Information .................................................................52-53
Thank you for purchasing Panasonic product.
Installation Instructions attached.
Serial number and production year please refer to name plate.
Before use, make sure the system has been installed correctly by an
authorised dealer according to the given instructions.
• Panasonic Air-to-Water is a split system, consisting of two units: indoor and outdoor units. The indoor unit consist of the hydromodule
and 200L sanitary water tank.
• These operating instructions describe how to operate the system using the indoor and outdoor units.
• As for the operation of other products such as radiator, external thermo controller, and underfl oor units, refer to the operating instructions
of each product.
• System could be locked to operate in HEAT mode and disable COOL mode.
• Some functions described in this manual may not be applicable to your system.
• Ensure that incoming water is clean. When water tapped from a private well or spring water, it may be necessary to supplement with an
extra water fi lter.
• Do avoid using water containing salt, acid, and other impurities which may corrode the tank and its component.
• Consult your nearest authorised dealer for further information.
*1The system is locked to operate without COOL mode. It can be unlocked only by authorised installers or our authorised service partners.
*2Only displayed when COOL mode is unlocked (This means when COOL mode is available)
Operating conditions
WH-UDZ series *1, *2 COOLING (CIRCUIT)
HEATING (TANK) HEATING (CIRCUIT)
Water outlet temperature (°C)
(Min. / Max.) - / 65*320 / 55 (Below Ambient -15 °C) *4
20 / 60 (Above Ambient -10 °C) *
45 / 20
Outdoor ambient temperature (°C)
(Min. / Max.)
-20 / 35 (WH-UDZ03KE5)
-25 / 35 (WH-UDZ05/07/09KE5) 10 / 43
When the outdoor temperature is out of the range in the table, the heating capacity will drop signifi cantly and the outdoor unit may stop
operating for its protection.
The unit will restart automatically after the outdoor temperature returns to the specifi ed range.
*3 Above 55 °C, only possible with backup heater operation.
*4 Between outdoor ambient -10 °C and -15 °C, the water outlet temperature gradually decreases from 60 °C to 55 °C.

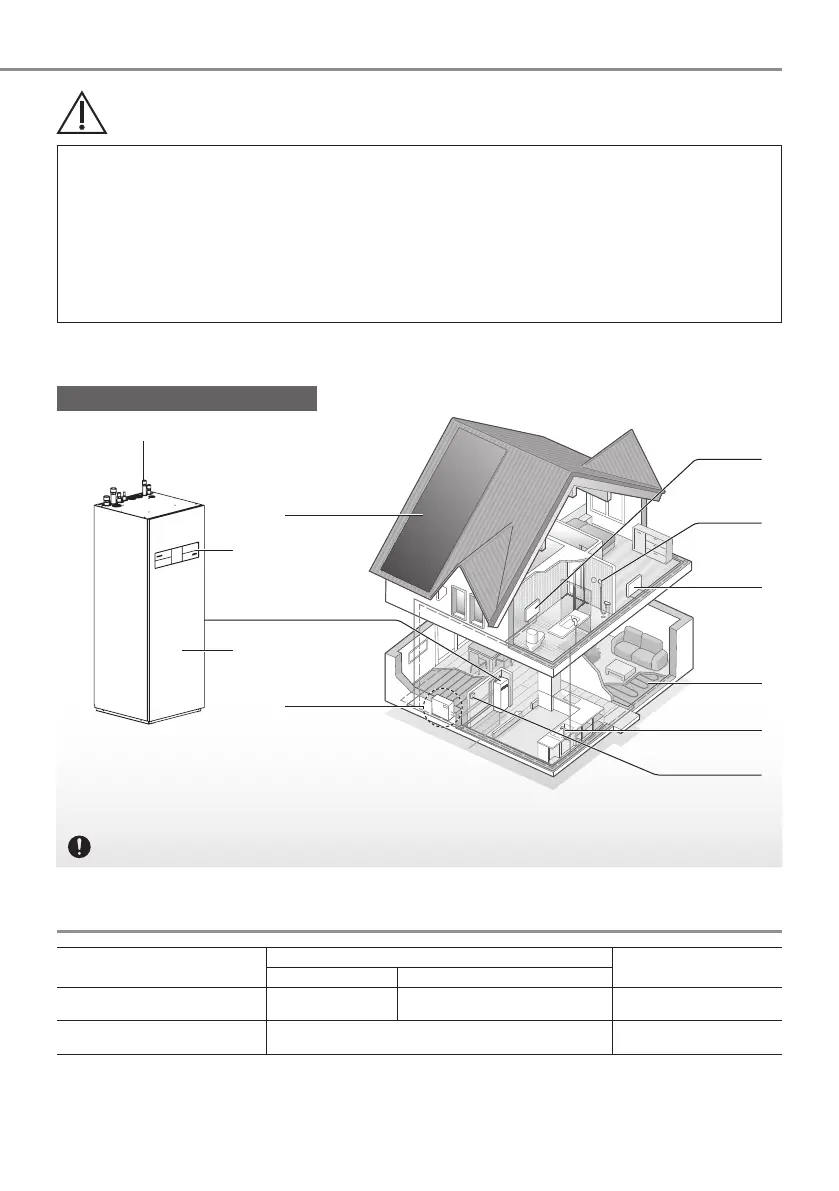

System overview
Radiator
Shower
Fan Coil
Unit
Floor
Heating
Outdoor Unit
Solar Panel
Power Supply
Indoor Unit
(Structure of the unit may vary depending
on the model)
Remote Controller
Front Plate
Tap
Note:
Not recommended to open the Front Plate.
(For authorised dealer/specialist use only)
The illustrations in this manual are for explanation purposes only and may differ from the actual unit.
They are subject to change without notice for future improvement.
Children aged from 3 to 8 years are only allowed to operate the tap connected to the water heater.
3
