Operating Instructions
Air-to-Water Heatpump
ENGLISH
Before operating the system, please read these
operating instructions thoroughly and keep them
for future reference.
Model No.
Indoor Unit
WH-SDC0509L3E5
WH-SDC0509L6E5
Outdoor Unit
WH-WDG05LE5
WH-WDG07LE5
WH-WDG09LE5
WEB-ACXF55-36270-EN
2
Table of contents
System overview, Operating conditions ............................3
Safety precautions .......................................................4-16
Protective zone ...............................................................17
Remote Controller buttons and display .....................18-19
Initialization .....................................................................20
Quick Menu ....................................................................21
How to use the Quick Menu ......................................22-26
Menus ........................................................................27-48
For user
1 Function setup ...................................................27-28
1.1 Weekly timer
1.2 Holiday timer
1.3 Quiet timer
1.4 Quiet priority
1.5 Room heater
1.6 Tank heater
1.7 Sterilization
2 System check .........................................................29
2.1 Energy monitor
2.2 System information
2.3 Error history
2.4 Compressor
2.5 Heater
3 Personal setup ...................................................30-31
3.1 Remote control No.
3.2 Touch sound
3.3 LCD contrast
3.4 Backlight
3.5 Backlight intensity
3.6 Clock format
3.7 Date & Time
3.8 Language
3.9 Unlock password
4 Service contact ....................................................... 31
4.1 Contact 1 / Contact 2
For installer
5 Installer setup > System setup ..........................32-42
5.1 Optional PCB connectivity
5.2 Zone & Sensor
5.3 Heater capacity
5.4 Anti freezing
5.5 Tank connection
5.6 DHW capacity
5.7 Buffer tank connection
5.8 Tank heater
5.9 Base pan heater
5.10 Alternative outdoor sensor
5.11 Bivalent connection
5.12 External SW
5.13 Solar connection
5.14 External error signal
5.15 Demand control
5.16 SG ready
5.17 External compressor SW
5.18 Circulation liquid
5.19 Heat-Cool SW
5.20 Force heater
5.21 Force defrost
5.22 Defrost signal
5.23 Pump fl owrate
5.24 DHW Defrost
5.25 Heating control
5.26 External meter
5.27 Electrical anode
6 Installer setup > Operation setup ......................43-47
6.1 Heat
6.2 Cool
6.3 Auto
6.4 Tank
7 Installer setup > Service setup ..........................47-48
7.1 Pump maximum speed
7.2 Dry concrete
7.3 Service contact
8 Installer setup > Remote control setup ...................48
Cleaning instructions .................................................49-50
Troubleshooting .........................................................51-52
Information .................................................................53-54
Thank you for purchasing Panasonic product.
Installation Instructions attached.
Serial number and production year please refer to name plate.
Before use, make sure the system has been installed correctly by an
authorised dealer according to the given instructions.
• Panasonic Air-to-Water Heatpump is a split system, consisting of two units: indoor and outdoor units. This system
is designed to operate with Panasonic Water Tank Unit. Unless used together with the Panasonic Water Tank Unit,
Panasonic does not guarantee any normal operation nor the reliability of the system.
• These operating instructions describe how to operate the system using the indoor and outdoor units.
• As for the operation of other products such as water tank, radiator, external thermo controller, and underfl oor units, refer
to the operating instructions of each product.
• Some functions described in this manual may not be applicable to your system.
• Consult your nearest authorised dealer for further information.
• Install the outdoor unit outdoors.
• System could be locked to operate in HEAT mode and disable COOL mode.

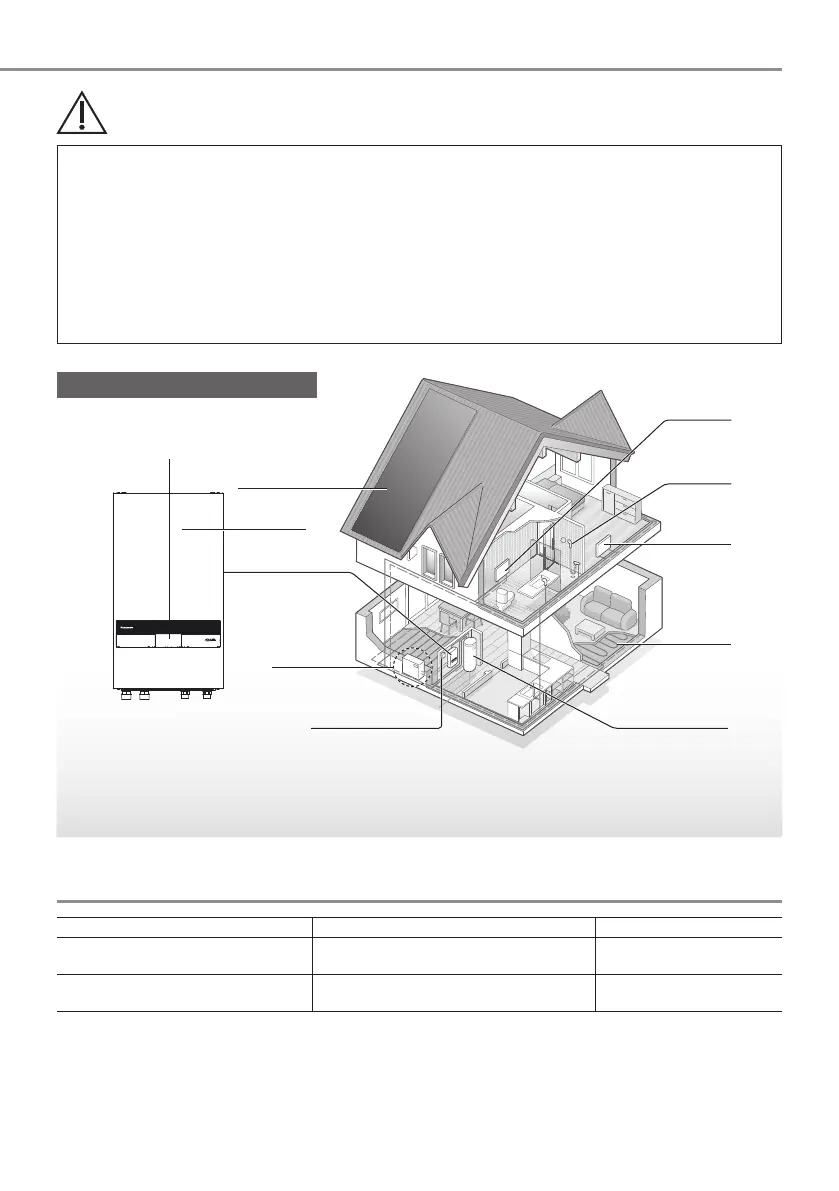

Outdoor
Unit
Power Supply
Solar Panel
Radiator
Shower
Fan Coil
Unit
Floor
Heating
Water Tank Unit
Indoor Unit
Remote Controller
System overview
Note:
Not recommended to open the Front Plate.
(For authorised dealer/specialist use only)
The illustrations in this manual are for explanation purposes only and may differ from the actual unit.
They are subject to change without notice for future improvement.
Front Plate
Operating conditions
HEATING (CIRCUIT) *1, *2 COOLING (CIRCUIT)
Water outlet temperature (°C)
(Min. / Max.)
20 / 55 (Below Ambient -20 °C) *3
20 / 75 (Above Ambient -10 °C) *
35 / 20
Outdoor ambient temperature (°C)
(Min. / Max.) -25 / 35 10 / 43
When the outdoor temperature is out of the range in the table, the heating capacity will drop signifi cantly and the unit may
stop operating for its protection.
The unit will restart automatically after the outdoor temperature returns to the specifi ed range.
*1 The system is locked to operate without COOL mode. It can be unlocked only by authorised installers or our authorised
service partners.
*2 Only displayed when COOL mode is unlocked (This means when COOL mode is available)
*3 Between outdoor ambient -10 °C and -20 °C, the water outlet temperature gradually decreases from 75 °C to 55 °C.
3
