INSTALLATION INSTRUCTIONS FOR BX-12SQ BACKBOX AND RVC-12SQ SUBWOOFER

STEP 2

PARADIGM DOES NOT SUPPLY SCREWS FOR MOUNTING BACKBOX

TO WALL. CHOOSE SCREWS APPROPRIATE FOR WALL COMPOSITION

AND WEIGHT OF BACKBOX WITH SUBWOOFER.

BX-12SQ BACKBOX: 26.4 lb / 12.0 kg

RVC-12SQ SUBWOOFER: 14.3 lb / 6.5 kg

TOTAL WEIGHT: 40.7 lb / 18.5 kg

IF YOU ARE NOT COMFORTABLE PERFORMING THE FOLLOWING PROCEDURE,

CONTACT A PROFESSIONAL INSTALLER.

NOTE: The required amount of damping material is included and correctly positioned in backbox. DO NOT remove, compact or add additional damping material. DO NOT add

damping material to wall directly behind backbox.

PARTS INCLUDED:

• 1 – Backbox • 2 – Mounting Brackets

• 1 – Wire Loop with screw • 1 – Removable MDF cover with 4 screws

• 4 – Gasket Tape Strips • 1 – Mounting Template

PARTS NOT INCLUDED:

• Minimum of 16 – #6 Drywall Screws (8 to attach brackets to box;

8 to attach box to wall) 3˝ Drywall nails may also be used to attach box to wall

NOTE: DO NOT PUNCTURE OR REMOVE THE PROTECTIVE PLASTIC THAT

COVERS PORT HOLES UNTIL READY TO INSTALL SUBWOOFER

60 in / 152.4 cm

TIP: Paint subwoofer before installing.

To prevent stray resonances from coloring output, backbox should

not touch studs—center it between studs.

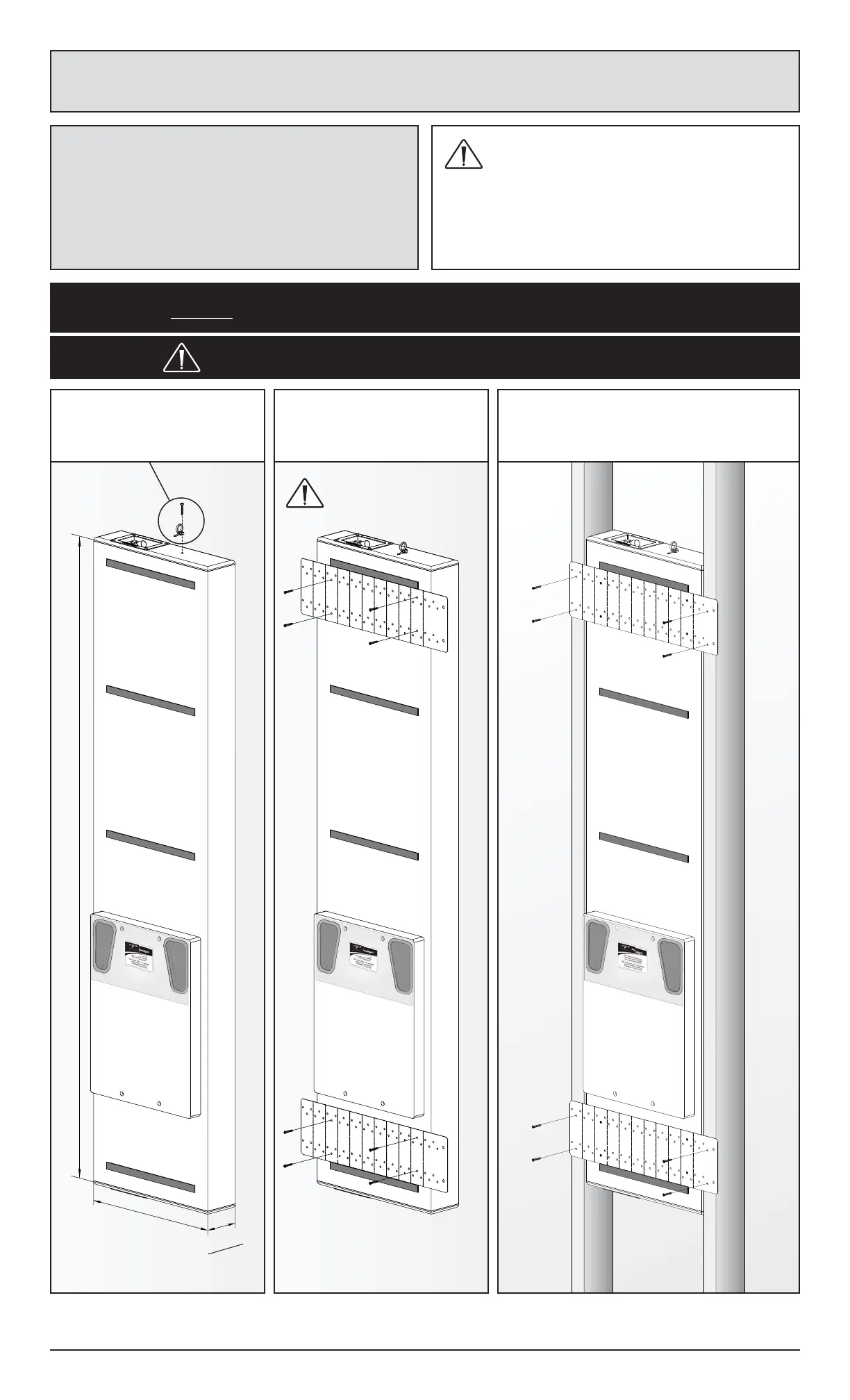

INSTALLING BACKBOX

CAUTION: Mounting brackets are made of

galvanized steel. Edges may be sharp.

INSTALLING BRACKETS

NOTE: Wire loop to harness speaker wire must

be attached with screw provided.

BACKBOX DIMENSIONS

14 in / 35.6 cm

3-3/8 in

8.6 cm

WARNING! Ports run vertically inside

backbox. To avoid damage, position

installation brackets as shown.

STEP 1

FOR USE WITH 5/8˝ OR 1/2˝ DRYWALL ONLY

STEP 4

INSTALLING SUBWOOFER

Remove protective cover. To prevent air leaks, before installing subwoofer, a

pply gasket tape

(included with subwoofer)

along

all 4 outer edges of box, overlapping tape at corners.

Remove port covers by pressing them out

(as shown)

Holding subwoofer firmly, push it into backbox being careful to align top holes in subwoofer with top holes in backbox.

Screw in until firm but not fully tightened. Continue holding subwoofer firmly and line up all bottom holes. Again, screw

in until firm but not fully tightened. Insert remaining screws. Tighten all screws.

RED (+) BLACK (–)

INSTALLING GRILLE

STEP 3

STEP 7 STEP 8

8 – #8-32 Machine Screws (to attach subwoofer

to backbox) and gasket tape strips are included

with subwoofer.

MAN1001006 | 2009.2

Snake wire through wire loop then along wall to amplifier location before drywalling.

WIRING

STEP 5

When cutting opening in drywall use the

dimensions provided below as a guide.

IMPORTANT! When laying drywall over

backbox, center hole cutout over MDF

cover, allowing an even gap on all sides.

DRYWALLING

Apply a strip of gasket tape along all 4 sides, overlapping tape at corners.

APPLYING GASKET TAPE

For subwoofer to

function correctly

and avoid damage

to amplifier or subwoofer, the

Impedance Matching Switch

must be correctly positioned.

Move the switch position to

reflect designated amplifier.

Refer to the Owners Manual

included with the amplifier

for more information.

NOTE: Dimensions

shown are for the

inside cutout.

12-5/8 in / 32.0 cm

16-7/16 in / 41.7 cm

IMPORTANT! To prevent dust and dirt

from entering backbox, do not remove

cover until ready to install subwoofer.

IMPORTANT! Port gaskets have

been factory-installed on your

Paradigm®RVC-12SQ backbox. If

you find additional gaskets packaged

with your subwoofer, please note

they are no longer required.
