Sida 1/4
• Reference Quality microphone inputs
• Two stereo channels with RCA and 1/4” inputs
• Three-band channel EQ
• A/B stereo input selector reduces patching
• Inserts on all mono channels
• 80 Hz low-cut switch
• Clip LEDs that thoroughly monitor clipping
• Phantom power switch
• Effects send on every channel with stereo return
• Monitor send on every channel
• Zero latency record monitoring capabilities
• Control room output with level control
• Contour control switch

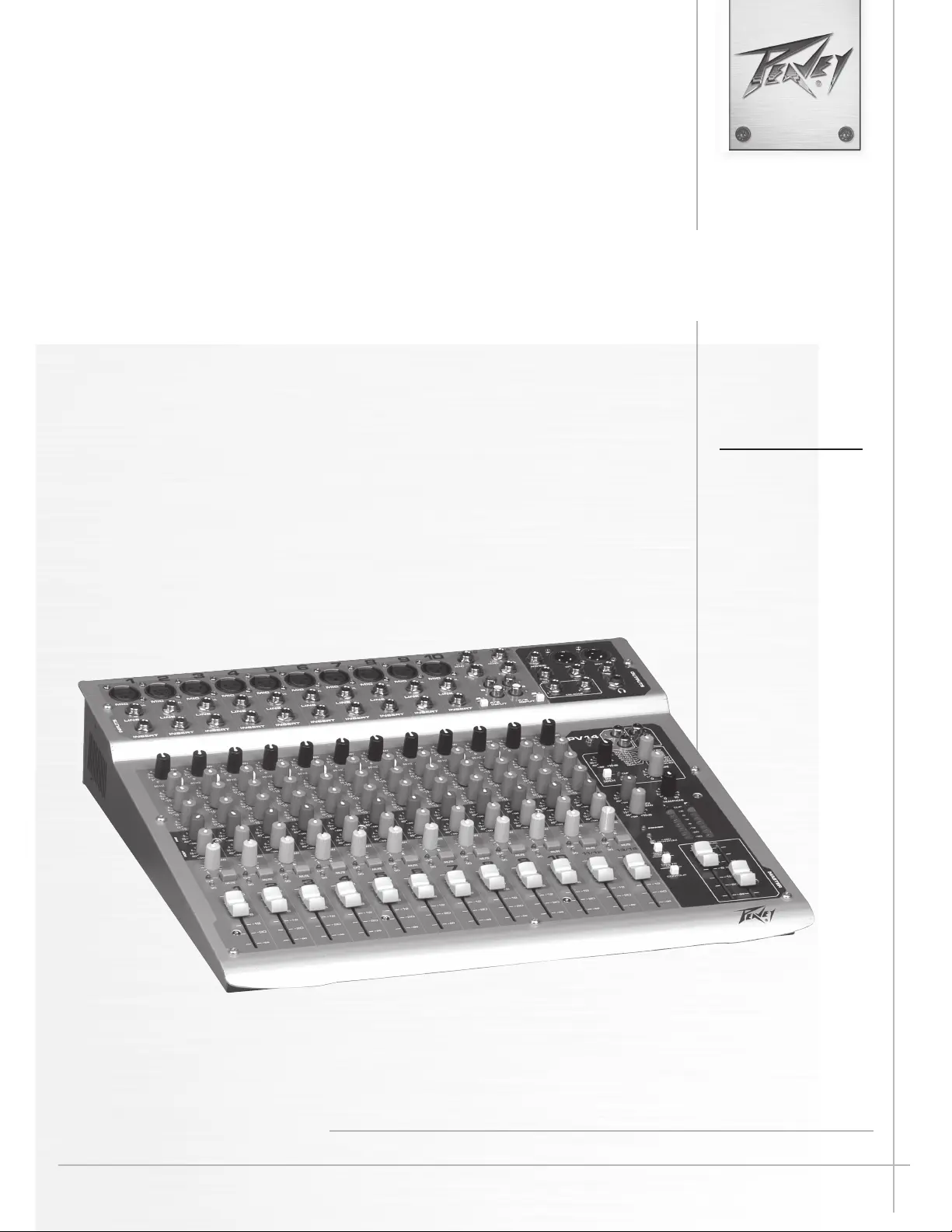

PV® 10 & 14
The PV® 10 &14 compact mixers have the best features, quality and price of any mixers in their class.
Peavey’s reference-quality mic preamps spec in at an incredible .0007 THD making the PV 14 mixer
excellent for live or recording applications. The PV mixers include three-band EQ, effects send, moni-
tor send on each channel and insert points on each mono channel. The master section includes 48 volt
phantom power, built-in digital effects, effects send and return, assignable tape input and a unique master
contour EQ that helps sweeten the mix. Dual XLR and 1/4 inch outputs allow the mixer to easily con-
nect with other equipment. Sleek metal design adds strength, durability and looks like no other mixer in
this price range. Rack mount kit available.
Features:
PV 10 & 14 - Pg. 1
SPECIFICATIONS
Function
Microphone
(150 Ohms)
Line (10 k Ohms)
Stereo Line Input
Tape
Input Z
(Ohms min)
2.2 k
10 k
10 k
10 k
Input Gain
Setting
Max Gain
(60 dB)
Min Gain
(10 dB)
Max Gain
(40 dB)
Min Gain
(-10 dB)
Max Gain
(20 dB)
Nominal
N/A
(10 dB)
Nominal*
-56 dBu
-4 dBu
-36 dBu
+14 dBu
-16 dBu
-1 dBu
-10 dBV
Max
-38 dBu
+14 dBu
-18 dBu
+32 dBu
+2 dBu
+17 dBu
+12 dBu
Bal/Unbal
Bal
Bal
Unbal
Unbal
Connector
XLR Pin 1 Gnd
Pin 2 (+)‚ Pin 3 (-)
1⁄4" TRS; Tip (+)‚
Ring (-)‚ Sleeve
Ground
1⁄4" TS; Tip (+)‚
Sleeve Ground
RCA Phono
Input Levels
Min**
-76 dBu
-24 dBu
-56 dBu
-10 dBu
-36 dBu
-21 dBu
-17 dBu
Function
Main Left/Right
Effects and
Monitor Sends
Control Room
Headphone
Tape
Min Load Z
(Ohms)
600
600
600
8
2.2 k
Nominal
+4 dBu
+4 dBu
+4 dBu
+4 dBu (no load)
+4 dBu
Max
+22 dBu
+22 dBu
+22 dBu
+22 dBu
+22 dBu
Bal/Unbal
Bal
Bal
Bal
Unbal
Unbal
Connector
XLR Pin Ground Tip
Pin 2 (+), Pin 3 (-)
1⁄4" TRS: Tip (+), Ring (-),
Sleeve Ground
1⁄4" TRS, Tip (+)‚ Ring (-)
Sleeve Ground
1⁄4" TRS, Tip (+)‚ Ring (-)
Sleeve Ground
1⁄4" TRS; Tip Left‚ Ring Right‚
Sleeve Ground
RCA Phono
Output Level
0 dBu = 0.775 V (RMS)
** Min Input Level (sensitivity) is the smallest signal that will produce nominal output (+4 dBu) with channel and master faders set for
maximum gain.
* Nominal settings are defined as all controls set at 0 dB (or 50% rotation for rotary pots) except the gain adjustment pot which is as
specified.
0 dBu = 0.775 V (RMS)
Inputs
Outputs
PV® 10 & 14
PV 10 & 14 - Pg. 2
PV® 10 & 14
PV 10 & 14 - Pg. 3
Gain
Mic Input Gain Adjustment Range: 10 dB to 60 dB
Mic Input to Left/Right Balance Output 88 dB (max gain)
Line Input Gain Adjustment Range: -10 dB to 40 dB
Line Input to Left/Right Balance Output 60 dB (max gain)
Stereo Line Input Gain Adjustment Range: Off to +20 dB
Stereo Line Input to Left/Right Output 40 dB (max gain)
Output
Master Left/Right
Monitor Send
Effects Sends
Residual Noise
-97 dBu
-90 dBu
-83 dBu
-95 dBu
-80 dBu
-100 dBu
-80 dBu
S/N Ratio (Ref: +4 dBu)
101 dB
94 dB
87 dB
99 dB
84 dB
104 dB
84 dB
Test Conditions
Master Fader Down‚ Channel Levels Down
Master Fader Nominal‚ Channel Levels Down
Master Fader Nominal, Channel Faders Nominal,
Panned Odd Channels (left), Even Channels (right)
All controls off
All channel sends nominal, masters nominal
All controls off
All channel sends nominal, masters nominal
(Hum and noise measurements: 22 Hz to 22 kHz BW)
Frequency Response
Mic Input to Left/Right Output 14 Hz to 25 kHz +0 dB/-1 dB
Total Harmonic Distortion
<0.02% 20 Hz to 20 kHz Mic to Left/Right Output (10 Hz to 80 kHz BW)
<0.005% Typical (22 Hz to 22 kHz BW)
<0.0007% Mic Pre-amp Distortion
Equivalent Input Noise (EIN)
-129 dBu (input terminated with 150 Ohms)
Crosstalk/Attenuation
Adjacent Input Channels (1 kHz) >90 dB Mute Button Attenuation (1 kHz) >90 dB
Left to Right Outputs (1 kHz) >75 dB Channel Fader Kill (1 kHz) >85 dB
Common Mode Rejection Ratio (Mic Input)
50 dB minimum (20 Hz to 20 kHz)
70 dB typical @ 1 kHz
Meters
8 segment, peak reading (0 dB = +4 dBu)
Hum and Noise
