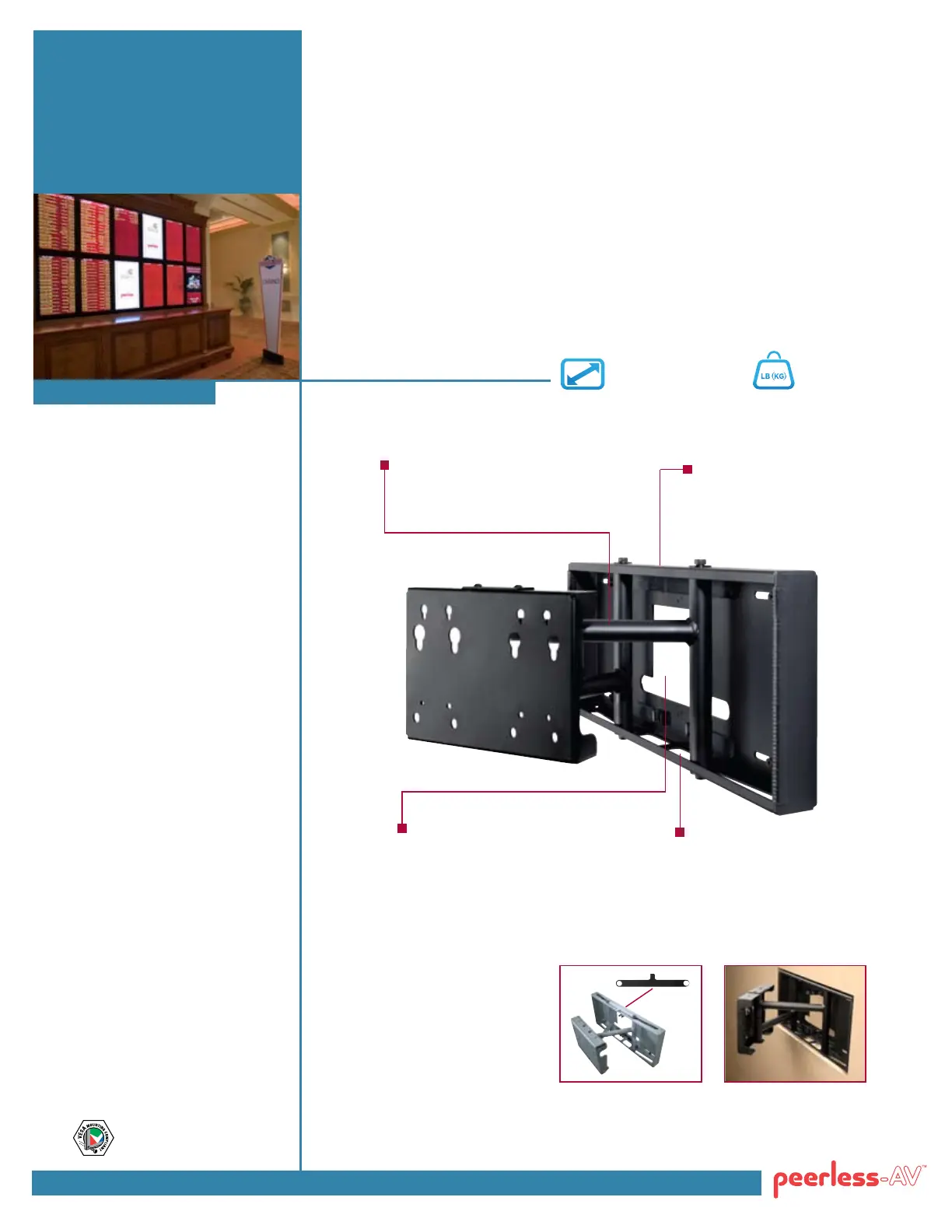

Pull-out Swivel Wall Mount

For 26" to 60" Flat Panel Displays

The FPS-1000 Pull-out Swivel Wall Mount combines the best features of a wall mount and a

pivot arm in one. This mount is essential for on the wall, low-prole, single or multi-panel video

wall installations or hospitality recessed applications. It comes standard with VESA® 100/200mm

compliant mounting hole pattern and is compatible with Peerless-AV PLP adapter technology

to accommodate virtually any at panel display. Installation and maintenance is made easy

with 4" (101.6mm) of horizontal on the wall shift, LockKey™ safety feature and easy access to

the back of the display for maintenance. Functionality, great looks and display compatibility

options combined with versatile installation features make the FPS-1000 the ideal solution for

any single or multi-display installation.

CLEAN PROFILE DESIGN

Hides cables within

enclosed wall plate for

a clutter-free installation

ENHANCED SECURITY

Prevent tampering or theft

with unique LockKey™

installation brace and security

screws on the adapter plate

TV size: 26"-60" (66-152cm) Max load: 150lb (68kg)

FPS-1000

 Built-in swivel up to 90º

(45° each direction) allows for

adjustable viewing angles

 Easy pull-out swivel provides

quick maintenance access

 Built in adapter plate

supports VESA® 100 x 100 and

200 x 100mm compatibility

 Works with Peerless-AV

dedicated and universal PLP

mounting adapter plates

 2.18" (55.37mm) deep when

closed, swivel arms extend to

10.52" (267.21mm)

 Ideal for wall mount

applications and attachment

to false backsplashes

 Roll can be adjusted 1°

clockwise or counterclockwise

 Clean prole design hides

wiring and mount within

enclosed wall plate

 Includes security lock out

screw to eliminate pull out

ability

 Security screws prevent

tampering and theft

 Mounts on 16" (406.4mm)

studs, with up to 4" (101.6mm)

of horizontal shift

FEATURES

OPTIMUM VIEWING ANGLE

Offers up to 90º of swivel for exible

TV positioning, with 45º each way

LockKey™

installation tool

Perfect for in-wall or

recessed applications

PULL-OUT SERVICE ACCESS

Provides easy access to the back

of the display for maintenance

* OSHPD Approval Pending

CLICK: CALL: FAX: www.peerless-av.com 800.865.2112 800.359.6500

PACKAGE SIZE (L x W x H) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN

PACKAGE

FPS-1000 25" x 5.25" x 12"

(635 x 133 x 305mm) 20lb (9.07kg) 735029239444

Wall mount assembly,

LockKey™ installation

tool, locking swivel tab,

cable management

sleeve, fastener packet

including VESA® 100 x

100 and 200 x 100mm

display attachment

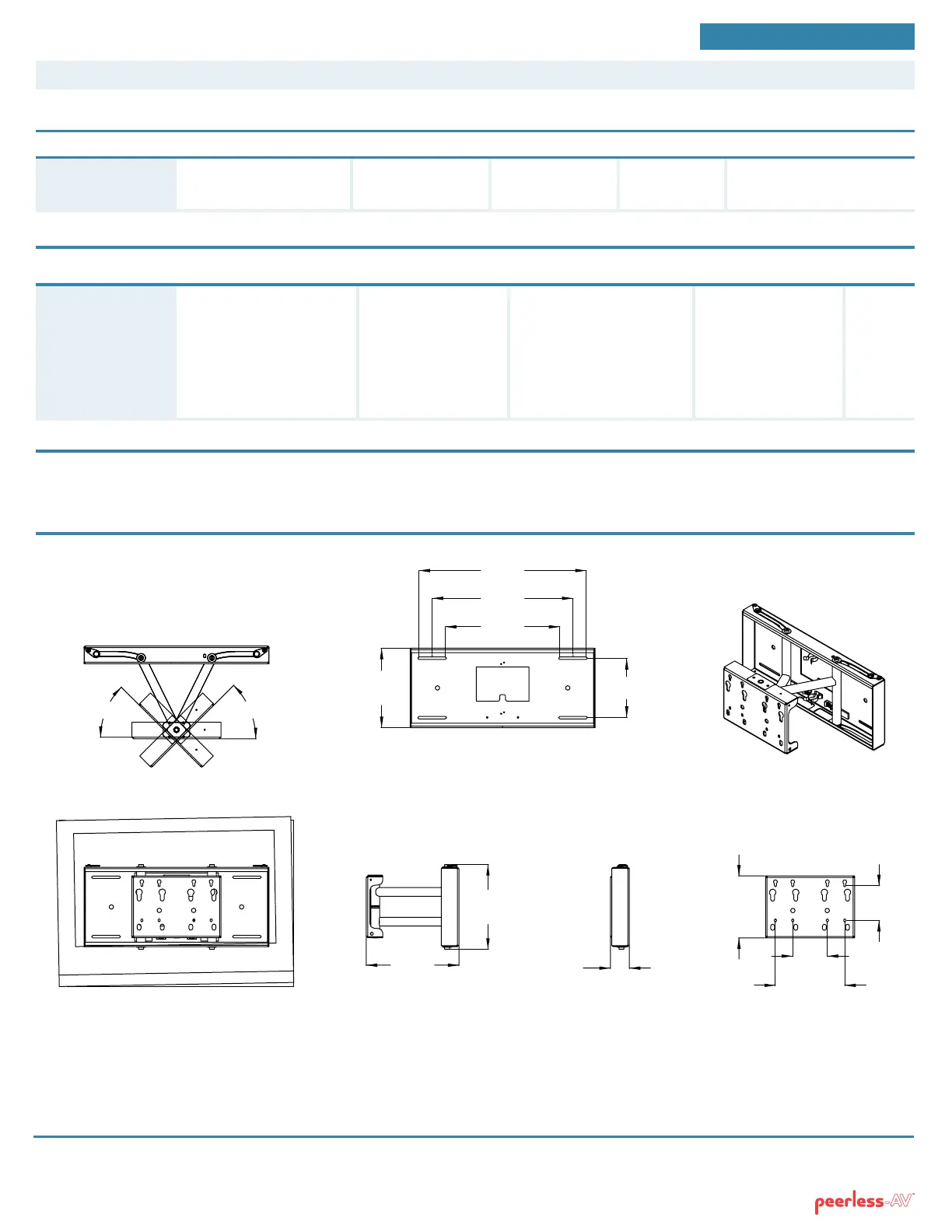

Package Speciﬁcations

DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS

FPS-1000 21" x 9.64" x 10.52"

(533 x 245 x 267mm) 17.6lb (7.98kg) 150lb (68.04kg)

Scratch

resistant fused

epoxy

Black

Product Speciﬁcations

Model Numbers WARRANTY: Limited 5-year

A R C H I T E C T S S P E C I F I C A T I O N S

The Flat Panel Pull-out Swivel Wall Mount shall be a Peerless-AV model FPS-1000 and shall be located where indicated on the plans.

It shall be constructed of heavy gauge steel. It shall feature up to 45° of swivel left and right depending on screen size.

It shall feature +/- 1° of roll. The nish shall be scratch resistant fused epoxy.

Assembly and installation shall be done according to instructions provided by the manufacturer.

LIT-0451 rev.2

FPS-1000 Pull-out Swivel Wall Mount for 26" to 60" (66 to 152cm) at panel displays

All dimensions = (mm)inch

Accessories

VESAACC450 ® 200 x 200 mm Accessory Plate

Works with all PLP-style VESA® mounting hole adapter plates

Metal stud wall plate, 16" on centerWSP816 (-W)

WSP820 (-W) Metal stud wall plate, 20" on center

WSP824 (-W) Metal stud wall plate, 24" on center

45°

10.53"

(267 mm)

9.64"

(245 mm)

19.00"

(483 mm)

16.00"

(406 mm)

13.00"

(330 mm)

6.75"

(171 mm)

9.02"

(229 mm)

7.04"

(179 mm)

3.94"

(100 mm)

3.94"

(100 mm)

7.88"

(200 mm)

45°

2.16"

(55 mm)

Side View Extended Side View Collapsed Bracket Detail

Wall Bracket Detail

Top View

Front View

ISO View

+/-1° Roll

Visit www.peerless-av.com to see the complete line of AV solutions from Peerless-AV, including at panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.
