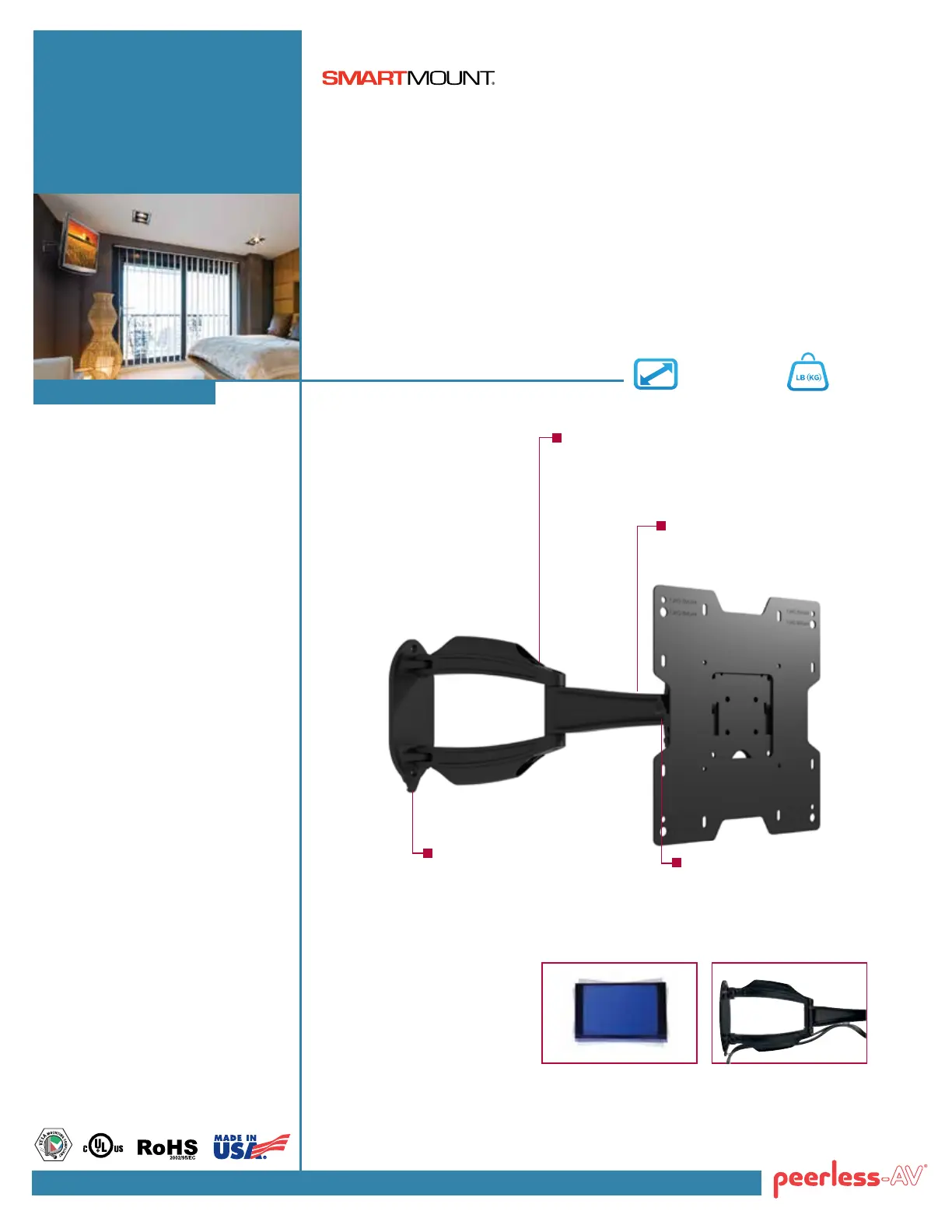

Articulating Wall Arm

For 22"-40" Displays

From any angle, this wall arm mount reects remarkable form and function. Extending the display

up to 20.18" (513mm) from the wall and allowing for a full 180° of side-to-side motion for viewing

in any part of the room. Fine-tuning of the installation is simple with its side-to-side display leveling

features that help achieve installation perfection. This articulating arm also provides display

centering on the wall plate and integrates a cable management system, centering the display

on the wall when retracted and organizing and protecting the cables at all times. Designed and

built in the USA, this mount maintains the same brilliant look as the entire SmartMount® 700 Series

line of Articulating and Pivot Wall Arm Mounts.

Display size: 22"-40" Max load: 55lb (25kg)

SA740P

 Compatible with

22" to 40" displays with

mounting hole patterns of

75,100, 200 x 100, and 200

x 200mm

 Display can be held as

close to the wall as 3.35"

(85mm) or be extended

as far as 20.18" (513mm)

 One-TouchTM tilt

mechanism provides

up to +15°/-5° of tilt

adjustment for achieving

the ideal viewing angle

 ±5° of roll allows for post

installation leveling

 Display can be pivoted

a full ±90° for obtaining

ideal viewing direction

 Integrated cable

management system

makes running cables

simple while keeping

the cables protected

 Display centers on wall

plate for easy mount

placement

 UL Listed

FeatureS

Integrated cable management

protects and organizes cables

Viewing Flexibility

Arm extends up to 20.18"

(513mm) from wall

ideal tilt with JuSt a touch

One-TouchTM tilt allows adjustment

of +15° /-5° without the use of tools

remarkable Form

Single stud mounting

for a low-prole and

fast installation

clean application

Integrated cable management

system keeps cables organized

and protected

Post-Installation leveling

* OSHPD Approval Pending

click: call: Fax: peerless-av.com 800.865.2112 800.359.6500

Patented. Design Patent No. D630,197; D640,673; D631,038; D640,675.

Utility Patent No. 8,028,964 .

A R C H I T E C T S S P E C I F I C A T I O N S

The SmartMount® Articulating Wall Arm shall be a Peerless-AV model SA740P and shall be located where indicated on the plans. It shall feature scratch

resistant black or silver fused epoxy nish. Assembly and installation shall be done according to instructions provided by the manufacturer.

LIT-0445 rev.6

PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE

SA740P 13" x 10" x 4"

(330 x 250 x 101mm) 8.45lb (3.8kg) 735029237327

Mount, wall and display

attachment hardware,

installation instructions

Package Speciﬁcations

Accessories

DImENSIONS (W x H x D) LOAD CAPACITy FINISH AVAILABLE COLORSPRODUCT WEIGHT

SA740P 13.25" x 9.35" x 3.35"-20.18"

(337 x 237 x 85-513mm) 8lb (3.6kg) 55lb (25kg)

Scratch

resistant

fused

epoxy

Gloss Black

Product Speciﬁcations

Model Numbers WARRANTY: Limited 5-year

All dimensions = (mm)inch

SA740P SmartMount® Articulating Wall Arm for 22"-40" Displays

ACC919: Security Fasteners

WSP700: Metal Stud Wall Plate for 16" Center Metal Studs

WSP701: Metal Stud Wall Plate for 20" and 24" Center Metal Studs

Peerless Industries, Inc. 2300 White Oak Circle Aurora, IL 60502 (800) 865-2112 (630) 375-5100 Fax: (800) 359-6500 peerless-av.com     

Visit peerless-av.com to see the complete line of AV solutions from Peerless-AV, including at panel mounts, projector mounts, carts/stands, furniture, cables, display cleaners and a full assortment of accessories.

3.94"

(100mm)

7.87"

(200mm)

8.75"

(222mm)

7.87"

(200mm)

3.94"

(100mm)

3.35"

(85mm)

20.18"

(513mm)

13.25"

(337mm)

FRONT VIEW

SIDE VIEW

RETRACTED

TOP VIEW

7.87"

(200mm)

9.35"

(237mm)

WALL PLATE

6.50"

(165mm)

3.12"

(79mm)

0.50"

(13mm)

8.06"

(205mm)

SIDE VIEW

15° TILT EXTENDED

21.41"

(544mm)
