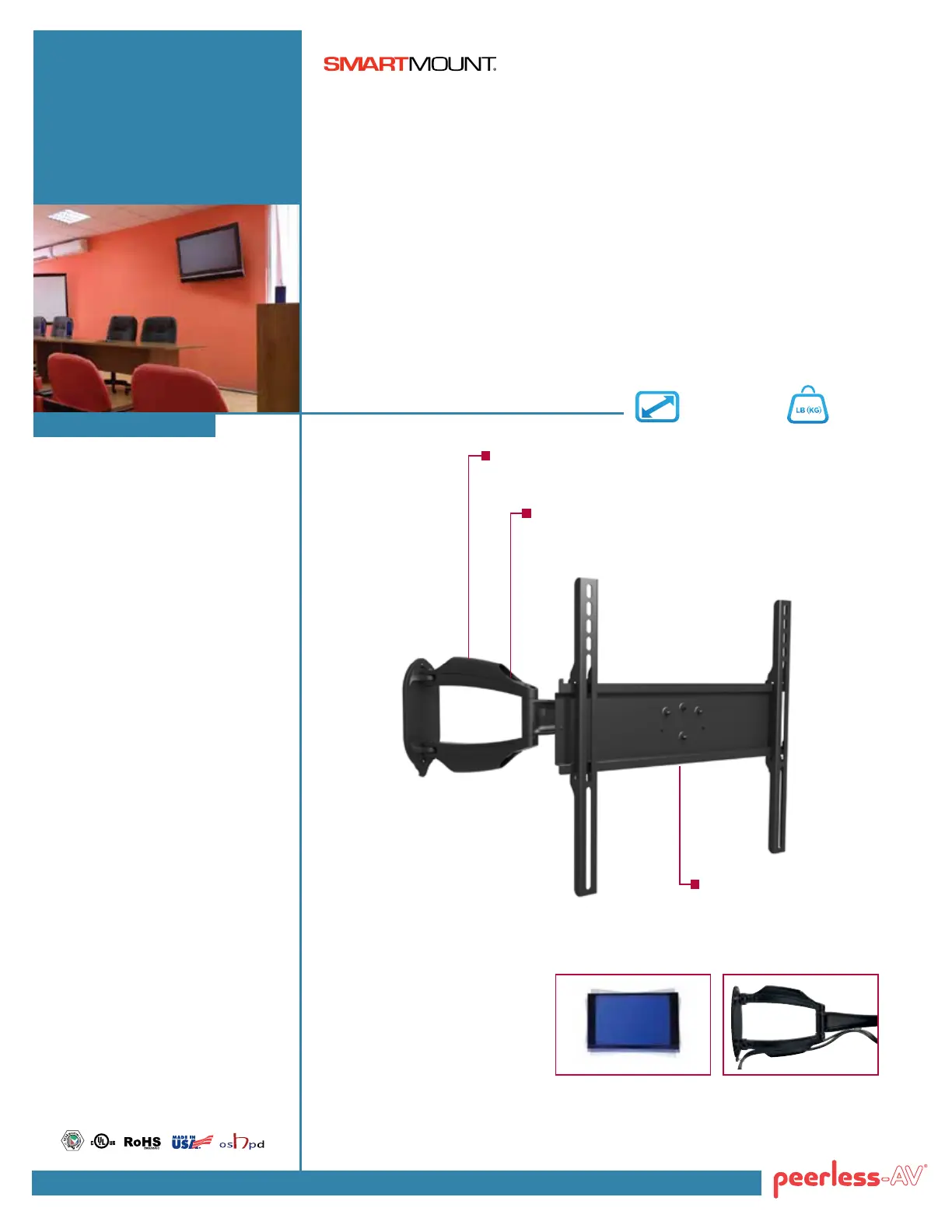

Articulating Wall Arm

For 32"-50" Displays

From any angle, this articulating mount reects remarkable form and function. This noticeably

smaller and lighter weight universal, two-link articulating arm will accommodate a wide range

of displays, delivering ultimate performance and maximum support with a minimal footprint. This

articulating arm’s design features a fold-at-and-center design that centers the display on the

wall plate when the mount is in its closed position. It provides a clean aesthetic with its cable

management system that easily hides, organizes and routes cables, focusing all the attention on

the display. With an exceptional extension up to 20.92" (531mm) from the wall and a full 180° of

side-to-side motion, this mount provides virtually unlimited viewing possibilities. Installation is made

simple with post installation ne-tuning that allows for display alignment adjustments, ensuring

the display is level even if the mounting surface is not perfect. Designed and built in the USA.

Cable management from display

to wall plate protects and

organizes cables

Display size: 32"-50" Max load: 70lb (32kg)

SA746PU

 Universal display adaptors

provide compatibility

with up to a VESA® 400

x 400mm mounting hole

pattern

 Arm extends up to 20.92"

(531mm) from wall

 Three adjustable pivot

points for versatile display

positioning

 Tilt mechanism offers up to

+15/-5° of One-Touch™ tilt

 ±5° roll aide in post-

installation display leveling

 Integrated cable

management keeps

cables out of the way

 Fold-at-and-center

design that positions the

display centered on the

wall plate when the mount

is collapsed

FeatureS

Post-installation leveling

Viewing Flexibility

Arm extends up to 20.92"

(531mm) from wall

ideal tilt with JuSt a touch

Tilt mechanism offers up to +15/-5°

of One-Touch™ tilt

clean application

Integrated cable

management conceals

cables and wire

clicK: call: Fax: peerless-av.com 800.865.2112 800.359.6500

Patented. Design Patent No. D634,739; D643,835; D631,874; D666,180; D640,675; D630,197.

Utility Patent No. 8,348,212; 8,517,322.

A R C H I T E C T S S P E C I F I C A T I O N S

The SmartMount® Articulating Wall Arm shall be a Peerless-AV model SA746PU and shall be located where indicated on the plans.

Assembly and installation shall be done according to instructions provided by the manufacturer.

Mount is made of scratch resistant epoxy black nish.

LIT-0567 rev.4

PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE

SA746PU 21" x 11.5" x 5"

(533 x 292 x 127mm) 9.5lb (4.3kg) 735029271901 Mount, display and

mounting hardware 1

Package Speciﬁcations

Accessories

DImENSIONS (W x H x D) LOAD CAPACITy FINISH AVAILABLE COLORSPRODUCT WEIGHT

SA746PU 18.75” x 17.00” x 4.34”-20.92”

(476 x 432 x 110-531mm) 8.82lb (4kg) 70lb (32kg)

Scratch

resistant

fused

epoxy

Gloss black

Product Speciﬁcations

Model Numbers WARRANTY: Limited 5-year

All dimensions = (mm)inch

SA746PU SmartMount® Articulating Wall Arm for 32"-50" Displays

ACC925: Security Fasteners

WSP700: Metal Stud Wall Plate for 16" Center Metal Studs

WSP701: Metal Stud Wall Plate for 20" and 24" Center Metal Studs

Peerless Industries, Inc. 2300 White Oak Circle Aurora, IL 60502 (800) 865-2112 (630) 375-5100 Fax: (800) 359-6500 peerless-av.com     

Visit peerless-av.com to see the complete line of AV solutions from Peerless-AV, including at panel mounts, projector mounts, carts/stands, furniture, cables, display cleaners and a full assortment of accessories.

17.00"

MAX.

(432mm)

16.06"

MAX.

(408mm)

18.75"

(476mm)

4.34"

(110mm)

20.92"

(531mm)

22.42"

(569mm)

17.00"

(432mm)

1.25"

(32mm)

0.85"

(21mm)

0.91"

(23mm)

FRONT VIEW

SIDE VIEW

VERTICAL ADAPTER

WALL PLATE

6.50"

(165mm)

3.12"

(79mm)

0.50"

(13mm)

8.06"

(205mm)

SIDE VIEW

15° TILT EXTENDED
