Sida 1/24
12014-06-20 #:009-9085-9 (2019-09-04)
ENG

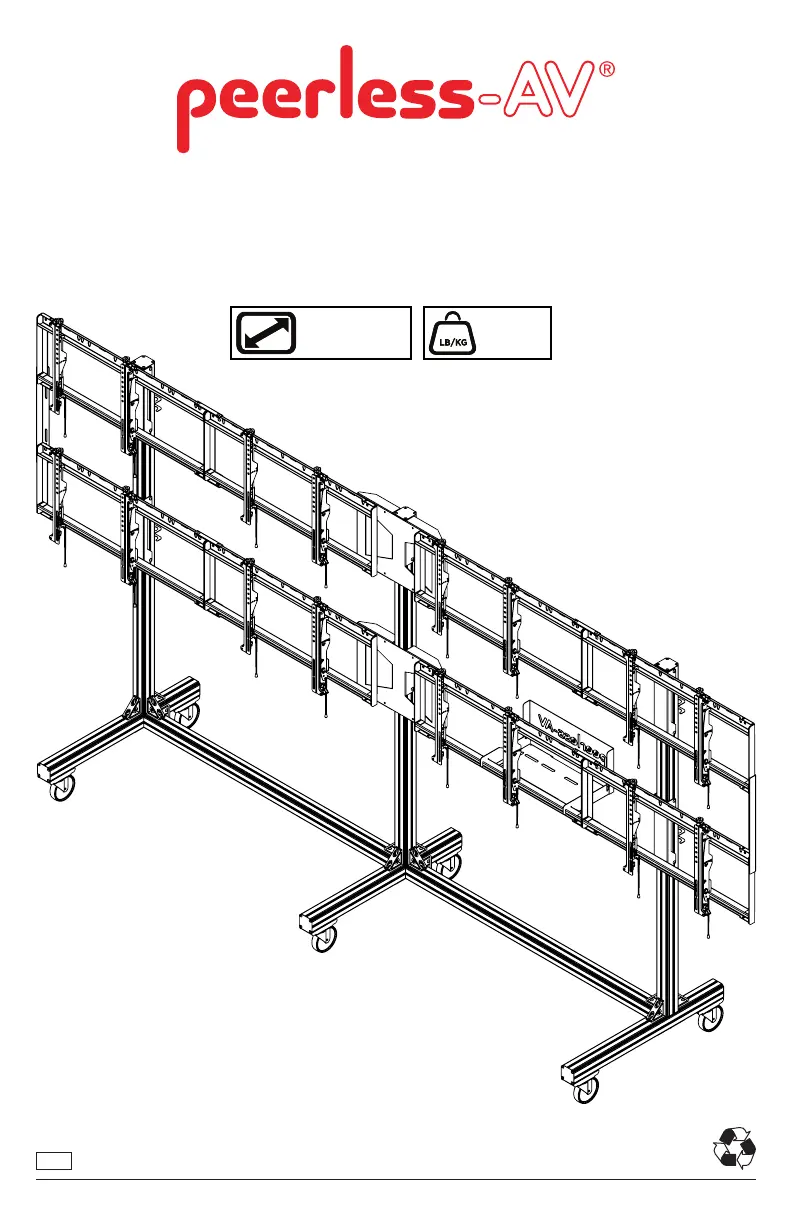

DS-C555-4X2
46" - 55"
(117 - 140 cm)
800 lb
(363 kg)
MAX
22014-06-20 #:009-9085-9 (2019-09-04)
To properly tighten screws: Tighten until screw
head makes contact, then tighten another 1/2
turn. Do not overtighten screws.
1
2
+1/2
4
3
Symbols
ENG
WARNING
ENG
Display center.ENG
x3
Screws must get at
least three full turns
and t snug.
ENG
Do not overtighten screws.ENG
ENG - Do not begin to install product until you have read and understood the instructions and warnings
contained in this user guide. Always use an assistant or mechanical lifting equipment to safely lift and position
equipment. This product must be installed onto at, hard, level surface to prevent tipping. Use with heavier
displays may result in instability causing tip over resulting in death or serious injury. The cart or stand is not
a󰀩xed or secured to the oor, and may therefore tip over and/or fall if screen and/or stand is shaken or hit.
Displays must be removed before moving cart. Not recommended for use in areas with heavy tra󰀩c. This product
is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury.
Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never
exceed the Maximum Load Capacity. Be careful not to pinch ngers when operating the mount. Death or serious
injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed
on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on
to the child. Relocating audio and/or video equipment to furniture not specically designed to support audio and/
or video equipment may result in death or serious injury due to the furnishing collapsing or over turning onto a
child. For support please call customer care at 1-800-865-2112.
WARNING
ENG
32014-06-20 #:009-9085-9 (2019-09-04)
Parts (Before beginning, make sure you have all parts shown below).
Parts List
Part #Description Qty
Acaster, 5" swivel 6 600-0026
Bcaster support 6 145-T1799
Ccover 9 145-T1809
Dbase leg 3 145-T1767
Ehorizontal leg support 2 145-T1785
Fbase support tube 3 145-T1812
Gbase support 14 560-T1261
Hvertical leg support 3 146-T1131
Ileft adaptor bracket 8 146-1609
Jright adaptor bracket 8 146-1608
Kside support bracket 2 145-T1807
Lvertical support bracket 4 145-T1806
Mcomputer cover 1 145-T1930
Ncomputer shelf 1 145-T1931
Odual cross support 4 146-T1905
Pcord bracket 6 146-T1321
Qknob 6 560-1160
Rbracket, 4x2 conguration 2 145-T1858
SM8 x 16mm socket button screw 200 520-9527
TM8 square nut 84 530-1066
Ucover clip 36 590-0317
VM5 x 10mm type-f, socket pin screw 18 520-1164
Wbar nut 28 146-1319
X1/4" power bit 1 560-0263
Y5mm allen wrench 1 560-9640
Znylon shoulder washer 32 590-2233
AA M6 x 12mm socket pin screw 32 520-1050
BB 4mm allen wrench 1 560-9646
A (6)
caster
B (6)
caster support C (9)
cover
D (3)
base leg
E (2)
horizontal leg
support
F (3)
base support
tube
H (3)
vertical leg
support
L (4)
vertical support
bracket
G (14)
base support J (8)
right adaptor
bracket
I (8)
left adaptor
bracket
K (2)
side support
bracket
ENG
