Sida 1/24
12015-06-24 #:009-9117-6 (2020-01-14)
ENG

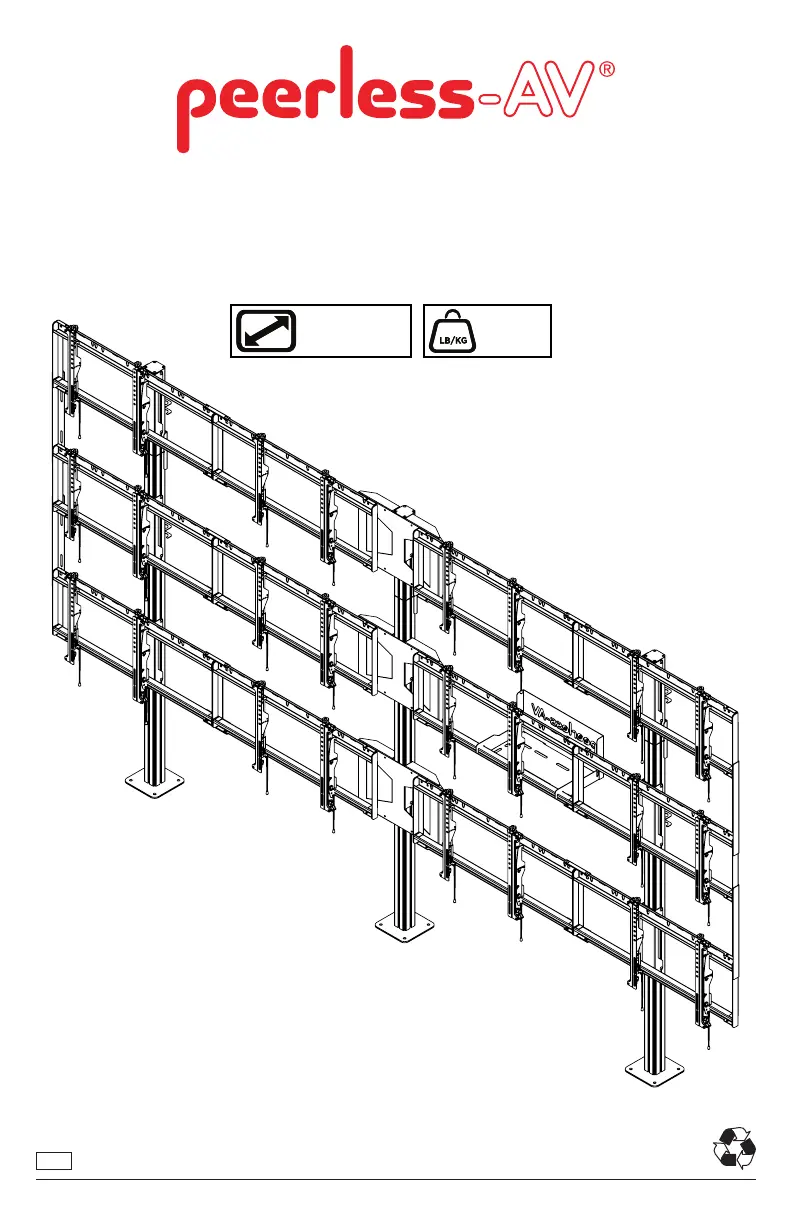

DS-S555-4X3
46" - 55"
(117 - 140 cm)
1200 lb
(544 kg)
MAX
22015-06-24 #:009-9117-6 (2020-01-14)
ENG - This product is designed to be installed on solid concrete. Hardware is included for solid concrete
installation. Before installing make sure the supporting surface will support the combined load of the equipment
and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product
may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to
safely lift and position equipment. This product is intended for indoor use only. Use of this product outdoors could
lead to product failure or personal injury. Be careful not to pinch ngers when operating the mount. For support
please call customer care at 1-800-865-2112.
WARNING
Symbols
ENG
WARNING
ENG
x3
Screws must get at
least three full turns
and t snug.
ENG
Do not overtighten screws.
ENG
Tools Needed for Assembly.ENG
To properly tighten screws: Tighten until screw
head makes contact, then tighten another 1/2
turn. Do not overtighten screws.
1
2
+1/2
4
3
ENG
Display center.
ENG
3/8"
(10mm)
3/8"
(10mm)
32015-06-24 #:009-9117-6 (2020-01-14)
Parts (Before beginning, make sure you have all parts shown below).
Parts List
Part #Description Qty
Apedestal 3 147-T1426
Bcolumn 3 146-T1131
Cextension 3 145-T1778
Dcover 3 145-T1809
Eside support bracket 4 145-T1807
Fvertical support bracket 6 145-T1806
Gleft adaptor bracket 12 146-1609
Hright adaptor bracket 12 146-1608
Icomputer cover 1 145-T1930
Jcomputer shelf 1 145-T1931
Kdual cross support 6 146-T1905
Lextension adaptor 3 145-T1935
Mcord bracket 6 146-T1321
Nbracket, 4x2 conguration 3 145-T1858
Oknob 6 560-1160
PM8 x 16mm socket button screw 140 520-9527
QM8 square nut 56 530-1066
Rcover clip 12 590-0317
SM5 x 10mm type-f, socket pin screw 26 520-1164
T1/4" power bit 1 560-0263
Ubar nut 6 146-1319
V5mm allen wrench 1 560-9640
Wnylon shoulder washer 48 590-2233
XM6 x 12mm socket pin screw 48 520-1050
Y4mm allen wrench 1 560-9646
ZM6 x 35mm screw 12 520-0717
AA rawl bolt #6913 12 5M9-381-H03
D (3)
cover
B (3)
column
F (6)
vertical support
bracket
E (4)
side support
bracket
A (3)
pedestal
C (3)
extension
H (12)
right adaptor
bracket
G (12)
left adaptor
bracket
ENG
