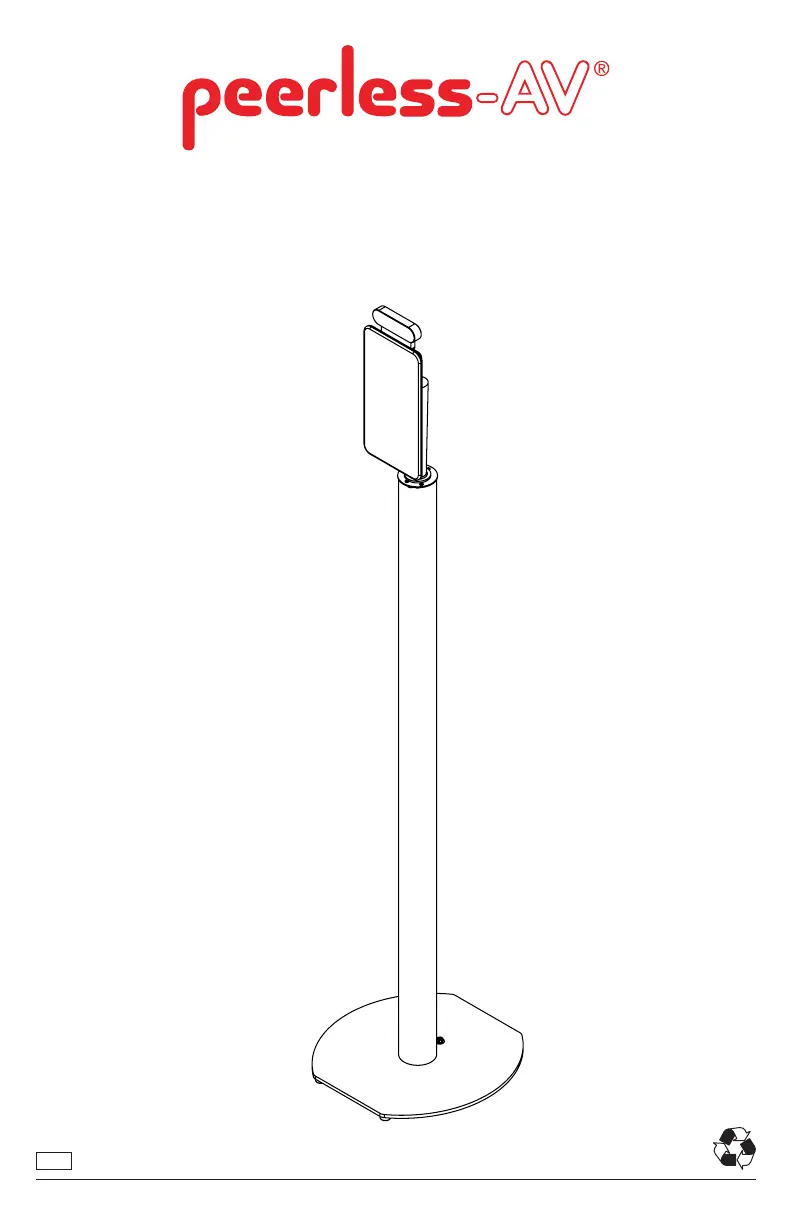

Sida 1/8
12020-05-28 #:126-9256-2 (2020-06-02)
ENG
THR-200-STAND
22020-05-28 #:126-9256-2 (2020-06-02)
Do not overtighten screws.
ENG
Symbols
ENG
WARNING
ENG
#
Skip to step.
ENG
x3
Screws must get at least
three full turns and t snug.
ENG
Tools Needed for Assembly.
ENG
1
2
ENG To properly tighten screws: Tighten until screw
head makes contact, then tighten another 1/2
turn. Do not overtighten screws.
+1/2
4
3
5/16"
(8mm)
3/8"
(10mm)
ENG - This product is designed to be installed on wood stud or solid concrete oors. Hardware is included for
wood stud and solid concrete installation. Before installing make sure the supporting surface will support the
combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or
damage can occur and product may fail. Never exceed the Maximum Load Capacity. Always use an assistant or
mechanical lifting equipment to safely lift and position equipment. This product is intended for indoor use only.
Use of this product outdoors could lead to product failure or personal injury. Be careful not to pinch ngers when
operating the mount. For support please call customer care at 1-800-865-2112.
WARNING
32020-05-28 #:126-9256-2 (2020-06-02)
Parts List
THR-200-STAND
Part #Description Qty
Abase weldment 1 147-4791
Btube weldment 1 147-4790
Cmounting plate 1 147-4794
DM3 x 6mm screw 5 520-2153
E3/32" allen wrench 1 560-1097
Fadhesive rubber feet 4 570-1036
Gwood screw 1 5S1-015-C04
Hconcrete anchor 1 590-0320
Parts (Before beginning, make sure you have all parts shown below).
ENG
base weldment
A (1)
tube weldment
B (1)
rubber feet
F (4)
mounting plate
C (1)
G (1)
#14 x 2-1/2" wood screw
3/32" allen wrench
E (1)
M3 x 6mm
D (5)
H (1)
8mm concrete anchor
