12 TAILGATE MOUNTED ENCLOSURE
FOR JEEP WRANGLER JL / JLU / JK / JKU
INSTALLATION GUIDE
NOTE! Read this installation guide thoroughly before disassembling or modifying
the vehicle. Installation of this product requires technical skill, experience and
specialized tools. If in doubt, it’s recommended to have it professionally installed
by an authorized or Dealer.Stinger Phoenix Gold
TXJWB12
®
A video installation guide is available at:
https://stingerelectronics.com/products/txjwb12
®
2
INSTALLATION NOTES
GETTING STARTED
The TXJWB12 is designed to mount to both Wrangler JK and Wrangler JL tailgates. There are two
different hardware packs included and this guide covers both types of mounting.

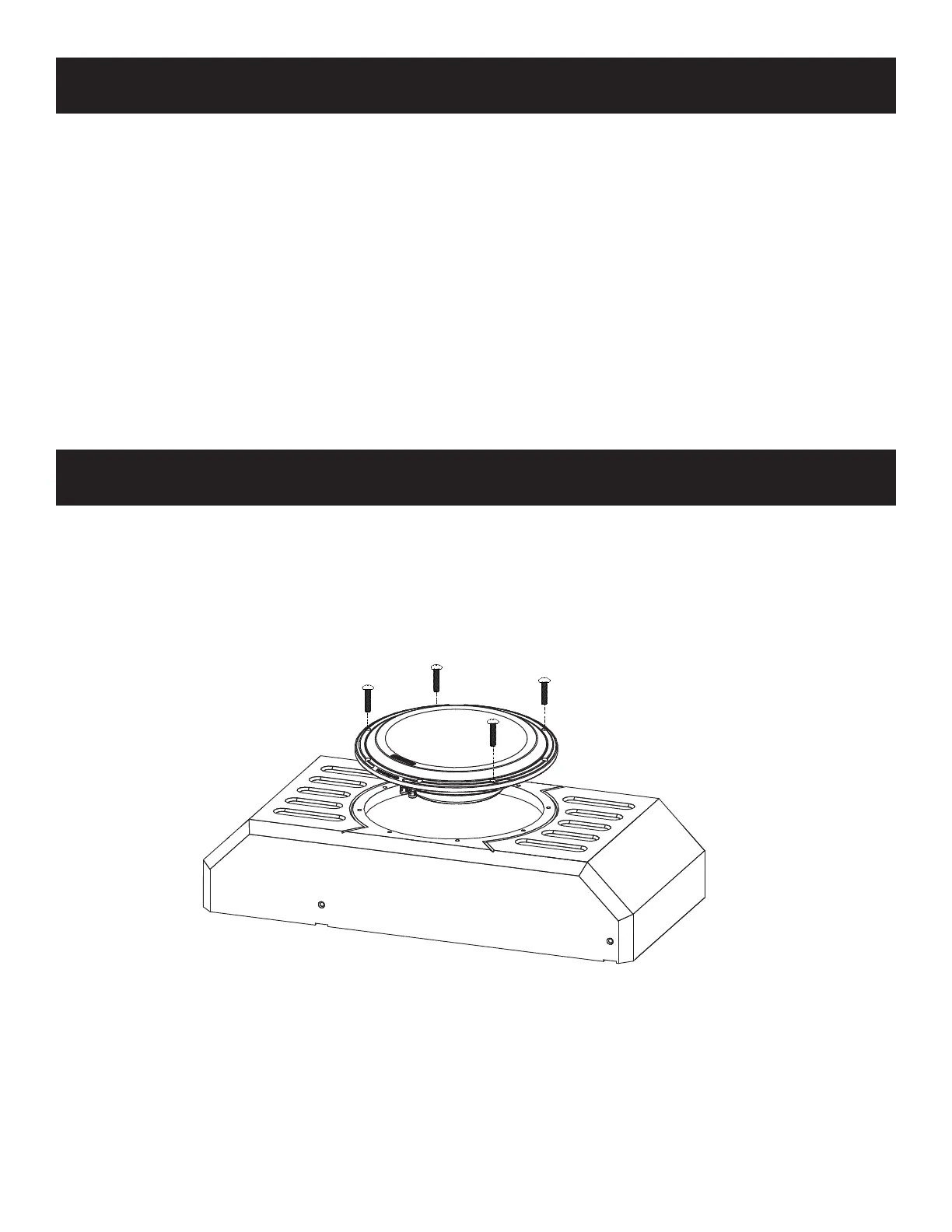

Remove the four Philips screws from the speaker and remove the speaker.
Set speaker and screws in a safe place.
Remove the JK Paper Template from inside the enclosure. Select the correct hardware pack for your
installation and conrm hardware quantities and tools required using the guides on the following pages.
For JK/JKU models equipped with a factory subwoofer, only compatible if removed.
For JL models equipped with a Cargo TrailRail, the TrailRail will no longer be accessible with the
speaker enclosure installed.
For JL/JLU models equipped with a factory subwoofer, unplugging the factory subwoofer is
recommended.
Some installation steps are more easily completed with a second person.
Speaker wire is required before the enclosure is mounted.
Recommended amplier rating: 400-800 watts @ 2ohms.
1.1
3

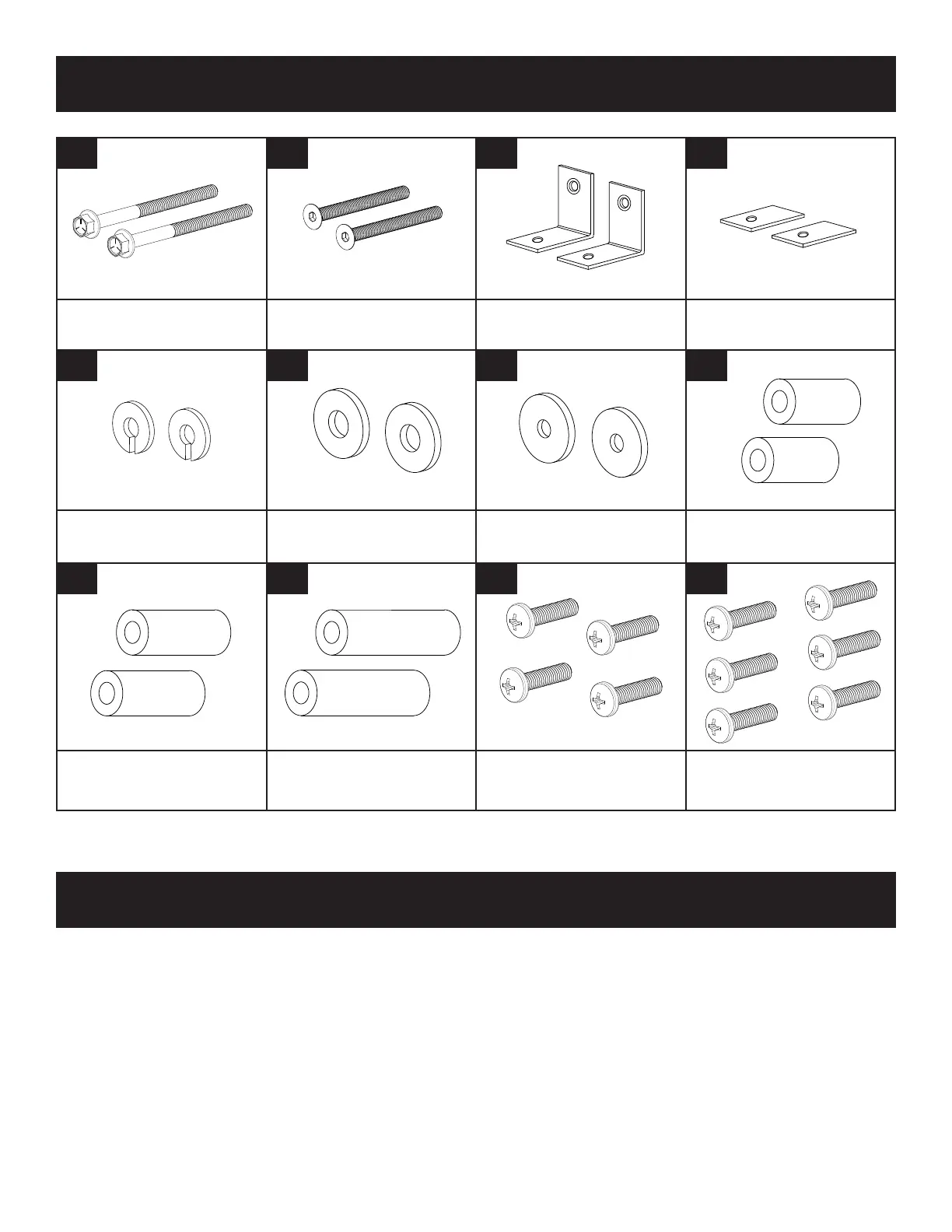

JL HARDWARE
JL RECOMMENDED TOOLS
M6 FLANGED HEX HEAD BOLT (2)
75mm / 2.95in Length
M6 FLAT HEAD BOLT (2)
60mm / 2.36in Length BOTTOM L BRACKETS (2) FOAM BRACKET PAD (2)
M6 SPLIT LOCK WASHER (2) M6 METAL WASHER (2)
18mm / .71in Diameter
M6 RUBBER WASHERS (2)
18mm / .71in Diameter
SPACER - 13mm Diameter (2)
27mm / 1.06in Length
SPACER - 13mm Diameter (2)
30mm / 1.18in Length
SPACER - 13mm Diameter (2)
45mm / 1.77in Length
M5 PHILIPS HEAD SCREW (4)
30mm / . 8in Length1 1
(Removed from speaker)
M5 PHILIPS HEAD SCREW (6)
30mm / . 8in Length1 1
(Included in JK Hardware)
#2 Philips Screwdriver
4mm Allen Wrench
5mm Allen Wrench
Nylon Panel Tool
10mm Socket
Ratchet
Socket Extension
Torx T40
Pilot Hole Drill Bit
13mm Drill Bit (Included)
Drill
Wire Strippers
B1
W1
S2
W2
S3
W3
P1
S1
P1
B2 L1 L2
NOTE: Hardware images not to scale. There will be hardware left over depending on the installation
