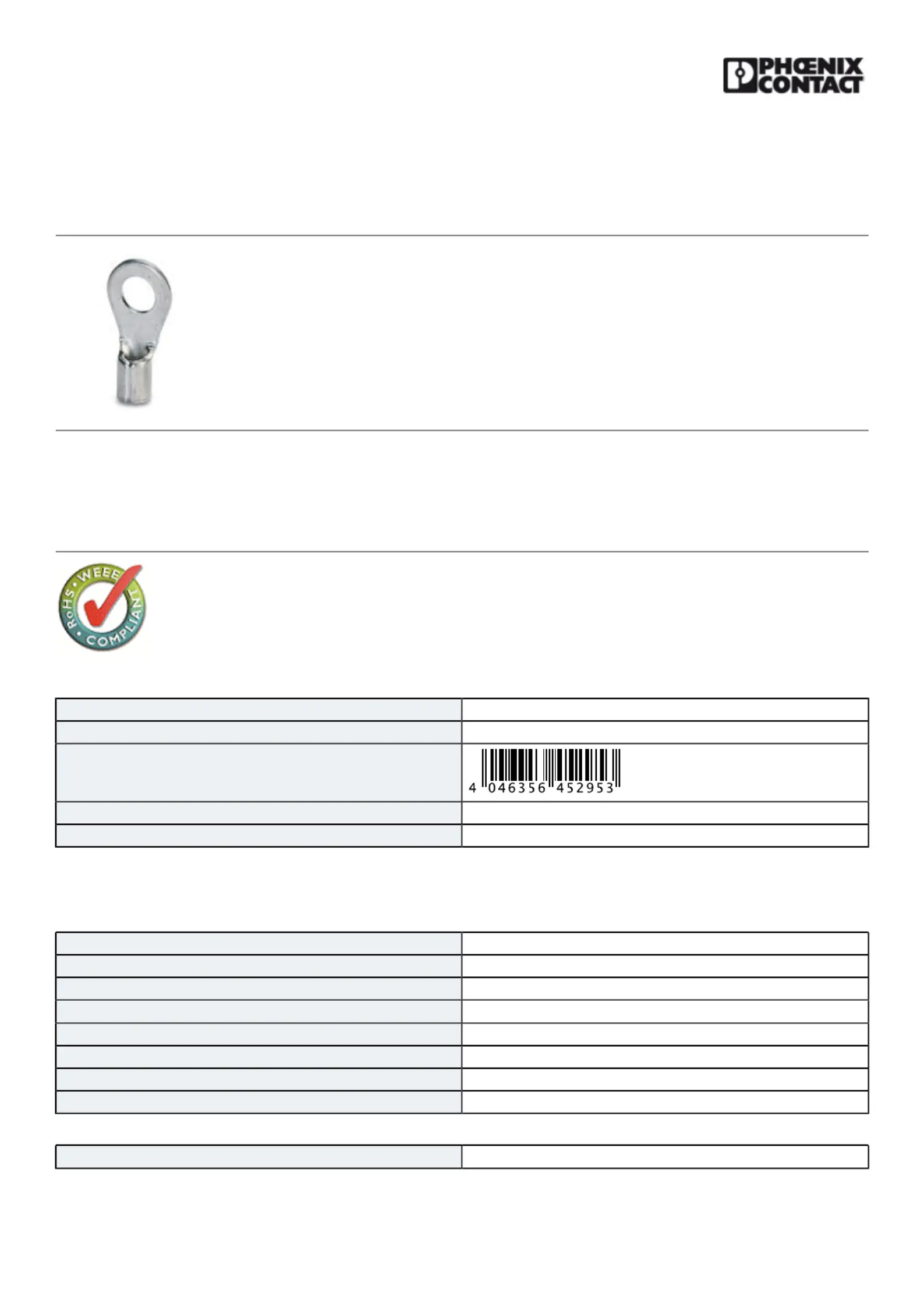

Ring cable lug-C-RC 2,5/M4 DIN-3240078
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Ring cable lug, non-insulated, 1.1 ... 2.5 mm², M4
Why buy this product
The CRIMPFOX-RC... tools from our CRIMPFOX range of crimping pliers are available for optimum crimping
The hard-soldered press zone enables maximum conductor pull-out values to be achieved
The ring cable lugs without plastic sleeve are made from high-quality tin-plated electrolytic copper for maximum protection against corrosion
Key Commercial Data
Packing unit 100 STK
Minimum order quantity 100 STK
GTIN
Weight per Piece (excluding packing) 0.73 g
Country of origin China
Technical data
Dimensions
Length (b) 16 mm
Width (a) 8 mm
Maximum stripping length 8 mm
Length of insulation sleeve (c) 5 mm
Inner dimension of the insulating collar (d) 2.3 mm
Distance between the center and the insulation sleeve (e) 7 mm
Inner diameter (f) 4.3 mm
Material thickness (g) 0.8 mm
Ambient conditions
Ambient temperature (operation) 110 °C
https://www.phoenixcontact.com/gb/products/3240078
06/29/2016Page2/3
Ring cable lug-C-RC 2,5/M4 DIN-3240078
Technical data
General
Color silver
Stripping length 8 mm
Material Copper
Coating Tin-plated
Drawings

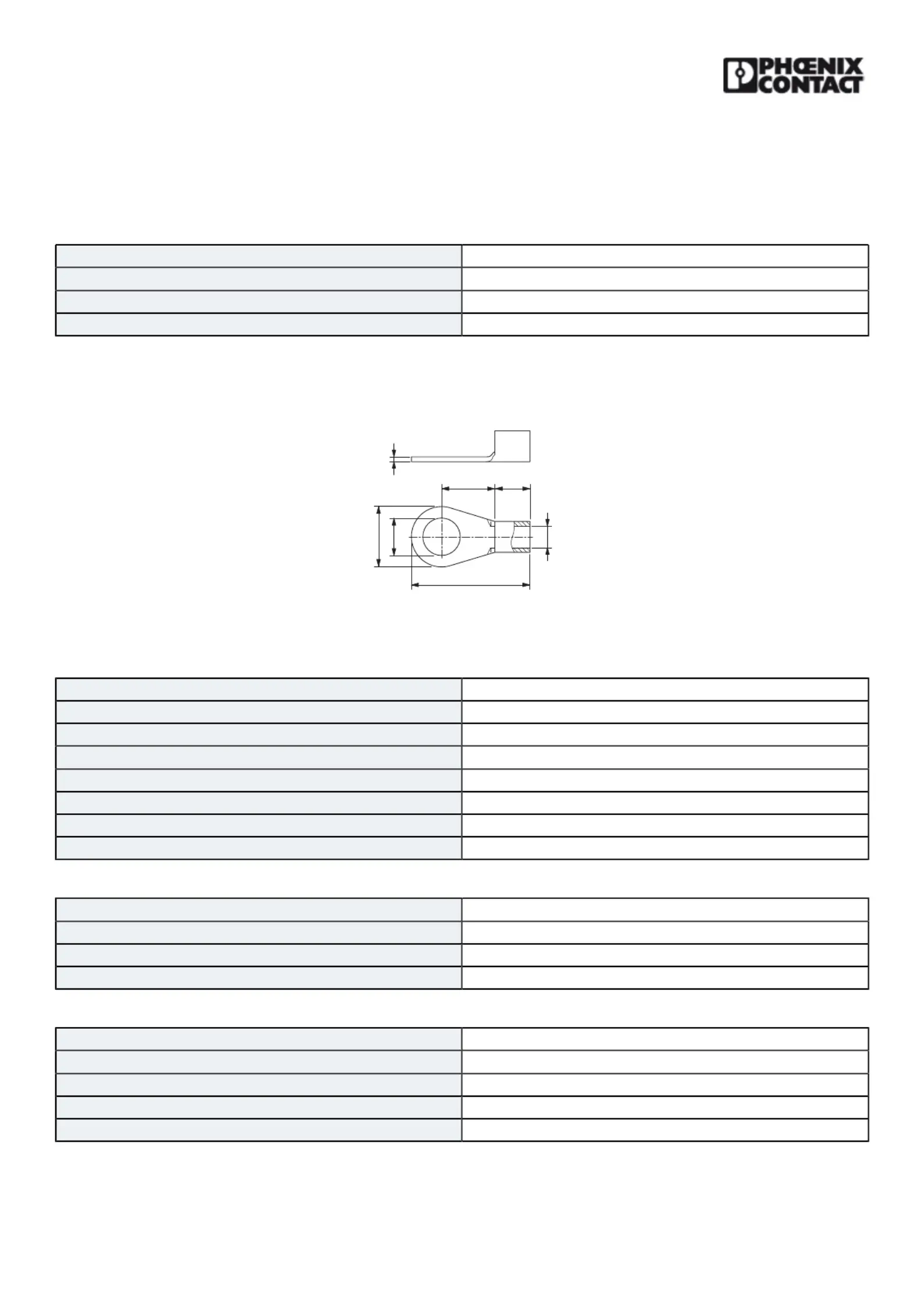

Dimensional drawing
b
e c
g
a
f
d
Classifications
eCl@ss
eCl@ss 4.0 27060701
eCl@ss 4.1 27060701
eCl@ss 5.0 27400201
eCl@ss 5.1 27400201
eCl@ss 6.0 27400201
eCl@ss 7.0 27400201
eCl@ss 8.0 27400204
eCl@ss 9.0 27400204
ETIM
ETIM 2.0 EC000005
ETIM 3.0 EC000005
ETIM 4.0 EC001052
ETIM 5.0 EC001052
UNSPSC
UNSPSC 6.01 30211923
UNSPSC 7.0901 27121703
UNSPSC 11 27121703
UNSPSC 12.01 27121703
UNSPSC 13.2 27121703
https://www.phoenixcontact.com/gb/products/3240078
06/29/2016Page3/3
Ring cable lug-C-RC 2,5/M4 DIN-3240078
Approvals
Approvals
Approvals
EAC / EAC
Ex Approvals
Approvals submitted
Approval details
EAC
EAC
