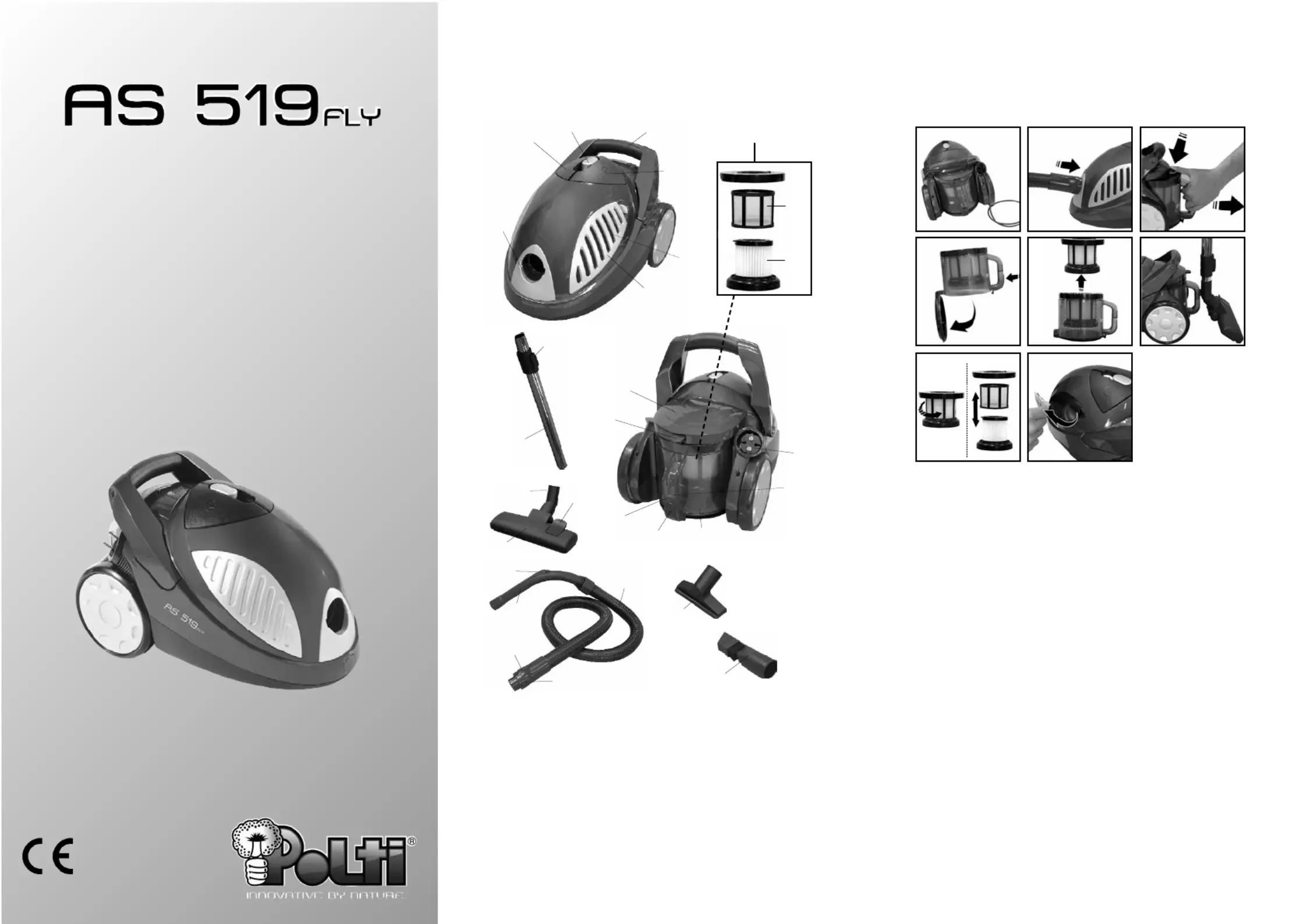

Fig.1 Fig.2 Fig.3

Fig.4 Fig.5 Fig.6

Fig.7 Fig.8

AS519 FLY Ed.1O11

LEGEND

1) Dust container

2) Dust container handle

2a) Dust container opening button

3) Dust container top lid

4) Button to detach the dust container

5) Connector hose

6) Carry handle

7) ON/OFF switch

8) Cable winder button

9) Cursor to adjust suction

10) Filter grille

11) Power Supply cable

12) Hepa-type filter

13) Filter body with fine mesh

14) Active carbon filter

15) Filter assembly

ACCESSORIES

A) Telescopic tube

A1) Telescopic tube locking button

B) Universal Brush

B1) Brush selector for carpets / floors

C) Hose handle

C1) Tube lock-in button

C2) Manual suction regulator

D) Hose

E) Small nozzle

F) Lance for cleaning corners

G) Hook for attaching to accessories holder

G1) Accessories holder

POLTI S.p.A., in accordance with its policy of continuous impro-

vement, reserves the right to make any technical and structural

modifications without prior notice.

This unit conforms to EC-directives 89/336 as amended

by 93/68 (EMC) and 73/23 as amended by 93/68 (low

voltage).

KEEP THESE INSTRUCTIONS

• Read these instructions for use carefully before using the

appliance.

• Any use which does not comply with these instructions will

invalidate the warranty.

• The wiring system to which the appliance is connected must

always comply with the laws in force.

• Before connecting the appliance, make sure that the mains

voltage is the same as the voltage indicated on the data label

of the appliance and that the power outlet is connected to

earth

• Always turn off the appliance at the on/off switch before

unplugging it.

• If the appliance is left unused, always disconnect it from the

mains. Never leave the appliance unattended with the cable

plugged into the mains.

• Always make sure the appliance is unplugged before perfor-

ming maintenance work of any kind

• Do not pull the plug out of the mains socket by pulling on the

cord, but grasp the plug itself to avoid damage to the socket.

• Do not allow the power cord to be twisted, crushed, stretched,

or come into contact with sharp or hot surfaces.

• Do not use the appliance if the power cable or other important

parts are damaged.

• Do not use electric extension leads that are not authorized by

the manufacturer, as they may cause damage or fire.

• If it is necessary to replace the power supply cable, please

refer to the nearest Polti authorised service centre, since the

use of a special tool is necessary.

• Never touch the appliance with wet hands or feet with the

cable plugged into the mains.

• Do not use the appliance when barefoot.

• Do not use the appliance near a bathtub, shower or container

full of water

• Never immerse the appliance, the cable or the plugs in water

or another liquid.

• Use of the appliance in places where there is a danger of

explosions is prohibited.

• Do not use the product with toxic substances.

• Do not lay the hot appliance on surfaces sensitive to heat.

• Do not leave the appliance exposed to wind or rain.

• Do not place the appliance near a live element, an electric

stove or any other source of heat.

• Do not expose the appliance to extreme temperatures

• Never let children or people who are not familiar with how the

appliance works use it.

• Do not press the buttons hard or with a pointed object such as

a pen.

• Always rest the appliance on a stable surface.

• In case of accidental fall of the appliance it is necessary to

have it checked by an authorized Service Centre as the inter-

nal safety features may have been affected.

• In case of breakdown or malfunction switch off the appliance

and never attempt to disassemble it, but refer to an authorized

Service Centre.

• In order to avoid prejudicing the safety of the appliance, use

only original spare parts and accessories approved by the

manufacturer.

• Do not wind the power cord around the appliance, especially

when the appliance is still hot.

• Do not vacuum up liquids

• Do not use the appliance to suck up acids or solvents, as

these might cause serious damage to the appliance and

above all do not suck in explosive dust or liquids, as these

could cause explosions on coming into contact with the inside

components of the appliance.

• Do not vacuum up toxic substances.

• Do not suck up burning or incandescent objects such as

embers, ash or other material in which combustion is taking

place.

• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the applian-

ce by a person responsible for their safety.

• Children should be supervised to ensure that they do not play

with the appliance.

This appliance is intended for home use for vacuuming solids as

described and in accordance with the instructions provided in

this manual. Please read these instructions carefully and keep

them, as you may find them useful in future.

Polti declines liability for any damage or accident derived

from any use of this appliance which does not comply with

the instructions contained in this booklet.

Directive 2002/96/EC (Waste Electrical and Electronic Equip-

ment - WEEE): information for users

This product complies with EU Directive 2002/96/EC.

The crossed-out wastebasket symbol on the appliance

means that at the end of its useful lifespan, the product

must be disposed of separately from ordinary house-

hold wastes.

The user is responsible for delivering the appliance to an appro-

priate collection facility at the end of its useful lifespan.

Appropriate separate collection to permit recycling, treatment

and environmentally compatible disposal helps prevent negative

impact on the environment and human health and promotes re-

cycling of the materials making up the product. For more infor-

mation on available collection facilities, contact your local waste

collection service or the shop where you bought this appliance.

Read these instructions carefully befo-

re using the appliance.

• Unroll the supply cable (11) till reaching the yellow sign on the

cable itself, by pulling it as shown in fig 1. DO NOT under any

circumstances unroll beyond the red sign.

• Insert the suction opening on hose (D) into connection (5) (fig.

2).

• Plug into a suitable power outlet.

• Press the ON/OFF switch (7). The appliance will start opera-

ting. The ON/OFF switch (7) can also be operated by touching

it with your foot, so you do not have to bend.

• It is possible to regulate suction power through the slide cur-

sor (9). Moving the cursor forward, the power increases,

moving the cursor backwards the power decreases. We

recommend minimum power for curtains, medium-low power

for sofas, armchairs and cushions, medium-high for carpets

and high for floors and hard surfaces (ceramics, marble, etc.).

• Thanks to the manual suction regulator (C2), the suctioning

power can be changed according to the cleaning task, and it

allows you to stop promptly in case of accidental suctioning

(e.g. of curtains). We recommend an open regulator on cur-

tains, carpets, sofas and so on. Move the regulator forward till

uncovering the hole on the hose. To suction again at maximum

power, move the regulator backwards till it covers the hole.

• To stop vacuuming, press again the ON/OFF switch (7).

• Switch off the appliance (7). Disconnect the supply cable (11)

from the mains.

• Disconnect the flex hose (D) from the appliance, by pressing

button (C1) and pulling out the hose.

• Press the button to detach the dust container (4) on the top lid

(3) (fig.3).

• Remove the dust container (1), holding it by the handle (2).

• Press the button (2a) on the handle (2) to open the container

and get rid of the collected dirt (fig.4).

• ATTENTION: when pressing the button (2a), the underside of

the container opens automatically, so we recommend to empty

the container over a rubbish bin.

• Remove the filter assembly (15) and let any traces of dirt esca-

pe (fig.5).

• We recommend to clean the container after each use.

• ATTENTION: DO NOT use the appliance without dust contai-

ner (1) and its filter.

• Put the dust container back in place.

Accessories may be connected directly to the hose (D) or to the

telescopic tube (A)

Using the telescopic tube (A)

The tube is about 50 cm long when closed, about 80 cm when

extended to its greatest length. To increase or decrease length,

press the button (A1) and extend or reduce length as desired.

Using the universal brush (B)

Connect the brush to the telescopic tube. If you move the selec-

tor on the brush (B1) and press with a foot, you can change the

suctioning surface without bending down. The position with bri-

stles extended is recommended for all non-carpeted floors. The

position without bristles is recommended for carpets.

Using the small nozzle (E)

The small nozzle is recommended for cleaning upholstery surfa-

ces such as the joints of sofas, armchairs, mattresses, car uphol-

stery, etc.

Using the Lance for corners cleaning (F)

This lance is suitable for thorough cleaning of the more difficult-

to-reach places, like skirting-boards, sofa gaps, armchairs,

upholstered furniture, car seats.

Before putting the vacuum cleaner away, rewind the power cable

by pressing the button (8), careful to assist the cable during win-

ding.

The accessories holder (G1) allows you to fix the tube with the

brush mounted on it on the body of the appliance. To attach the

hose to the appliance, slide the hook (G) on the hose into the

accessories holder slot on the appliance (Fig.6).

Always make sure the appliance is unplugged before performing

maintenance work of any kind.

Replacement and cleaning of the Hepa-type filter (12) and

the filter body with fine mesh (13)

• Remove the dust container (1) as described in the paragraph

“Emptying and cleaning of the dust container”.

• Remove the filter from the container and separate it as shown

in fig.7.

• Rinse all elements under running water and let them dry.

• Put all elements back in place.

• Let the filters dry naturally, away from light and heat sources.

You should wait 24 hours before reassembling filters in the

appliance.

• Replace the filters if they are torn.

• Filters should be cleaned every 4 months.

• Do not clean filters with a brush, as this could damage them,

decreasing their filtering capacity.

• Do not use detergents, do not scrape filters, and do not wash

them in a dishwasher.

Replacement of the active carbon filter (14)

• Open the filter grille (10) by pressing the levers on the grille

itself .

• Remove the filter and put in a new one by following the instruc-

tions given above in reverse order.

N.B.: the active carbon filter MUST NOT be washed.

Produktspecifikationer

Varumärke:	Polti
Kategori:	dammsugare
Modell:	as 519 fly

Behöver du hjälp?

Om du behöver hjälp med Polti as 519 fly ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

dammsugare Polti Manualer

Polti Lecologico AS 801 Compact Bruksanvisning

15 September 2024

Polti Forzaspira C150 Bruksanvisning

15 September 2024

Polti Vaporetto Lecoaspira Friendly Bruksanvisning

15 September 2024

Polti PBEU0109 Bruksanvisning

15 September 2024

Polti Lecologico Allergy Parquet Forzaspira Bruksanvisning

15 September 2024

Polti AS 590 Bruksanvisning

15 September 2024

Polti Lecologico AS806 Bruksanvisning

15 September 2024

Polti Forzaspira Slim SR110 Bruksanvisning

15 September 2024

Polti Forzaspira C130 Plus Bruksanvisning

15 September 2024

Polti Forzaspira C110 Bruksanvisning

15 September 2024

dammsugare Manualer

Nyaste dammsugare Manualer

Dirt Devil DUSTY 360 Bruksanvisning

27 Oktober 2024

Gorenje VCK1222OP-ECO Bruksanvisning

27 Oktober 2024

Flex VC 21 L MC Bruksanvisning

27 Oktober 2024

LG HOM-BOT VR34408LV Bruksanvisning

27 Oktober 2024

Khind VC3668 Bruksanvisning

26 Oktober 2024

VAX Compact VX56 Bruksanvisning

26 Oktober 2024

Electrolux ZO6335 Bruksanvisning

24 Oktober 2024

Electrolux Ergorapido Lithium Ion Brushroll Clean Xtra EL2081A Bruksanvisning

24 Oktober 2024

Panasonic MC-E4101 Bruksanvisning

24 Oktober 2024

Bosch Serie 2 BGL2X106 Bruksanvisning

24 Oktober 2024
