Sida 1/11

Part 1

FCC Notes:

This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and

used in accordance with the instructions manual, may cause interference to radio

communications. It has been tested an found to comply with limits for a Class A digital

device pursuant to subpart J of Part 15 of FCC Rules, which are designed to provide

reasonable protection against interference when operated in a commercial environment.

Operation of this equipment in a residential area is likely to cause interference in which

case the user at his own expense will be required to take whatever measures to correct

the interference.

Warranty Limits:

Warranty terminates automatically when any person other than the authorized

technicians opens the machine. The user should consult his/her dealer for the problem

happened. Warranty voids if the user does not follow the instructions in application of

this merchandise. The manufacturer is by no means responsible for any damage or

hazard caused by improper application.

About This Manual:

Posiflex has made every effort for the accuracy of the content in this manual. However,

Posiflex will assume no liability for any technical inaccuracies or editorial or other

errors or omissions contained herein, nor for direct, indirect, incidental, consequential

or otherwise damages, including without limitation loss of data or profits, resulting

from the furnishing, performance, or use of this material.

This information is provided “as is” and Posiflex Technology, Inc. expressly disclaims

any warranties, expressed, implied or statutory, including without limitation implied

warranties of merchantability or fitness for particular purpose, good title and against

infringement.

The information in this manual contains only essential hardware concerns for general

user and is subject to change without notice. Posiflex reserves the right to alter product

designs, layouts or drivers without notification. The system integrator shall provide

applicative notices and arrangement for special options utilizing this product. The user

may find the most up to date information of the hardware from web sites:

http://www.posiflex.com or http://www.posiflex.com.tw

All data should be backed-up prior to the installation of any drive unit or storage

peripheral. Posiflex will not be responsible for any loss of data resulting from the use,

disuse or misuse of this or any other Posiflex product.

All rights are strictly reserved. No part of this documentation may be reproduced,

stored in a retrieval system, or transmitted in any form or by any means, electronic,

mechanical, photocopying, or otherwise, without prior express written consent from

Posiflex Technology, Inc. the publisher of this documentation.

All brand and product names and trademarks are the property of their respective holders.

PD – 309 / 2605 Series

User’s Manual

Rev. A0

P/N:

194309030

Part 2

BRIEF INTRODUCTION

THE PRODUCT

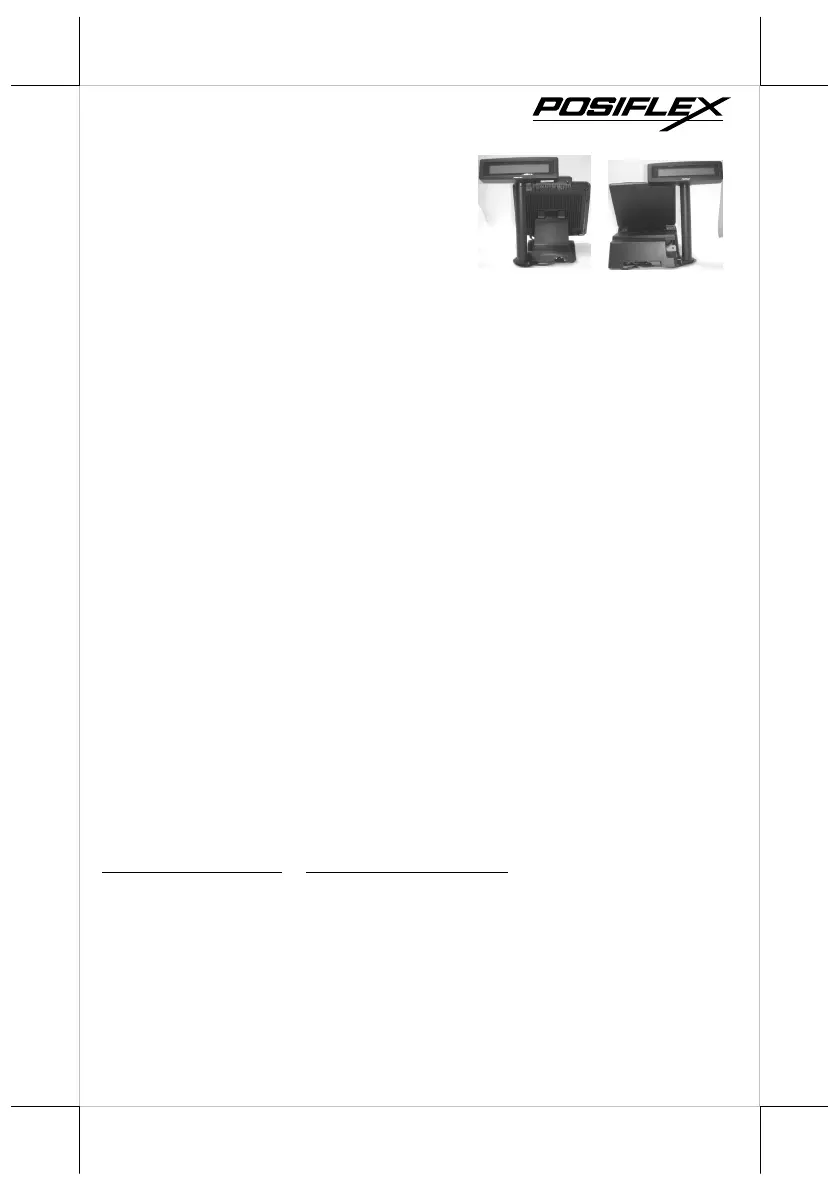

The PD-309/ PD-2605 is a pole mount customer display option designed for

Posiflex mini slim base of KS-2010A, KS-6810, DT-20X and Gen.6 & 4.5

base of KS series POS terminals. It is delivered in separate carton for the host

system and shall be installed per instructions in this manual.

FEATURES

• LCD (Liquid crystal display) with dark blue character and yellow

green back-light for PD-309

• Bright VFD (vacuum fluorescent display) with green filter for PD-

2605

• Two-line display with 20 characters per line

• Easy viewing characters (6.0 mm by 9.66 mm for PD-309 / 9.03

mm by 5.25 mm for PD-2605)

• Long life and trouble free operation

• 15 , 30 and 45 adjustable viewing angles

• °Display frame can rotate horizontally 270 freely

• Selectable command emulation modes including PST and EPSON

command emulation modes for PD-309

• Various command emulation modes selectable by DIP switch for

PD-2605

• Support 13 Code Pages of 128 characters each for PD-2605

• Support 12 international character sets of 12 characters each for

PD-2605

• Simple installation

• Selectable between Serial (RS232) interface models: PD-

309S/2605S and USB interface models: PD-309U/2605U.

• Supports UPOS 1.8 and is WEPOS ready for PD-2605

Part 3

INSTALLATION GUIDES

HOST SYSTEM PREPARAION

For serial interface (RS232) PD-309 or PD-2605 to be used in KS-2010A, KS-

6810, DT-20X and Gen.6 & 4.5 base of KS series, you have to adjust during

power off the internal jumper of the host system to to the supply 5 V DC

COM port selected for the serial interface pole display. This adjustment has to

be done by a qualified electronic technician following guide from relevant

technical manual. The default communication protocol should be set to 9600

bps, none parity, 8 data bits, 1 stop bit with hardware handshaking on CTS.

The power for the USB interface type pole display is supported through the

USB connection. However, should these customer displays are to be connected

through an USB HUB instead of a direct USB port of the system, the HUB

must be powered by a separate power adaptor otherwise there could be the

power shortage problem.

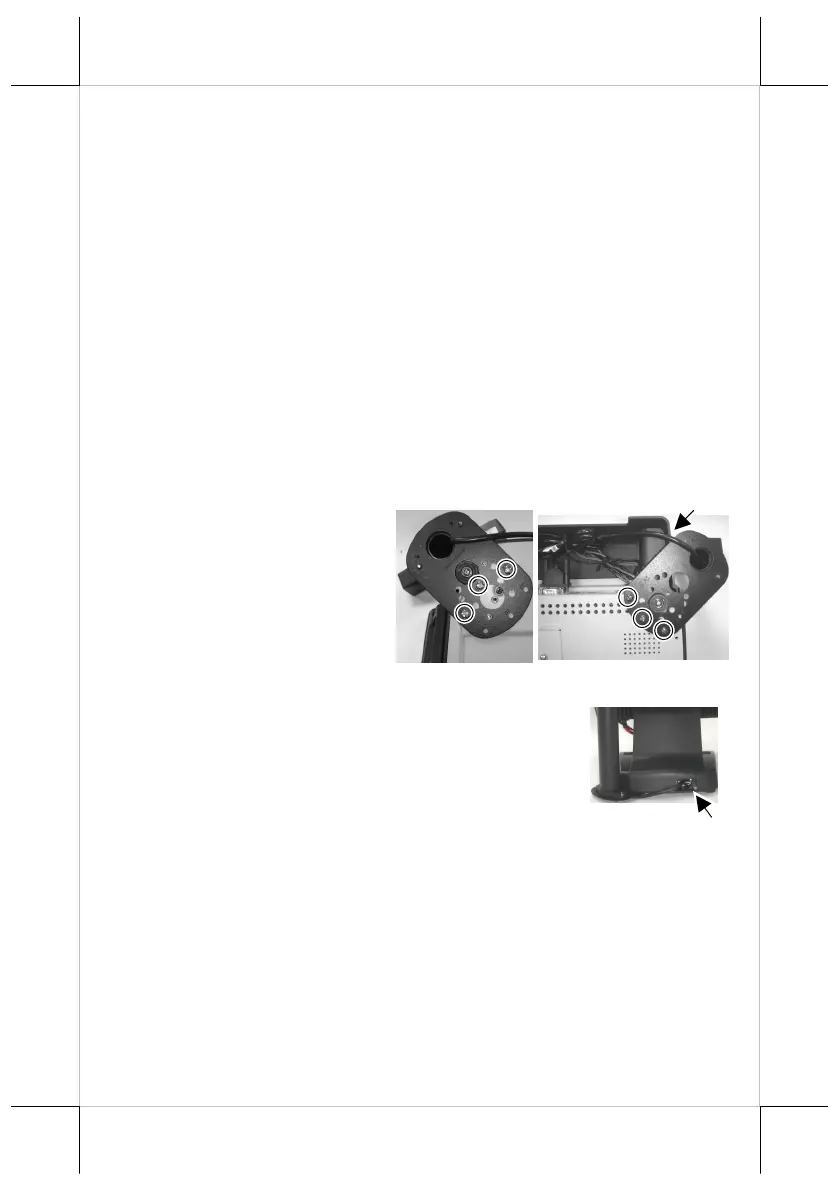

INSTALLATION

The PD-309 or PD-2605 can be

attached to the corner in bottom

plate of the KS-2010A, KS-

6810, with slim base, DT-20X

and Gen.6 & 4.5 base of KS

series. It takes examples of this

LCD customer display to fix in

the KS-2010A, KS-6810, and

DT-20X. Refer to the pictures

in at right. Use the 3 attached screws to fix the metal Pix.1

base plate of the PD to bottom of mini slim base or DT-

20X at the circled positions. For mini slim base Connect

the interface cable to go into the base through cable exit

arrowed in at right to the main unit. For DT-20X Pix.2

arrange the interface cable to go through under bottom to

connector area arrowed in at above right. Pix.1

CAUTION: There are self-tapping screws for PD-309/ PD-2605 when use

in Gen.4.5 base stand and please aim to the holes which marked “DT” as

showing in the upper picture Pix.1. Other Bing Head Screws are use when

fix in KS-2010A, KS-6810, DT-20X and Gen.6 base stand of KS series.

Pix. 2

Pix. 1

Base for KS-2010 Bottom of DT-20X
