Part 1
FCC Notes:
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions manual, may cause interference to radio
communications. It has been tested and found to comply with
limits for a Class A digital device pursuant to subpart J of Part
15 of FCC Rules, which are designed to provide reasonable protection against
interference when operated in a commercial environment. Operation of this equipment
in a residential area is likely to cause interference in which case the user at his own
expense will be required to take whatever measures to correct the interference.
Warranty Limits:
Warranty terminates automatically when any person other than the authorized
technicians opens the machine. The user should consult his/her dealer for the problem
happened. Warranty voids if the user does not follow the instructions in application of
this merchandise. The manufacturer is by no means responsible for any damage or
hazard caused by improper application.
About This Manual:
Posiflex has made every effort for the accuracy of the content in this manual. However,
Posiflex will assume no liability for any technical inaccuracies or editorial or other
errors or omissions contained herein, nor for direct, indirect, incidental, consequential
or otherwise damages, including without limitation loss of data or profits, resulting
from the furnishing, performance, or use of this material.
This information is provided as is” and Posiflex Technology, Inc. expressly disclaims
any warranties, expressed, implied or statutory, including without limitation implied
warranties of merchantability or fitness for particular purpose, good title and against
infringement.
The information in this manual contains only essential hardware concerns for general
user and is subject to change without notice. Posiflex reserves the right to alter product
designs, layouts or drivers without notification. The system integrator shall provide
applicative notices and arrangement for special options utilizing this product. The user
may find the most up to date information of the hardware from web sites:
http://www.posiflex.com or http://www.posiflex.com.tw
All data should be backed-up prior to the installation of any drive unit or storage
peripheral. Posiflex will not be responsible for any loss of data resulting from the use,
disuse or misuse of this or any other Posiflex product.
All rights are strictly reserved. No part of this documentation may be reproduced,
stored in a retrieval system, or transmitted in any form or by any means, electronic,
mechanical, photocopying, or otherwise, without prior express written consent from
Posiflex Inc. the publisher of this documentation.
© Copyright Posiflex Technology, Inc. 2011
All brand and product names and trademarks are the property of their respective holders.
PD – 2600 / 2601 / 2602 / 2603 Series
User’s Manual
Rev. D0
P/N:
1946090
115
0
Part 2
BRIEF INTRODUCTION
THE PRODUCT
The PD-2600 is a stand alone pole mount customer display designed for
discrete POS applications. The PD-2601 is a pole mount customer display
option designed for Posiflex HT series POS terminals and also the PB series
discrete systems. The PD-2602 is a pole mount customer display option
designed for Posiflex KS or TP series touch POS terminals. The PD-2603 is a
pole mount customer display option designed for Posiflex FT series touch POS
terminals. It is delivered in separate carton for HT / PB / KS / TP / FT series
and shall be installed per instruction in this manual.
FEATURES
Bright VFD (vacuum fluorescent display) with green or blue filter
Rear mount Pole Display for Posiflex HT series hybrid terminals or
PB series discrete systems or KS or FT series fan free touch POS
terminals or TP series touch POS terminals
Two-line display with 20 characters per line
Adequately large characters for easy viewing (9.03 mm by 5.25
mm)
Long life and trouble free operation
15 , 30 and 45 adjustable viewing angles
Total height 410 mm (Stand alone)
Total height 392 mm (PD-2601 on base of HT and PB series)
Total height 325 mm (PD-2602 on base of KS and TP series)
Total height 375 mm (PD-2603 on base of FT series)
• ° Display frame can rotate horizontally 270 freely
Various command emulation modes selectable by DIP switch
Support 12 Code Pages of 128 characters each
Support 12 international character sets of 12 characters each
Simple installation
Selectable between Serial (RS232) interface model and USB
interface model
Supports UPOS 1.8 and is WEPOS ready
Case color choices: ivory, black for HT terminals or black for FT,
KS and TP terminals
Part 3
INSTALLATION GUIDES
HOST SYSTEM PREPARAION
For serial interface (RS232) PD-2601or PD-2602 or PD-2603 to be used in HT
or PB or KS or TP or FT series, you have to adjust during power off the
internal jumper of the host system to to the COM port selected supply 5 V DC
for the serial interface pole display. This adjustment has to be done by a
qualified electronic technician following guide from relevant technical manual.
The default communication protocol should be set to 9600 bps, none parity, 8
data bits, 1 stop bit with hardware handshaking on CTS. The power for the
USB interface type pole display is supported through the USB connection.
However, should these customer displays are to be connected through an USB
HUB instead of a direct USB port of the system, the HUB must be powered by
a separate power adaptor otherwise there could be the power shortage problem.
INSTALLING PD-2600
In base of stand alone models (PD-2600 models only), looking from rear side

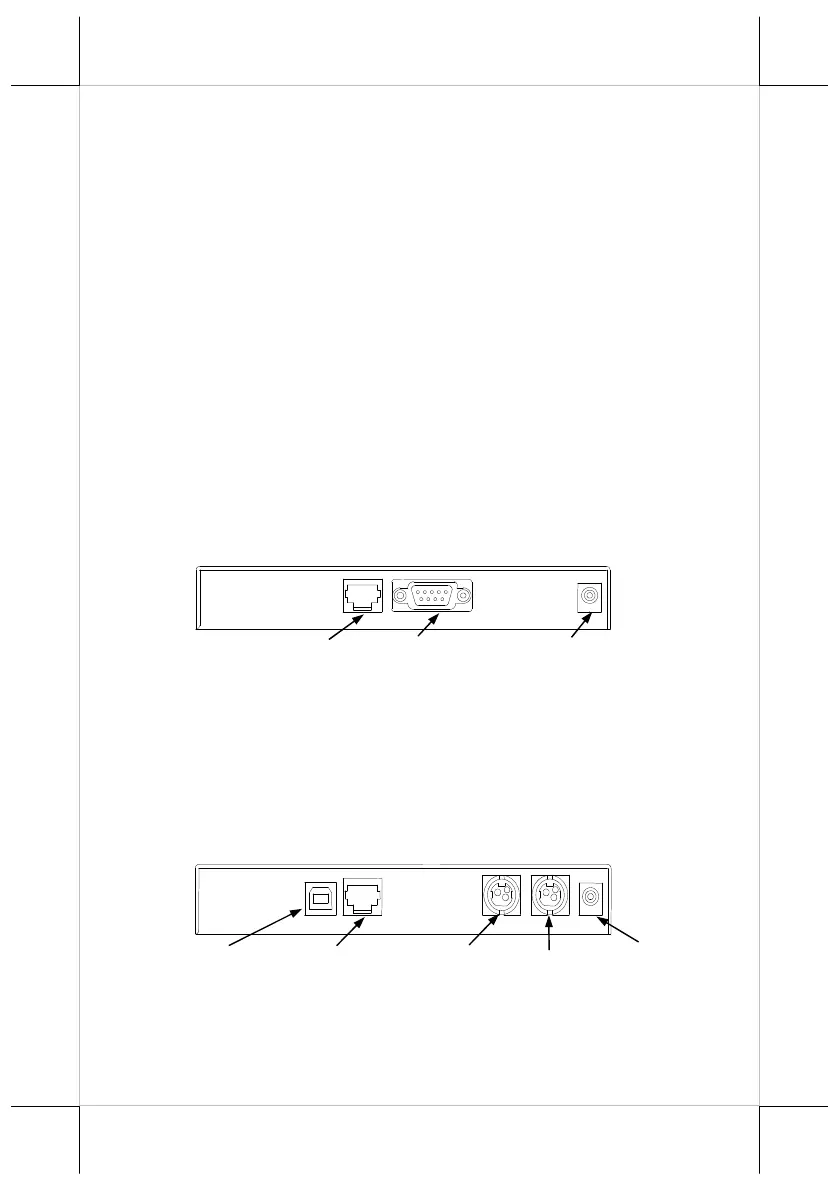

of the bottom, the connector area will look like below:
For serial (RS232) interface models:
The RJ45 type modular connector is for internal use and is already occupied.
The RS232 input port is a DB9 female connector. Connect the attached RS-
232 signal cable to this port and one of the COM port in the host system. Set
the RS-232 communication protocol for this port to 9600 bps, no parity, 8 bits,
1 stop bit with hardware handshaking. Connect the power adaptor to the
rightmost power connector. Turn on the switch in the front side of the base.
For USB interface models:
The RJ45 type modular connector is for internal use and is also already
occupied. Connect the “B” type connector of the interface cable to USB” in
connector area and the “A” type end to USB port of the host. Insert the 2 pin or
To Display head
24 VDC
24 VDC
RS232 In 12 VAC In
12 VAC In +24 V DC In +24 V DC Out To Display head USB
