Package Contents
Magnetic Stripe Reader
(SA-304 for XT-3114)
(SA-305 for XT-3015/4015)
(SL-305 for TM/LM-3X15 series)
2 Fixing Screws
Printed Quick Installation Guide
Peripheral Information CD
(shipped with SL-305 only)
RFID Mifare Card ( ) Optional
RFID Ring Tag ( )Optional

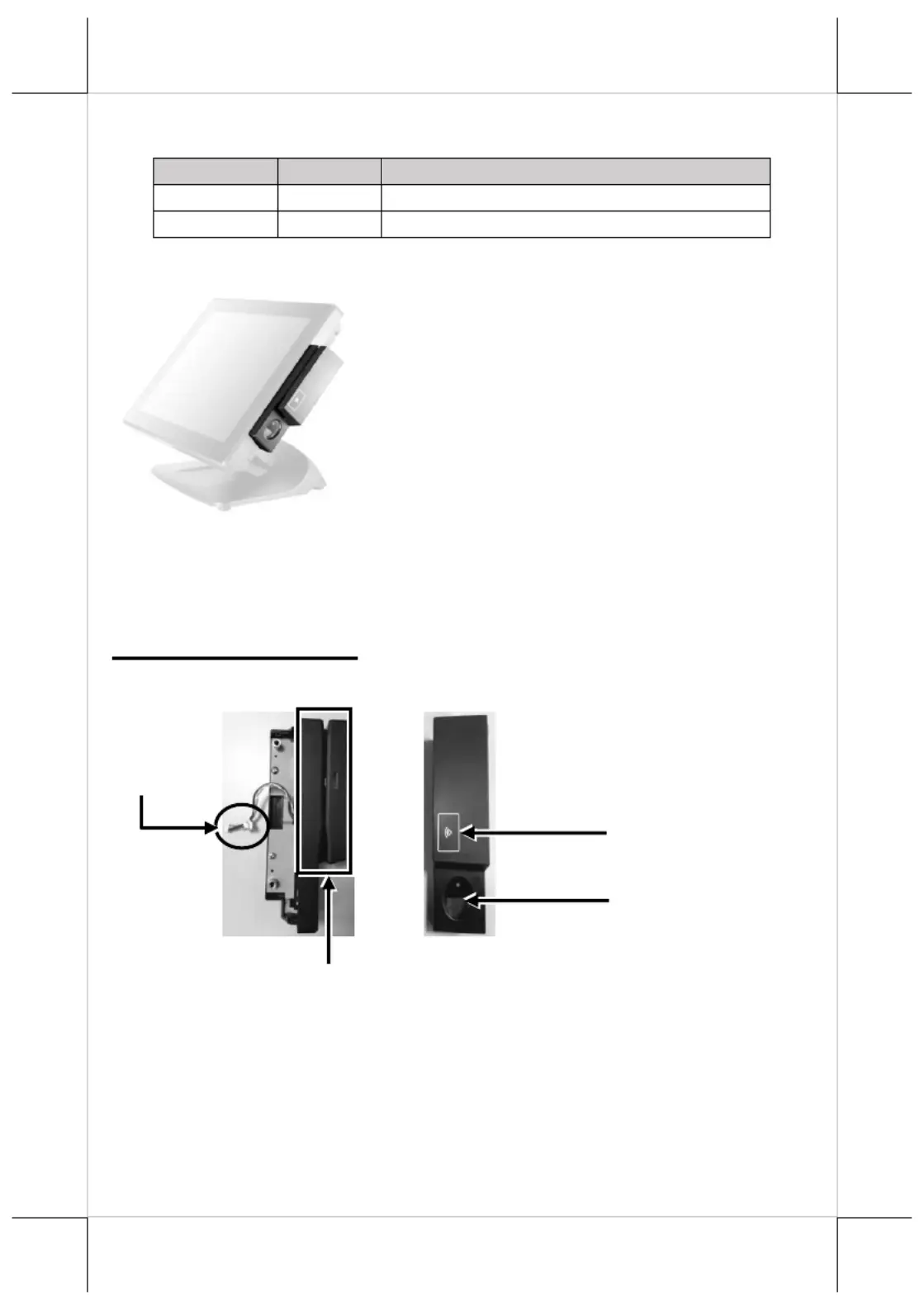

Views of the Magnetic Stripe Reader
Front View Right Side View
SA-304/305_SL-305
Fanfree LCD Touch Terminal
Quick Installation Guide
USB I/O Cable
3-track Magnetic Stripe Reader
RFID Mifare Card Reader
(Optional)
Fingerprint Sensor
with Status LED Indicator
(Optional)
18600901020 Ver. A0
http://www.posiflex.com
2
Hardware Installation
During Installation of the SA-304/305 and SL-305, do NOT power ON your
terminal and monitor.
Installation of SA-304 onto the 14” XT Series Terminals
(except XT-2614E)
Start to install SA-304 onto according to the following steps.
1. Loosen and remove the two fixing screws
from the side mount cover on the back of
the right side of the terminal.
2. Remove the side mount cover from the back
of the right side of the terminal.
3. Insert the USB IO cable of the SA-304 into
the cable connector of the main board.
4. Determine whether the cable is well
connected to the cable connector. Then,
push the cable into a space between the rear
cover and the mainboard.
3
5. Align the two screw holes of the SA-304
MSR cover with the two fixing holes of the
terminal.
6. Fix the SA-304 MSR onto the terminal by
locking two long screws shipped with the
package.
7. The installation of SA-304 onto the terminal
is completed, as shown in the right figure.

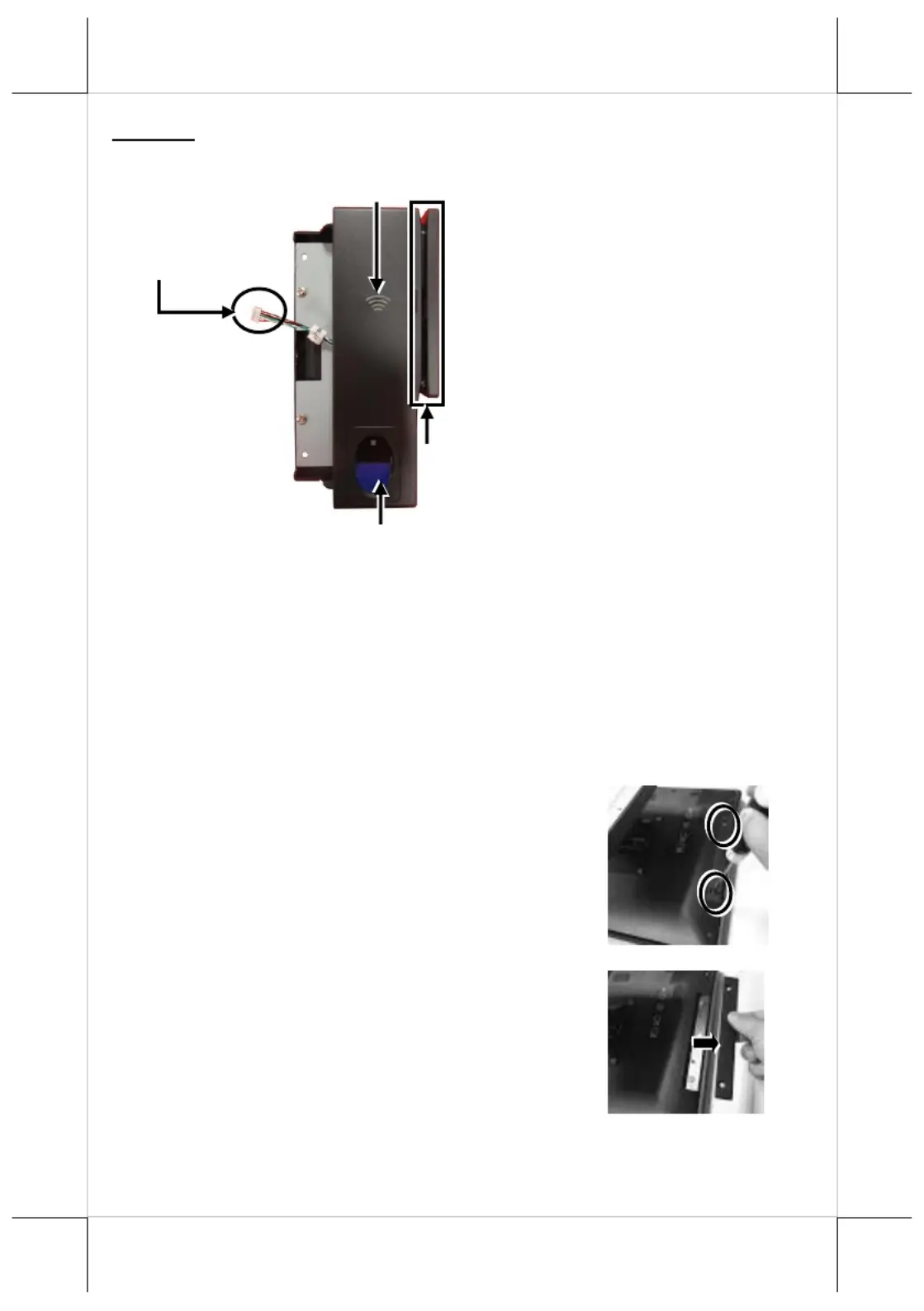

Installation of SA-305 onto the 15”/17” XT Series Terminals
Start to install SA-305 onto the terminal according to the following steps.
1. Loosen and remove the two fixing screws
from the side mount cover on the back of
the right side of the terminal.
