Sida 1/13
Part 1
I. FEATURES
• Most stable touch monitor for industrial and
commercial use
• Application covers POS, Factory Automation etc.
• High quality 17” TFT LCD panel with scaling function for full screen
display
• Recommended LCD resolution: 1280 x 1024.
• Resistive type extra long life touch panel in USB interface or RS-232
interface (option) supports touch panel function including left/right button,
double click, drag & drop
• Touch beep can be pitch adjusted/enabled/disabled by software control (for
TM-7117)
• Integrated structure side mount upgrade kit such as SD-400/W, SD-600,
SD-700, SD-800 or KP-300W
• Connect to host through VGA port plus USB port (for all models) and/or
COM port (for RS232 touch model only)
• Support 2 downlink USB ports
FCC NOTICE
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class
A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against
interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause
interference in which case the user at his own expense will be required to take whatever measures to correct the interference.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than the authorized technicians. The user
should consult his/her dealer for the problem happened. Warranty voids if the user does not follow the instructions in application of
this merchandise. The manufacturer is by no means responsible for any damage or hazard caused by improper application.
ABOUT THIS MANUAL
This manual assists the user to utilize the LCD Monitor LM-7117 series and the Touch Monitor TM-7117 series. This product
provides exquisite touch control capability over a stable and adjustable LCD monitor with minimal footprint.
The manufacturer of the LM-7117 / TM-7117 touch monitor heartily apologizes to the user for reserving the right to change or to
modify this manual without notice due to the rapid and constant progress and improvement on science and technology. The user
may always obtain the most up to date information through any of our web sites: http://www.posiflex.com,
http://www.posiflex.com.tw, http://www.posiflexusa.com.
Copyright Posiflex Technology, Inc. 2010
TRADE MARKS AND SERVICE MARKS
POSIFLEX is a registered trademark of Posiflex Technology, Inc..
Other brand and product names are trademarks and registered trademarks and service marks of their respective owners.
P/N: 19630900020
LM-7117/TM-7117
LCD Monitor
User’s Manual
Rev. A0
Part 2
II. CARTON CONTENTS
1. Touch Monitor (Main unit + Adjustable base stand assembly)
2. User’s Manual
3. VGA cable
4. USB cable
5. Power adaptor & power cord
6. Posiflex Product Information CDROM
7. Option RS232 cable

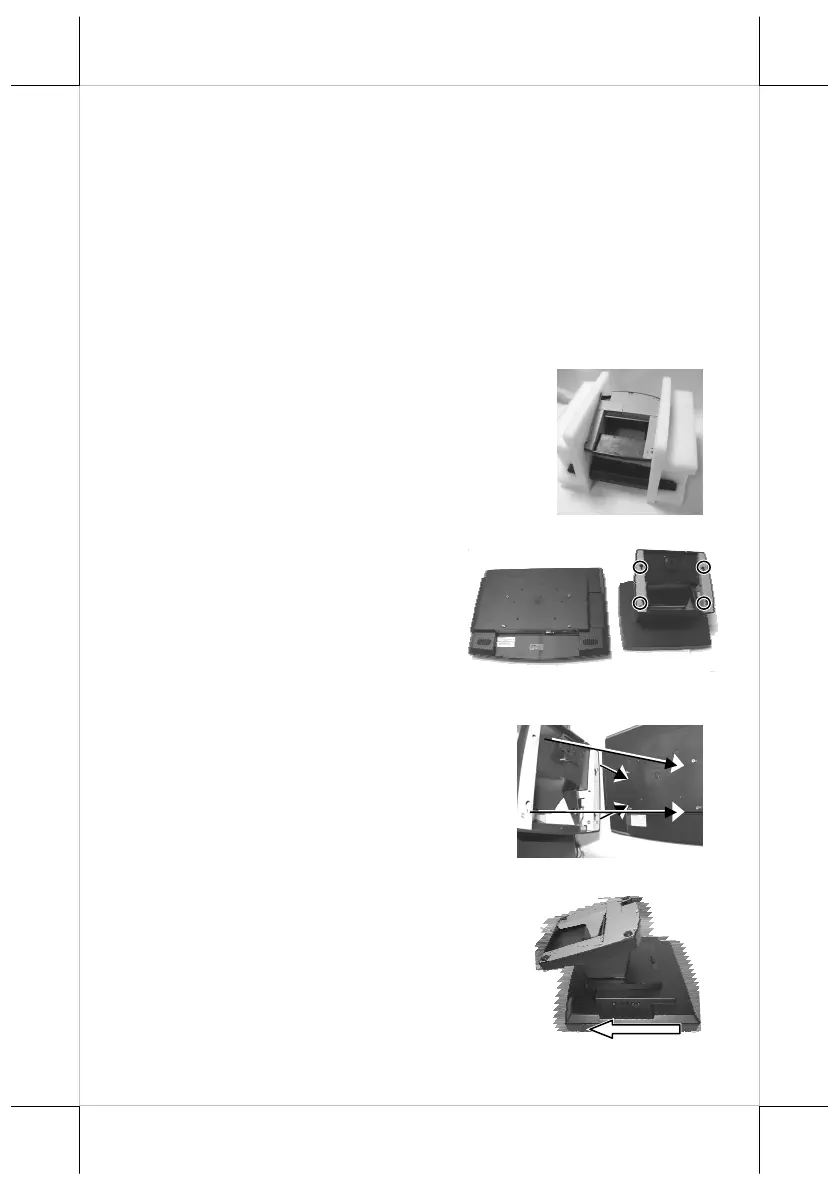

III. INSTALLATION GUIDE OF MONITOR
Since the monitor and stand are packaged
separately, please take out and hold the PE forms
carefully and DO NOT detach and drop it as
show in the following picture.
After take the PE form out from the
carton, please remove the PE form
with extra care and make sure place the
monitor and stand on a soft clean flat
surface such as table and as show in
the picture at the right side.
Please find the four holes in the top of stand.
Take the stand and align these four matching
holes to the four matching pegs which are in
the back on monitor.
After matching the stand and monitor, push
the stand to the arrowed direction as show in
the right picture. At this time, turn the monitor
to the normal position and plug the power then
it can start to use.
Part 3

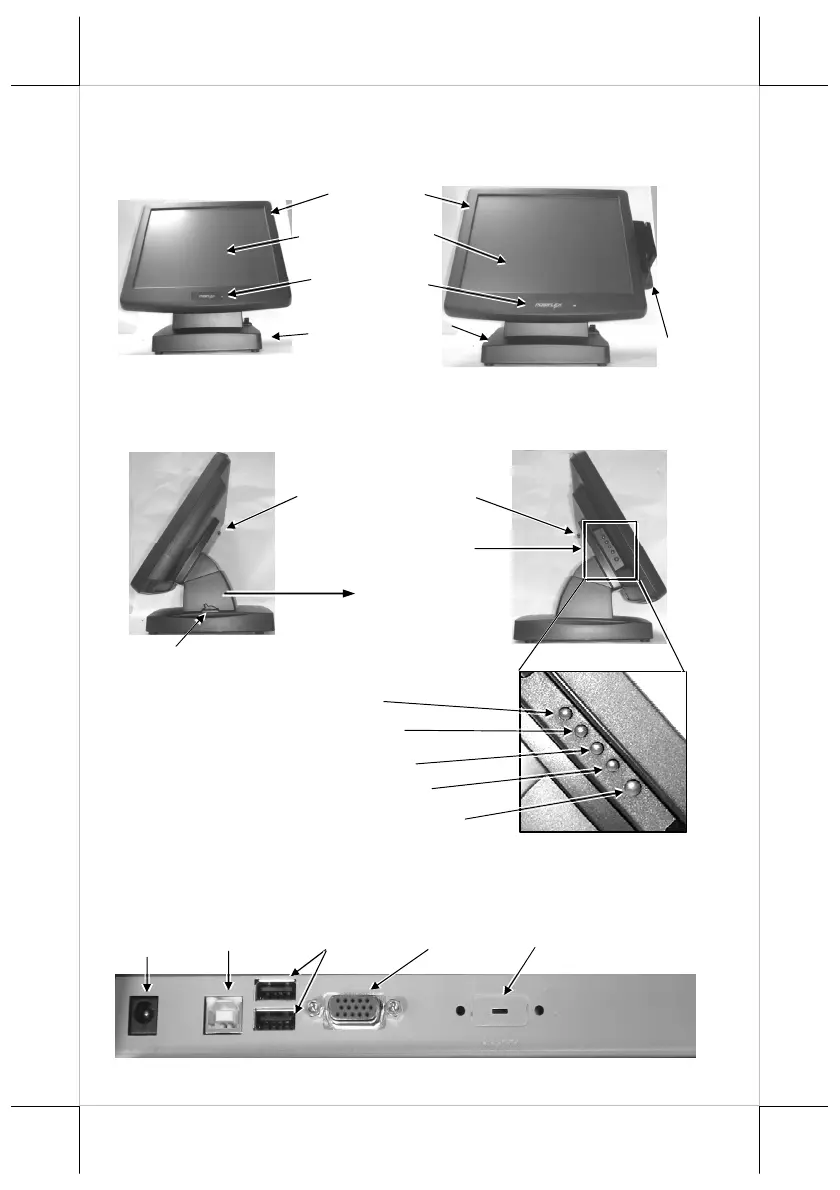

IV. PARTS IDENTIFICATION
A.
FRONT VIEW
B.
SIDE VIEWS
V. INPUT / OUTPUT PORTS
Display Screen
+ Touch Panel
Main Unit
Adjustable Base
Assembly Option
SD-400W
Logo + Power
Indicator
Lock/release lever
Push in this direction
to adjust the tilt angle
of the display panel
Control button area
Lock/release b
utton to
detach the main unit
“+” button
OSD button
“-“ button
Power switch
COM
(option RS232)
VGA
input
USB (B)
(to Host)
12 V DC
input
USB (A)
(to Devices)
