ACTIVE SUBWOOFERS
1
1
1
1178.908 - PD 312 S
78.908 - PD 312 S
78.908 - PD 312 S

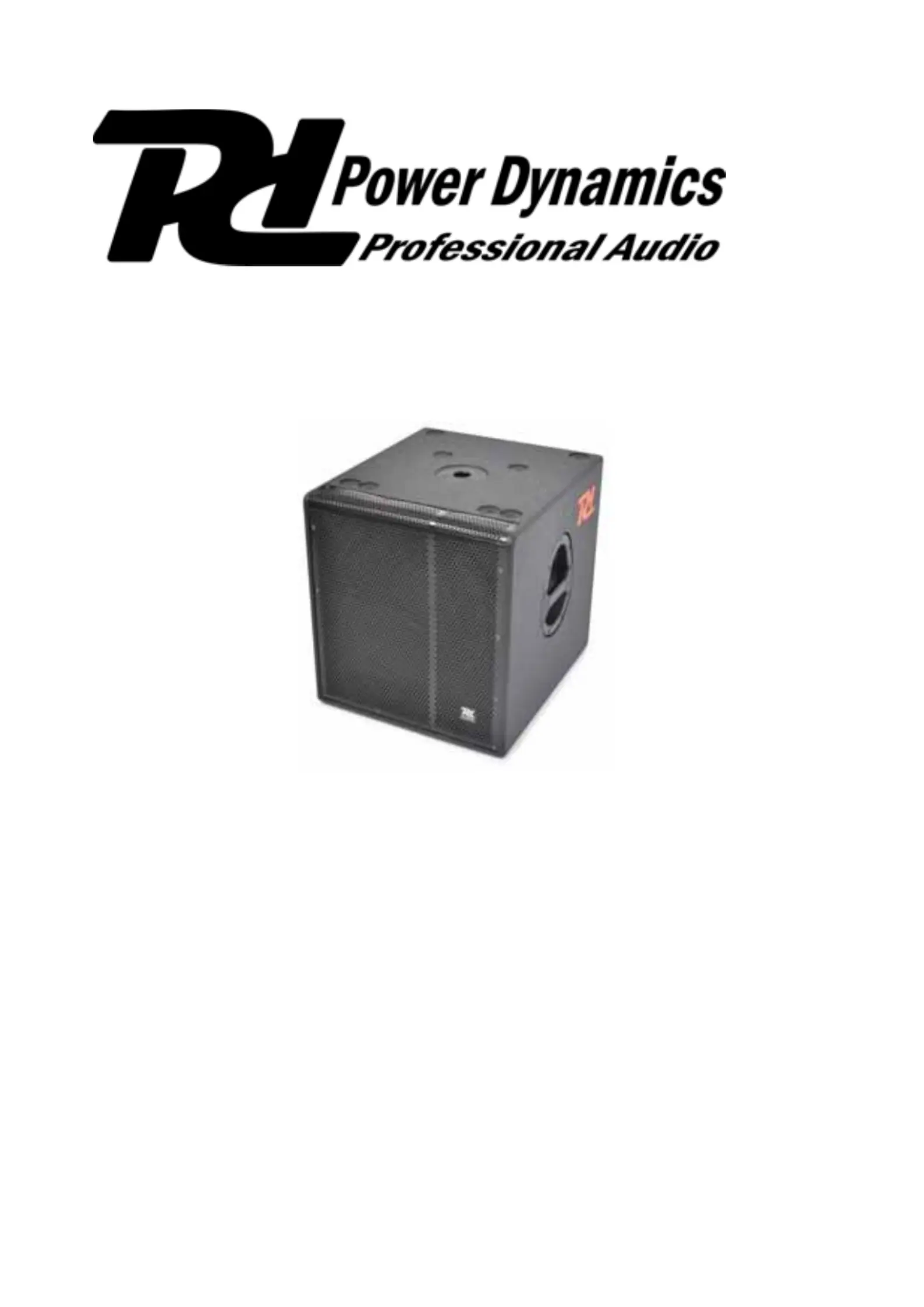

78.908 - PD 312 S78.908 - PD 312 SA 12" Subwoofer
A 12" Subwoofer
A 12" Subwoofer
A 12" Subwoofer A 12" Subwoofer
1
1
1
1178.910 - PD 315 S
78.910 - PD 315 S
78.910 - PD 315 S
78.910 - PD 315 S78.910 - PD 315 SA 15" Subwoofer
A 15" Subwoofer
A 15" Subwoofer
A 15" Subwoofer A 15" Subwoofer
1
1
1
1178.915 - PD 318 S
78.915 - PD 318 S
78.915 - PD 318 S
78.915 - PD 318 S78.915 - PD 318 SA 18" Subwoofer
A 18" Subwoofer
A 18" Subwoofer
A 18" Subwoofer A 18" Subwoofer
Instruction Manual
Gebrauchsanleitung
Manual de instrucciones
Gebruiksaanwijzing
WARNINGS :
Keep the manual for future reference.
Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all safety
precautions to avoid fire and/or electric shock hazard. All repairs should be carried out by a qualified technician.
• Prior to using the unit, ask a professional for
advice.
• Hearing damage:
Power Dynamics speakers can produce very high
sound pressure levels (SPL) that can impair the
hearing of users, staff and audience.
• Do not overload the box in order not to damage
the speakers.
• The unit contains voltage carrying parts. DO NOT
open the unit.
• When unplugging the unit from the mains, always
pull the plug, never the chord.
• Never plug/unplug the mains plug with wet hands.
• If the plug and/or the mains lead are damaged,
they need to be repaired by a qualified technician.
• If the unit is damaged to an extent that internal
parts are visible, do not plug the unit into a mains
outlet and do not switch it on. Contact
immediately your dealer.
• Repairs should only be carried out by a qualified
technician.
• Only connect the unit to an earthed 220-
240Vac/50Hz mains outlet protected by a 10-16A
fuse.
• Keep away from heat sources and vibration.
• During a thunderstorm or if you don’t use the unit
for a longer period of time, unplug it from the
mains
• If the unit has not been used for a longer period of
time, condensation can occur inside the housing.
Please let the unit reach room temperature prior
to using it.
• To avoid accidents in public premises, the legal
requirements must be fulfilled and instructions/
warnings must be adhered to.
• Place the boxes on a stable surface.
• Place the speaker stand on a flat, stable surface
• Only use speaker stands that are suitable for the
weight of the speaker and never place more
speakers than allowed on a stand.
• Use an appropriate means of transport to move
the box – BEWARE OF YOUR BACK!!
• Keep out of the reach of children
• All volume controls must be set to zero prior to
switching the unit on.
• Do not use cleaning sprays for the slider controls.
The residues of these spray cause dust deposits
in the controls. If a problem occurs, please
consult a specialist.
• Always handle the unit with clean hands.
• Do not use force to adjust the controls.
• Do not clean the unit with chemical solutions. This
might damage the finish. Only use a dry cloth for
cleaning.
• Do not place the unit near electronic devices that
might cause interference.
• Only use original spares for repairs to avoid
damage and/or exposure to dangerous radiation
• Switch the unit off prior to plugging/unplugging the
unit or to moving the unit to another place.
• Make sure that the mains lead cannot be
damaged and nobody can walk on it.
• If you travel with the unit to another country make
sure that the mains voltage is suitable.
• Keep the packaging so that you can transport the
unit safely and without damage.
This marking attracts the attention of the user to dangerous voltages inside the housing that are of
sufficient amplitude to cause a shock hazard.
This marking attracts the attention of the use to important safety instructions contained in the manual or on
the product that must be adhered to.
CONTENTS OF THE CARTON:
• Subwoofer with built-in stereo amplifier • Mains lead
FEATURES AND FUNCTIONS:
• Built-in high power subwoofer
• High power 2.1 Amplifier
• 2x XLR line inputs
• 2x XLR high pass line output
• 2x XLR loop trough output
• Subwoofer level control
• Crossover control
• Temperature controlled fan
• Phase switch (0-180°)
• Ground Lift Switch

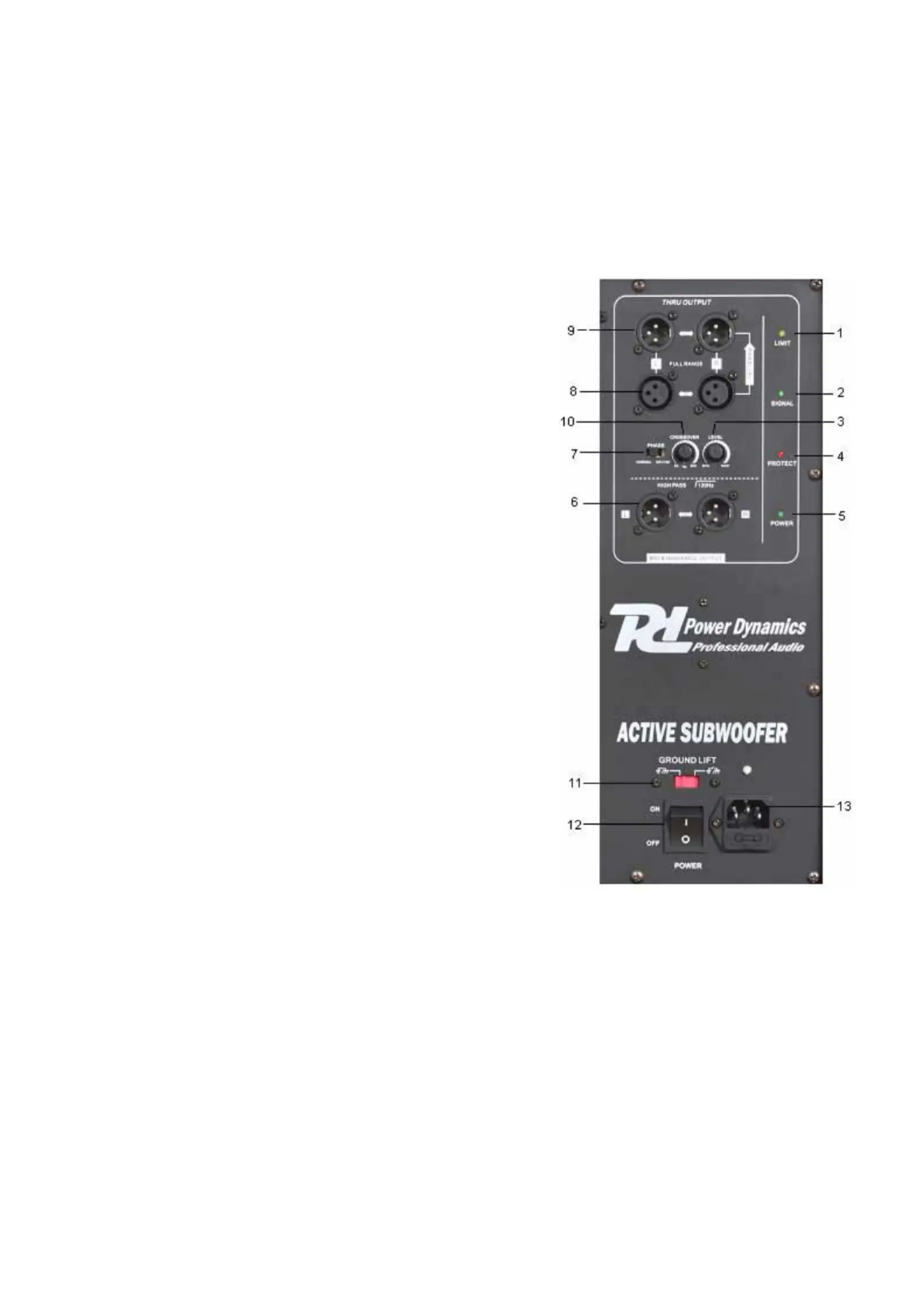

CONTROLS AND FEATURES:
1. LIMIT INDICATOR
This indicator will blink on occasion when the built in limiter is
active.
NOTE: If the indicator glows or starts to blink frequently, you
should turn down the Subwoofer Level.
2. SIGNAL INDICATOR
This indicator will glow when there is a signal received to the FULL
RANGE input.
3. SUBWOOFER LEVEL CONTROL
To regulate the output level of the subwoofer. Use this for setting
the balance between the subwoofer and the main speakers.
4. PROTECT INDICATOR
This indicator will begin to glow when the subwoofer goes into
protect mode and all output will stop. This will prevent the
subwoofer amplifiers from getting too hot and will protect all
speakers connected.
5. POWER LED
LED lits when you switch on the power.
6. HIGH PASS XLR OUTPUT
These outputs are used to send the incoming signal to a full range
active speaker or power amplifier.
7. PHASE SWITCH
This switch reverses the polarity of the subwoofer. Experiment
(placement of the subwoofer relative to the speakers) with all
speakers to find the best sound.
8. FULL RANGE XLR INPUTS
Are designed to accept a line input signal from a mixer or other
line devices with a balanced jack. Use balanced cables in order to
prevent signal loss. ONLY USE LINE LEVEL INPUT DEVICES.
9. THRU (FULL RANGE OUTPUTS)
Are used to send the signal from FULL RANGE INPUTS to
another device.
10. CROSSOVER CONTROL
To regulate the crossover frequency between 50-250Hz.
11. GROUND LIFT
Allows circuit and chassis grounds to be separated in case of problems with earth loops (hum).
12. ON/OFF SWITCH
13. MAINS POWER CONNECTOR
