ACTIVE LIVE SET

PD Combo 1200 Set 12"Sub 2x6,5"T

PD Combo 1200 Set 12"Sub 2x6,5"TPD Combo 1200 Set 12"Sub 2x6,5"Top

op op

PD Combo 1500 Set 15"Sub 2x8"T

PD Combo 1500 Set 15"Sub 2x8"TPD Combo 1500 Set 15"Sub 2x8"Top

op op

PD Combo 1800 Set 18"Sub 2x10"T

PD Combo 1800 Set 18"Sub 2x10"TPD Combo 1800 Set 18"Sub 2x10"Top

op op

Instruction Manual

Gebrauchsanleitung

Manual de instrucciones

Gebruiksaanwijzing

WARNINGS :

Keep the manual for future reference.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all

safety precautions to avoid fire and/or electric shock hazard. All repairs should be carried out by a qualified

technician.

• Prior to using the unit, ask a professional for

advice.

• Hearing damage:

Power Dynamics speakers can produce very high

sound pressure levels (SPL) that can impair the

hearing of users, staff and audience.

• Do not overload the box in order not to damage

the speakers.

• The unit contains voltage carrying parts. DO NOT

open the unit.

• When unplugging the unit from the mains, always

pull the plug, never the chord.

• Never plug/unplug the mains plug with wet hands.

• If the plug and/or the mains lead are damaged,

they need to be repaired by a qualified technician.

• If the unit is damaged to an extent that internal

parts are visible, do not plug the unit into a mains

outlet and do not switch it on. Contact

immediately your dealer.

• Repairs should only be carried out by a qualified

technician.

• Only connect the unit to an earthed 220-

240Vac/50Hz mains outlet protected by a 10-16A

fuse.

• Keep away from heat sources and vibration.

• During a thunderstorm or if you don’t use the unit

for a longer period of time, unplug it from the

mains

• If the unit has not been used for a longer period of

time, condensation can occur inside the housing.

Please let the unit reach room temperature prior

to using it.

• To avoid accidents in public premises, the legal

requirements must be fulfilled and instructions/

warnings must be adhered to.

• Place the boxes on a stable surface.

• Place the speaker stand on a flat, stable surface

• Only use speaker stands that are suitable for the

weight of the speaker and never place more

speakers than allowed on a stand.

• Use an appropriate means of transport to move

the box – BEWARE OF YOUR BACK!!

• Keep out of the reach of children

• All volume controls must be set to zero prior to

switching the unit on.

• Do not use cleaning sprays for the slider controls.

The residues of these spray cause dust deposits

in the controls. If a problem occurs, please

consult a specialist.

• Always handle the unit with clean hands.

• Do not use force to adjust the controls.

• Do not clean the unit with chemical solutions. This

might damage the finish. Only use a dry cloth for

cleaning.

• Do not place the unit near electronic devices that

might cause interference.

• Only use original spares for repairs to avoid

damage and/or exposure to dangerous radiation

• Switch the unit off prior to plugging/unplugging the

unit or to moving the unit to another place.

• Make sure that the mains lead cannot be

damaged and nobody can walk on it.

• If you travel with the unit to another country make

sure that the mains voltage is suitable.

• Keep the packaging so that you can transport the

unit safely and without damage.

This marking attracts the attention of the user to dangerous voltages inside the housing that are of

sufficient amplitude to cause a shock hazard.

This marking attracts the attention of the use to important safety instructions contained in the manual or on

the product that must be adhered to.

CONTENTS OF THE CARTON:

• Subwoofer with built-in stereo amplifier

• 2x Top (top) speakers

• Mains lead

FEATURES AND FUNCTIONS:

• Built-in high power subwoofer

• High power 2.1 Amplifier

• 2x XLR line inputs

• 2x XLR high pass line output

• 2x XLR loop trough output

• Subwoofer level control

• Top-speaker level control

• Temperature controlled fan

• Phase switch (0-180°)

• Attached wheels

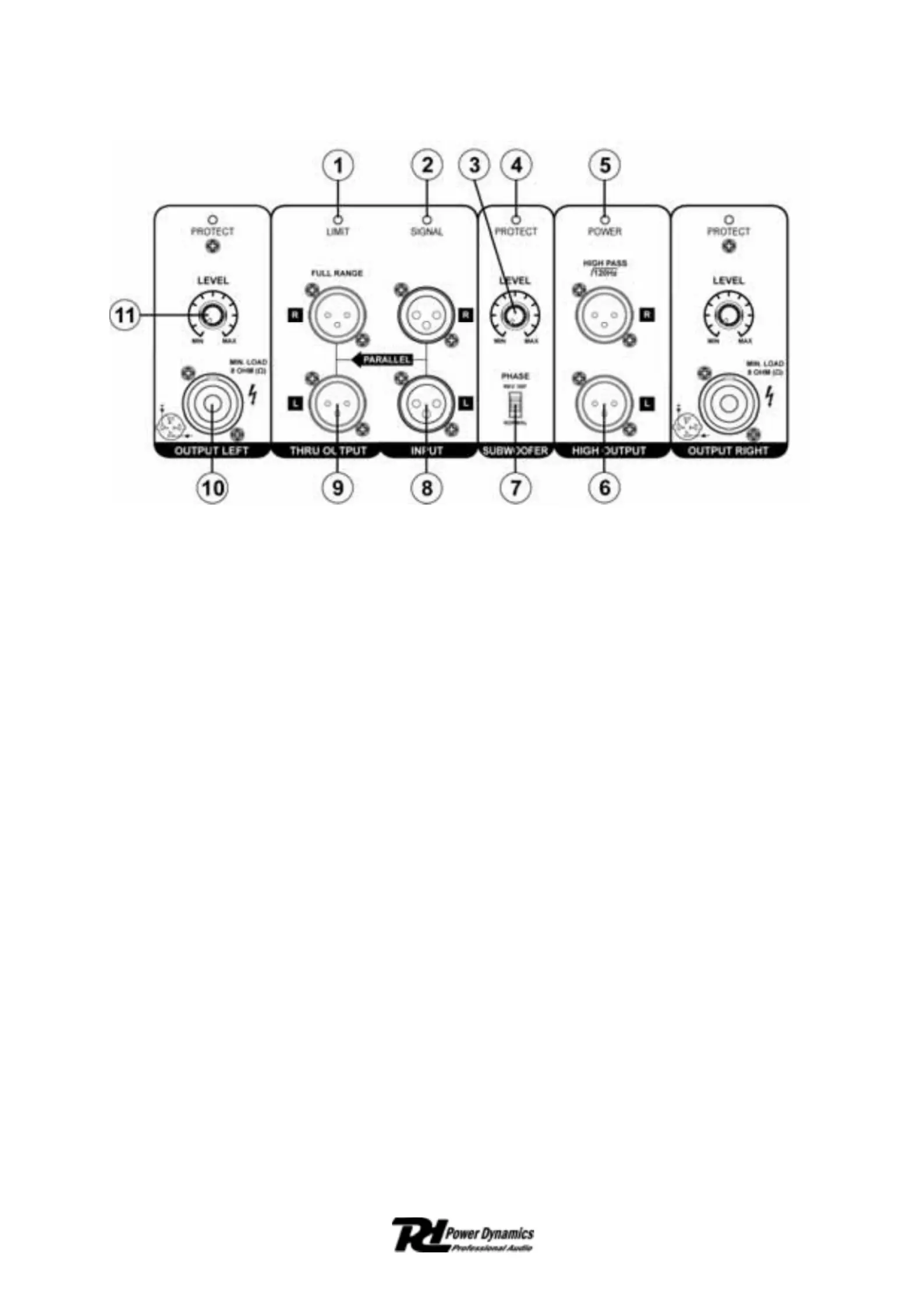

CONTROLS AND FEATURES:

1. LIMIT INDICATOR

This indicator will blink on occasion when the built in limiter is active.

NOTE: If the indicator glows or starts to blink frequently, you should turn down the Subwoofer

Level.

2. SIGNAL INDICATOR

This indicator will glow when there is a signal received to the FULL RANGE input.

3. SUBWOOFER GAIN CONTROL

To regulate the output level of the subwoofer. Use this to set the balance between the speakers

and subwoofers.

4. PROTECT INDICATOR

This indicator will begin to glow when the subwoofer goes into protect mode and all output will

stop. This will prevent the subwoofer amplifiers from getting too hot and will protect all speakers

connected.

5. POWER LED

LED lits when you switch on the power.

6. HIGH PASS XLR OUTPUT

These outputs are used to send the incoming signal to a full range active speaker or power

amplifier.

7. PHASE SWITCH

This switch reverses the polarity of the subwoofer. Experiment (placement of the subwoofer

relative to the speakers) with all speakers to find the best sound.

8. FULL RANGE XLR INPUTS

Are designed to accept a line input signal from a mixer or other line devices with a balanced jack.

Use balanced cables in order to prevent signal loss. ONLY USE LINE LEVEL INPUT DEVICES.

9. THRU (FULL RANGE OUTPUTS)

Are used to send the signal from FULL RANGE INPUTS to another device.

10. TO SATELLITE SPEAKER OUTPUT

Gain controllable outputs to connect passive speakers.

11. SATELLITE SPEAKER GAIN CONTROL

To regulate the output level of the stereo signals.
