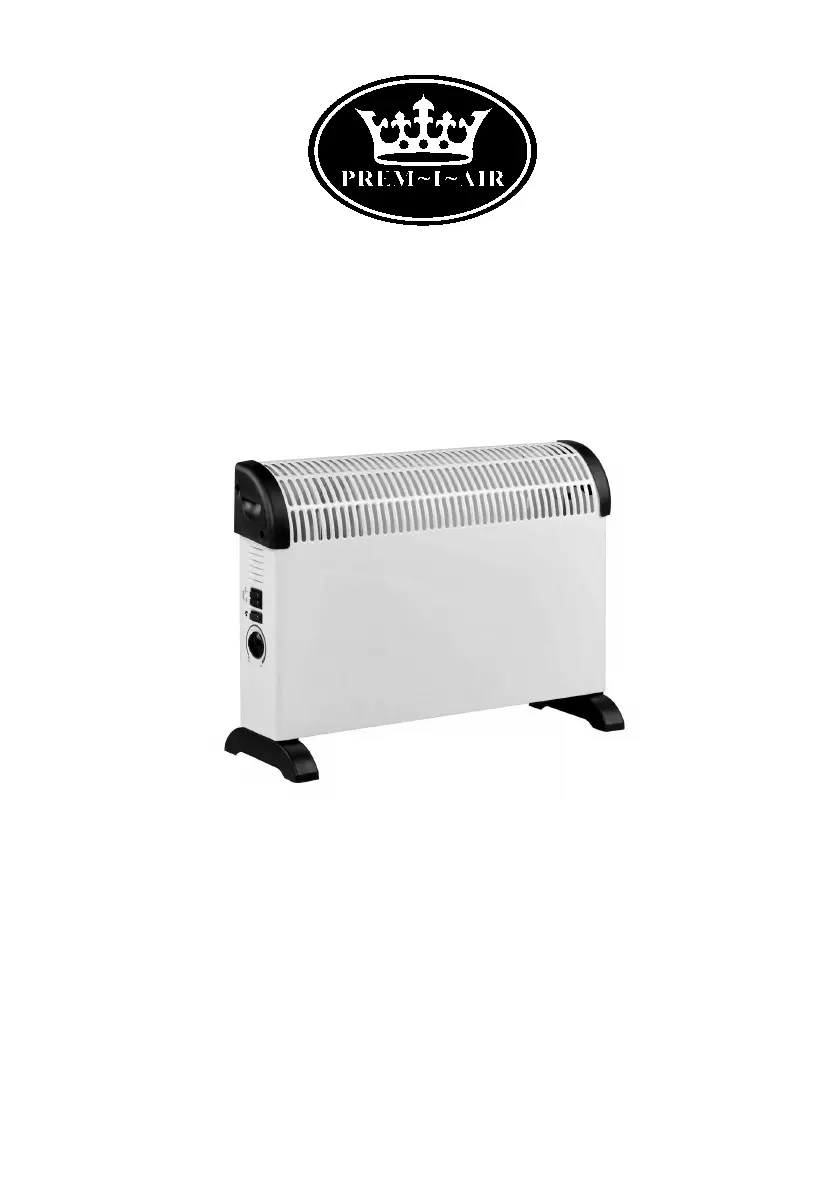

EH1436
2kW Convector Heater with Turbo Fan
Radiateur Convecteur 2 kW
avec Ventilateur Turbo
3 Heat settings
Adjustable room
thermostat
Turbo fan
Convenient built-in
carrying handle
Safety overload cut-out
3 Vitesses
Thermostat Réglable
Ventilateur Turbo
Poignée de Transport
très Pratique
Coupure de Sécurité
en cas de Surchauffe
Page 1
IMPORTANT
Installer and Users please note:
These instructions should be read carefully and left with the
user of the product for future reference.
INSTALLATION
For free-standing use: attach the feet to the underneath of
the heater using the four 12 mm (½") screws. The feet at
end of the case.
To wall-mount: Referring to the diagram opposite, draw
two horizontal lines on the wall 305 mm (12") apart, the
lower line more than 50 mm (2") from the floor.
On the upper line, drill holes 208 mm (8¼") from the centre
line, using a 6mm (¼") masonry bit, and insert a wall plug.
On the lower line, drill holes 254 mm (10") from the centre
line using a 6mm (¼") masonry bit, and insert a wall-plug.
Fix the two hook-brackets to the upper holes using the 30
mm (1¼") screws.
Fix the two L-shaped brackets to the underside of the
heater using the 12 mm (½") screws through the round hole
in the bracket - the oval hole in the bracket locates over the
screw that fixes the case together,
Hang the heater on the hook-brackets using the two slots.
The L-shaped brackets will now line up with the lower holes
in the wall. Attach to the wall using the other two 30 mm
(1¼") screws.
