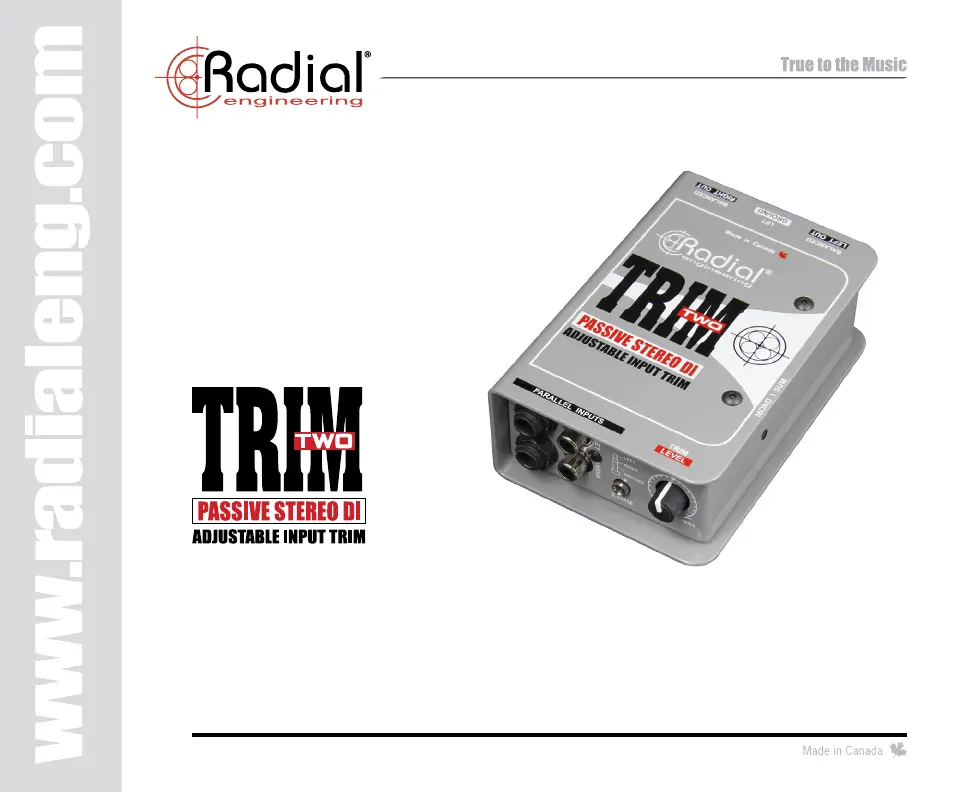

TRIM-TWO USER GUIDE
PASSIVE STEREO DIRECT BOX
ADJUSTABLE INPUT TRIM
Radial Engineering Ltd.
1845 Kingsway Ave., Port Coquitlam, BC V3C 1S9, Canada
Tel: 604-942-1001 • Fax: 604-942-1010 • Email: info@radialeng.com
Radial Engineering Ltd. Trim-Two™ Stereo Direct Box User Guide
1
TRIM-TWO™ STEREO DIRECT BOX
USER GUIDE
Introduction 1 ......................................................................................
Features 2 ..........................................................................................
Overview.......................................................................................... 3
Making Connections 4 ........................................................................
Controls 5 ...........................................................................................
Applications 6-7 ..................................................................................
Optional Mounting Accessories ....................................................... 8
Specications .................................................................................. 9
Block Diagram 10 ...............................................................................
Warranty Back Cover .........................................................................
Thank you for purchasing the Radial Trim-Two. This is without a doubt one of the most useful direct boxes that we have
ever produced and is sure to give you years of enjoyment.
As with all new products, it is best that you take a few minutes to read through this short manual to review the many
features that are built in. If you nd yourself wondering about something, please take a moment to view the Trim-Two FAQ
page on our web site. This is where we post the latest updates and questions from users. If afterwards you feel you are still
in need of an answer, feel free to send us a note at info@radialeng.com and we will do our very best to reply in short order.
Now get ready to enjoy the advantages of having a volume control at your ngertips.
Radial Engineering Ltd. Trim-Two™ Stereo Direct Box User Guide
2
FEATURES
1. ¼" INPUTS: Left and right inputs ideally suited for stereo
keyboards or drum machines, wired in parallel with the RCA
and mini 3.5 TRS connector.
2. RCA INPUTS: Left and right inputs provide an easy connection
from a CD player or other -10dB consumer audio device.
3. 3.5mm TRS INPUT: Standard mini TRS stereo input for
connecting a laptop, tablet or iPhone to the Trim-Two.
4. LEVEL: Used to set the input level going into the Trim-2.
Eliminates the need for a typical PAD switch.
5. MONO SUM: Side access set & forget switch sums stereo
signals to mono at both XLR outputs.
6. BOOKEND DESIGN: Creates protective zone around the
connectors and switches for added durability.
7. XLR OUT: Left and right balanced, low-Z mic-level output. Wired
to AES standard pin-1 ground, pin-2 hot (+) and pin-3 cold (-).
8. GROUND LIFT: Lifts pin-1 at both XLR outputs to help eliminate
hum and buzz caused by ground loops.
9. NO SLIP PAD: Provides electrical & mechanical isolation and
keeps Trim-Two from sliding around.
10. 14:GAUGE STEEL: I-Beam construction prevents circuit board
from being torqued which could lead to part failure. Durable
powder-coat nish keeps your Trim-Two looking great for years.
6 7 8 9 10
21 3 4 5
