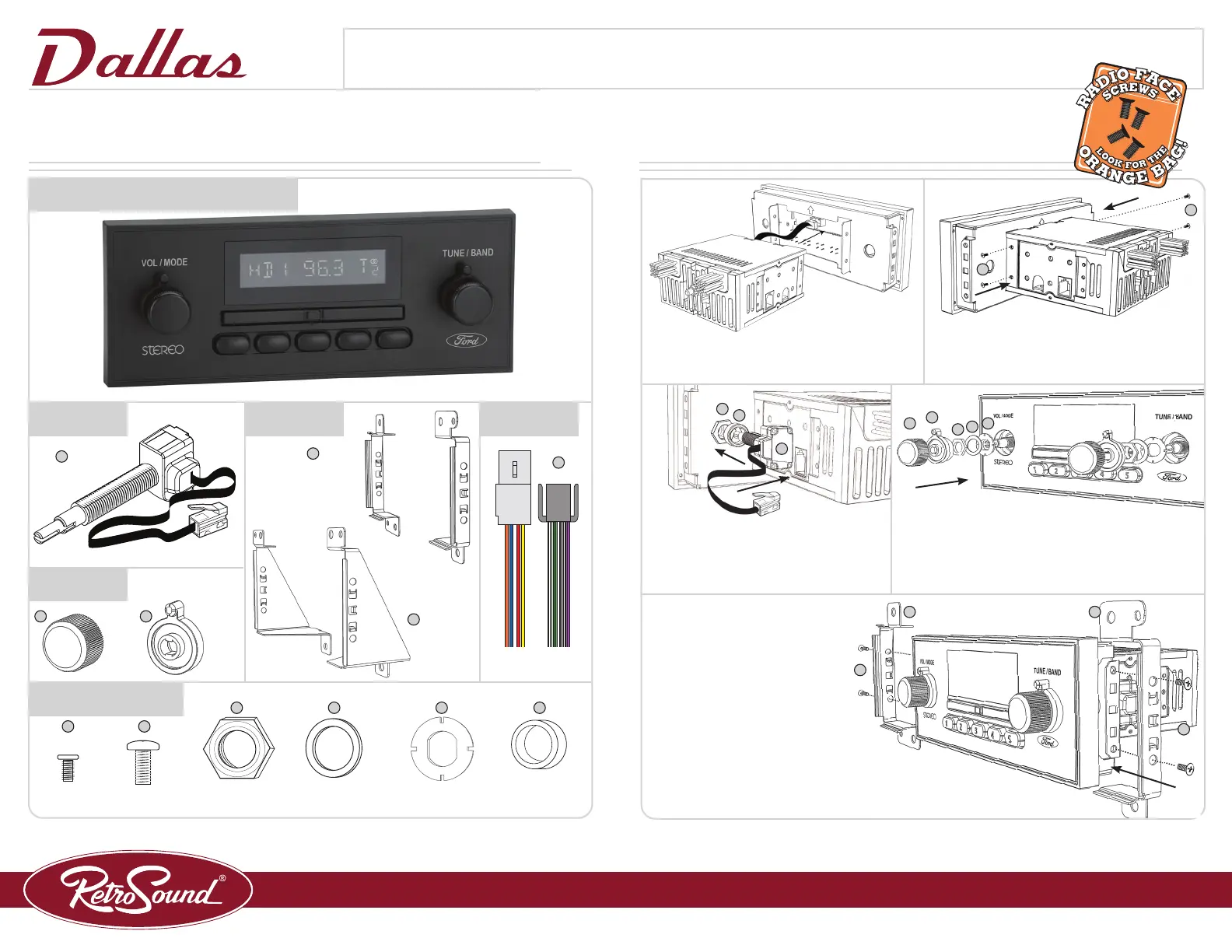

Radio Face Quick Start Guide
What’s in the Box Installation
Dallas Face
Shafts Adapters
Knobs
Brackets
x(2) x(2)
x(4) x(2)
Hardware
Modern Sound For Your Classic
tech@retromanufacturing.com | help.retromanufacturing.com
Refer to the user manual included in your motor box or on our website for more comprehensive instructions.
Plug the ribbon cable from the Radio Motor
into the Radio Face.
Place a small metal spacer on each
control shaft and secure with a shaft nut.
Slide the shafts through the Radio Face
with the shaft’s cord facing out. Plug the
control shafts into the Radio Motor.
NOTE: Use either brackets
J or K as needed.
Place the small black plastic washer and the thin
metal washer onto the shaft, and secure with
the shaft nut using a deep-well socket. DO NOT
OVERTIGHTEN. Finish the assembly by installing
the front and rear knobs.
Install the mounting brackets with
the radio facing you. Attach the
bracket labeled R to the right side
and the bracket labeled L to the
left side. Line up tabs and use
supplied screws to secure the
brackets to the Radio Face.
To use the optional wiring adapters(L)
(if the vehicle has a compatible factory
harness intact), plug the adapters into the
factory wiring harness and match the wiring
color to the color on the adapter that came
with the Radio Motor. Not all wires may be
needed, cap off any unused wires that do
not match the factory harness.
Attach the Radio Face to the Radio Motor using
the four small screws from the orange bag
found in your Radio Face box.
x(2)
x(2)
Note: Use either brackets J
or K as needed.
Note: Not used
for all installations.
x(2) x(2)
AA
J
JJ
B C K
L
D
D
D
I
I
G H
BC
x(4)
F
x(4)
E
F
Radio Presets
Control Layout Basic Operation
Modern Sound For Your Classic
tech@retromanufacturing.com | help.retromanufacturing.com
*Some features are not available on all radios.
1 Left-Front Knob Right-Rear Knob 4
Preset Buttons 5
2 Left-Rear Knob Right-Front Knob 3
6 Seek Bar
Setting Radio Presets
To set a preset, tune to the station you want to set the preset to, and then press and hold the
desired Preset Button( ) for two seconds.5
Recalling Radio Presets
To recall a preset, simply press the Preset Button( ) your station was set to previously. 5
Power On/O
Press the Left-Front Knob( ) to power the unit on.1
Press and hold the Left-Front Knob(1) to power the unit o.
Volume
Rotate the Left-Front Knob( ) to change the volume.1
Changing Source Modes
Rotate the Left-Rear Knob( ) clockwise to cycle through the source modes.2
Changing Radio Bands
Rotate the Right-Rear Knob( ) counter-clockwise to cycle through the radio bands.4
Tune
Rotate the Right-Front Knob( ) to scroll through the stations.3
Seek Bar
Press the Seek Bar(6) to nd the previous/next station, or skip to the previous/next track.
Mute On/O
Press the Right-Front Knob( ) to mute and unmute.3
Equalizer (EQ)
Press the Left-Front Knob( ) to enter the Tone Control sub-menu. Press and release the Left-1
Front Knob( ) until you see the EQ setting you’d like to adjust. Rotate the Left-Front Knob( ) to 1 1
adjust the setting. Press the Left-Front Knob( ) to move to the next item, and repeat to adjust 1
each option. Let the unit time out to set.
Setting the Clock
Press and hold the Right-Front Knob( ) to enter the System Settings sub-menu. Rotate the 3
Right-Front Knob( ) to cycle through the choices until you see CLK, then press the Right-3
Front Knob( ) to select. Rotate the Right-Front Knob( ) to adjust the hours. Then press the 3 3
Right-Front Knob( ) again to move on to minutes. Rotate the Right-Front Knob( ) to adjust the 3 3
minutes. Let the unit time out to set.
Display Color*
Press and hold the Right-Front Knob( ) to enter the System Settings sub-menu. Rotate the 3
Right-Front Knob( ) to cycle through the choices until you see SCAN, then press the Right-3
Front Knob( ) to cycle through the colors. Let the unit time out to set.3
Beep On/O
Press and hold the Right-Front Knob( ) to enter the System Settings sub-menu. Rotate the 3
Right-Front Knob(3) to cycle through the choices until you see BEEP ON/OFF, then press the
Right-Front Knob( ) to choose between BEEP ON or BEEP OFF. Let the unit time out to set.3
Radio Face Quick Start Guide
MODERN SOUND FOR YOUR CLASSIC
For Models:
Motor 1A, Motor 2A, Motor 1DAB, Motor 2DAB, & Motor 4HD
User
Manual
