Rockford Fosgate PM600X4 Bruksanvisning
Rockford Fosgate
mottagare
PM600X4
Läs nedan 📖 manual på svenska för Rockford Fosgate PM600X4 (2 sidor) i kategorin mottagare. Denna guide var användbar för 5 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/2
RIGHTLEFT
FRONT REAR
BRIDGED
RIGHTLEFT
RIDGED
SPEAKERS
REMOTE
PUNCH LEVEL
INPUT CLIP PASS-THRU REARFRONT
RIGHT
LEFT
RIGHT
LEFT
B+REM GND
PLC-OUTPLC IN
B+
REM GND
INPUT CLIP PASS-THRU REARFRONT
RIGHT
LEFT
RIGHT
LEFT
* Specifications subject to change without notice. Images
depict typical setup. Refer to manual for additional wiring
options.
RIGHTLEFT
FRONT REAR
BRIDGED
RIGHTLEFT
BRIDGED
SPEAKERS
P
Be sure to connect speakers and
Punch Level Control - PLC
(if equipped) after amplifier output
clip adjustment.
(see reverse)
Optional Accessory
PLC2
Battery
*Keep grounds as
short as possible
*Keep grounds as
short as possible
Source Unit
Connect to chassis
ground of vehicle
Less than 18”
Fuse

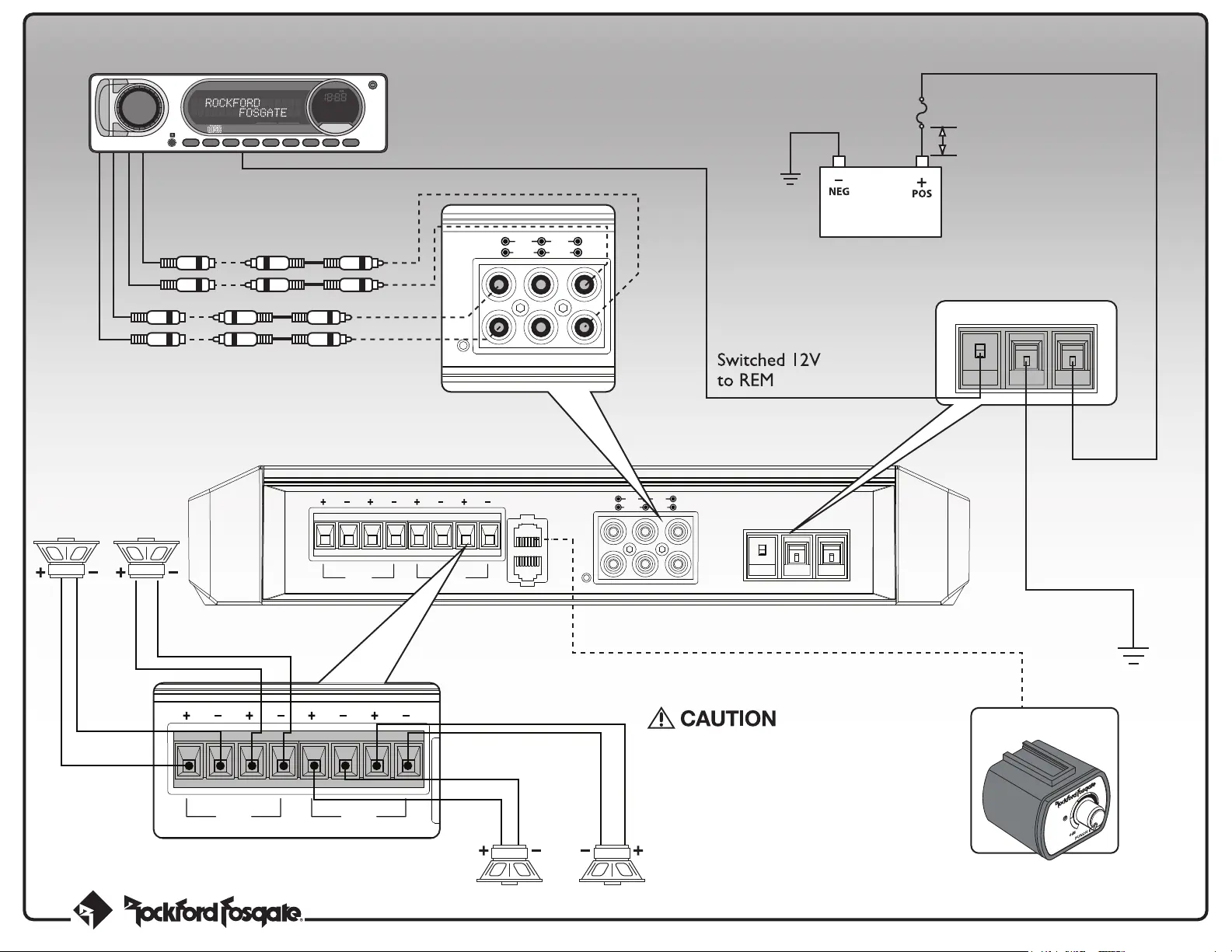

Amplifier Quick Setup
RIGHTLEFT
FRONT REAR
BRIDGED
RIGHTLEFT
BRIDGED
SPEAKERS
R
PUNCH
INPUT CLIP PASS-THRU REARFRONT
RIGHT
LEFT
RIGHT
LEFT
B+REM GND
PLC-OUTC-IN
Input Clip Indicator Setup
Be sure to disconnect all speakers
from the amplifier.
Failure to comply may cause damage
to connected components and/or
amplifier.
Step 1 - Input
Adjust the Bass & Treble levels on the
source unit to flat.Turn on the source unit with volume set to zero.
Play test tone* or music CD for setup.
Note: Use the 40Hz @ 0dB tone (Track 5) for
mono amplifier applications or the 1kHz @ 0dB
tone (Track 7) for multi-channel amplifier
applications. Be sure your x-over is switched to
the appropriate filter setting.
*Test tones available at https://rftech.custhelp.com/app/answers/de-
tail/a_id/1126/ Scroll to the bottom of the page and download your preferred
format.
Increase the source unit volume until the
Input Clip Indicator illuminates red.
Note: Input Clip can be viewed remotely
with optional PLC2.
Decrease the source unit volume slightly
until the light turns completely off. This
establishes your maximum source unit
volume for adjusting the Output Clip
Indicator.
Note: Some source units will not clip.
Reconnect all speakers and
Punch Level Control - PLC (if
equipped) to the amplifier. Be
sure to maintain proper
speaker polarity.
Turn the source unit volume
down.
Step 2 - Input
Step 3 - Input
Step 4 - Input
Step 5 - Input Step 6 - Input Step 8 - Output Step 9 - Output
Step 10 - Output
Volume
Be sure to disconnect
Punch Level Control - PLC
(if equipped) from the
amplifier.
Step 7 - Output
Output Clip Indicator
Setup
Adjust the Input Level knob
until the Output Clip Indicator
illuminates to the appropriate
color. Repeat for all channel
levels of input.
INPUT CLIP PAS -THRUFRONT
RIGHT
LEFT
RIGH
LEF
INPUT CLIP PAS -THRUFRONT
RIGHT
LEFT
RIGH
LEF
Volume
Volume
Volume
Amplifier Clip Indicator Setup
1230-58089-02-A
