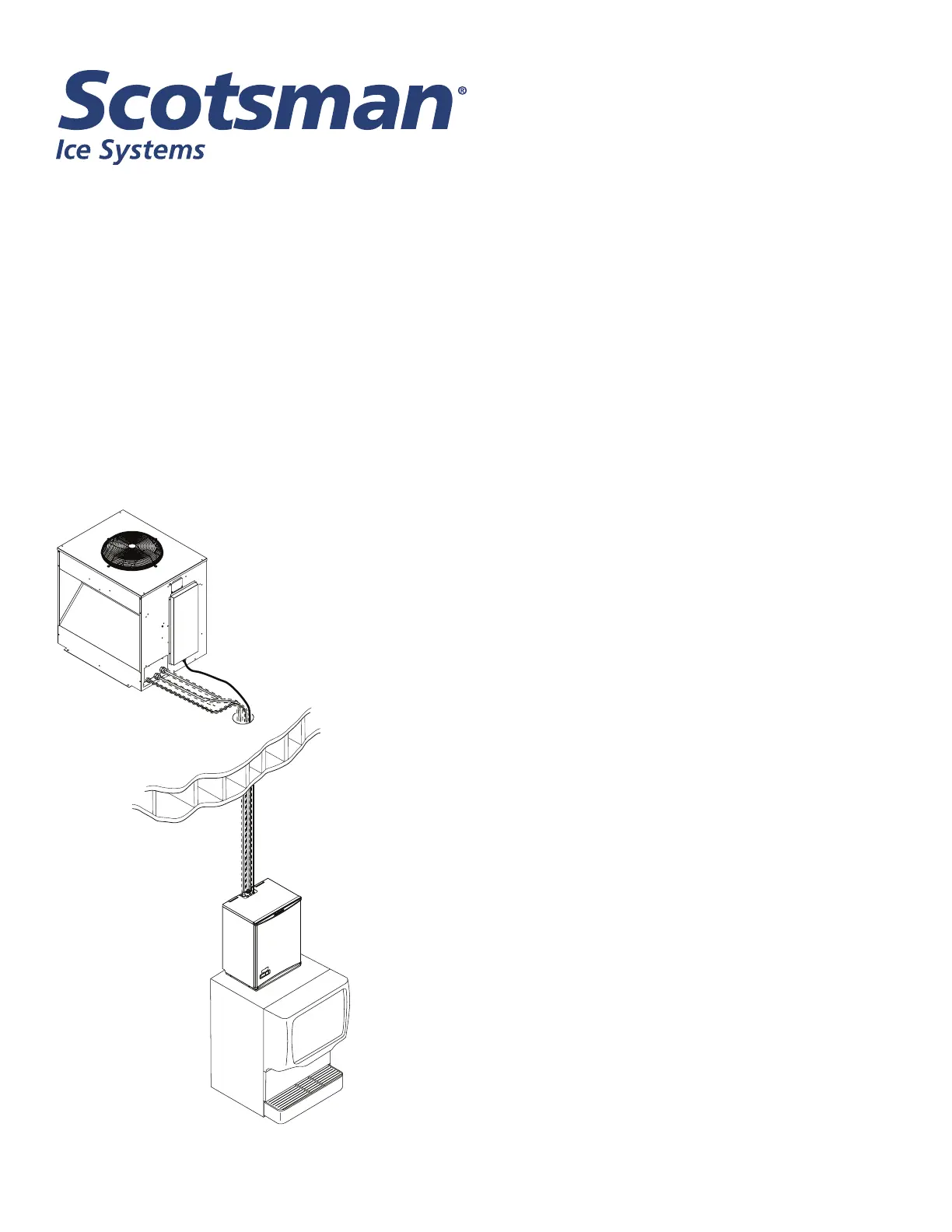

Installation and User Manual for Eclipse Cuber
Prodigy Plus E Series model
EH222 with ECC Condensing UnitE
EH222 E and Condensing Unit
Remote Low Side Cuber User Manual
June 2018
Page 2
Introduction:
This manual covers the assembly, installation, start
up, operation and maintenance of the 800 and 1000
remote low side cuber systems.
Contents
Conguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
Specications and Location Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
Cabinet Drawings, Ice Making Head Page 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cabinet Drawings, Condensing Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
Pre-Installation Details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
Create the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8
Completed System Example Page 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Place Remote System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10
Tubing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11
Place Ice Making Head Page 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drain Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 13
Water Supply: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 14
Electrical: Page 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connect Refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 16
Complete the Installation Page 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reference for Start Up: Controller Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 18
Initial Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 19
Ice Thickness and Water Purge Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 20
Adjustable Ice Level Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21
Cleaning, Sanitation and Maintenance Page 22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operational Characteristics 800 lb system Page 24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operational Characteristics 1000 lb system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 24
What to do before calling for service: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 25
EH222 Schematic Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 26
EH222 Wiring Diagram Page 27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ECC Three Phase Schematic Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 28
ECC Three Phase Wiring Diagram Page 29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ECC Single Phase Schematic Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 30
ECC Single Phase Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 31
EH222 E and Condensing Unit
Remote Low Side Cuber User Manual
June 2017
Page 3
Conguration
A remote low side cuber system includes two sub
systems: an ice making head and a remote air cooled
condensing unit. This manual covers the EH222 head
and the condensing units that go with it.
The ice making heads are designed for use indoors
in a controlled environment. The remote condensing
units are designed to operate outdoors. Each sub-
system has limits for power, water and temperature.
Operational Limitations:
Minimum Maximum
Air Temp (at head) 50oF 100oF.
Air Temp (CU) -20oF. 120oF.
Water Temp 40oF. 100oF.
Water Pressure 20 psi 80 psi
Water Conductivity 10 microSiemens/cm any
Voltage (at head) 104 126
Voltage (CU) 198 253
CU= Condensing Unit
Do Not operate the machine in conditions beyond
these limitations. Doing so will void the warranty.
Scotsman ice systems are designed and
manufactured with the highest regard for safety and
performance. They meet or exceed common agency
standards.
Scotsman assumes no liability of responsibility of
any kind for products manufactured by Scotsman
that have been altered in any way, including the use
of any part and/or other components not specically
approved by Scotsman.
Scotsman reserves the right to make design changes
and/or improvements at any time. Specications and
design are subject to change without notice.
Warranty
Refer to the warranty coverage in effect when the
equipment was sold. Warranty statements are
included with each product.
Systems:
Ice making heads and condensing units have their
own model and serial numbers. They must be
combined to create a remote cuber low side system.
Notes: Voltage Codes are at the end of the model
number. Codes read Voltage/Hertz/Phase. Those
related to these products include:
-1 = 115/60/1
-3 = 208-230/60/3
-32 = 208-230/60/1
System Information
Tubing kits are required to connect the head to the
condensing unit.
Interconnecting 24 volt control wire ships with the
condensing unit.
System Size Ice Making HeadCondensing Unit (CU)
Model Electrical (volts/Hz/phase Model Electrical (volts/Hz/phase)
800 ECC0800-32E 208-230/60/1 115/60/1EH222SL-1E
800 ECC0800-3E 208-230/60/3 same same
1000 ECC1410-32E 208-230/60/1 same same
1000 ECC1410-3E 208-230/60/3 same same
