Sida 1/6
Copyright © EURO-PRO Operating LLC 2008

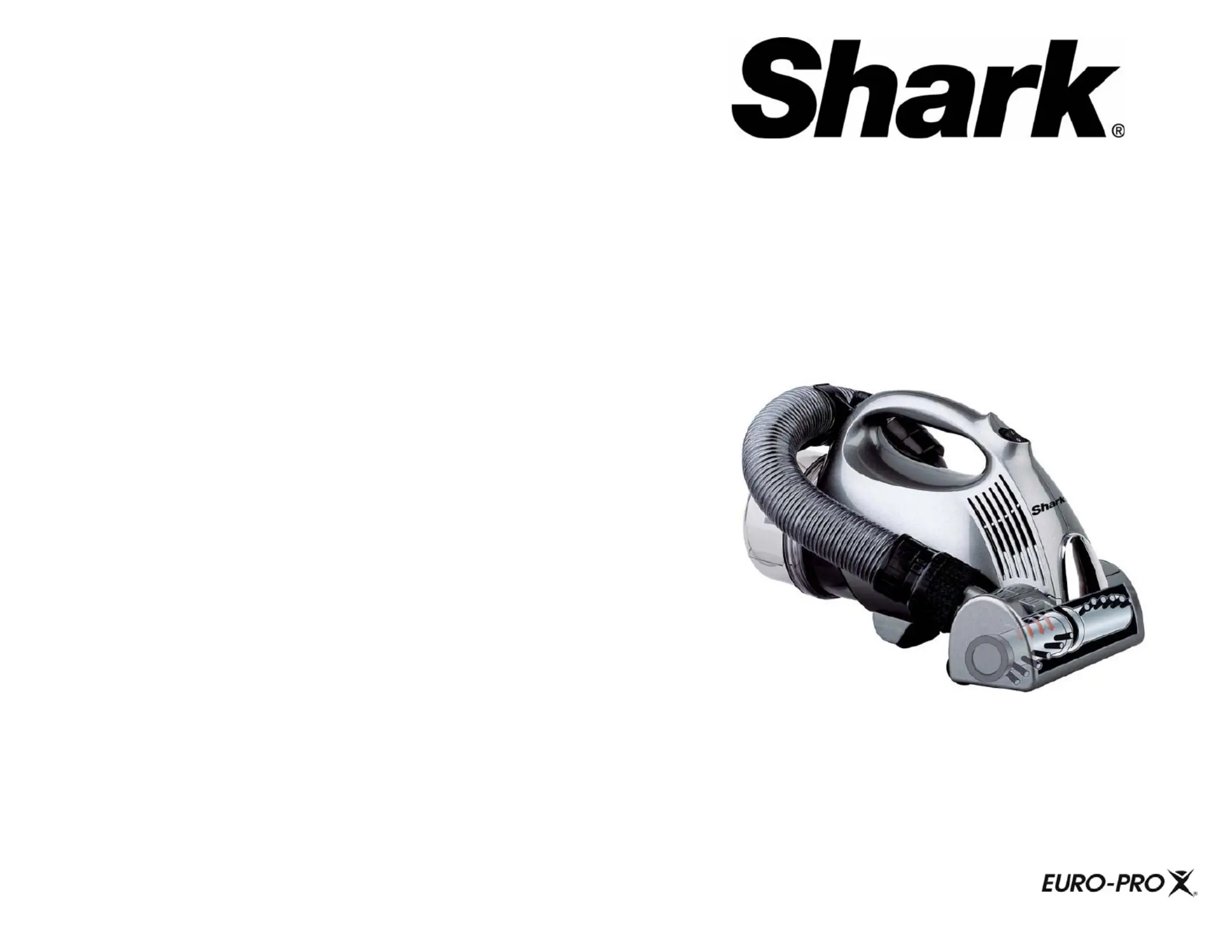

OWNER’S MANUAL
Model V1510
120V., 60Hz., 6.67 Amps
Hand Vacuum With Motorized Brush
EURO-PRO Operating LLC
Boston, MA, 02465
Tel.: 1 (800) 798-7398
www.sharkvac.com
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
1
For Household Use Only
Rev. 11/07B
When using your SHARK Hand Vacuum with Motorized Brush, basic safety
precautions should always be observed, including the following:
WARNING: To reduce the risk of electric shock, this appliance has a polarized plug (one
blade is wider than the other). This plug will fit in a polarized outlet only one way. If the
plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician to install the proper outlet. Do not modify the plug in any way.
To reduce the risk of fire, electric shock, or
injury:
•Do not leave the hand vacuum plugged in
when unattended. Unplug the electrical cord
when not in use and before servicing.
•Do not allow the unit to be used as a toy.
Close attention is necessary when used by or
near children, pets or plants.
• Use only as described in this manual. Use
only manufacturer’s recommended
accessories.
•Do not pull cord, use cord as a handle, close
a door on cord, or pull cord around sharp
edges or corners. Keep cord away from
heated surfaces.
• Use only extension cords UL-rated or cUL at
15 amperes. extension cords rated for less
amperage may overheat. Care should be
taken to arrange the cord so that the cord
cannot be pulled or tripped over.
• Turn off all controls as applicable before
unplugging from electrical outlet.
•Do not unplug by pulling on cord. To unplug,
grasp the plug, not the cord.
•Do not handle plug or hand vacuum with wet
hands or operate without shoes.
•Do not put any objects into openings. Do not
use with any opening blocked. Keep free of
dust, lint, hair and anything else that may
reduce air flow.
• Store your appliance indoors in a cool, dry
area.
• Keep your work area well lit.
•Do not immerse the hand vacuum into water
or other liquids.
• Keep end of hose and other openings away
from your face and body.
• Use only on dry surfaces.
• Using improper voltage may result in damage
to the motor and possible injury to the user.
Correct voltage is listed on rating label.
1. Read all instructions before using your
SHARK hand vacuum.
2. Use the system only for its intended use.
3. To protect against a risk of electric shock,
do not immerse any part of the system in
water or other liquids.
4. Never yank cord to disconnect from
outlet; instead, grasp plug and pull to
disconnect.
5. Do not allow cord to touch hot surfaces.
6. Do not run appliance over cord.
7. Do not operate the system with a damaged
cord or plug, or if the appliance or any other
part of the system has been dropped or
damaged. To avoid the risk of electric
shock, do not disassemble or attempt to
repair the hand vacuum. Return the
system to EURO-PRO Operating LLC (see
warranty) for examination and repair.
Incorrect re-assembly or repair can cause a
risk of electrical shock or injury to persons
when the hand vacuum is used.
8. Close supervision is necessary for any
appliance being used by or near children.
Do not leave the system unattended while
connected.
9. Keep hair, loose clothing, fingers and all
parts of body away from opening and
moving parts.
10. Do not use to pick up flammable or
combustible liquids such as gasoline or use
in areas where they may be present.
11. Do not pick up anything that is burning or
smoking such as cigarettes, matches or hot
ashes.
12. Use extra care when cleaning on stairs.
13. Do not use the hand vacuum without the
dust cup filter in place.
14. This appliance is intended only for
household use. Follow all user instructions
in this manual.
GETTING TO KNOW YOUR HAND VACUUM
Technical Specifications
Voltage: 120V., 60Hz.
Power: 6.67 Amps, 800 Watts
*Illustrations may differ from actual product
2
1. Brush Safety Cover
2. On/Off Switch
3. Dust Cup Release Button
4. Hose Clip
5. Flexible Hose
6. Dusting Brush
7. Dust Cup
8. Main Unit
9. Brush Chamber Exhaust Port
10. Hepa Filter
11. Debris Screen
12. Filter Chamber
13. Cover Release Button
14. Crevice Tool
PRECAUTIONARY MEASURES
3
1. Do not operate the vacuum
cleaner too close to heaters or
radiators.
2. Before inserting the power plug
into the wall outlet, make sure that
your hands are dry.
3. Before you start vacuuming, make
sure to remove large or sharp
objects that might damage the HEPA
Filter.
5. Do not pick up anything that is
burning or smoking such as
cigarettes, matches or hot ashes.
6. Do not use without HEPA filter in
place.
7. Do not bend, trample or pull the
hose by force. Do not operate
with a damaged hose.
8. When vacuuming fine dust
particles such as gyproc dust,
flour or any other fine dust, empty
the dust cup and "TAPCLEAN"
the dust cup filter frequently to
avoid over heating the motor.
4. When pulling out the power plug
from the wall outlet, pull the plug
not the power cord.
IMPORTANT:If the suction opening of the hose is BLOCKED, switch off the vacuum
cleaner and remove the blocking substance before you start the unit
again.
OPERATING INSTRUCTIONS
4
3. To use the flexible hose with the
dusting brush, hold the hose in one
hand and with the other, pull out the
dusting brush and turn clockwise to
lock in place. (Fig. 4)
WARNING: Always unplug from electrical
outlet before opening the dust cup
(container).
Note: HEPA dust cup filter must be used
when operating the hand vacuum.
Using The Unit As A Hand
Vacuum
1. Insert the dusting brush/hose
connector into the brush chamber
exhaust port. Lock the flexible hose in
place by clipping the hose into the
hose holder. (Fig. 1)
CAUTION: The hand vacuum is a
very powerful unit. Make sure that you
hold it firmly, otherwise it can slip out
of your hand and cause injury.
Cleaning With the Hose
To use the hand vacuum with only the
hose and the dusting brush or crevice
tool:
1. Rotate the brush cover by pushing on
the brush cover release button until it
clicks in place. (Fig. 2)
2. Remove the flexible hose from the
brush chamber exhaust port and take
the hose out from the hose holder.
(Fig. 3)
Fig. 1
Fig. 2
Fig. 3
Fig. 4
4. To use the flexible hose with the
crevice tool, make sure that the
brush is in the storage position
and insert the crevice tool into the
opening of the hose. (Fig. 5)
Fig. 5
