Sida 1/114

Contents

ENG Contents

1. Part Names

1-1. TV

1-2. Remote Control Unit

2. Watching TV

2-1. Displaying an External Equipment Image

2-2. Initial Installation

3. Direct Button Operation

3-1. Changing Channels

3-2. Changing Volume

3-3. MUTE

3-4. FREEZE

3-5. FLASHBACK

3-6. SMART CENTRAL

3-7. NETFLIX

3-8. AV MODE

3-10. Closed Captions and Digital Closed Captions

3-12. VIEW MODE

4. On-Screen Display Menu

4-1. Introduction

4-3. On-Screen Display Menu Operation

4-4. Menu Operation Buttons

4-5. Initial Setup

4-13. Information

4-16. Picture Settings

4-19. Audio Settings

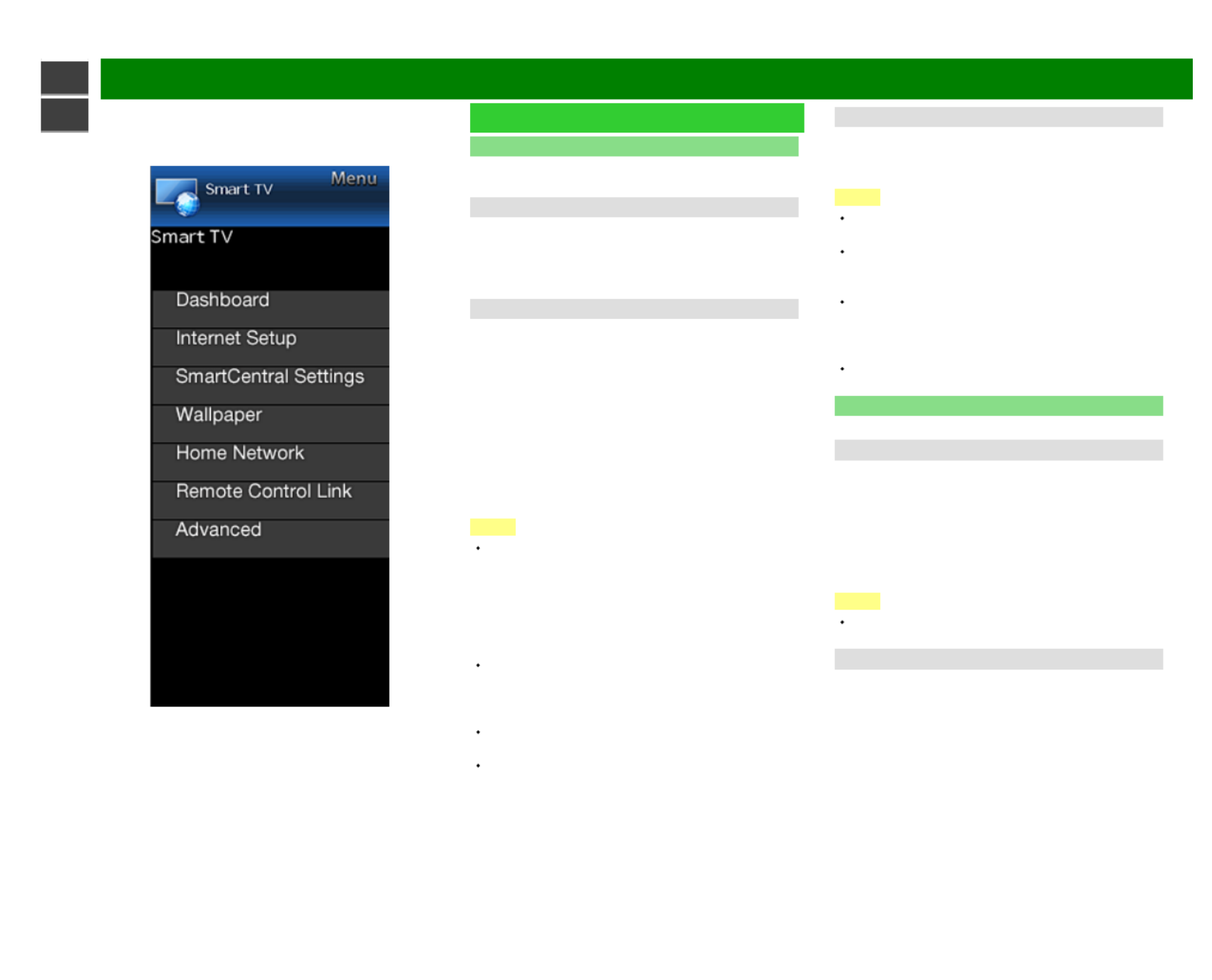

4-20. Smart TV

4-30. System Options

5. Enjoying Photo/Music/Video Playback

5-1. Preparation

5-2. Selecting the Folders to Play Back

5-4. Playing Back Files on a USB Memory

Device/Home Network Server

6. Using LINK Operation

6-1. Controlling HDMI Equipment Using LINK

Operation

6-3. Using a Smartphone with the TV

7. Using the Internet

7-1. Connecting to the Internet

7-2. Internet Setup

7-5. Entering Text (Software Keyboard)

7-6. Using Applications via the Internet

7-8. Notes

8. Using the Miracast devices

8-1. Miracast devices

9. Appendix

9-1. Removing the Stand

9-2. Setting the TV on the Wall

9-4. Troubleshooting

9-6. Troubleshooting - Error Message

10. Speciﬁcations

10- 1. TV

10- 5. Wireless LAN

11. Trademarks

12. Dimensional Drawings

The dimensional drawings for the LCD TV set are shown

on the inside back cover.

13. Software License

ENG Important1

ENG Important2

ENG Important3

ENG Important4

ENG Important5

Part Names

ENG 1-1

(Front)

See page 4-31.

(Side)

and for button operations.See pages 2-1 4- 4

(Rear)

See the Setup Guide.

And see page 6- 1 for external equipment connection.

for details on the Audio Return Channel.See page 6-2

for details on the MHL function.See page 6-3

The illustrations and on -screen displays in this operation manual are for explanation purposes

and may vary slightly from the actual operations.

Part Names

ENG 1-2

Remote Control Unit

Switch the TV power on or enter standby.POWER:

Set the channel. NUMBER:

(See

page 3-1.)

Set the still image. Press again to return to normal screen. FREEZE:

(See

page 3-4.)

/ / / , Select a desired item on the screen.ENTER:

Set the volume. VOL+/ -:

(See

page 3-2.)

Turn off the menu screen.EXIT:

Display the application window. SMART CENTRAL:

(See

page 3-6.)

Mute the sound. MUTE:

(See

page 3-3.)

Display the menu screen. MENU:

(See

page 4-1.)

Select 4 preset favorite channels in 4 different categories. Color (Red/Green/Blue/Yellow):

(See

page 4-6.)

Operate the external equipment.External equipment operational buttons:

Select an audio or video setting. AV MODE:

(See

pages to 3-9.)3-8

Select the screen size. VIEW MODE:

(See

pages 3-12 to 3-14.)

Return to the previous channel or external input mode. FLASHBACK:

(See

page 3-5.)

Select the channel. CH / :

(See

page 3-1.)

Return to the previous menu screen.RETURN:

Display the Netflix screen. NETFLIX:

you press the NETFLIX button when the TV is turned off, the TV turns on and the NETFLIX

screen

is displayed.

(See

page 3-7.)

Display captions from a closed- caption source. CC:

(See

page 3-10 to 3-11)

Select a TV input source. INPUT:

(See

page 2-1.)

Display the operation manual.E-MANUAL:

NOTE

When using the remote control unit,

point it at the TV.

Watching TV

ENG 2-1

Displaying an External Equipment Image

view external source images, select the input source by pressing on the remote controlINPUT

unit

or on the TV.

Example 1 INPUT Press .

The INPUT list screen displays.

2 Press / to select the input source.

An image from the selected source

automatically displays.

You can also select the input source by pressing .INPUT

Each time is pressed, the input source toggles.INPUT

Watching TV

ENG 2-2

Initial Installation

Perform the following steps before you press onPOWER

the remote control unit.

1. Insert the battery into the remote control unit.

2. Connect the antenna cable to the TV.

3. Plug in the AC cord to the AC outlet.

Language (Language setting)

Select from among 3 languages: English, French and

Spanish.

1 Press / to select the desired language listed on the

screen, and then press .ENTER

Location & Time

Make settings for the country, area and time zone where

you use the TV.

2 Press / to select "United States", "Canada" or

"Mexico", and then press .ENTER

3 Press / to select the time zone where you are using

the TV, and then press .ENTER

Example

The time zone differs depending on the selected

country.

The factory preset value is the time zone for the

capital of the selected country.

Watching TV

ENG 2-3

Initial Installation (Continue)

4 Press / to select the Daylight Savings Time, and then

press .ENTER

"Auto" is the default selection.

TV Location

Select "Home" or "Store" for the location where you plan to

install the TV.

5 Press / to select "Home" or "Store".

Press to enter the setting.ENTER

Home: AV MODE is set to "STANDARD".

Store: AV MODE is set to "DYNAMIC (Fixed)". Picture

Reset and Feature Demo can be set.

Picture Reset: AV MODE will be set to "DYNAMIC (Fixed)"

regardless of whether Picture Reset is "On" or "Off".

If you select "On" and there is no operation for 30

minutes:

- AV MODE will be reset to "DYNAMIC (Fixed)".

When "Off" is selected:

- Even after 30 minutes elapses, AV MODE is not reset

to "DYNAMIC (Fixed)".

Feature Demo: When "On" is selected, after all the

settings are completed, the Feature Demo screen is

displayed if there is no operation for several minutes.

Watching TV

ENG 2-4

Initial Installation (Continue)

Antenna & Cable/STB

Select the type of connection you will use to watch TV.

6 Press / to select "Antenna & Cable" or "Set-top box",

and then press .ENTER

To watch TV via an antenna or cable connection

(without using a set-top box):

Select "Antenna & Cable", and then go to step 7.

To watch TV via a set-top box:

Select "Set-top box", and then press .ENTER

Check that the set- top box connected to the TV is on.

To watch TV, select the input source corresponding to

the terminal connected to the set- top box. When doing

so, you must make the setting to skip "TV". Press / to

select "On", and then press .ENTER

When this is set to "On", the channel on the TV cannot

be changed using the remote control unit or menu. (e.g.

CH / , etc.)

See page 4- 11 for details on the Input Skip function.

Press to select the input source corresponding toINPUT

the terminal connected to the set- top box. Make the

necessary settings on the connected external

equipment.

See the operation manual of the connected equipment

for setting up the equipment.

Air/Cable (Antenna setting)

Make sure what kind of connection is made with your TV

when selecting "Air" or "Cable".

7 Press / to select "Air" or "Cable".

Press to enter the setting.ENTER

Watching TV

ENG 2-5

Initial Installation (Continue)

CH Search (Channel search)

Channel auto search makes the TV look for all channels

viewable in the set area.

8 When "Air" is selected in Antenna setting:

Press / to select "Start", and then press .ENTER

When "Cable" is selected in Antenna setting:

Press / to select "Analog & Digital Search Start" to

search both analog and digital broadcasts, or to select

"Analog Search Start" to search only analog broadcasts,

and then press .ENTER

The Channel search will start automatically.

To exit the Channel search screen, select "Cancel", and

then press .ENTER

Smart TV

When you connect to the Internet on the TV, select the

desired connection method and follow the instructions

shown on the display.

Wireless LAN connection is possible only when the WPS

(push button) method is used. If any other method is

used, make settings by Smart TV > Internet Setup.

(See pages to 7- 4.)7-2

9 Press / to select "Yes", and then press .ENTER

10 Press / to select "Wired" or "Wireless", and then

press .ENTER

Watching TV

ENG 2-6

Initial Installation (Continue)

Connection using an ETHERNET cable:

Select "Wired" and press .ENTER

Confirm that the TV is properly connected with the

router, and then press "Next". Follow the instructions on

the display to perform the connection test.

Wireless LAN connection by the WPS method:

Select "Wireless" and press .ENTER

Follow the instructions on the display, and finalize the

connection after testing its viability.

NOTE

After you finish configuring the network settings,

proceed with the following:

set the TV name. (See page 4-29.)

enable/disable the smartphone remote application

(installed in your portable device) to control your TV.

view/configure the security settings.

When you change the network settings, refer to Smart

TV > Internet Setup.

(See pages to 7- 4.)7-2

Completed

11 The settings confirmation screen is displayed. If you

enable the remote application installed in your portable

device (Android or Apple OS) to control your TV, you

can directly configure the SmartCentral settings.

Press / to select "Yes", and then press toENTER

enter the SmartCentral homescreen.

Press / to select "No", and then press toENTER

complete the Easy Setup procedure.

Examples of the settings conﬁrmation screen

When "Antenna & Cable" was selected in step 6.

NOTE

If no channel is found, confirm the type of connection

made with your TV and try "Easy Setup" again.

(See page 4-5.)

Watching TV

ENG 2-7

Initial Installation (Continue)

When "Set-top box" was selected in step 6.

Selecting "No" will complete the Easy Setup procedure.

This may not display correctly depending on the

connected equipment.

This is not displayed correctly when the connected

equipment is off.

To watch TV using a set- top box, press afterINPUT

completing the initial settings, and select the input to

which the set-top box is connected.

NOTE

For changing the settings of the Initial Installation,

perform "Easy Setup" on the Initial Setup menu on

page 4- 5.

Direct Button Operation

ENG 3-1

Changing Channels

You can change channels in several ways.

Method 1

Using CH / on the remote control unit or on the TV.

Method 2

Press . The on-screen keyboard ( - , (DOT),NUMBER 0 9 •

Ent) appears and select the desired channel.

Examples:

To select a 1 or 2-digit channel number (e. g., Channel

5):

Press 5 Ent

To select a 3-digit channel number (e. g., Channel

115):

Press 1 1 5 Ent

To select a 4-digit channel number (e. g., Channel

22.1):

Press 2 2•(DOT) 1 Ent

Method 3

Selecting the program from the Channel list.

1 INPUT Press on the remote control unit.

The INPUT list displays.

2 Press / to select "AIR" or "CABLE".

The Channel list displays.

3 Press / to select the desired channel, and then press

ENTER.

NOTE

When selecting a 1-digit channel number, it is not

necessary to press before the number.0

When you enter - only, you have to press to0 9 Ent

confirm the channel selection.

When you enter - and (DOT), you have to press 0 9 •Ent

to confirm the channel selection.

Complete the above steps within a few seconds.

If you push "0" by itself or you did not press afterEnt

you enter - and (DOT), nothing will happen.0 9 •

Direct Button Operation

ENG 3-2

Changing Volume

You can change the volume by pressing on the TVVOL+/-

or on the remote control unit.

To increase the volume, press .VOL +

To decrease the volume, press .VOL -

Direct Button Operation

ENG 3-3

MUTE

Mutes the current sound output.

Press .MUTE

" " will be displayed on the screen, and the sound is

silenced.

Direct Button Operation

ENG 3-5

FLASHBACK

Press to switch to the previously tunedFLASHBACK

channel or previous input mode.

Press again to switch back to theFLASHBACK

currently tuned channel.

NOTE

FLASHBACK will not work if no channel has been

changed after the TV is turned on.

Direct Button Operation

ENG 3-6

SMART CENTRAL

Allows you to directly activate various types of applications.

1 Press SMART CENTRAL to display the application

window.

Press to switch back to the currently tunedEXIT

channel.

2 Press / to select the desired application, and then

press .ENTER

If " " is displayed, check the USB connection.

If " " or " " is displayed, check your TV’s

network settings and connection.

NOTE

See page 4-20 to 5-2, , 7- 6 7-7 for details of viewable

applications.

When this function is not available, "Can not operate this

function now" will display.

Direct Button Operation

ENG 3-7

NETFLIX

Displays the Netflix screen.

Press .NETFLIX

NOTE

If you press the NETFLIX button when the TV is turned off,

the TV turns on and the NETFLIX screen is displayed.

To enjoy Netflix, you need to make:

—a broadband Internet connection

(See page 7-1.)

—settings of Internet Setup

(See pages to 7-4.)7-2

—adjustments for Netflix

(See page 7-7.)

Direct Button Operation

ENG 3-8

AV MODE

AV MODE gives you several viewing options to choose from

to best match the surrounding environment of the TV, which

can vary due to factors like room brightness, type of

program watched or the type of device connected.

You can use USER Mode to create customized settings for

each TV input. These settings will be automatically saved

on each input for convenience.

Press . Current AV MODE displays.AV MODE

Press again before the mode displayed onAV MODE

the screen disappears.

The mode changes as shown below:

Direct Button Operation

ENG 3-9

AV MODE (Continue)

STANDARD: For a highly defined image in a normal

lighting.

MOVIE: For a movie.

GAME: Lower image brightness for easier viewing.

USER: Allows the user to customize settings as desired.

You can set the mode for each input source.

DYNAMIC: For a clear-cut image emphasizing high

contrast, useful for sports viewing.

DYNAMIC (Fixed): Changes the image and sound

settings to the factory preset values. No adjustments are

allowed.

NOTE

You can select a different AV MODE item for each input

mode. (For example, select STANDARD for TV input and

DYNAMIC for COMPONENT.)

You can have the same settings by choosing "AV

MODE" on the menu items.

(See page 4-16.)

Direct Button Operation

ENG 3-10

Closed Captions and Digital Closed

Captions

Your TV is equipped with an internal Closed Caption

decoder. It allows you to view conversations, narration and

sound effects as subtitles on your TV. Closed Captions are

available on some TV programs and on some VHS home

video tapes at the discretion of the program provider.

Digital Closed Caption service is a new caption service

available only on digital TV programs (also at the discretion

of the service provider). It is a more flexible system than the

original Closed Caption system, because it allows for a

variety of caption sizes and font styles. When the Digital

Closed Caption service is in use, it will be indicated by the

appearance of a 3- letter abbreviation that also indicates the

language of the Digital Closed Captions: ENG (English),

SPA (Spanish), FRA (French) or other language codes.

Not all programs and VHS videotapes offer closed

captions. Please look for the " " symbol to ensure that

captions will be shown.

In the Closed Caption system, there can be more than one

caption service provided. Each is identified by its own

number. The "CC1" and "CC2" services display subtitles of

TV programs superimposed over the program’s picture.

In the Closed Caption system, the "Text1" or "Text2"

services display text that is unrelated to the program being

viewed (e.g., weather or news). These services are also

superimposed over the program currently being viewed.

1 CC Press .

This will present the Closed Caption information

display.

2 CC Press while the Closed Caption information is still on

the screen.

Press repeatedly until you select the desired closed

caption service.

Depending on the number of caption services in the

signal being received, you will see information such as

1/2 or 1/4 displayed.

1/2 means "the first of two services".

Example:

If a program has three services (Digital CC(ENG), CC1

and Text1), the closed caption display will toggle in this

sequence:

The button keeps a record of the last serviceCC

selected in its memory.

If the last closed caption mode (e.g. 1/3 ENG) you

selected is not available for the next program, or on

another channel, the closed caption service that is

available is automatically selected, and this service

appears in parentheses, e.g. "1/3(CC1)".

Closed Caption services that appear in parentheses will

not be stored in the button’s memory as your lastCC

selected service. Only services that you have selected

with the button are stored.CC

Direct Button Operation

ENG 3-11

Closed Captions and Digital Closed

Captions (Continue)

Examples:

In a case where there are two closed caption services

provided (for instance, Digital CC(ENG) and CC1), and

Digital CC(ENG) is displayed as your current selection, if

Digital CC(ENG) is not broadcast for the next program, the

other closed caption service, CC1, will be displayed in

parentheses.

A closed caption service appears in parentheses because

the service you selected is not available and a different

service is displayed on your screen. "1/1(CC1)" is displayed

instead of "1/2/ENG".

NOTE

See page 4- 31 for detailed closed caption settings.

When the program contains no closed caption, "--"

displays in the closed caption information.

If the language code, e.g. "ENG", is not found on Digital

TV programs, "--" will be shown.

Four kinds of closed caption service (CC1, CC2, Text1,

Text2) are potentially available, but a broadcast may

contain none or only some of these services at the

discretion of the program provider.

When a web page is displayed, Closed Captions are not

available.

You can have the same settings by choosing "Change

CC" on the menu items.

(See page 4-30.)

Direct Button Operation

ENG 3-12

VIEW MODE

You can select the screen size.

1 Press VIEW MODE.

The View Mode menu displays.

The menu lists the View Mode options selectable for the type of video signal currently being received.

2 Press VIEW MODE or / while the View Mode menu is displayed to select a desired item on the menu.

You can sequentially select a View Mode that has its own aspect ratio.

NOTE

You can have the same settings by choosing "View Mode" on the menu items.

(See page 4-30.)

Each time you press VIEW MODE when a browser screen is shown, the display pattern toggles between a website-only screen

and a TV+Web screen.

For HD programs

Stretch Dot by Dot (Full Screen) S.Stretch (Smart stretch) Zoom

Suitable for viewing wide-

screen 1.78:1 aspect ratio

program, stretch mode will

still show very thin black

bands at the top and

bottom of the screen.

"Dot by Dot" when the

number of pixels on the

screen and the resolution

of the signal are the same.

"Full Screen" when the

number of pixels on the

screen and the resolution

of the signal are different.

In either case, the image

fully fills the screen.

Suitable for stretching 4:3

programs to fill the screen.

Suitable for viewing wide-

screen 2.35:1 aspect-ratio

programs in full screen.

NOTE

When using Dot by Dot or Full Screen, it is possible to see noise or bars around different outer portions of the screen. Please

change view mode to correct this.

Direct Button Operation

ENG 3-13

VIEW MODE (Continue)

For 4:3 programs

Example: Screen size images

Side Bar S.Stretch (Smart stretch) Zoom Stretch

Suitable for viewing

conventional 4:3 programs in

their normal format.

Suitable for stretching 4:3

programs to fill the screen.

Suitable for viewing wide-

screen 2.35:1 anamorphic

DVDs in full screen.

This mode is useful for 1.78:1

DVDs. When viewing 1.85:1

DVDs, stretch mode will still

show very thin black bands at

the top and bottom of the

screen.

For USB-Video, Home Network Video or Internet applications

Example: Screen size images

Input signal Auto Stretch

Keeps the original aspect ratio in

a full screen display.

An image fully fills the screen.

Direct Button Operation

ENG 3-14

VIEW MODE (Continue)

For PC

Example: Screen size images

Input signal Normal Zoom Stretch

4:3 Keeps the original aspect ratio in

a full screen display.

For viewing widescreen

programs. The top and bottom

of the image is cropped.

An image fully fills the

screen.

Input signal Stretch

16:9 An image fully fills the

screen.

NOTE

Connect the PC before making adjustments. See the Setup Guide.

Selectable screen size may vary with input signal type.

On-Screen Display Menu

ENG 4-2

Introduction (Continue)

About Menu Items

Some menu items may not be displayed depending on

the selected input source.

NOTE

The screens in the operation manual are for explanation

purposes (some are enlarged, others cropped) and may

vary slightly from the actual screens.

The order of explanations for each menu item in the

following pages is not necessarily in accordance with the

alignment of the items on the screen.

LCFONT:

This product is embedded with LC Font technology,

which was developed by SHARP Corporation for clearly

displaying easy-to-read characters on LCD screens.

On-Screen Display Menu

ENG 4-4

Menu Operation Buttons

Using the remote control

Use the following buttons on the remote control to operate

the menu.

MENU: Press to open or close the menu screen.

///: Press to select a desired item on the screen or

adjust a selected item.

ENTER: Press to go to the next step or complete the

setting.

RETURN: Press to return to the previous step.

Using the control panel of the TV

You can also operate the menu with the control panel of the

TV.

Button operations on the control panel correspond to the

ones on the remote control as shown below.

MENU: MENU on the remote control.

INPUT: ENTER on the remote control.

CH / : / Cursor on the remote control.

VOL+/-: Cursor / on the remote control.

On-Screen Display Menu

ENG 4-5

Example

Initial Setup

NOTE

For operating the on -screen display menu,

see page 4-3.

Language

You can also select a language from the Initial Setup menu.

Select from among 3 languages: English, French and

Spanish.

NOTE

To change the language of the manual, press MENU

and select "Initial Setup" > "Language". Then, press E-

MANUAL again.

Easy Setup

You can run Easy Setup again, even after setting up the

preset channels.

Language: Select from among 3 languages (English,

French and Spanish).

Location & Time: Make settings for the country, area and

time zone where you use the TV.

Select your country: Select either "United States",

"Canada" or "Mexico".

Select your time zone: Select your time zone. The

available settings differ depending on the selected

country.

Select DST (Daylight Savings Time): Select "Auto",

"Manual" or "Off".

TV Location: Select "Home" or "Store" for the location

where you plan to install the TV.

Home: AV MODE is set to "STANDARD".

Store: AV MODE is set to "DYNAMIC (Fixed)". Picture

Reset and Feature Demo can be set.

Picture Reset: AV MODE will be set to "DYNAMIC (Fixed)"

regardless of whether Picture Reset is "On" or "Off". If you

select "On", AV MODE will be reset to "DYNAMIC (Fixed)" if

there is no operation for 30 minutes. When "Off" is

selected, even after 30 minutes elapses, AV MODE is not

reset to "DYNAMIC (Fixed)".

Feature Demo: When "On" is selected, after all the

settings are completed, the Feature Demo screen is

displayed if there is no operation for several minutes.

Antenna & Cable/STB: Select the type of connection you

will use to watch TV.

Air/Cable: Make sure what kind of connection is made

with your TV when selecting "Air" or "Cable".

CH Search: Channel auto search makes the TV look for all

channels viewable in the set area.

If "Cable" is selected for Antenna setting, scrambled

channels are removed after the Channel search has

been completed.

Smart TV: When you connect to the Internet on the TV,

confirm the connection method and make adjustments.

Wireless LAN connection is possible only when the

WPS (push button) method is used. If any other

method is used, make settings by Smart TV > Internet

Setup.

(See pages to 7-4.)7-2

Completed: The settings confirmation screen is displayed.

Confirm the information displayed on the screen.

NOTE

See Initial Installation on

pages to 2-2 2-7 for setting each item.

If no channel is found, confirm the type of connection

made with your TV and try "Easy Setup" again.

If you select "Analog Search Start" and initiate the

channel search, the CH Memory for Cable Digital will be

deleted.

On-Screen Display Menu

ENG 4-6

Example

Initial Setup (Continue)

TV Channel Setup

CH Setup (Channel Setup)

If Initial Installation does not memorize all the channels in

your region, follow the instructions below to manually

memorize the channels.

Air/Cable: Make sure what kind of connection is made

with your TV when selecting "Air" or "Cable".

CH Search: Channel auto search makes the TV look for all

channels viewable in the set area.

CH Memory: You can select the channels to skip in each

ANALOG (Air), ANALOG (Cable), DIGITAL (Air) and

DIGITAL (Cable).

On: CHSkips channels. (Channel selection disabled using

/.)

Oﬀ: Does not skip channels. (Channel selection enabled

using CH / .)

NOTE

See Initial Installation on

pages to 2- 2 2- 7 for setting each item.

If no channel is found, confirm the type of connection

made with your TV and try channel search again.

If you select "Analog Search Start" and initiate the

channel search, the CH Memory for Cable Digital will be

deleted.

Favorite CH (Favorite Channel Setting)

This function allows you to program 4 favorite channels, in 4

different categories. By setting the favorite channels in

advance, you can select your favorite channels easily.

To register your favorite channel:

Sselect the channel you want to register as a favorite

channel. Then select "Register" and press . Press ENTER

/ / / to select the position in the category, and then

press to register.ENTER

To delete your favorite channel:

Select "1 Data Clear" and then press . Press ENTER ///

to select the channel you want to delete, and then

press . Select "Yes" and then press .ENTER ENTER

To delete all the favorite channels, select "All Data Clear".

NOTE

You can automatically switch to your registered favorite

channel by pressing Color ( )Red/Green/Blue/Yellow

button on the remote control.

On-Screen Display Menu

ENG 4-7

Example

Initial Setup (Continue)

Parental Control

V-Chip

IMPORTANT:

Three conditions must be met to enable the V-Chip:

1. Secret No. is registered.

2. V-Chip/V-Chip (DTV Only) settings have been made.

The "V-Chip (DTV Only)" will only be selectable when

a new rating system can be downloaded via digital

broadcasting in the U.S.

3. "Status" is set to "Enable".

V-CHIP is an electronic filtering device built into your TV.

This tool gives parents a great degree of control over

broadcasts accessed by their children. It allows parents to

select programs judged suitable for child viewing while

blocking ones judged not suitable. It does so automatically

once you activate the V-CHIP feature in your TV. "V-Chip"

and "Status" will not be selectable from the menu if you do

not first configure your secret number.

The U.S. has two rating systems for viewing content: TV

Parental Guidelines and movie ratings.

The TV Parental Guidelines work in conjunction with the

V-CHIP to help parents screen out inappropriate

television shows from their children.

Movie ratings are used for original movies rated by the

Motion Picture Association of America (MPAA) as

watched on cable TV and not edited for television. The

V-CHIP can also be set to block MPAA-rated movies.

NOTE

The setting automatically enters "Block" for any ratings

below your selection.

If Status is not set to "Enable", the configuration settings

will not work.

MPAA (Voluntary movie rating system)

Example

Press / to adjust the item to your desired position.

"" indicates the item is blocked. Press to exit.MENU

G: General audiences. All ages admitted.

PG: Parental guidance suggested. Some material may not

be suitable for children.

PG-13: Parents strongly cautioned. Some material may be

inappropriate for children under 13.

R: Restricted. Under 17 requires accompanying parent or

adult guardian (age varies in some jurisdictions).

NC-17: No one 17 and under admitted.

X: X is an older rating that is unified with NC- 17 but may

be encoded in the data of older movies.

NOTE

Voluntary movie rating system only uses an age-based

rating.

On-Screen Display Menu

ENG 4-8

Example

Initial Setup (Continue)

Parental Control

V-Chip

TV Parental Guidelines

Example

Suggested age

TV-Y: All children.

TV-Y7: Directed to older children.

TV-G: General audience.

TV-PG: Parental Guidance suggested.

TV-14: Parents strongly cautioned.

TV-MA: Mature audience only.

When setting an individual content-based rating item:

1 Press or to access blocked content items fromENTER

the currently selected age -based rating item.

2 Press / to select an individual item, and then press

ENTER to unblock it (" " is removed). Repeat the same

steps for the other items.

3 Press or to register after all individualRETURN

content rating items are set.

Content

FV: Fantasy violence.

V: Violence.

S: Sexual situation.

L: Adult language.

D: Sexually suggestive dialog.

Rating

Content

FV V S L D

Suggested

age

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

: The content rating can be set, but this rating is not

normally broadcast by TV stations.

: Content rating can be set.

Canadian Rating Systems (Canadian English ratings

and Canadian French ratings)

The TV rating systems in Canada are based on the

Canadian Radio -Television and Telecommunications

Commission (CRTC) policy on violence in television

programming.

While violence is the most important content element to

be rated, the structure developed takes into

consideration other program content like language,

nudity, sexuality and mature themes.

When setting the V-CHIP on the Canadian system you

can choose either the Canadian English ratings or the

Canadian French ratings.

On-Screen Display Menu

ENG 4-9

Example

Initial Setup (Continue)

Parental Control

V-Chip

Can.English Ratings (Canadian English Ratings)

E: Exempt: Includes news, sports, documentaries and

other information programming; talk shows, music

videos, and variety programming.

C: Children: Intended for younger children under the age

of 8 years. Pays careful attention to themes that could

threaten their sense of security and well-being.

C8+: Children over 8 years old: Contains no portrayal of

violence as the preferred, acceptable, or only way to

resolve conflict; nor encourage children to imitate

dangerous acts which they may see on the screen.

G: General: Considered acceptable for all age groups.

Appropriate viewing for the entire family, contains very

little violence, physical, verbal or emotional.

PG: Parental Guidance: Intended for a general audience,

but may not be suitable for younger children (under the

age of 8) because it could contain controversial themes

or issues.

14+: Over 14 years: Could contain themes where violence

is one of the dominant elements of the storyline, but it

must be integral to the development of plot or character.

Language usage could be profane and nudity present

within the context of the theme.

18+: Adults: Intended for viewers 18 years and older and

might contain depictions of violence, which while related

to the development of plot, character or themes, are

intended for adult viewing. Could contain graphic

language and portrayals of sex and nudity.

Can.French Ratings (Canadian French Ratings)

E: Exempt programming.

G: General: All ages and children, contains minimal direct

violence, but may be integrated into the plot in a

humorous or unrealistic manner.

8ans+: General but inadvisable for young children: May be

viewed by a wide public audience, but could contain

scenes disturbing to children under 8 who cannot

distinguish between imaginary and real situations.

Recommended for viewing with parent.

13ans+: Over 13 years: Could contain scenes of frequent

violent scenes and therefore recommended for viewing

with parent.

16ans+: Over 16 years: Could contain frequent violent

scenes and intense violence.

18ans+: Over 18 years: Only for adult viewing. Could

contain frequent violent scenes and extreme violence.

How to temporarily release the V-CHIP BLOCK

When the V-CHIP BLOCK is working and censors a

broadcast, "V- CHIP HAS BEEN ACTIVATED." displays.

1 ENTER Press while the V-CHIP is working, and then the

secret number setting menu displays.

2 Input the 4-digit secret number by using the on-screen

keyboard ( ). At this time V-CHIP BLOCK temporarily0–9

releases.

On-Screen Display Menu

ENG 4-10

Example

Initial Setup (Continue)

Parental Control

V-Chip

Reactivating the temporarily released V-CHIP BLOCK

You can reactivate the temporarily released V-CHIP BLOCK

as shown below.

Select "Status" setting from the Parental Control menu to

reactivate BLOCK.

Select "V-Chip" setting ("MPAA", "TV Guidelines",

"Can.English Ratings" or "Can.French Ratings") from the

Parental Control to reactivate BLOCK.

(See pages to 4-9.)4- 7

Switch off the TV power.

NOTE

Performing any of the three above will activate the V-

CHIP BLOCK.

Status

Used to enable or disable the parental control function. This

function will not be selectable from the menu if you do not

first configure your secret number.

Quick Start Mode

When this function is activated, you can reduce the TV's

start-up time or even let the TV in standby mode start

displaying images and so on via the connected equipment

on the network.

NOTE

Setting "Quick Start Mode" to "On" consumes more

power.

On-Screen Display Menu

ENG 4-11

Example

Initial Setup (Continue)

Input Settings

Input Skip

This setting allows you to skip the TV, HDMI 1, HDMI 2,

HDMI 3, or HDMI 4 on the Input Selection operation.

Advanced

Digital Audio Out

You can output digital audio to an AV amplifier or similar

device whose DIGITAL AUDIO INPUT terminal is connected

to the DIGITAL AUDIO OUT terminal on the TV. Please

select an audio output format compatible with the audio

format of the program you are watching and the equipment

connected.

Oﬀ: Disable this function.

PCM: For connecting to equipment that does not support

Dolby Digital. The same audio (main, sub, or main/sub)

as the audio of the program being viewed is output.

2-channel audio with a sampling rate of 48 kHz or less is

output as linear PCM audio.

Bitstream: For connecting to an audio system that

supports Dolby Digital. Audio is output through both the

main and sub channels.

NOTE

Analog channel audio and video input audio are output

in PCM mode even when "Bitstream" is selected.

PCM digital input signals are output in PCM mode even

when "Bitstream" is selected.

Output Select

Allows you to select what controls the audio output.

Fixed: VOL+/ -Sound via speaker is adjusted with on the

remote control unit or on the TV.

Sound via the AUDIO OUT terminal is not adjustable and

outputs at a consistent level.

Variable: Sound via the AUDIO OUT terminal is adjusted

with on the remote control unit or on the TV.VOL+/-

On-Screen Display Menu

ENG 4-12

Example

Initial Setup (Continue)

Advanced

AQUOS LINK Setup

Make the settings to use LINK Operation.

Set the settings with "Initial Setup" > "Advanced" > "AQUOS

LINK Setup".

(See page 6-2.)

Secret No.

Allows you to use a secret number to protect certain

settings from being accidentally changed.

IMPORTANT:

Three conditions must be met to enable the V-Chip

1. Secret No. is registered.

2. V-Chip/V-Chip (DTV Only) settings have been made.

The "V-Chip (DTV Only)" will only be selectable when

a new rating system can be downloaded via digital

broadcasting in the U.S.

3. "Status" is set to "Enable".

Setting Secret No.

You can set and change the secret number by using .0-9

New Secret No.: Changes or sets the Secret No.

Conﬁrm Secret No: Enter Secret No. to confirm.

NOTE

As a precautionary measure, make a note of your secret

number and keep it in a familiar place.

Reset

If complex adjustments are made and the settings cannot

be restored to normal, you can reset the settings to the

factory preset values.

If you have already set the Secret No., input the 4-digit

secret number here.

On-Screen Display Menu

ENG 4-13

Example

Information

NOTE

For operating the on -screen display menu,

see page 4-3.

Identiﬁcation

The current version of the TV software is displayed.

Digital Caption Info.

(Digital Caption Information)

This function allows viewing of digital closed caption

information for the digital broadcast program being viewed.

NOTE

This list is not displayed for analog broadcasts or

external input audio/video.

This information is not included in CC1, CC2, Text1, or

Text2, and is not displayed in a list.

Software Update

This is used to upgrade the system software to enhance the

TV functions.

1 MENU Press to display the MENU screen, and then

press / to select "Information".

2 Press / to select "Software Update", and then press

ENTER.

3 Press / to select "Manual Update" or "Auto Update

Setting", and then press .ENTER

The operations thereafter vary depending on the

setting.

Manual Update

Select the method for manually updating the software.

USB Update: Updates the software using a USB memory

device containing the update file. (See "Updating the

Software with a USB Memory Device".)

Network Update: Downloads the update file via the

network and then updates the software.

(See page 4-15.)

NOTE

A broadband connection and Internet Setup are

required to update the software using the network.

(See pages to 7-4.)7- 2

It may take time to access and download the update

depending on the Internet connection and other factors.

Updating the Software with a USB Memory Device

To check for the availability of a software update, visit

http://www.sharpusa.com/products/support/. If you have any

questions, please

call 1-800-BE-SHARP (800-237-4277).

CAUTION

Do not remove the USB memory device or unplug the

AC cord while the software is being updated.

Be sure to properly follow the whole procedure

described below, step by step. Otherwise, for

example, the TV cannot read the data in the USB

memory device and software updating will fail.

1 Insert the USB memory device with the update file into

the USB terminal on the TV.

On-Screen Display Menu

ENG 4-14

Example

Information (Continue)

Software Update

Manual Update

2 Press / on the Manual Update screen to select "USB

Update", and then press .ENTER

3 ENTER Press to start checking the data in the USB

memory device.

4 During the data checking, "Checking" blinks.

The current version of the TV software and the version

of the update file on the USB memory device are

displayed.

If the USB memory device is not properly installed or

the correct update file cannot be found on the USB

memory device, an error message is displayed.

Check the file on the USB memory device, and then

reinsert the USB memory device correctly.

CAUTION

Do not remove the USB memory device or unplug the

AC cord while the software is being updated.

5 When the software is successfully updated, a screen is

displayed indicating that the update process is

completed.

After this screen is displayed, the TV automatically turns

off and then turns on again.

If the update has failed, check the file in the USB

memory device and try Software Update again.

6 Remove the USB memory device.

On-Screen Display Menu

ENG 4-15

Example

Information (Continue)

Software Update

Manual Update

Updating the Software via the Network

1 Press / on the Manual Update screen to select

"Network Update", and then press .ENTER

The TV connects to the network and checks for

updates.

To cancel, press .ENTER

2 The current version of the TV and the latest version of

software are displayed. To update the TV software,

select "Yes", and then press .ENTER

When a server connection cannot be established or

an update is not available, a message is displayed.

If a server connection cannot be established, check

the broadband connection and Internet Setup.

3 After the update file is downloaded, the software update

process begins.

CAUTION

Do not unplug the AC cord while the software is

being updated.

4 When the software is successfully updated, a screen is

displayed indicating that the update process is

completed.

A screen indicating that the update is completed is

displayed. 4 seconds later, the TV restarts automatically.

If the software was not updated successfully, check

the broadband connection and Internet Setup, and

then try updating the software again.

Auto Update Setting

When the TV is on, or when an Internet application is being

accessed, this function enables the TV to connect to the

network and check for updates automatically.

When an update is available, a message is displayed.

Press / to select "Yes", and then press to displayENTER

the download screen.

NOTE

This function does not work when a broadband

connection or Internet Setup is not available.

A message may also be displayed when an application

is running.The message varies depending on the

application.

ULI Software Version

Displays the ULI Software version.

ULI Module Version

Displays the ULI Module version.

ULI Register

Displays the ULI Register status.

Firmware Version

Displays the firmware version.

Manual

Displays the built-in operation manual on the screen. You

can read information about how to use this device.

On-Screen Display Menu

ENG 4-16

Example

Picture Settings

Adjusts the picture to your preference with the following

picture settings.

NOTE

For operating the on -screen display menu, see page 4-

Selected item button button

Backlight The screen dims The screen

brightens

Contrast For less contrast For more contrast

Brightness For less brightness For more

brightness

Color For less color

intensity

For more color

intensity

Tint Skin tones become

reddish

Skin tones

become greenish

Sharpness For less sharpness For more

sharpness

For resetting all Picture adjustment items to the factory

preset values, press / to select "Reset", press ,ENTER

press / to select "Yes", and then press .ENTER

AV MODE (Changing Pic.Quality)

The audio and video settings can be changed to suit the

program or input content being watched.

NOTE

The selectable items vary depending on the input source

and on the model of your TV.

You can select AV MODE by pressing on theAV MODE

remote control unit.

See pages to 3-8 3- 9 for details of AV MODE settings.

On-Screen Display Menu

ENG 4-17

Example

Picture Settings (Continue)

Advanced

C.M.S.

(Color Management System)

Color tone is managed using the six-color adjustment

setting.

C.M.S.-Hue: This is a standard to adjust the color either

more reddish or more bluish in tone.

C.M.S.-Saturation: Increases or decreases the saturation

of a selected color.

C.M.S.-Value: A higher value makes the image brighter.

A lower value makes the image darker.

NOTE

For resetting all adjustment items to the factory preset

values, press / to select "Reset", and then press

ENTER.

Color Temp. (Color Temperature)

For a better white balance, use color temperature

correction.

White with bluish toneHigh:

Middle:

White with reddish toneLow:

Fine tuning the color temperature

White balance can be adjusted between a maximum of +30

and a minimum of –30 for each color temperature.

NOTE

For resetting all adjustment items to the factory preset

values, press / to select "Reset", and then press

ENTER.

Active Contrast

Adjusts black level and white level of images.

Advanced: Produces higher contrast image especially in

dark scene.

Standard: Produces high contrast image.

Oﬀ: No adjustment.

Gamma Adjustment

Adjusts the differences of picture tones between bright

parts and dark parts.The adjustment range of the gamma

can be set to a maximum of +4 and a minimum of –4 by

pressing / .

Film Mode

This function provides high-quality playback of images

originally encoded at 24 frames/second, such as films.

Standard: Plays back image with equal display time for

each frame, reproducing movie theater experience.

Oﬀ: Normal viewing mode.

NOTE

"Film Mode" does not function depending on input signal

type.

"Standard" does not function depending on input signal

type.

On-Screen Display Menu

ENG 4-18

Example

Picture Settings (Continue)

Advanced

Digital Noise Reduction

Produces a clearer video image.

High/Middle/Low: You can select a desired level for

viewing a clearer video image.

Oﬀ: No adjustment.

Monochrome

For viewing a video in monochrome.

Reset

Returns Picture Settings to their factory preset values. To

reset, select "Yes" and then press .ENTER

On-Screen Display Menu

ENG 4-19

Example

Audio Settings

You can adjust the sound quality to your preference with the

following settings.

NOTE

For operating the on -screen display menu,

see page 4-3.

Selected

item button button

Bass For weaker bass For stronger bass

Treble For weaker treble For stronger treble

Balance Decrease audio from

the right speaker

Decrease audio from

the left speaker

Lip

Sync

Decrease the

synchronization speed

between the display

image and the

accompanying audio

track

Increase the

synchronization

speed between the

display image and the

accompanying audio

track

NOTE

For resetting Audio adjustment items to the factory

preset values, press / to select "Reset", press ,ENTER

press / to select "Yes", and then press .ENTER

TV Speakers

Allows you to turn off the TV's internal speakers when using

an external audio system.

Oﬀ: Turns the built-in speakers off.

On: Turns the built-in speakers on.

Audio Mode

Selects one of the preset sound modes.

Equalizer Settings

Adjusts the boost or attenuation of different frequencies

using either preset or custom settings.

Reset

Returns Audio Settings to their factory preset values. To

reset, select "Yes" and then press .ENTER

On-Screen Display Menu

ENG 4-20

Example

Smart TV

Dashboard

You can display a list of the main Smart TV settings.

Internet Setup

Configures LAN and Internet settings. (See pages to 7-4.)7- 2

SmartCentral Settings

Select this option to enter the SmartCentral homescreen and you can directly access various types of applications.

SmartCentral Homescreen

select your TV provider and customize your preferences.

watch live content from your TV provider. Make sure you have successfully configured the Remote Control Link settings. (See

pages 4-22 to 4-26.)

browse and watch the best movies and TV shows from your favorite streaming services.

access your favorite apps in one place.

search for live TV/streaming content.

On-Screen Display Menu

ENG 4-21

Example

Smart TV (Continue)

Wallpaper

Activating the function will display still images when the TV

is in standby mode.

Wallpaper Mode

Configures Wallpaper Mode settings.

Oﬀ: Nothing will be displayed.

On: Still images will be displayed when the TV is in

standby mode.

Data Source

For the wallpaper, you can select either the still images pre-

installed in the TV or your favorite still images stored in the

USB memory device.

Pre-installed: The images pre-installed in the TV will be

displayed in a slideshow.

USB: Your favorite images stored for the wallpaper will

appear.

If only a single still image is stored in the USB memory

device, that image will be displayed as the wallpaper.

When there are multiple still images in the memory, all

the images will be displayed in a slideshow.

NOTE

Images are displayed in 3-minute intervals as a

slideshow.

- Just before the TV turns off, the last image shown

when the TV was turned off appears briefly.

- Your settings may not be saved in some cases.

When you display images by using the USB memory

device:

Create a folder named "WP" in the root directory of the

USB memory device (the first directory when the USB

memory device is opened), and store into the folder the

still images you want to display for the wallpaper.

You must insert the USB memory device to the TV

before turning off the TV.

If there are images on the USB memory device but they

do not appear on the screen, switch to USB mode and

check whether the image files on the USB memory

device are shown correctly.

Timer Setting

You can set the length of time the TV will remain in the

Wallpaper Mode.

3 hours/6 hours/12 hours/24 hours

NOTE

No buttons except for work even while the stillPOWER

images are being displayed.

If the ready-for-use USB memory device is not inserted,

the still images pre-installed in the TV will be displayed

in a slideshow even when "Data Source" is set to "USB".

Because the USB memory device cannot be detected

immediately after the TV is turned on from standby

mode, the wallpaper pre-installed in the TV may be

displayed even when "Data Source" is set to "USB".

The still images will be displayed until the set time has

elapsed.

Home Network

Configures the remote control for home network.

Remote Control Play

Using the supported mobile applications, you can control

TV functions and share content from your tablet or

smartphone to the TV.

Permitted: Allows you to use the application installed in

your portable device to control the media playback of

the content shared on the TV.

Not allowed: No function.

NOTE

The TV and device must be connected to the same Wi-

Fi network.

Time Out Setting

Specifies the length of time to return to the previous screen

(the last connected input source) when you exit the

application.

No/10 sec./60 sec.

On-Screen Display Menu

ENG 4-22

Example

Smart TV (Continue)

Remote Control Link

Perform the following steps to configure the Remote Control Link connection using an IR blaster cable.

IR Blaster Compatibility

The supplied IR Blaster is only compatible with the following set-top box vendors (USA only):

Manufacturer (STB) Service Provider (STB)

Motorola AT&T

Cisco Bright House

Scientific Atlanta Cable One

Pace Cablevision

TiVo

Charter

Comcast

Cox

DirecTV

Dish Network

Mediacom

RCN

Suddenlink

Time Warner

Verizon

WOW!

NOTE

Not compatible with all manufacturers or Brands.

On-Screen Display Menu

ENG 4-23

Example

Smart TV (Continue)

Remote Control Link

Initial Setup

1 CH10 Switch the channel selection of your set-top box to any channel (except ).

2 Connect one end of the USB extension cable to the USB port of the TV.

3 Plug the IR blaster dongle to other end of the USB extension cable. Then place the dongle near the IR receiver of your set-top

box.

4 MENU Press and select Smart TV > Remote Control Link. The SmartCentral Remote Control Link Setup screen appears.

5 Press / to select "Yes" and press to continue.ENTER

On-Screen Display Menu

ENG 4-24

Example

Smart TV (Continue)

Remote Control Link

6 On Input Selection, select the input terminal to which your set-top box is connected to the TV.

7 On Provider STB Selection, select the manufacturer of your set-top box.

NOTE

To display all manufacturers list, select "ALL".

On-Screen Display Menu

ENG 4-25

Example

Smart TV (Continue)

Remote Control Link

NOTE

To narrow down the list when selecting the manufacturer of your set-top box, select one of the letters. The list of manufacturers

beginning with the selected letter will appear on the screen.

8 ENTER The current settings screen appears, and then press to continue.

On-Screen Display Menu

ENG 4-26

Example

Smart TV (Continue)

Remote Control Link

Test Connection

9 ENTER Select "Send" and press to allow the IR blaster

dongle to send command to your set-top box.

NOTE

The number of available codes varies depending on the

chosen manufacturer.

If more than one code is available for the manufacturer

of your set-top box, select "No, try again" to retry

sending another command to your set-top box.

10 CH10 If the TV changes to , press / to select "Yes"

and press to continue.ENTER

NOTE

When the right code is sent, the TV will automatically

change its channel to CH10.

11 ENTER Select "OK" and press to complete the setup.

On-Screen Display Menu

ENG 4-27

Example

Smart TV (Continue)

Remote Control Link

View TV Live Content on SmartCentral

After the setup is complete, you can view live content from your TV provider in one place (across TV and streaming).

1 Press SMART CENTRAL. The SmartCentral homescreen appears.

2 Settings In the page, enter your zip code to search your TV provider.

3 Select the TV provider.

NOTE

To ensure you are only shown the relevant content, select the desired service which you want to receive the content.

On-Screen Display Menu

ENG 4-28

Example

Smart TV (Continue)

Remote Control Link

4 TV Select the tab to view all of your content (TV, cable, satellite, or streaming).

NOTE

You can also filter the content by time and date, genre, popularity or favorite settings.

5 ENTER Select the desired content. Then select the one of the available viewing options and press to confirm the selection.

On-Screen Display Menu

ENG 4-29

Example

Smart TV (Continue)

Advanced

TV Name Setting

Set this function when operating the TV from equipment connected by LAN or wireless LAN.

Use the software keyboard when you need to input text at TV Name Setting.

Software Keyboard

Caps oﬀ

Press "abc" to switch character to uppercase. Press "CapsLock" to change the character set into lowercase.

Enter

Applies the entered information and closes the software keyboard.

Space

Enters a space.

Backspace

Deletes the character to the left of the cursor.

Delete

Erases the character string.

Netﬂix Help

Allows you to deactivate the Netflix function. To deactivate the Netflix function, select "Smart TV" > "Advanced" > "Netflix Help" >

"Deactivate" > "Yes".

(See page 7-7.)

VUDU Help

Allows you to deactivate the VUDU function. To deactivate the VUDU function, select "Smart TV" > "Advanced" > "VUDU Help" >

"Yes".

(See page 7-7.)

On-Screen Display Menu

ENG 4-30

Example

System Options

NOTE

For operating the on -screen display menu,

see page 4-3.

Power Control

Power control setting allows you to save energy.

Audio Only

When listening to music from a music program, you can

turn the screen off and enjoy audio only.

No Signal Oﬀ

When this function is enabled, the TV automatically shuts

down if no signal is received for more than 15 minutes.

NOTE

When it is the last minute before the power shuts down,

the remaining time will start to keep appearing every

second.

When a TV program finishes, this function may not

operate.

No Operation Oﬀ

When you enable this function, the TV automatically shuts

down if no operation is performed for more than 3 hours.

NOTE

When it is the last minute before the power shuts down,

the remaining time will start to keep appearing every

second.

Sleep Timer

Allows you to set a time when the TV automatically switches

to standby.

Oﬀ/30 min/60min/90min/120min

NOTE

The remaining time displays when the sleep timer has

been set.

When set, the time automatically starts counting down.

When it is the last minute before the power shuts down,

the remaining time will start to keep appearing every

second.

The TV will enter standby when the remaining time

reaches 0.

Shortcuts

Provides quick access to various operations.

SmartCentral Home:Enters the SmartCentral homescreen.

App Dock: Enters the application dock.

View Mode:Selects the view mode setting.

Freeze: Freezes the screen.

Change Audio:Selects the audio mode setting.

Change CC: Selects the CC (Closed Caption) setting.

On-Screen Display Menu

ENG 4-31

Example

System Options (Continue)

Advanced

Menu Design

Program Title Display

Displays the program title when tuning to the TV channel.

Position

For adjusting a picture's horizontal and vertical position.

H-Pos.: Centers the image by moving it to the left or right.

V-Pos.: Centers the image by moving it up or down.

Reset: Returns to the factory preset value.

Caption Setup

This function allows you to adjust the closed caption screen

appearance to suit your preference.

Size/Edge Eﬀect/Edge Color/Text Color/Background

Color/Text Opacity/Background Opacity

NOTE

The default value depends on the broadcasting station.

Startup Screen

With this function activated, the SHARP logo will be

displayed when you turn on the TV.

NOTE

This function is not available when the TV is set to

"Quick Start Mode".

Front Indicator Light

When this function is set to "On", the LED on the front of the

TV turns on.

NOTE

"On" is the factory preset value. If you want to turn off

the LED, set the function to "Off".

Demo

With this function activated, you can select the image from

several types of demo mode.

NOTE

What kinds of setting item are available depends on the

model of your TV.

"Demo" may not be selected depending on input signal

type or application status.

"Demo" may be automatically canceled depending on

input signal type.

Enjoying Photo/Music/Video Playback

ENG 5-1

Preparation

You

can connect the TV to a USB memory device, USB hard drive or Home Network server to

enjoy

viewing pictures, listening to music, and watching videos.

NOTE

Depending on the USB memory device/USB hard drive/Home Network server, the TV may not

be able to recognize the recorded data.

It may take time to read the recorded data if the USB memory device/USB hard drive/Home

Network server contains many files or folders.

Use only alphanumeric characters for naming files.

File names over 80 characters (may vary depending on character set) may not be displayed.

Connecting a USB Memory Device/USB Hard Drive

Insert

the USB memory device with recorded photos, music or videos into the USB terminal on

the

TV.

When connecting a USB hard drive, be sure to use a hard drive with an AC adapter.

Do not remove a USB memory device or memory card from the TV while transferring files,

using

the slide show function, or switching screens, or before you exit "USB" from the INPUT list.

Do not insert and remove a USB memory device/USB hard drive to and from the TV repeatedly.

When using a card reader, be sure to insert a USB memory device first.

CAUTION

Do not use a USB extension cable when connecting a USB memory device to the USB

terminal on the TV.

Using a USB extension cable with the USB memory device may prevent the TV from

performing correctly.

Connecting a Home Network Server

Connect

the TV to the Home Network server using an ETHERNET cable.

You can also connect a Home Network server by using a wireless LAN.

NOTE

Do not disconnect a Home Network server from the TV while transferring files, when a screen

is switching to another or before you exit "Home Network" from the INPUT list.

Do not connect and disconnect a Home Network server from the TV repeatedly.

Enjoying Photo/Music/Video Playback

ENG 5-2

Selecting the Folders to Play Back

To play back data on a USB memory device, insert the

USB memory device on the TV.

Use the following procedure to switch back to USB mode

after switching from USB mode to another mode.

1 Select "USB" or "Home Network" from INPUT list screen.

2 Press / to select "Video", "Music" or "Photo", and then

press .ENTER

Example

3 Press / to select the desired folder, and then press

ENTER.

"VIEW MODE" is fixed during the Music mode. During

"Video mode", you can select ”AUTO", "ORIGINAL" or

"Stretch".

During "Video mode", videos that are smaller than the

number of pixels on the screen are displayed at their

original size.

In these cases, switch "VIEW MODE" to "AUTO" to

have the video fill the screen.

NOTE

The Media screen can be displayed even by using the

application window. To display the application window,

press . SMART CENTRAL

(See page 3-6.)

16 is the maximum number of USB drives and 10 is the

maximum number of Home Network servers that can be

displayed.

USB Device Compatibility

USB device USB Memory, USB card reader (Mass

Storage class), USB hard drive

File system FAT/FAT32/NTFS (USB hard drive only)

Photo file

format

JPEG (.jpg) (DCF2.0 compliant)

Music file

format

MP3 (.mp3)

Bitrate: 32k, 40k, 48k, 56k, 64k, 80k, 96k,

112k, 128k, 160k, 192k, 224k, 256k,

320kbps

Sampling frequency: 32k, 44.1k, 48kHz

Enjoying Photo/Music/Video Playback

ENG 5-3

Selecting the Folders to Play Back

(Continue)

Video ﬁle format

File

extension Container Video Audio

.avi AVI

MPEG-1

MPEG-4

SP/ASP(XviD)

MPEG-4 AVC

(H.264)

Motion JPEG

MPEG-

Audio

LPCM

MS- ADPCM

AC3

.mkv MKV

MPEG-1

MPEG-2

MPEG-4

SP/ASP(XviD)

MPEG-4 AVC

(H.264)

MPEG-

Audio

LPCM

MS- ADPCM

AC3

.asf

.wmv

ASF

WMV

MPEG-4

SP/ASP(XviD)

WMV 7/8/9

LPCM

WMA

.mp4 MP4

MPEG-4

SP/ASP(XviD)

MPEG-4 AVC

(H.264)

Motion JPEG

MPEG-

Audio

LPCM

MS- ADPCM

AC3

.mpg

.mpeg MPG MPEG-1

MPEG-2

MPEG-

Audio

LPCM

MS- ADPCM

AC3

NOTE

Progressive format jpeg files are not supported.

USB 1.1 devices may not be played properly.

Operation using USB hubs is not guaranteed.

Some video file formats may not be played depending

on the file.

Some images may not be displayed in the appropriate

aspect ratio depending on the file format.

Home Network Server Compatibility

Photo ﬁle format JPEG

Music ﬁle format LPCM, MP3

Video ﬁle format AVI, MKV, ASF, MP4, WMV,

MPG

NOTE

Progressive format jpeg files are not supported.

Some video file formats may not be played depending

on the file or the server.

WMV, ASF, MP4, MOV and AVI are not Home Network

contents.

Enjoying Photo/Music/Video Playback

ENG 5-4

Playing Back Files on a USB

Memory Device/Home Network

Server

NOTE

The screen images in this section are for the USB mode.

It may be slightly different in the Home Network mode.

Photo Mode

Viewing Thumbnails

Example

Buttons for thumbnail operations

Buttons Description

/ / / Select a desired item.

ENTER When selecting a folder icon:

Enter this directory.

When selecting a photo thumbnail:

Start the slide show.

RETURN Return to the previous process.

Red Clear the file information display.

Green

Blue

Yellow

NOTE

A few seconds after the cursor is positioned on a

thumbnail, the file information is displayed in the right of

the center of the screen.

Enjoying Photo/Music/Video Playback

ENG 5-5

Playing Back Files on a USB

Memory Device/Home Network

Server (Continue)

Slide Show

The photos displayed on the thumbnail selection screen are

displayed as a slide show.

Buttons for slide show operation

Buttons Description

RETURN Return to the thumbnail selection screen.

Green Previous file

Blue Displaying/hiding operation guidance

Yellow Next file

NOTE

Rotating photos only applies to the temporarily selected

item and this setting is not saved.

Enjoying Photo/Music/Video Playback

ENG 5-6

Playing Back Files on a USB

Memory Device/Home Network

Server (Continue)

Music Mode

Example

Buttons for music mode

Buttons Description

/ / / Select a desired item.

ENTER When selecting a folder icon:

Enter this directory.

When selecting a music file:

Play music.

RETURN Return to the previous process.

Red Clear the file information display.

Green

Blue

Yellow

NOTE

The displayed play time may differ slightly from the

actual play time depending on the files.

A few seconds after the cursor is positioned on a

thumbnail, the file information is displayed in the right of

the center of the screen.

Enjoying Photo/Music/Video Playback

ENG 5-7

Playing Back Files on a USB

Memory Device/Home Network

Server (Continue)

Video Mode

Example

Buttons for ﬁle selecting operations

Buttons Description

/ / / Select a desired item.

ENTER When selecting a folder icon:

Enter this directory.

When selecting a video file: Play the

video.

RETURN Return to the previous process.

Red Clear the file information display.

Green

Blue

Yellow

NOTE

A few seconds after the cursor is positioned on a

thumbnail, the file information is displayed in the right of

the center of the screen.

Enjoying Photo/Music/Video Playback

ENG 5-8

Playing Back Files on a USB

Memory Device/Home Network

Server (Continue)

Buttons for playing mode

Buttons Description

Fast forward

Fast rewind

Red Subtitle off

Green Previous file

Blue Display/hide operation guide

Yellow Next file

RETURN Go back to the file selection screen.

Using LINK Operation

ENG 6-1

Controlling HDMI Equipment Using LINK Operation

What’s LINK Operation?

Using the HDMI CEC (Consumer Electronics Control) protocol, with LINK Operation you can

interactively operate compatible system equipment (Blu-ray disc equipment, AV amplifier,

DVD).

To access this function: Initial Setup > Advanced > AQUOS LINK Setup > AQUOS LINK

Control.

NOTE

For connecting the TV to LINK- compatible equipment, use commercially available cables.

Point the remote control toward the TV, not to connected HDMI equipment.

Video noise may occur depending on the type of HDMI cable used. Make sure to use an

HDMI-certified cable.

Up to 4 pieces of HDMI recording equipment and one AV amplifier can be connected using

this system.

These operations affect the HDMI equipment selected as the current input source. If the

equipment does not operate, turn on the equipment and select the appropriate input source

using .INPUT

The LINK feature may not operate properly when an HDMI splitter or AV selector unit is used.

These devices may cause interruptions to the image and/or sound.

Connected

LINK-compatible devices can be operated without changing the settings of the

remote

control unit.

Control the LINK-compatible audio system

Set

the volume of LINK-compatible audio system.

NOTE

The steps in "AQUOS LINK Setup" on need to be completed beforehand.page 6-2

Refer to this operation manual and the operation manual of the LINK device to be used with

this TV.

Using LINK Operation

ENG 6-2

Controlling HDMI Equipment Using

LINK Operation (Continue)

AQUOS LINK Setup

Make the settings to use LINK Operation. Set the settings

with "Initial Setup" > "Advanced" > "AQUOS LINK Setup".

AQUOS LINK Control

Select LINK Operation Control to disable the LINK function

even when a LINK-compatible HDMI device is connected

to the TV. This function prevents the device from starting to

operate unexpectedly.

Auto Power On

If this is activated, the One Touch Play function is enabled.

While the TV is in standby mode, it automatically turns on

and plays back the image from the HDMI source.

Audio Return Channel

This function allows you to listen to the TV audio via audio

equipment without using an optical fiber cable, which

conventionally is required.

Requirements for using an ARC-compatible AV

ampliﬁer:

ARC-compatible AV amplifier connected to the ARC-

compatible HDMI terminal. (HDMI 3)

(Refer to the operation manual of the ARC-compatible

equipment for details.)

Use of an ARC- compatible cable.

Auto: You can listen to the TV audio with ARC- compatible

audio equipment.

Oﬀ: This function does not work.

NOTE

If the TV audio cannot be output from the AV amplifier

even after making the necessary settings, connect the

TV to the AV amplifier with an optical fiber cable and

select "Off".

Using LINK Operation

ENG 6-3

Using a Smartphone with the TV

This function enables you to connect the TV to a

smartphone that supports Mobile High- Definition Link

(MHL™ ) using an MHL cable.

To connect the TV to your MHL-compatible smartphone, be

sure to use an MHL cable (commercially available).

You can view pictures and video on a large screen.

You can play back music files.

NOTE

An MHL- compatible portable device is required to use

this function. Connect the device to the HDMI IN 4

terminal.

This product incorporates MHL 1.

Auto Input Selection

When an MHL-compatible device is connected while the TV

is on, the input mode is selected automatically.

This function operates when "AQUOS LINK Control" is

set to "On".

(See page 6-2.)

Operation Using the Remote Control

The remote control of the TV can be used to operate a

portable device.

/ / / , , , ( - , (DOT), ),ENTER EXIT NUMBER 0 9 • Ent

etc.

The operations vary depending on the connected

equipment and content being viewed.

Using the Internet

ENG 7-1

connecting your TV to a broadband system, you can access the Internet from the TV.

You can enjoy a variety of streaming content and Internet applications.

(See pages to 7-7.)7-6

Connecting to the Internet

To connect your TV to the Internet, you must have a broadband Internet connection.

If you do not have a broadband Internet connection, consult the store where you purchased

your TV or ask your Internet service provider or telephone company.

When an Internet connection is made, an Ethernet and wireless connection cannot be used at

the same time. Use only one of the connection types.

Using an ETHERNET cable

Use

an ETHERNET cable (commercially available) to connect the ETHERNET terminal on the TV

your broadband router (commercially available).

Using the wireless LAN

This

TV is equipped with a wireless LAN function.

For

a wireless LAN connection, you must use "Wireless Setup" to connect the access point and

TV.

NOTE

This TV has a built-in wireless LAN function. Using a separate wireless USB LAN adapter may

result in radio communications that do not comply with regulations on radio communications.

Therefore, do not use a separate wireless LAN adapter.

A wireless LAN connection and performance cannot be guaranteed for all residential

environments. In the following cases, the wireless LAN signal may be poor or drop, or the

connection speed may become slower.

- When used in buildings made with concrete, reinforced steel, or metal

- When placed near objects that obstruct the signal

- When used with other wireless devices that emit the same frequency

- When used in the vicinity of microwave ovens and other devices that emit a magnetic field,

electrostatic charge, or electromagnetic interference

When there is significant interference in the 2.4-GHz frequency (such as from other wireless

LAN devices, Bluetooth® devices, 2.4-GHz cordless telephones, and microwave ovens), it is

recommended that you use a wireless LAN router/access point that supports IEEE802.11a/n

(5 GHz) and set the access point to transmit at 5 GHz. For setup details, see the operation

manual of your access point.

Using the Internet

ENG 7-2

Internet Setup

Perform the procedure below to make adjustments or to

confirm the settings for accessing the Internet.

1 MENU Press to display the MENU screen, and then

press .ENTER

2 Press / to select "Smart TV", and then press .ENTER

3 Press / to select "Internet Setup", and then press

ENTER.

4 Press / to select "Connection Type", "Wired Setup" or

"Wireless Setup", and then press .ENTER

Select ”Wired Setup" or "Wireless Setup" when you

make general adjustments to connect to the Internet.

5 Press / to select a specific item, and then press

ENTER.

6 Press / (or / ) to select the desired setting, and

then press .ENTER

7 MENU Press to exit.

Connection Type

Select the connection type.

Wired: The signal is detected and setup is performed

automatically. Use "IP Setup" to check and change the

settings as necessary.

Wireless: Configure the access point settings on "Wireless

Setup".

Using the Internet

ENG 7-3

Internet Setup (Continue)

Wireless Setup

Make adjustments and confirm the settings necessary for

wireless LAN connection (such as search for the access

point and registration of it).

WPS push button: Allows the TV to automatically

establish the connection using a button on the access

point.

WPS PIN code: Sets up the connection by registering a

PIN code for the access point.

Selecting wireless network: Searches for and selects the

access point to be connected.

Registering wireless network: Allows you to make the

connection by entering an SSID for the access point.

If your access point supports Wi-Fi Protected Setup (WPS

push button method), it is recommended that you use this

function for the wireless connection. You can press the WPS

button on the access point to configure the settings

automatically.

The name of the WPS button function may differ

depending on the access point. See the operation

manual of the access point for details.

1 Confirm the current settings in "Connection Type".

If "Wired" is selected, pre to select "Wireless".ss /

2 Press / to select "Wireless Setup", and then press

ENTER.

Confirm the settings. If each setting item is correct,

press to exit.MENU

If you are configuring the wireless setup for the first

time or changing the settings, go to step 3.

3 Press / to select "Change", and then press .ENTER

4 Select the desired connection method and follow the

instructions shown on the display.

5 When a connection is established, the connection details

are displayed. Press .ENTER

NOTE

Operations cannot be guaranteed when used with

access points that do not have Wi-Fi® certification.

A wireless LAN router/access point is required to

connect the TV to the Internet using a wireless LAN. See

the operation manual of your access point for setup.

If your access point is set to a stealth mode (that

prevents detection by other devices), you may not be

able to establish a connection. In this case, disable the

stealth mode on the access point.

A stable connection speed is required to play back

streaming content. Use an Ethernet connection if the

wireless LAN speed is unstable.

Before transferring to a third party or disposal, be sure

to initialize the wireless LAN settings.

Please follow the legislation in your country when using

the wireless LAN outdoors.

IP Setup

You can make adjustments manually for the IP.

Check that numbers are displayed for each setting.

If there are any settings without numbers, specify the

numbers by following the on-screen instructions.

Input the IP address by using the button onNUMBER

the remote control.

Example

Using the Internet

ENG 7-4

Internet Setup (Continue)

Connection Test

After the connecting and setting procedures have been

completed, you can check that the preparation is correct.

Press "Yes" to start the "Connection Test".

When the test results are displayed, follow the

instructions shown on the screen.

Using the Internet

ENG 7-5

Entering Text (Software Keyboard)

When you are editing an input screen or specifying the Network settings used for accessing the Internet, enter text from the

software keyboard.

NOTE

You can enter up to 128 characters for text.

Some special characters or diacritics may not be available depending on where you enter the text.

Caps

If "alphabet" is selected, this switches characters between

uppercase and lowercase.

Each time you press , the character type switches.ENTER

BkSp

Erases text one character at a time.

Space

Enters a space.

Buttons on the

remote control unit Description

/// Select the input character.

ENTER Performs the processing for the

button currently in the focus.

EXIT Closes the software keyboard

without applying the original input

elements for the entered text.

RETURN

English

Press and select the desired language from the InputENTER

language drop - down list.

Enter

Applies the entered information and closes the software

keyboard.

clear

Erases the whole input text.

Closes the software keyboard without applying the entered

information.

The text you enter is displayed as you type it in.

While you are entering text, likely input conversion candidates are displayed based on what you typed in.

Using the Internet

ENG 7-6

Using Applications via the Internet

By connecting the TV to the Internet, you can enjoy a

variety of broadband content, including videos, music and

photos.

Please check that the most current software is loaded on

TV by selecting "Auto Update Setting" on "Software

Update"

(see page 4-15) or by visiting

http://www.sharpusa.com/products/support/

to check for a download of the newest software version.

Use the application window to access your favorite Internet

applications. Press to display theSMART CENTRAL

application window.

Follow the on-screen instructions for each application.

When using this TV to access an Internet application for

the first time, the Disclaimer appears on the screen.

Press / to select "Agree", and then press .ENTER

(You must select "Agree" to use the application.)

Check the web site of the provider for details on setup

and use of the functions.

NOTE

If " " or " " is displayed , check your TV's

network settings and connection.

Additional applications will be available in the future.

These applications are provided by content providers.

The available applications vary depending on your

country or region.

The delivery speed of applications varies depending on

the network speed. Check the web site of the provider

for details on application setup and other information.

Using the Application Window

During Dock Display

To access this function: System Options > Shortcuts > App

Dock.

Move the Icons

You can move the icons of the more commonly used

applications closer to the left.

To move the application icons, perform the following:

Example

1 Press / to select an application, and then press .

2 Press / to select "Move", and then press .ENTER

3 Press / to move the icon to the desired location.

4 ENTER Press to confirm the setting.

Delete the Icons

To delete the application icons, perform the following:

1 Press / to select an application, and then press .

2 Press / to select "Delete".

3 ENTER Press to delete the selected application icon.

Using the Internet

ENG 7-7

Using Applications via the Internet

(Continue)

Deactivating Netﬂix Function

You can deactivate the Netflix function. Refer to "Smart TV"

> "Advanced" > "Netflix Help" and select "Deactivate" >

"Yes".

To confirm the Netflix status, check the information

displayed on the screen and click "OK".

Deactivating the VUDU Function

To deactivate the VUDU function, refer to "Smart TV" >

"Advanced" > "VUDU Help" and select "Yes".When you

access the Internet application for the first time, the

following appears.

This message is available only in English.

Using the Internet

Notes

DISCLAIMERS

This SHARP device facilitates the access to content and services provided by third parties. The content and services accessible via this device belong to and may be proprietary to third parties.

Therefore, any use of such third party content and services must be in accordance with any authorization or terms of use provided by such content or service provider. SHARP shall not be liable

to you or any third party for your failure to abide by such authorization or terms of use. Unless otherwise specifically authorized by the applicable content or service provider, all third party

content and services provided are for personal and non-commercial use; you may not modify, copy, distribute, transmit, display, perform, reproduce, upload, publish, license, create derivative

works from, transfer or sell in any manner or medium any content or services available via this device.

SHARP is not responsible, nor liable, for customer service-related issues related to the third party content or services. Any questions, comments or service-related inquiries relating to the third

party content or service should be made directly to the applicable content or service provider.

You may not be able to access content or services from the device for a variety of reasons which may be unrelated to the device itself, including, but not limited to, power failure, other Internet

connection, or failure to configure your device properly. SHARP, its directors, officers, employees, agents, contractors and affiliates shall not be liable to you or any third party with respect to

such failures or maintenance outages, regardless of cause or whether or not it could have been avoided.

ALL THIRD PARTY CONTENT OR SERVICES ACCESSIBLE VIA THIS DEVICE IS PROVIDED TO YOU ON AN "AS- IS" AND "AS AVAILABLE" BASIS AND SHARP AND ITS AFFILIATES MAKE NO

WARRANTY OR REPRESENTATION OF ANY KIND TO YOU, EITHER EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OF MERCHANTABILITY, NON-

INFRINGEMENT, FITNESS FOR A PARTICULAR PURPOSE OR ANY WARRANTIES OF SUITABILITY, AVAILABILITY, ACCURACY, COMPLETENESS, SECURITY, TITLE, USEFULNESS, LACK OF

NEGLIGENCE OR ERROR-FREE OR UNINTERRUPTED OPERATION OR USE OF THE CONTENT OR SERVICES PROVIDED TO YOU OR THAT THE CONTENT OR SERVICES WILL MEET YOUR

REQUIREMENTS OR EXPECTATIONS.

SHARP IS NOT AN AGENT OF AND ASSUMES NO RESPONSIBILITY FOR THE ACTS OR OMISSIONS OF THIRD PARTY CONTENT OR SERVICE PROVIDERS, NOR ANY ASPECT OF THE

CONTENT OR SERVICE RELATED TO SUCH THIRD PARTY PROVIDERS.

IN NO EVENT WILL SHARP AND/OR ITS AFFILIATES BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE, CONSEQUENTIAL OR

OTHER DAMAGES, WHETHER THE THEORY OF LIABILITY IS BASED ON CONTRACT, TORT, NEGLIGENCE, BREACH OF WARRANTY, STRICT LIABILITY OR OTHERWISE AND WHETHER OR

NOT SHARP AND/OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Examples of Application Logos

ENG 7-8

Using the Miracast devices

ENG 8-1

Miracast devices

When

you connect a device such as a Miracast-compatible smartphone or tablet to this TV, you

can

enjoy video and audio from the device on the TV's large screen and speakers.

1 INPUT Press and select "Miracast".

2 Enable the Miracast function on the Miracast device and connect to the TV.

(The TV screen changes according to the behavior of the device)

NOTE

When the TV is turned off or the connection is ended on the device, you must connect the

device again.

For details about the operation of the Miracast-compatible device, check the manual for that

device.

When the Miracast device is connected to the TV over a wireless LAN, Miracast video may be

distorted and Miracast audio may be interrupted depending on the status of the TV's

connection to the access point.

Appendix

ENG 9-1

Removing the Stand

Before detaching (or attaching) the stand, make sure to turn off the TV and unplug the AC

cord.

CAUTION

Do not remove the stand from the TV unless using an optional wall mount bracket to

mount it.

1 Unfasten the four screws used to secure the stand in place.

Example

2 Detach the stand from the TV.

NOTE

When moving the TV, be sure to always carry the TV by two people holding it with two hands.

In the installation procedure, be careful not to catch your fingers between the TV set and the

floor.

Appendix

ENG 9-2

Setting the TV on the Wall

Wall Mount Kit Speciﬁcations

Standard

dimensions for wall mount kits are shown below.

Model LC-65UB30U LC-55UB30U LC-50UB30U LC-43UB30U

Wallmount

Footprint

(A x B)

400 x 400mm 200 x 200mm

Wallmount

Screws M6

* The mounting means should be strong enough to bear the weight of the display.

* The wall mounting bracket should have UL or related approval.

Appendix

ENG 9-3

Setting the TV on the Wall(Continue)

For

the screws, refer to the table shown below.

Standard screws M6 (Use 1.0 pitch screws.)

Length(Depth of mounting holes) 15/32 (12)

Quantity 4 pcs.

NOTE

To use this TV mounted on a wall, remove the cable tie as needed.

Do not use screws that do not comply with the VESA standard screw specifications.

Do not use screws that are longer than the standard length. Screws that are too long may cause damage to the inside of the TV.

Do not fasten the screws too firmly or loosely. This may damage the product or cause the product to fall, leading to personal injury. SHARP is not liable for these kinds of accidents.

SHARP is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.

Do not install the wall mount kit while your TV is turned on. It may result in personal injury due to electric shock.

Appendix

ENG 9-4

Troubleshooting

Problem Possible Solution

No power Check if you pressed on the remote control unit.POWER

Is the AC cord disconnected?

Has the power been turned on ?

Unit cannot

be operated.

External influences such as lightning, static electricity, may cause improper

operation. In this case, operate the unit after first turning off the power of

the TV or unplugging the AC cord and replugging it in after 1 or 2 minutes.

Remote

control unit

does not

operate.

Is the equipment to be operated by the remote control unit set correctly?

Press to set the remote control unit to the setting for operating the TV.TV

Is the battery inserted with the positive polarity (+) facing up?

Is battery worn out? (Replace with new battery.)

Are you using it under strong or fluorescent lighting?

Is a fluorescent light illuminated near the remote control sensor ?

Picture is cut

off/with

sidebar

screen.

Are screen mode adjustments such as picture size made correctly?

Pages 3-12 to 3-14

Strange

color, light

color, or color

misalignment

Adjust the picture tone.

Pages 4-16 to 4-18

Is the room too bright? The picture may look dark in a room that is too

bright.

Power is

suddenly

turned off.

Is the sleep timer set?

Pages 4-30

Check the power control settings.

Page 4-30

The unit's internal temperature has increased. Remove any objects blocking

vent or clean.

Problem Possible Solution

No picture Is connection to other components correct?

Is the correct input selected?

Pages 2-1

Is "On" selected in "Audio Only"?

Page 4-30

If the PC image is not displayed, check the following:

- When connecting a laptop PC to the TV, check that display output

mode of the PC is set to external monitor.

Picture quality of

HD programs is

poor.

To enjoy HD images from external equipment, you are required to set up

HDMI connection or component connection.

If the program content is not of HD quality, HD images cannot be

displayed. Check that the program you are viewing provides HD images.

The HD cable/satellite set-top box may need to be configured to output

HD images via cable/satellite.

The cable/satellite broadcast may not support a signal resolution of

1080p.

The TV

sometimes

makes a

cracking sound.

This is not a malfunction. This happens when the cabinet slightly

expands and contracts according to change in temperature. This does

not affect the TV's performance.

Appendix

ENG 9-5

Troubleshooting (Continue)

Problem Possible Solution

No sound Is connection to other components correct?

Is the volume too low?

Page 3-2

Is "Variable" selected in "Output Select"?

Page 4-11

Have you pressed on the remote control unit? MUTE

Page 3-3

Check the audio output of the connected external equipment. Is

the volume too low or muted?

When external equipment is connected via an HDMI cable, you

may need to configure the audio to be output through the HDMI

cable.

Even when external equipment is connected using an HDMI-

certified cable, an audio cable connection may be required

depending on the type of equipment and the media being

played back. In this case, in addition to connecting an HDMI-

certified cable to the HDMI 3 terminal, connect an RCA audio to

Ø 3.5 mm stereo minijack cable to the AUDIO IN terminal.

When connecting a PC via an HDMI-certified cable, check the

following:

- Is the audio output of the PC configured correctly? Check the

audio output settings and output audio format in Sound

Properties on the PC.

The audio formats compatible with this TV are PCM and Dolby

Digital. With other formats, audio cannot be output.

- Depending on the board, only video signals may be output. In

this case, in addition to connecting an HDMI- certified cable to

the HDMI 3 terminal, connect an RCA audio to Ø 3.5 mm stereo

minijack cable to the AUDIO IN terminal.

Problem Possible Solution

Miracast image/audio

cannot be output to the

TV.

Check pairing.

Cautions regarding use in high and low temperature environments

When the unit is used in a low temperature space (e.g. room, office), the picture may leave

trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the

temperature returns to normal.

Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location

exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the

front panel to malfunction.

Storage temperature: -4°F to +140°F (-20°C to +60°C)

Appendix

ENG 9-6

Troubleshooting - Error Message

The example of an error

message displayed on a

screen

Error code Possible Solution

An incompatible audio

signal has been

received. Check the

output device settings.

—This message is displayed when an audio

format other than PCM, DTS or Dolby Digital is

input.

- Set the audio output format of connected

external HDMI equipment to PCM or Dolby

Digital.

- Refer to the operation manual of the external

equipment for setting details.

Produktspecifikationer

Varumärke:	Sharp
Kategori:	Tv
Modell:	LC-43UB30U
LED-indikatorer:	Ja
Beeldscherm:	LCD
Skärm diagonal:	5.6 "
Typ av anslutningskontakt:	3,5 mm
Certifiering:	UL, CE, FCC, ETL
Typ av enhet:	DVD speler
Bakgrundsbelysning:	Ja
Kompositvideoutgång:	1
Kompatibel batteriteknik:	Lithium-Ion (Li-Ion)
Typ-av-optisk-enhet:	CD, DVD
Mått (B x D x H):	200 x 38 x 155 mm
