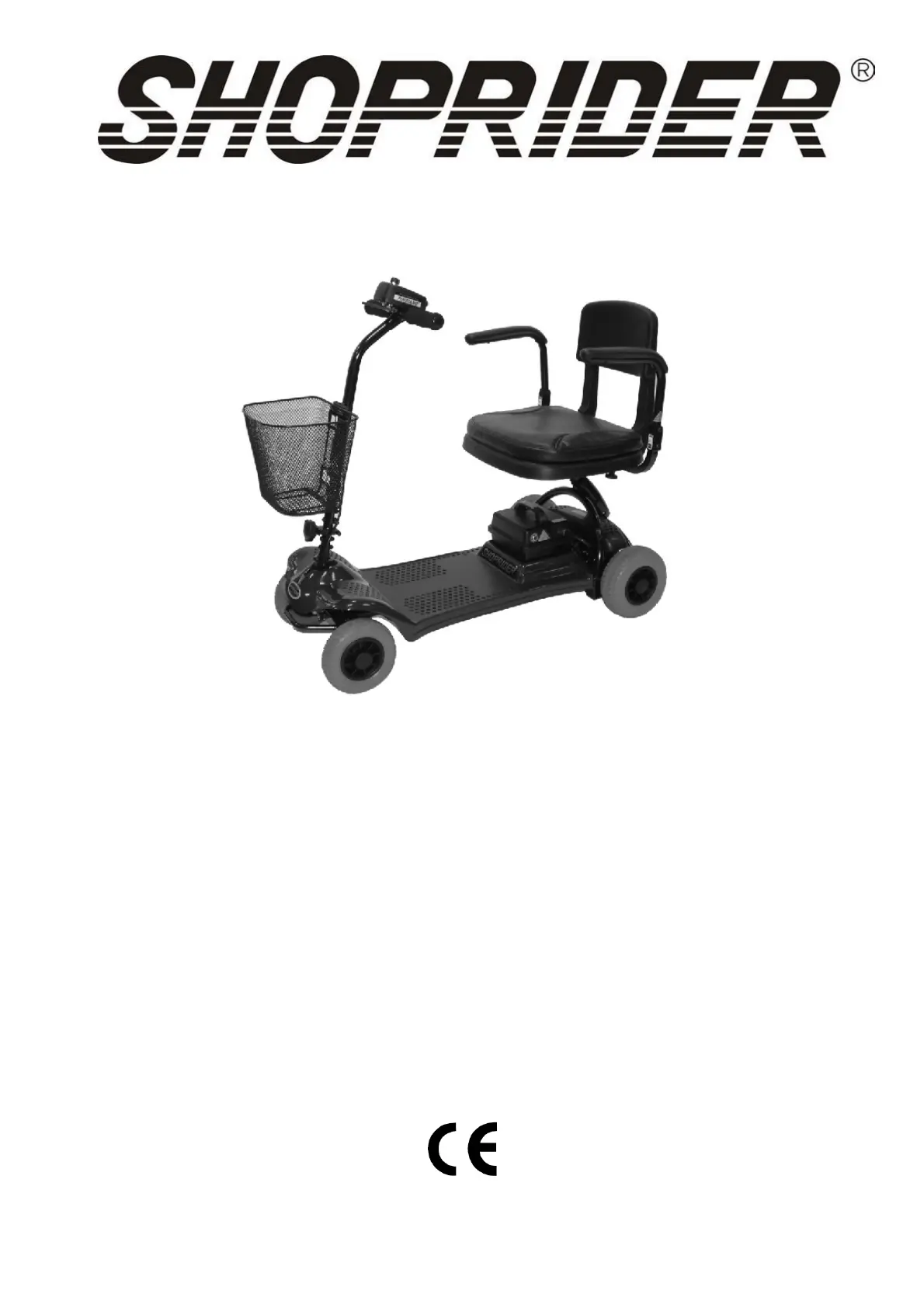

Altea
SL7-3 / SL7-4
USER MANUAL
Please ensure that this manual is read and
understood before using the scooter.
Se
p
t 2011
KB&S16118
Contents Page
Introduction 3
Intended Use 3
Technical Specification 3
Feature Guide 4 & 5
Safety Advice 6
Adjustments
 Folding the tiller (for transportation) 7
 Seat removal 7
 Seat height 7
 Arm width adjustment 7 & 8
Tiller Controls 8 & 9
Brake Release / Freewheel Operation 9
Starting to Drive
 Getting Started 10
 Moving Off 10
 Steering 10
 Reversing 10
 Ramps / Slopes 10
Transport and Storage 11
Batteries and Battery Charger 12 & 13
Maintenance 13
Troubleshooting
 Circuit Breaker 14
 Fuses 14
 Check List 14
Further Information 14 & 15
Warranty
2
Introduction
Congratulations on your purchase of your Shoprider® scooter. This scooter
incorporates the latest innovative designs to provide a compact and
lightweight means of mobility. The scooter can be used in confined spaces
both indoors and out. Direct drive rear transaxles and electromagnetic brakes
give a safe and efficient ride. The scooter can be easily disassembled without
tools and will fit into the boot of most vehicles for easy transport.
Intended Use
The scooter was carefully designed for indoor or outdoor use in pedestrian
areas by a single individual with limited mobility up to a maximum weight of
100kg (16st). The acute manoeuvrability prohibits the use by persons who are
severely physically impaired or those who have balance difficulties. Your
assessor will determine the suitability of the scooter for the individual.
Note: Persons with lower body amputations should not use this product
unless evaluated with artificial limbs fitted, as stability may be
compromised due to an irregular centre of gravity. The three wheeled
model is intended to be used in pedestrianised areas such as shopping
precincts with drop kerbs for access. Small three wheeled scooters can
become unstable if steered sharply at full speed. Should the scooter be
used in an environment other than that intended serious injury could
occur. Each user should be assessed to establish the suitablity of the
scooter model prior to purchase.
Technical Specification
Class 1 Medical Device
Class A Indoor/Outdoor Vehicle
Overall Size Seat Dimensions
Length 1050mm Width 440mm
Width 548mm Depth 360mm
Height 890mm Seat to lowest foot
position 520mm
Battery 2 x 10Ah Backrest height 320mm
Height Total 890mm Range 12km (8m)*
Maximum user weight 100kg / 16st Battery charger (off board) 2 amp
Safe working slope
Weight with batteries 35kg
Max. Speed 6km/h
(4mph)
*Passenger weight, rough ground conditions, low temperatures and battery
condition can affect maximum range.
3

Produktspecifikationer

Varumärke: Shoprider
Kategori: Mobilskoter
Modell: Altea SL7-3
Enhetsplacering: Ingebouwd
Typ av operation: Buttons, Rotary
Färg på produkten: Black, Stainless steel
Dörrgångjärn: Neer
Inbyggd display: Ja
Vikt: 27000 g
Bredd: 595 mm
Djup: 551 mm
Höjd: 595 mm
Grill: Ja
Energie-efficiëntieklasse: A
Integrerad klocka: Ja
Typ av klocka: Elektronisch
Konvektionsmatlagning: Ja
Total inomhuskapacitet (ugnar): 66 l
Antal ugnar: 1
Kontrollposition: Boven voorzijde
Installationsfackets bredd: 560 mm
Installationsfack djup: 560 mm
Installationsfack höjd: 583 mm
Energiförbrukning (konventionell): 0.99 kWu
Energiförbrukning (tvungen konvektion): 0.88 kWu
Att laga: Ja
Ugnsstorlek: Middelmaat
Typ av ugn: Elektrische oven
Total ugnseffekt: - W
Ugn med nettokapacitet: 66 l
Ugnens termostatområde: 60 - 250 °C
Självrengörande: Ja
Skriv timer: Digitaal
Antal rutnät: 1
Alternativ för brödtillverkning: Ja
AC-ingångsspänning: 230 V
AC-ingångsfrekvens: 50 Hz
Type beeldscherm: LED
Program för att göra bröd och deg: Pizzadeeg
Antal bröd- och degtillverkningsprogram: 5
