Sida 1/20
11/4/2015
1

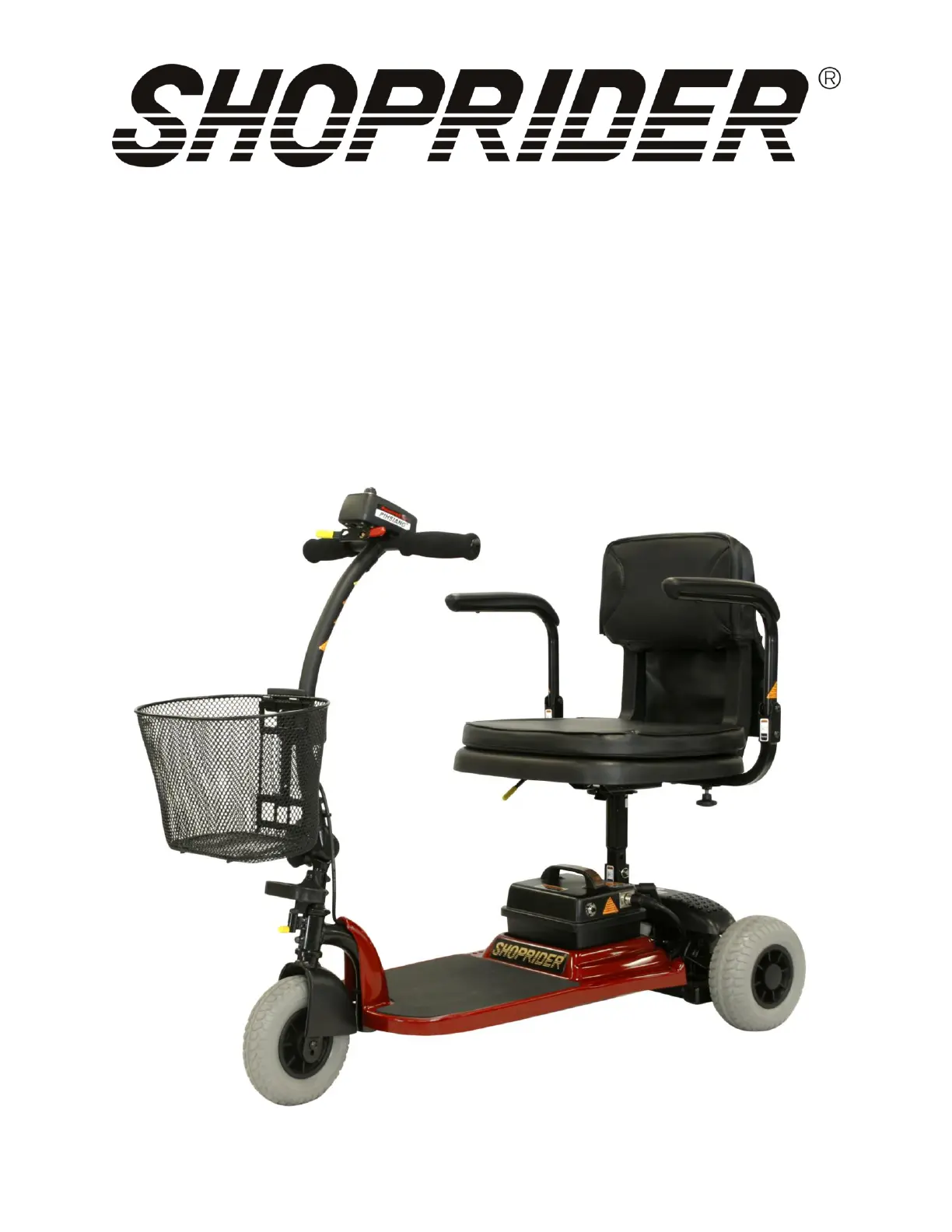

Echo 3
Model # SL73
Portable Scooter
User Manual
™
11/4/2015
2
Table Contents of
INTRODUCTION /FEATURE GUIDE…………………………………………………..……….
SAFETY ADVICE……………………………………………………………………… …...4.
EMI WARNING………………………………………………………….……….…………..
ADJUSTMENTS………………………………………………… …………………………..7.
SCOOTER TILLER CONT ROLS………………………………….……….……………..1
DRIVE/FREEWHEEL OPERATION…………………………………………….…………10
BATTERY PACK/ SERIAL NUMBER………………………………………………………..
STARTING TO DRIVE YOUR SCOOTER……………………………………..………….1
EXTRA GUIDELINES IN THE C ONTROL OF YOUR SCOOTER……………….…….
BATTERIES AN D BATTERY CHARGING………………………………………..……….14
MAINTENANCE/ TROUBLE SHOOTING GUIDE ………………………….…………..15
NOTES……………………….…………………………………………………..……….15
TECHNICAL SPECIFICATIONS………………………………………………………..16
QUARTERLY INSPECTION………………………………………………..…………….17
NOTES………………………………………………………………………………………
WARRANTY AND DISCLAIMER. ……………………………………………………………
3
4
5-6
7
8
9
10
11
12
13
14
15
16
17
18- 19
20
11/4/2015
3
INTRODUCTION
Congratulations on your purchase of the Shoprider® Echo scooter. The Echo is the
ultimate combination of style, comfort and portability.
The Echo goes with you wherever you go and can be assembled or disassembled in
just seconds. The Echo is super light and compact, and can be stored in small areas
such as the trunk or back seat of your car. The compact features support easy
transportation of your Echo for today’s active lifestyle.
The Echo can be used in confined spaces both indoors and out. Direct drive transaxle
and electromagnetic brake give a safe and efficient ride. We know that the Echo
portable scooter will provide many years of mobility for you.
Please ensure that you read this manual carefully, it is important for your safety
that you understand the guidelines and instructions given.
ECHO FEATURE GUIDE (Fig 1)
1. Tiller control head
2. Detachable seat with fold down Back and optional removable pads
3. Removable flip-up arm rests (optional)
4. Detachable basket
5. Detachable battery-pack
6. Tiller adjustment knob
7. Seat release lever
8. Puncture proof tires
9. Anti-tip wheels
1
4
7
8
5
6
Figure 1
2
3
9
