Sitecom AD-1018 Bruksanvisning
Läs nedan 📖 manual på svenska för Sitecom AD-1018 (16 sidor) i kategorin USB-hubb. Denna guide var användbar för 4 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/16

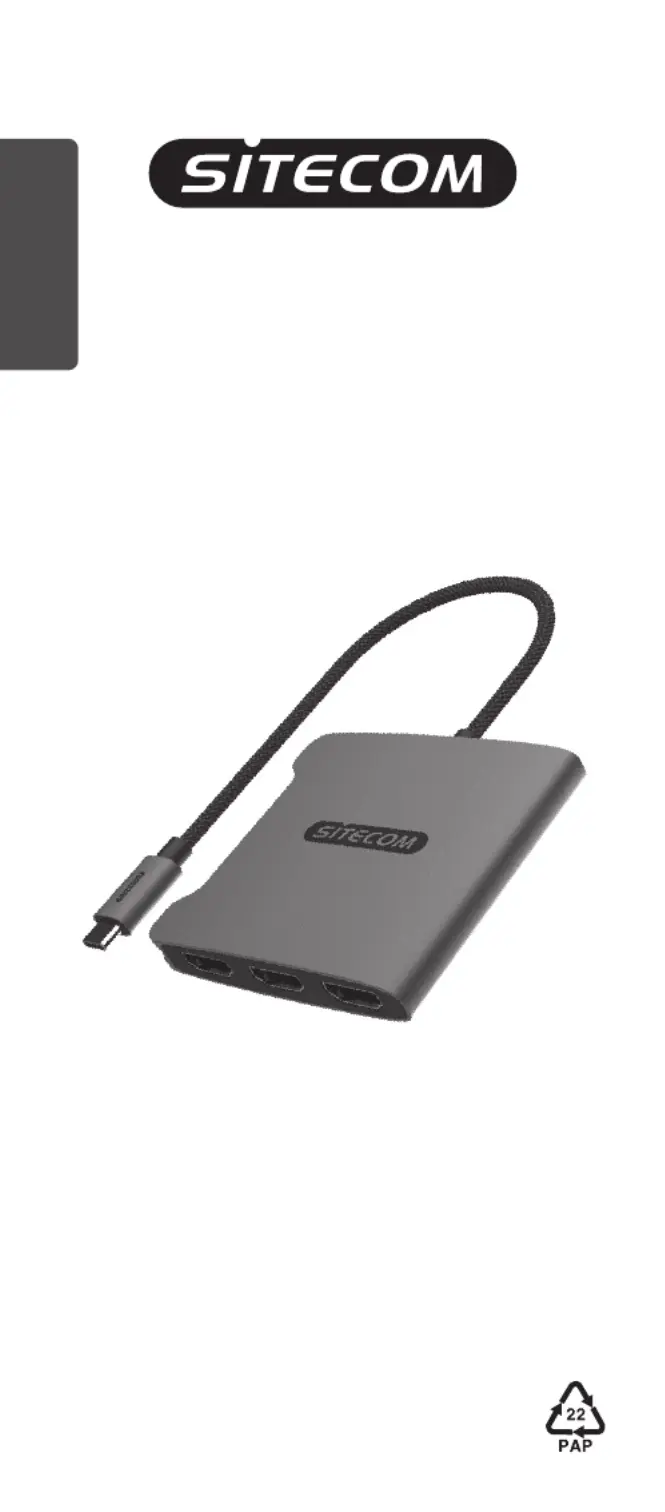

USB-C to Triple
HDMI adapter
Connects 3 displays
to 1 USB-C port
Type: AD-1018
PRO LINE
User manual
EN: User manual AD-1018 USB-C to Triple HDMI adapter 3 . . . . . . . . . . .
NL: Handleiding AD-1018 USB-C naar Triple HDMI adapter . . . . . . . . . 4
DE: Benutzerhandbuch AD-1018 USB-C-auf-Dreifach-
HDMI-Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
FR: Guide de l’utilisateur AD-1018 Adaptateur USB-C
Triple HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
IT: Manuale dell’utente AD-1018 Adattatore da USB-C a
tripla HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ES: Manual de usuario AD-1018 Adaptador USB-C a Triple HDMI 8 . . .
PT: Manual do utilizador AD-1018 Adaptador USB-C
para HDMI triplo 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PL: Instrukcja obsługi AD-1018 Przejściówka z USB-C na
potrójne HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
ΕΛ: Εγχειρίδιο χρήστη AD-1018 Προσαρμογέας USB-C σε
Τριπλό HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Legal & Compliance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Driver installation required!
2
3 4 5
1
3
EN
At a glance
Item Specications Description
1 USB-C
connector
Male USB-C connector Connects to USB-C port of computer.
Also compatible with Thunderbolt 3
and 4 ports.
2 Cable guide Built in cable guide Place your cable in the cable guide
when not in use.
3 HDMI port 1 HDMI – max. resolution
1080P at 60Hz. Backwards
compatible.
Connect to any device with an
HDMI port
4 HDMI port 2 HDMI 1.4 – max. resolution
4K at 30Hz. Backwards
compatible.
Connect to any device with an
HDMI port
5 HDMI port 3 HDMI 1.4 – max. resolution
4K at 30Hz. Backwards
compatible.
Connect to any device with an
HDMI port
Technical information
General
compatibility
This device needs an USB-C port that supports DP-Alt mode to be able
to transmit video and data signals. Please consult your computer’s
manual for compatibility information.
Supported
devices
Windows devices, Apple Mac
MST resolution When using this product with 3 external displays the maximum
resolution and refresh rate is 4K at 30Hz + 4K at 30Hz + 1080P at 60Hz.
MST support Multi Stream Transport means displaying dierent images on every
display. This is only supported after installing the necessary driver.
Driver is supported on Windows 10/11 and MacOS 10.15 and later
versions.
Driver
installation
To be able to use all 3 HDMI ports, please download and install the
display driver from:
www.sitecom.com/drivers/AD-1018
Installation instructions can be found at the link above.
MST explained
MST
Other specications
Supported OS Windows 7/8/10/11, Mac OS X
10.2 and above, Chrome OS
A free USB-C port is required to use
this device.
Dimensions 377 x 70 x 12 mm The dimensions are including cable
(30cm cable)
Weight 91 grams This product is lightweight for ease
of carrying
Package
contents
1x AD-1018 & 1x User manual Keep this manual for future reference
Important safety instructions
• Do not drop. Frequent dropping may lead to malfunctioning.
• Do not disassemble. Repairs should only be done by qualied service centers.
• Do not expose to liquids or re.
• Do not extend cable. Extending cable may lead to poor performance.
• Do not exceed 40° Celsius ambient temperature. Product may not function properly
above 40° Celsius
Support
Warranty 24 months warranty. Please note that your rights under national law remain
unaected by this warranty.
Support Lifetime technical support
Website www.sitecom.com
Contact support@sitecom.com
