HDMI and IR Extender Over LAN
BREAK DISTANCE BARRIERS
TO EXTEND HDMI AND
IR SIGNALS OVER IP
USING CAT5E/6 CABLES
Quick Start Guide
VIDEO
Format HDMI 1.3 and HDCP compliant
HDTV Resolutions 480p, 720p, 1080i,
1080p/60Hz/48bit
TV Resolution 480i
Input Interface (TX) HDMI Type A 19-pin Female TMDS
Output Interface (RX) HDMI Type A 19-pin Female TMDS
Input Cable Length Up to 40 ft
Output Cable Length Up to 40 ft
AUDIO
Format Dolby TrueHD, DTS-HD MA
Input Interface HDMI (Integrated)
Output Interface HDMI (Integrated)
IR
Signal Type 38 KHz
Interface 3.5 mm Jack Socket (Female)
SYSTEM
Interface RJ-45
Cable Requirements CAT5/5e/6
Maximum Length 500 f
OTHER
Power External 100-240 VAC/5VDC2A
@10W
Dimensions 2.78” W x 1.125” H x 4” D
Weight 0.45 lbs
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-104°F (0-40 °C)
Storage Temp. -4-140°F (-20-60 °C)
Humidity Up to 85% (non-condensing)
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and tness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

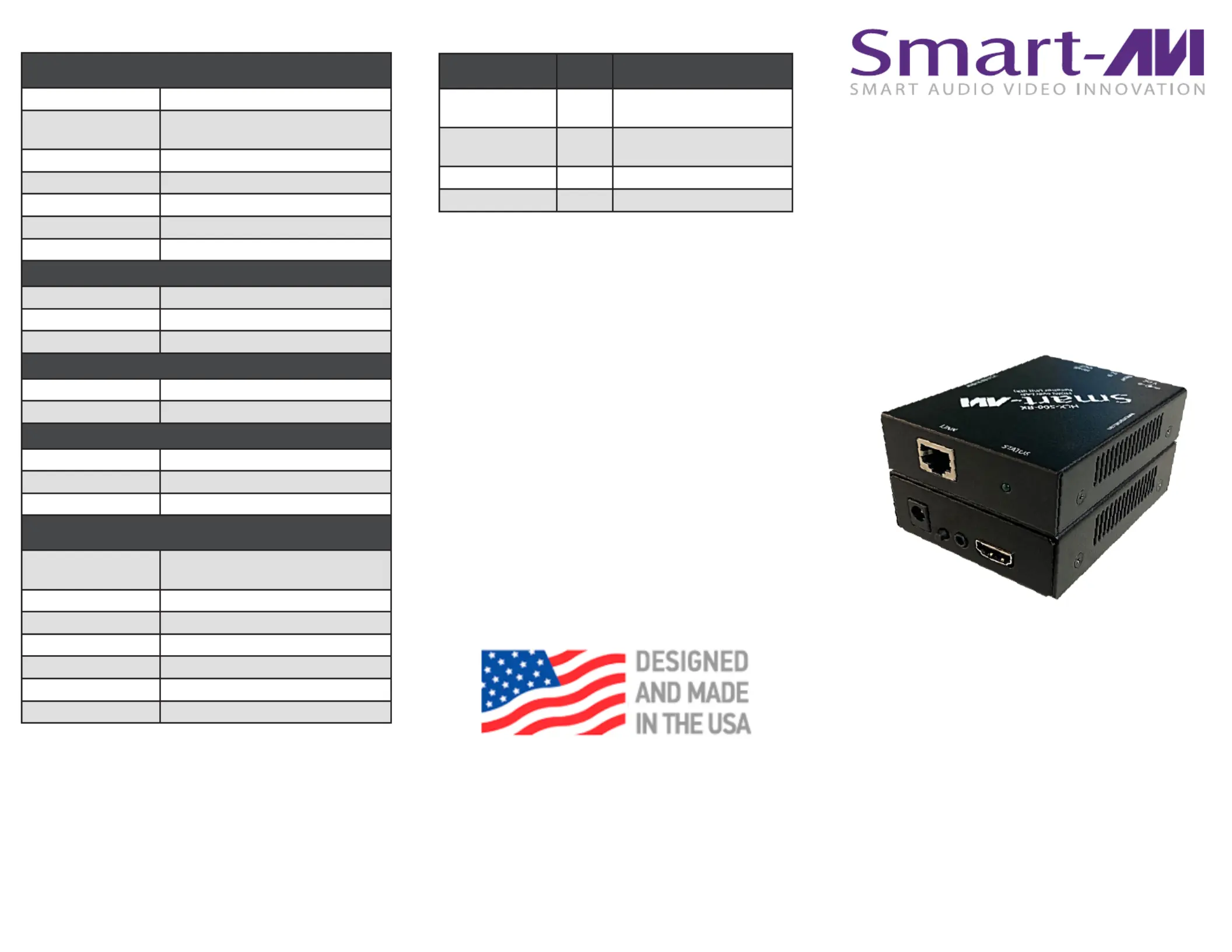

TECHNICAL SPECIFICATION
HLX-500
WHAT’S IN THE BOX
PART NO. DESCRIPTIONQ-TY
HLX-TX500 1 HDMI over LAN or CAT5e/6
Cable Transmitter
HLX-RX500 1 HDMI over LAN or CAT5e/6
Cable Receiver
Power Supply 2 PS5VD2A
Quick Start Guide 1
OVEVIEW
The HLX-500 HDMI Extender gives users the freedom to
extend HDMI signals via LAN, using inexpensive Cat5e/6
cables that many modern communications already rely on.
This chainable extender can be used to generate thousands
of feet of HDMI signal extension, breaking distance
barriers. Users can set up their own extension cabling or
utilize the pre-existing LAN infrastructure they have access
to. Each unit extends signals up
to 500 feet. With no software or driver required, users can
easily extend HDMI signals such as HDTV, Blu-Ray, video
game consoles and more. HLX-500 supports 1080p HD
video up to 1920x1080 resolution at 60Hz and is Infrared
Remote enabled.
The HLX-500 is a compact unit that is easily integrated
into a digital display network at retail stores, restaurants,
ofce spaces and many other venues. The transmitter and
receiver units are small yet sturdy, which makes inclusion
into any audio/video infrastructure quick and efcient.
The HLX-500 compresses data to utilize Cat5e/6 cables,
but users will see no degradation of signal when using one
gigabit Internet connections and up. For users utilizing
pre-existing LAN connections, implementing a one gigabit
switch allows for full resolution extension. Users with
smaller bandwidth will experience compressed signals, if
they so choose.
FEATURES
• Extends HDMI signal up to 500 feet via LAN
(Cat5e/6 cables)
• Chainable for thousands of feet of extension
• Supports high resoluon 1080p HD video,
1920x1080 at 60Hz
• Supports stereo audio
• IR (Infrared) remote enabled
• Bracket mountable
• No soware or driver required
• Plug-and-Play ready
1. Connect an HDMI cable from the HDMI source to the HLX-RX500.
2. Connect the HDMI display to the HLX-RX500.
3. Connect the HLX-TX500 to the HLX-RX500 with a CAT5e/6 cable.
4. Power on the HLX-TX500 and the HLX-RX500.
HARDWARE INSTALLATION
HLX-TX500 FRONT
HLX-RX500 FRONT
HLX-TX500 BACK
HLX-RX500 BACK
HDMI IN
HDMI OUT
AUDIO IN
AUDIO OUT
CAT5/6
HLX-500-TX
250 ft
HLX-500-RX
