USER MANUAL
V2V-HDAV
HDMI 1080p TO COMPOSITE (CVBS)
DOWNSCALER WITH HDMI LOCAL LOOP
Video Amplifier
Bandwidth
3.2G
Input Ports (1) HDMI
Input Video Signal Video (TMDS) 0.5~1.0Vpp
Output Ports (3) RCA,
(1) HDMI
Supported Signals HDMI Standard,
DVI and HDCP compliant
Input DDC Signal 5 volts p-p(TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
Format 4:4:4 and 4:2:2 data input
formats
Dimensions 4.45” W x 1.125” H x 4” D
HDMI Output Resolu-
tions
480p, 576p, 720p, 1080i
1080p @ 60hz
CVBS Output Resolu-
tions
NTSC (480i) and
PAL (576i)
Power 5VDC, 2A
TECHNICAL SPECIFICATIONS
800.AVI.2131
Tel: (818) 503-6200 Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com
Designed and Manufactured in the USA
PART NO. QTY DESCRIPTION
V2V-HDAVS 1 HDMI to AV Converter/
Down-scaler.
Includes: V2V-HDAV &
(PS5VD2A)]
WHAT’S IN THE BOX?
Power Supply

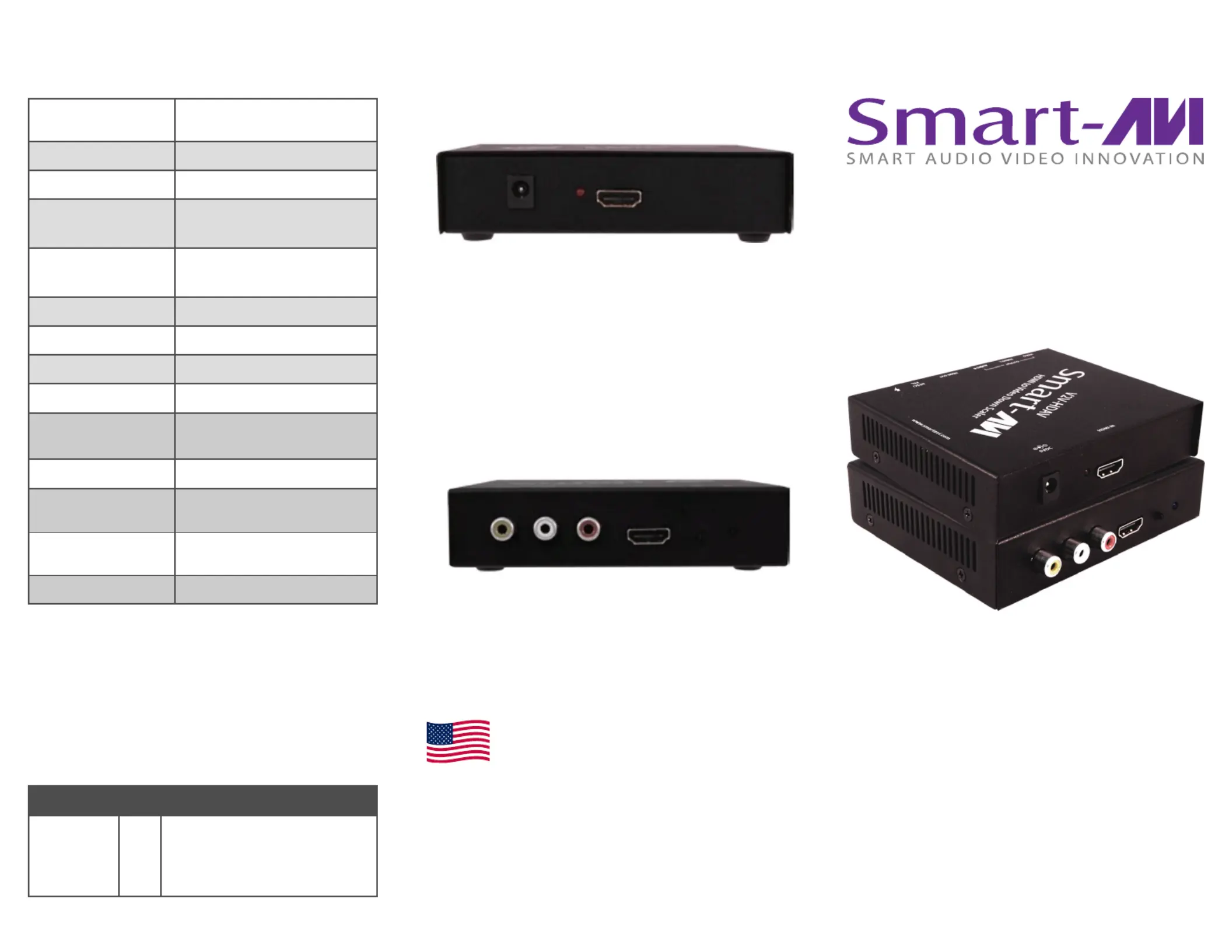

V2V-HDAV FRONT
V2V-HDAV BACK
AV OUTPUT
HDMI Input
HDMI Output NTSC/PAL Switch
INTRODUCTION
As high-definition signals and routing have become
the dominate sources in the AV world thanks to the
prevalence of HD television and Blu-ray players,
many users have found some of their previous and
established AV systems have become obsolete.
Upgrading a system to handle 1080p video and digi-
tal audio inputs can be extremely costly, especially if
the user’s system works just fine.
Using that feedback from customers, SmartAVI de-
veloped a user-friendly and inexpensive solution for
such systems. The takes an HDMI input V2V-HDAV
and downscales the signal to a composite video sig-
nal, allowing users to bridge the gap between the
latest advances in HD signals and the older displays
and audio receivers that many systems still rely on
and use effectively.
CONNECTING THE V2V-HDAV
1. Turn ON the V2V-HDAV.
2. Connect an HDMI cable from the HDMI input device to the HDMI input of the V2V-HDAV.
3. Connect an RCA composite cable from your video output device (TV or monitor) to the RCA
connector of the V2V-HDAV.
4. Optionally connect an HDMI TV or monitor to the local HDMI pass-through output of the V2V-
HDAV.
5. Choose between NTSC (480i) or PAL (576i) standard using the selector switch.
APPLICATION DIAGRAM
APPLICATIONS
Video Conferencing
Video Capture
Video Walls
Education
Security Systems
Video Modulation
Multimedia Presentations
Video Installation
FEATURES
Hardware conversion, plug and play without any
software driver
HDMI 1.3 compatible
Support NTSC and PAL two standard TV formats
One HDMI input, one HDMI output, one AV output,
one stereo output
HDMI input: 480P, 576P, 720P, 1080I, 1080P @
60Hz
Compatible with DVI mode 800x600,1024x768,
1280x720, 1280x1024, 1920x1080 @ 60hz
Supports the HDCP protocol
Support for HDMI 1.3
CVBS output: 480i, 576i
