K181X90 smeg wallmount rangehood, 90cm
ID200410
Code K181X90
dimensions 900mm W x 496mm D x 1190mm H
maximum
finish satin stainless steel
installation wallmount
motor 190 watt centrifugal, twin impellors,
double-sided air uptake
capacity 5903m/hr net
noise rating 29–50 dBA
extraction direct duct ot recirculate
illumination two x 20 watt halogen globes,
separate ON/OFF buttons
speeds three separate buttons
filtration 2 x stainless steel/aluminium 4-ply
grease filters, removable, warm
hand wash
warranty two years parts and labour
PERFORMANCE
Highly-efcient air extraction of up to 590 cubic metres an hour true (net)
ensures the very swift removal of cooking vapours, odours and heat.
The higher speed selections are perfect for the more vigorous styles of
cooking such as stir frying, griddle cooking and boiling, the lower speeds
at the touch of a button are perfect for simmers.
QUIETNESS
29 to 50 dBA. The motor/impellor encasements are smooth-walled to
minimise air drag and, hence, noise. All metal joins are welded to reduce
vibration.
SAFETY
Thermal overload protection on motor, re retardant hardened metal
and mesh, VO self-extinguishing plastic for motor housing and internal
ue.
MAINTENANCE
No tools required — easy lift-out pair of grease lters for washing. For light
replacement, simply rotate the decorative ange for access to halogen
globes.
DUCTING
Direct ducting to atmosphere ensures the maximum removal of grease/
oil/particle-laden vapour plus the odours and, very importantly, the heat,
resulting in a cleaner, cooler, more comfortable work area.
RECIRCULATION
When the cooking vapours cannot be ducted to atmosphere, the
ltered air can simply be redirected back into the kitchen via a duct pipe
through the overhead cabinetry.
CHARCOAL FILTERS
This is a purchasable accessory. It is inserted just below the centrifugal
motor and is designed to absorb and diminish cooking odours. Periodic
inspection is recommended before replacement. The activated
charcoal lter is optionally used for recirculation only. Charcoal lters are
not to be washed. The are replaceable.
DUCTING MATERIAL
Smooth internal walled duct pipe lengths ensure the most efcient air
movement and quieter operation. Consider either high temperature
rated PVC or galvanised sheet metal piping. The exible ducting cab be
ideal for a very short, tight run.
The rangehood’s air exit aperture is designed for 150mm (6”) ducting;
however, a 125mm diameter (5”) adaptor can be purchased for optional
use.
DELAY STOP
Ideally, a rangehood should run for several minutes after all cooking
is ceased in order to drag through residual vapours and odours. By
selecting the delay stop button at the end of the cooking, the rangehood
will turn the motor off in ve minutes as well as the lights if they were left
on.
CLEANING PROMPT
After 30 hours use the LED window will prompt visually to inspect the
grease lters for possible cleaning. Simply use the Reset button to clear
the LED window.
K181X90 smeg wallmount rangehood, 90cm
ID200410
Code K181X90
WARNING: technical specifications and product sizes can be varied by the manufacturer,
without notice. Cutouts for appliances should only be by physical product measurements.
The above information is indicative only.
NB: drawings are not to scale — they are to assist only
electricity supply 240 volt, 50 Hz
electrical
connection
1.5 metre connected power cord for
plugging to standard 10 amp GPO
wattage 190 watt motor, 2 x 20 watt halogen globes,
230 watts total
current 0.96 amps
packaged
dimensions
810mm x 470mm x 630mm = 0.24m³
gross weight 20.45kg
net weight 17.50 kg
supplied
NB:
• instructions for installation, operation,
maintenance
• one-way buttery valve for optional
tment to air exit aperture
• xing screws
• 150mm/125mm diameter ducting adaptor
• recirculation diverter kit
— direct ducting to atmosphere requires
150mm diameter ducting
— recirculation to kitchen requires 125mm
diameter ducting
option activated charcoal lter for optional tment
in recirculation installation, part number
08999802
SPEED 1 32
net air capacity m3/hr 205 310 590
pressure mm H20 12 25 39
input wattage 45 85 190
noise dBA 29 34 50
direct ducting to atmosphererecirculation to kitchen

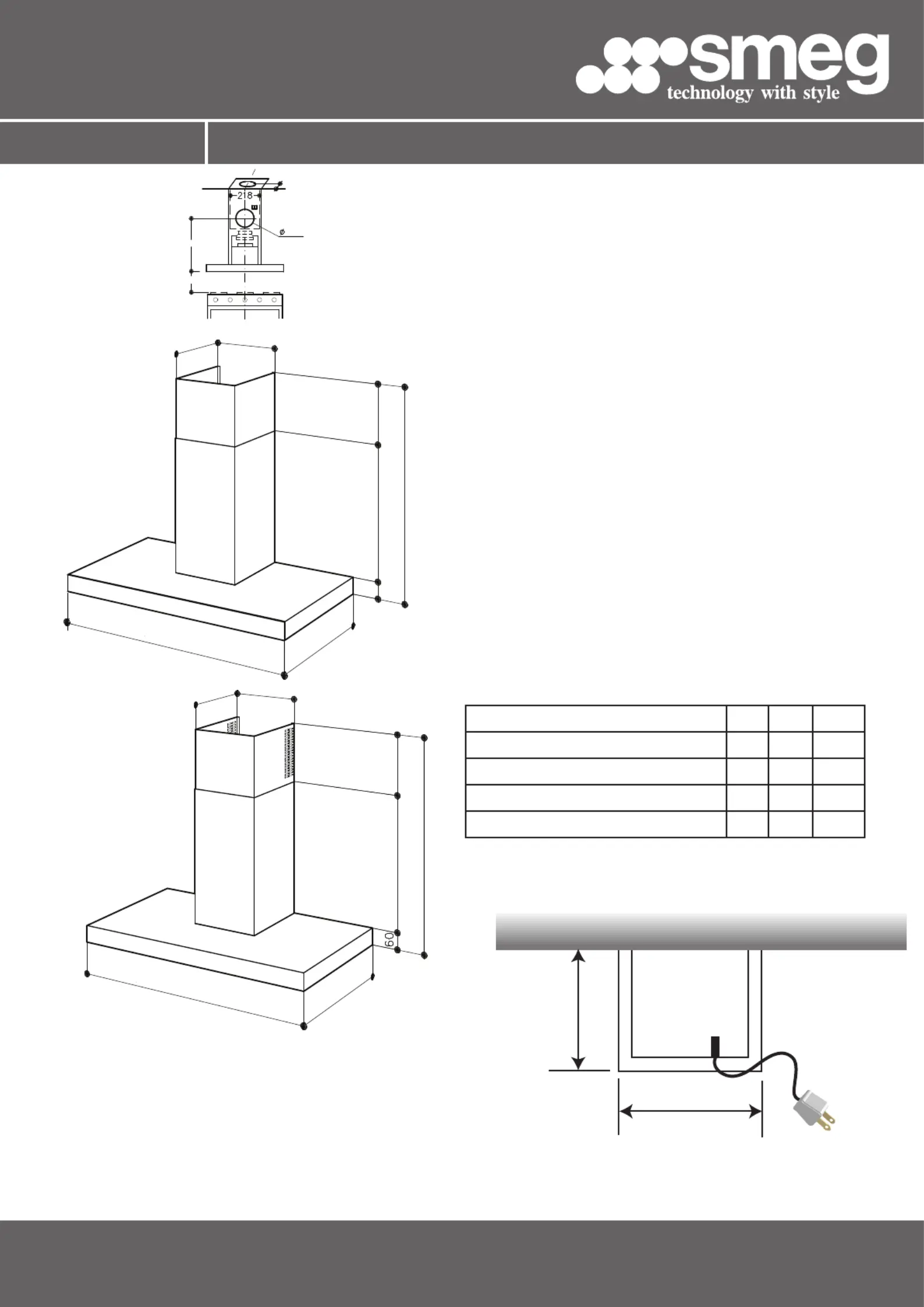

chimney plan detail
PLEASE NOTE the difference in maximum heights between the ‘direct duct to
atmosphere’ installation and the ‘ ’ installation. The recirculation recirculation
installation’s maximum height is 1190mm due to the active recirculation vents necessarily
being exposed on each side of the chimney. The ‘direct duct to atmosphere’ installation
shows the now redundant recirculation vents being concealed by the lower chimney by
reversing — that is, turning the upper chimney piece 180 degrees on the vertical.
If a higher chimney height is required for the ‘direct duct to atmosphere’ installation, that
is, up to 1190mm, simply follow the ‘recirculation’ installation and have the recirculation
vents exposed, though redundant.
253
278
97
150
min 470
min 650
278
253
900
496
60 510
min 680 — max 1000
min 110
max 430
900
496
510
min 770 — max 1190
min 200
max 620
253
278
