page 1 / 3 sonel.com
Cable and underground infrastructure locator
LKZ-2000
index: WMGBLKZ2000
LKO-2000
index: WMGBLKO2000
LKN-2000
index: WMGBLKN2000
Easily locate cables and pipes
with pinpoint accuracy
Characteristics
The diversity and concentration ofunderground infrastructure are still growing. Identifying underground systems was
never as difcult and important a task as it is today. Location allows us to infer the actual position ofan underground
system and determine the proper location for current works, as well as to prevent accidents caused by damage to the
underground objects.
The Sonel LKZ-2000 locator set has a series ofunique functions that assist in selecting the appropriate location mode.
The most important feature distinguishing this instrument from the competition is its capability ofanalyzing distur-
bances present at the place where location is performed, facilitating selection ofthe best frequency under difcult con-
ditions. This makes it possible to avoid selection ofan ineffective frequency, signicantly accelerating and facilitating
work with the locator.
Features
LKO-2000
• Mode / Frequency: POWER passive mode: 50 Hz, 100Hz,
450 Hz / 60Hz, 120 Hz, 540Hz, RADIO passive mode:
15kHz to 60 kHz, Active mode (with transmitter): 512 Hz,
3140 Hz, 8192 Hz, 32768 Hz and 83.1kHz
• Antenna conguration: Single peak value, double peak
value, neutral point, full eld
• Depth measurement range: POWER mode up to 3 m.,
RADIO mode up to 2 m., modes with active transmitter up
to 4.6 m., probe mode up to 6 m
• Accuracy ofmeasurement (error): 5% depth in linear or
probe mode (from 0.2 m to 4.6m.), 10% depth in probe
mode (from 4.6 m to 6 m).
• Bluetooth: for remote transmitter control
• Batteries: 2 x LR20
• Operating time with battery power for LKO: up to 60 hours
(at 20°C)
• Auto-OFF: Capability ofselecting auto-OFF time after 5, 10,
20 or 30 minutes
LKN-2000
• Operating frequencies: 512 Hz, 3140 Hz, 8192 Hz,
32768Hz, 83,1kHz, 200 kHz
• Output power control: 5 levels
• Power in induction mode (max): 3 W
• Power for galvanic connection (max): 12 W (for imped-
ance ofconnected object: 100 Ω)
• Batteries: up to 100 hours (level 2 output power at 20°C)
• Auto-OFF: Capability ofselecting auto-OFF time, after 1, 2,
3, 4, 5, 6, 7, 8 hours

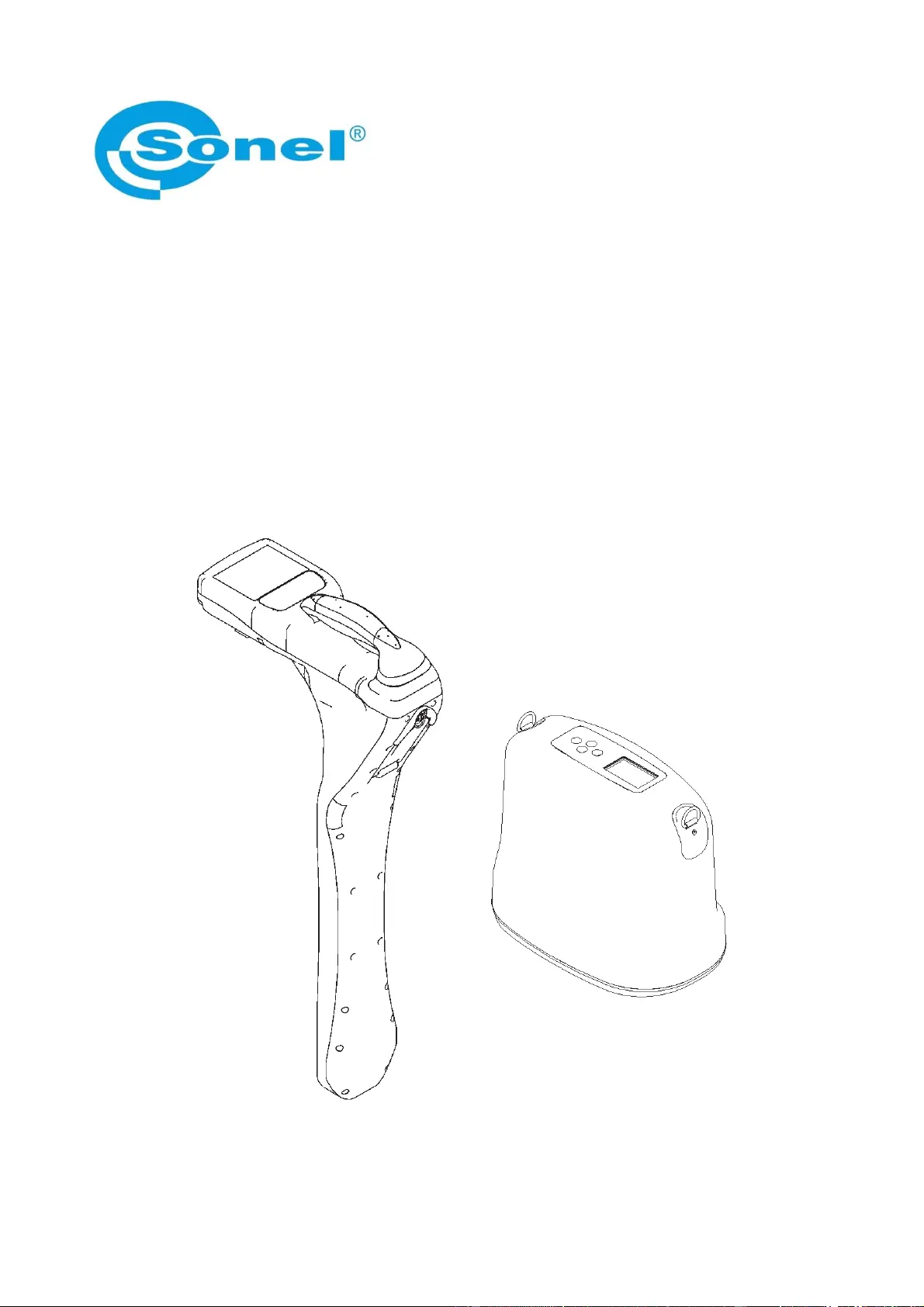

LKO-2000
receiver
LKN-2000
transmitter
LKZ-2000
LKN-2000
LKO-2000
page 3 / 3 sonel.com
Optional accessories
A-frame
WAADALKZRA
Bag L9
WAFUTL9
Wire to locate non-
metallic installations
50 m
WAPRZPN50
80 m
WAPRZPN80
N-3 transmitting
clamp (Ø125 mm)
WACEGN3
Li-Ion battery
3.6 V 4.5 Ah
WAAKU14
BIK probe for
wireless identi-
cation ofcables
WASONBIK
NAD-1 transmission
probe
WASONNAD1
LKN-2000 cable
locator - transmitter
WMGBLKN2000
LKO-2000 cable
locator - receiver
WMGBLKO2000
Technical specications
LKN-2000 transmitter
Ingress protection IP65
Power supply 10x LR20 battery
Dimensions 255 x 190 x 305 mm
Weight ca. 3.5 kg
Operating temperature -20…+50°C
LKO-2000 receiver
Ingress protection IP65
Power supply 2x LR20 battery
Dimensions 700 x 325 x 122 mm
Weight ca. 2.2 kg
Operating temperature -20…+50°C
Standard accessories
2x declaration
of verication
