Quick Start Guide

for eGPU Breakaway™ Box 750 and

eGPU Breakaway Box 750ex

Introduction

Congratulations on your purchase! This quick start guide

primarily covers PCIe card installation steps for the eGPU

Breakaway Box 750 and the eGPU Breakaway Box 750ex. Basic

eGPU use information for users with Mac® computers is also

provided. Detailed eGPU information must be downloaded

separately:

macOS External Graphics Guide

https://www.sonnettech.com/support/downloads/manuals/

macos_egpu_info.pdf

Windows External Graphics Guide

https://www.sonnettech.com/support/downloads/manuals/

windows_egpu_info.pdf

Compatibility Information and System Requirements

Visit the eGPU Breakaway Box product page at www.sonnettech.

com for the latest information.

185

202

13 3

340

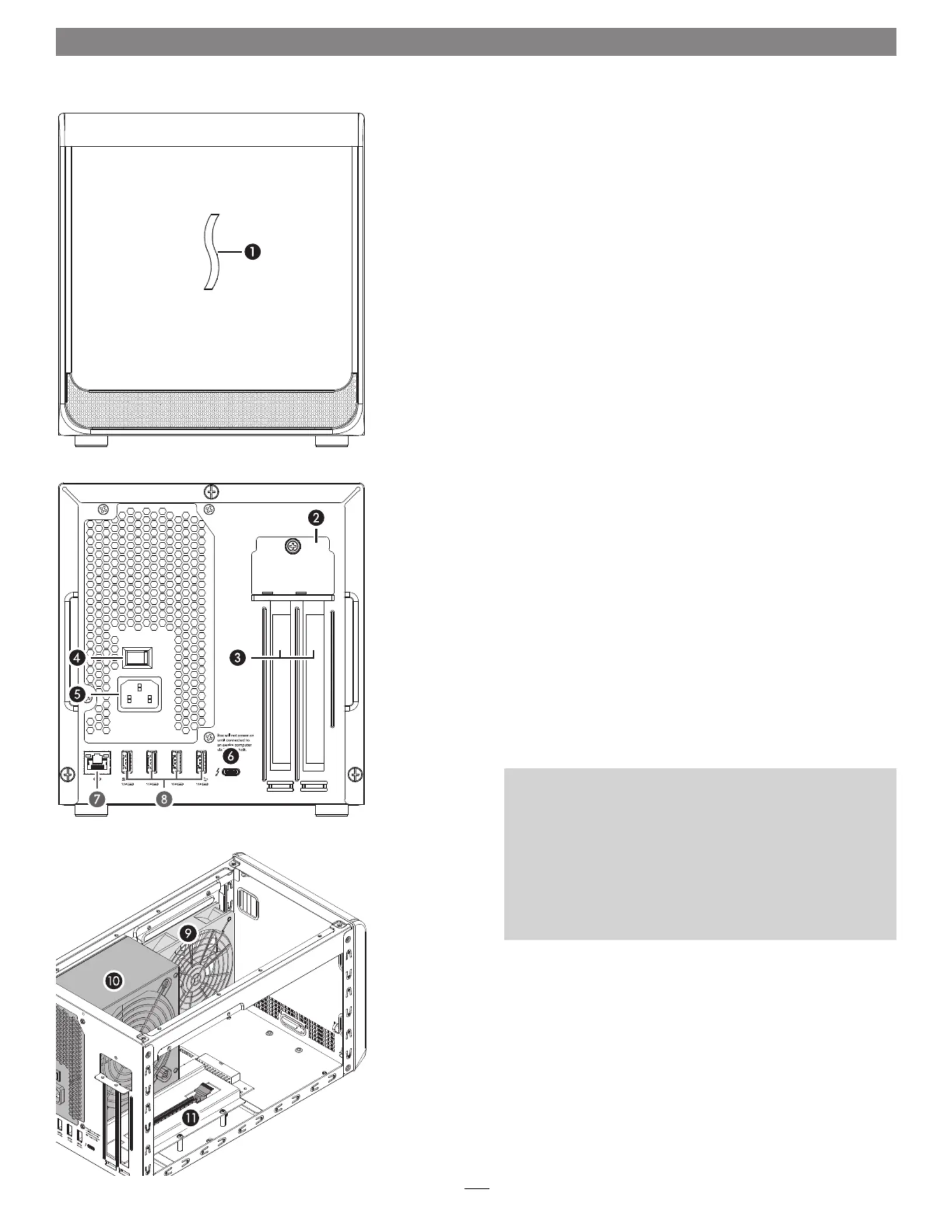

Description

1 – Power Indicator LED

This lights up when the eGPU Breakaway Box is connected

to a power source and the power switch turned on, the

Thunderbolt cable between the chassis and your computer is

plugged in, and the computer powered on.

2 – PCIe Card Bracket Mounting Screws/Locking Plate

These secure the installed PCIe card in place.

3 – PCIe Slot Covers

Remove these when installing the card. If a single-width card

is installed, reinstall one to cover the opening in the chassis.

4 – Power Switch

5 – Power Input Socket

Connect the included AC power cable here.

6 – Thunderbolt Port

Connect the included Thunderbolt cable, or comparable

Thunderbolt 3 (40Gbps) cable, between either port and your

computer’s Thunderbolt port.

7 – Gigabit Ethernet Port (only on 750ex model)

Plug in a Cat 5 or Cat 6 unshielded twisted pair (UTP) cable

with RJ45 connectors. The left LED ﬂashes yellow to indicate

activity, while the right LED lights up orange to indicate a

1000BASE-T (Gigabit) link or green for a 100BASE-TX link,

and remains off for 10BASE-T.

8 – USB-A Ports (only on 750ex model)

Connect USB devices to these ports.

9 – Main Fan

This provides cooling for the installed PCIe card and the

chassis’ supporting Thunderbolt circuitry. It operates at a

whisper when the card is running cool, and automatically

speeds up in steps as the temperature rises. Do not block the

fans or the vent holes on the chassis to prevent overheating.

10 – Power Supply

The power supply has its own fan that operates independently

from the main fan.

11 – PCIe Card Slot
