Soundcraft Spirit Monitor Bruksanvisning

Soundcraft Inte kategoriserad Spirit Monitor

Läs nedan 📖 manual på svenska för Soundcraft Spirit Monitor (28 sidor) i kategorin Inte kategoriserad. Denna guide var användbar för 3 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare

Ladda ner PDF
Sida 1/28

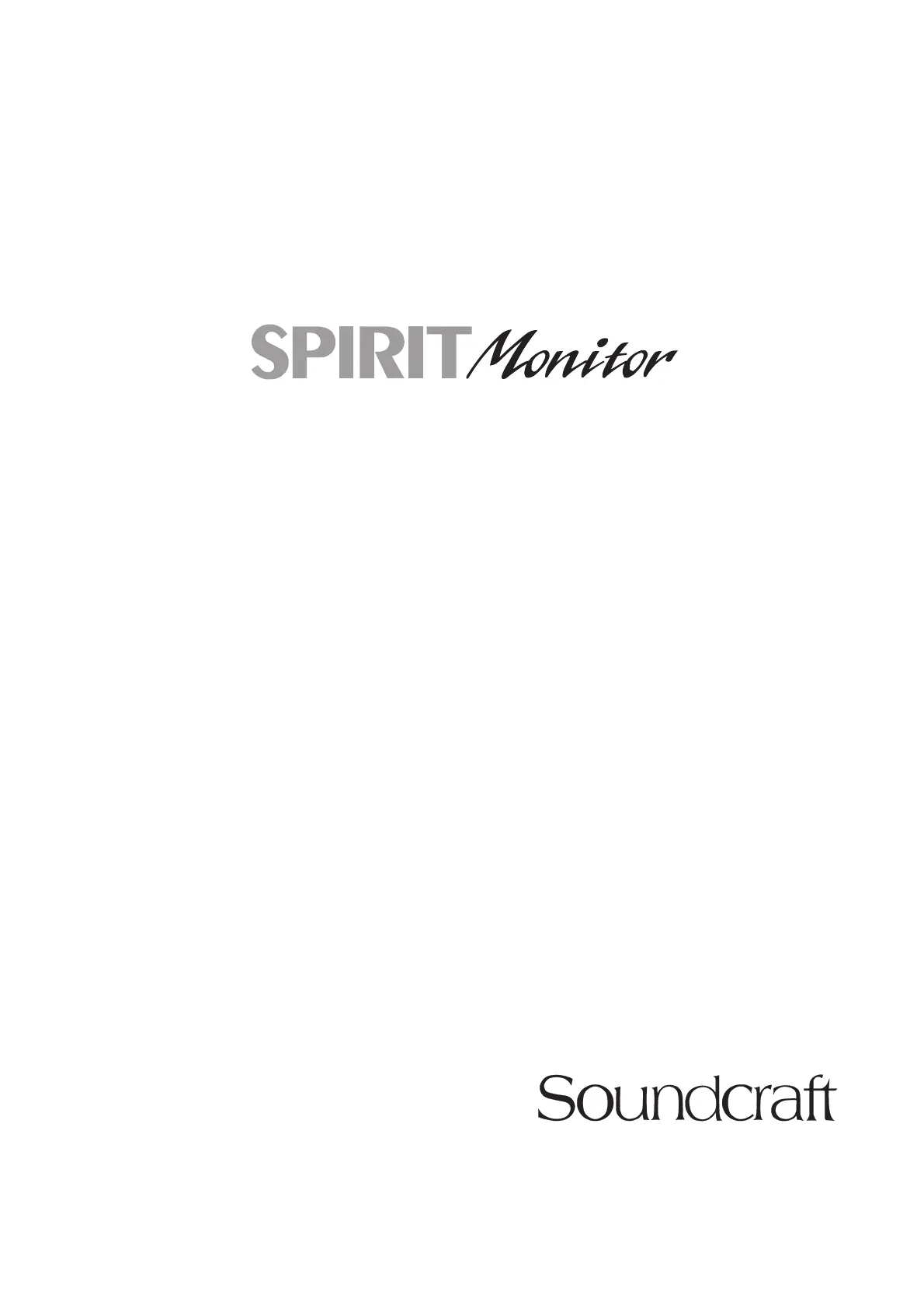

Page 1
© Soundcraft Electronics Ltd. 1991
All rights reserved
Issue 1
Part No. ZZ2727
Information in this manual is subject to change without notice and does not represent a
commitment on the part of the vendor. Soundcraft Electronics Ltd. shall not be liable for
any loss or damage whatsoever arising from the use of information or any error contained
in this manual.
No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in
any form or by any means, electronic, electrical, mechanical, optical, chemical, including
photocopying and recording, for any purpose without the express written permission of
Soundcraft Electronics Ltd.
It is recommended that all maintenance and service on the product should be carried out
by Soundcraft Electronics Ltd. or its authorised agents. Soundcraft Electronics Ltd. cannot
accept any liability whatsoever for any loss or damage caused by service, maintenance or
repair by unauthorised personnel.
Soundcraft Electronics Ltd.
Unit 2
Borehamwood Ind Park
Rowley Lane
Borehamwood
Herts.
WD6 5PZ
England
Tel: 081 207 5050
Fax: 081 207 0194
Page 2
User Guide
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Basic Principles of Monitor Mixing . . . . . . . . . . . . . 5
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connections and Connectors . . . . . . . . . . . . . . . 8
Fault Finding Guide . . . . . . . . . . . . . . . . . . . 10
Getting to know your console . . . . . . . . . . . . . . . . 12
Facilities . . . . . . . . . . . . . . . . . . . . . . . . . 12
Input Channel . . . . . . . . . . . . . . . . . . . . . . 12
Output Section . . . . . . . . . . . . . . . . . . . . . . 16
Master Section . . . . . . . . . . . . . . . . . . . . . . 18
Using your SPIRIT Monitor Console . . . . . . . . . . . . 20
Initial Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Care of your mixer . . . . . . . . . . . . . . . . . . . . . . 23
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Selectable Options . . . . . . . . . . . . . . . . . . . . . . 25
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 26
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . 28
Front Panel Layout . . . . . . . . . . . . . fold out rear page
