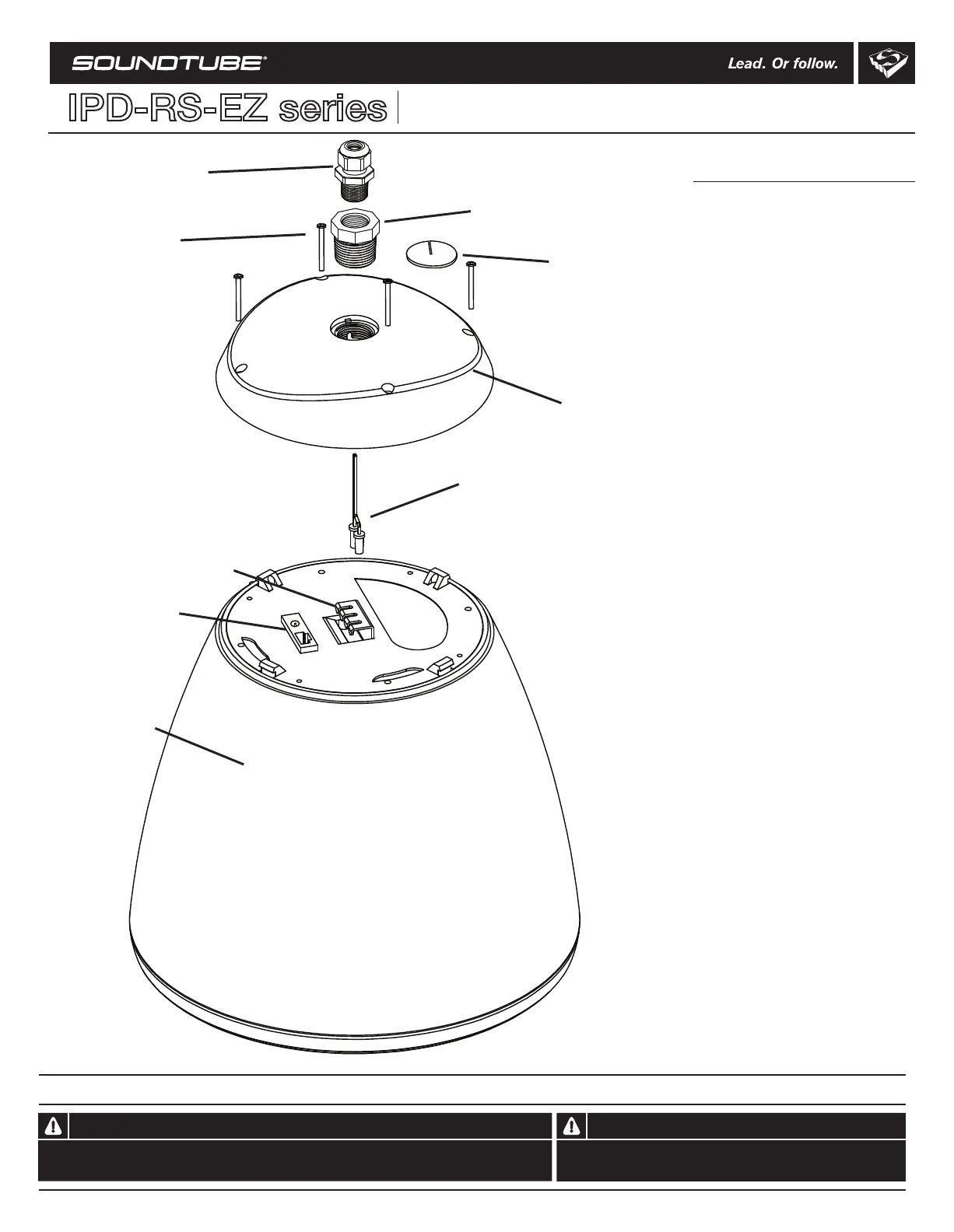

Box contents
© 2017 Sound Tube Ente tainment, Inc. r All rights rese ved.r PN INS-IPD-RS-EZ Rev 07.11.19
Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
Warning Warning
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
Speaker
Cover Plate
Cover Plate
Screws (4)
3/8" NPT Wire Gland
Hanging Hardware
Hanging Bracket
RJ45 Input
Weather plug
3/4" to 3/8" NPT Adapter
1 Speaker
1 Cover Plate w/ 4 screws
1 Rubber weather plug
1 Hanging kit
1 3/8" NPT Wire Gland
1 3/4" to 3/8" NPT Adapter
Install Instructions For:
IPD-RS-EZ series
IPD-RS62-EZ, IPD-RS82-EZ and IPD-HP82-EZ
1.435.647.9555
| | 800.647.TUBE
www.soundtube.com
Important Safety Instructions

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9) Only use the attachments/accessories specied by the manufacturer.
10) Unplug this apparatus during lightning storms or when unused for long periods of time.
11) Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
Consignes de sécurité importantes

1) Lisez ces instructions.
2) Conservez ces instructions.
3) Respectez tous les avertissements.
4) Suivez toutes les instructions.
5) Ne pas utiliser cet appareil près de l'eau.
6) Nettoyer seulement avec un chiffon sec.
7) Ne pas bloquer les ouvertures de ventilation. Installer conformément aux instructions du fabricant.
8) Ne pas installer près de sources de chaleur telles que des radiateurs, registres de chaleur, poêles ou autres
appareils (incluant les amplicateurs) qui produisent de la chaleur.
9) Utiliser uniquement les xations / accessoires spéciés par le fabricant.
10) Débranchez cet appareil pendant les orages ou si inutilisé pendant de longues périodes de temps.
11) Conez toute réparation à un personnel qualié. Une réparation est nécessaire lorsque l'appareil a été
endommagé de quelque façon que ce cordon d'alimentation ou la che est endommagé, l'appareil a été exposé à la
pluie ou à l'humidité, s'il ne fonctionne pas normalement ou s'il est tombé.
Install Instructions For:
IPD-RS-EZ series
IPD-RS62-EZ, IPD-RS82-EZ and IPD-HP82-EZ
1.435.647.9555 | 800.647.TUBE | www.soundtube.com
To reduce the risk of re or electric shock, do not expose this
apparatus to rain or moisture.
Warning
Pour réduire les risques d’incendie ou de choc électrique n’exposez
pas cet appareil à la pluie ou à l’humidité.
Avis
1. Unpack speaker and
SpeedClamp™ mounting
hardware.
2. Thread hanging or safety
cable through SpeedClamp™
mechanisms as shown.
3. Attach the hanging cable
by securing it and safety
cable to structure as
shown.
4. Thread cable end(s)
through SpeedClamp™
mechanisms as shown.
9. Plug RJ45 connector into
speaker. If local power* is
required at speaker (non-POE
installation), connect
appropriate DC power supply
to barrel connector on
speaker input panel.
10. Place cover plate onto
top of speaker and rotate
clockwise until alignment
indicators meet.
11. Tighten all four (4) screws
to lock cover plate in place.
5. 7a. Attach hanging cable
by (1) inserting into side of
mounting bracket and (2)
rotating to align with center
slot in hanging bracket.
6. Slide cover plate over
hanging and safety cables
and run RJ45 signal wire
through center hole.
7b. Once aligned with central
slot, pull cable up into slot to
secure. Repeat steps 7a and
7b with secondary safety ca-
ble into one of the side slots.
Adjust speaker hanging
height with SpeedClamp™
mechanism. Pull to tighten &
press button on SpeedClamp
as shown to loosen or adjust.
12. Install rubber weather
plug by sliding slit over the
wire, then pressing snuggly
into hole in cover plate.
13. Done.
8. Extra slot and 2 holes
provided for additional
safety cables where
needed.
1.
2.
Install Instructions For:
IPD-RS-EZ series
IPD-RS62-EZ, IPD-RS82-EZ and IPD-HP82-EZ
1.435.647.9555 | 800.647.TUBE | www.soundtube.com
*Contact SoundTube for questions about installations requiring local power.
