In Ceiling Mounting-

Quick Start Guide

Thank you for purchasing our product. This m anual is applicable to the in-ceiling bracket. All pictures in this

manual are for reference only.

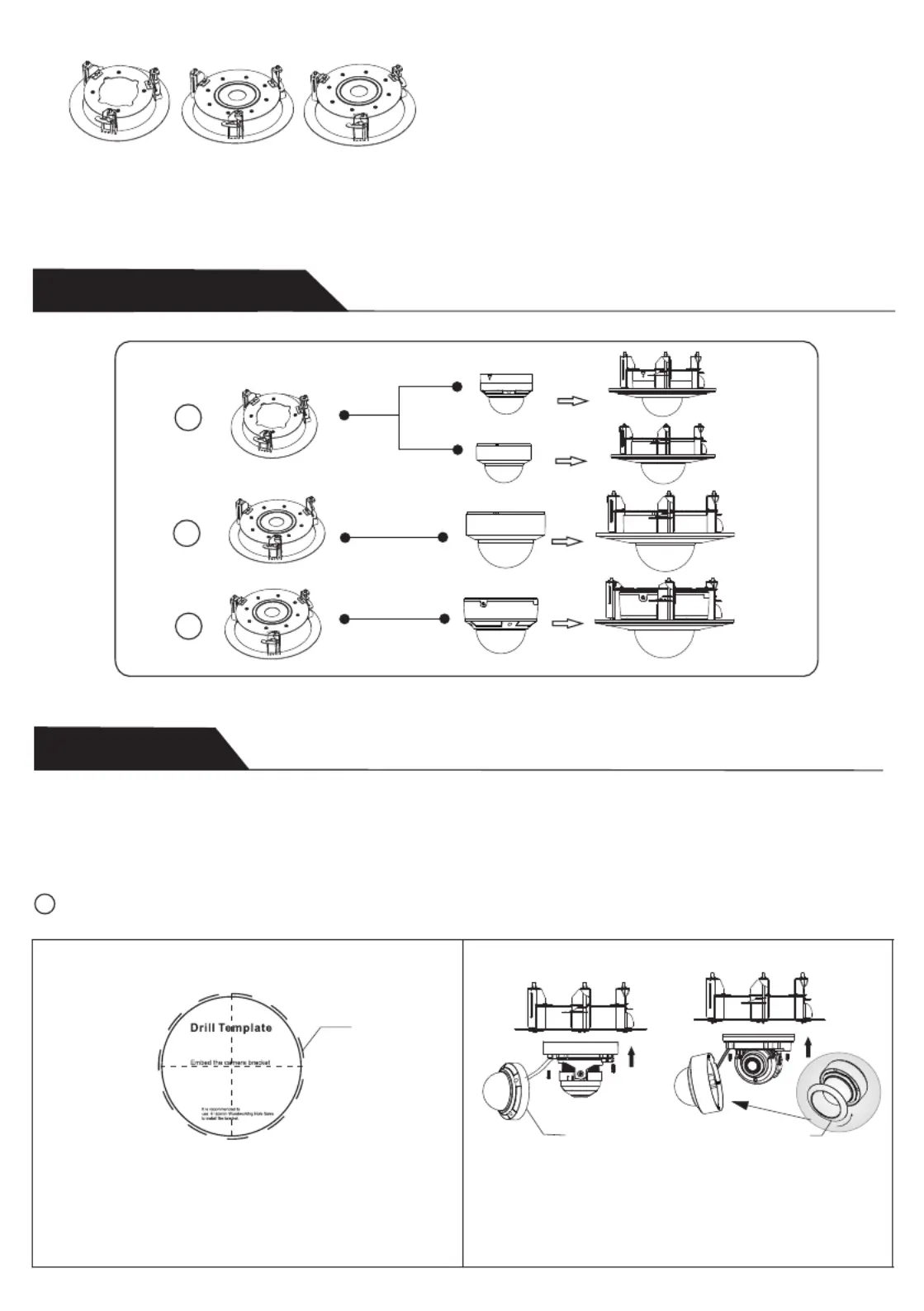

Mounting Examples

Fixed dome camera

Varifocal dome camera

Before installation, please make sure that (1) the height of the space above the ceiling must be more than 250mm; (2) the

thickness of the ceiling must range from 5mm to 40mm; (3) the ceiling must be strong enough to withstand more than four

times the weight of the dome camera and the accessories. The follo wing pictures are for reference only.

Installation

In Ceiling Mounting for Fixed Dome Camera-

Ø180mm

Attach the drill template to the ceiling where you want to

install the dome camera. Then cut a hole according to the drill

template. Note that +2mm of the circle diameter is allowed.

Type A

Type B

Type A Type B

Remove the lower dome of the camera. Then place the in-ceiling

bracket on the dome camera and tighten the screws provided to fix

the bracket and the dome camera. (For type B, you shall rotate the

trim ring anticlockwise to remove it. Then you can remove the lower

dome by loosening the screws.)

Lower dome Trim ring

Page 1

2In Ceiling Mounting for Varifocal Dome Camera-

Attach the drill template to the ceiling where you want to

install the dome camera. Then cut a hole according to the

drill template. Note that +2mm of the circle diameter is

allowed.

Rotate the trim ring anticlockwise to remove it. Then remove the

lower dome of the camera by loosening the screws. After that, place

the in-ceiling bracket on the dome camera and make sure the screw

holes of the dome camera is aligned with the screw holes of the

bracket marked with “A”. Then fix the camera to the bracket with

screws.

Ø212mm

Trim ring

Lower do me

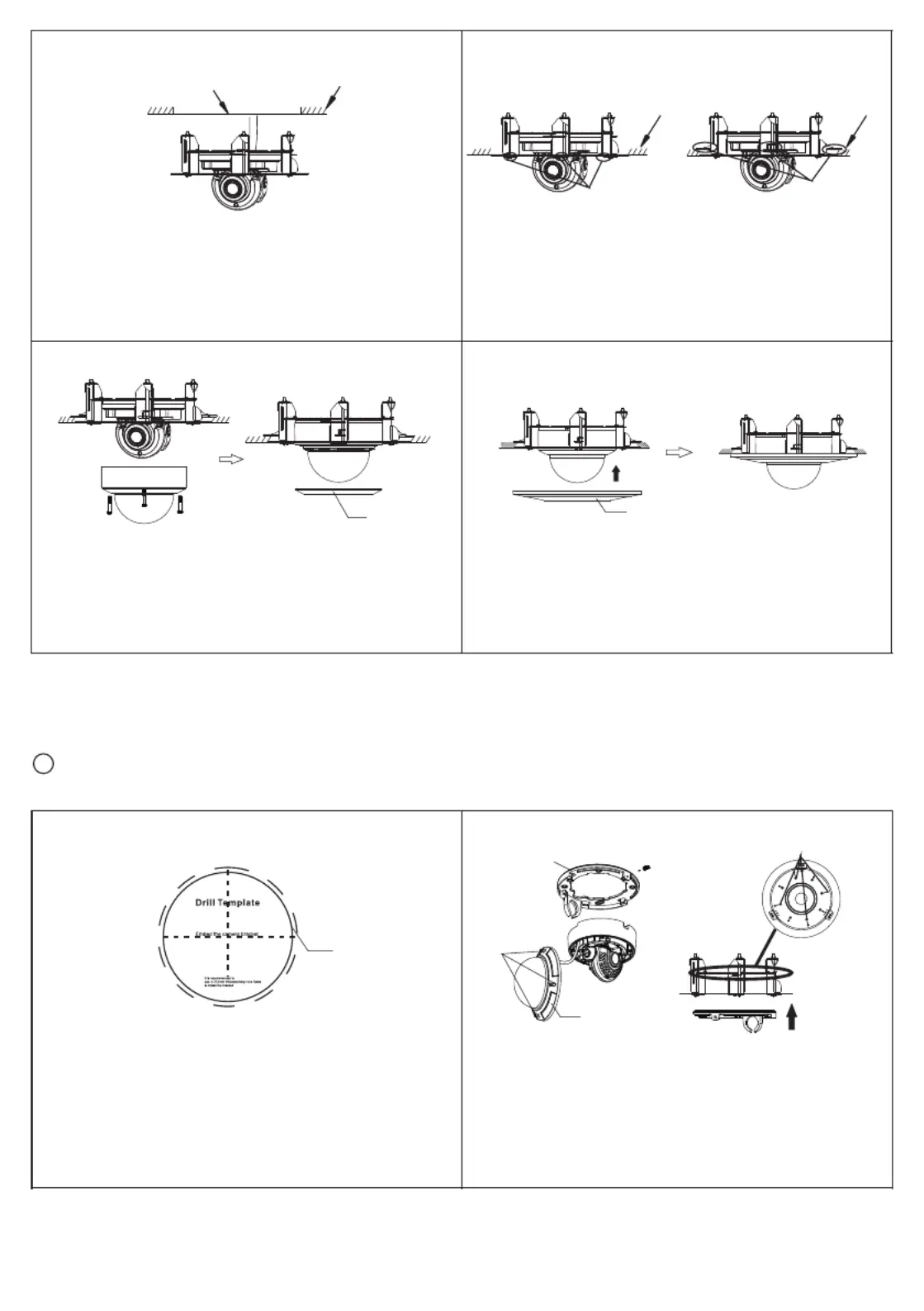

Tighten the lock screws with the screwdriver and the locks

will automatically rotate outwards to secure the dome camera

to the ceiling. Then adjust the view angle of the camera.

Install the magnetic ring of the bracket.

CeilingMounting hole

Ceiling Ceiling

Locks

Screws

Type A Type B

Install the lower dome back to the camera. (For type B, after

installing back the lower dome, please put the trim ring onto

the lower dome and rotate it clockwise until it is locked.)

Route the cables through the ceiling and connect the cables.

Then push the dome camera with the bracket into the

mounting hole in the ceiling.

Magnetic ring

Trim ring

Page 2

3In Ceiling Mounting for Varifocal Dome Camera-

Attach the drill template to the ceiling where you want to

install the dome camera. Then cut a hole according to the

drill template. Note that +2mm of the circle diameter is

allowed.

Loosen the screws to open the lower dome and then loosen the fixed

screw to remove the mounting base. After that, make sure the screw

holes of the mounting base are aligned with the screw holes of the

bracket marked with “B” and then fix them with screws.

Ø212mm

Tighten the lock screws with the screwdriver and the locks

will automatically rotate outwards to secure the dome camera

to the ceiling. Then adjust the view angle of the camera.

Ceiling Ceiling

Ceiling

Locks

Screws

Route the cables through the ceiling and connect the cables.

Then push the dome camera with the bracket into the mounting

hole in the ceiling.

Install the magnetic ring of the bracket.

Magnetic ring

Trim ring

Fixed screw

Lower do me

Screws

Mounting base

Mounting hole

Install the lower dome back to the camera. Then put the trim

ring onto the lower dome and rotate it clockwise until it is

locked.

Page 3
