FEATURES
4MP Flexible Intensifier® HD-TVI Motorized Zoom Focus Camera
with Junction Box, Wall/Ceiling Mount, Dual voltage
H4FD2M – 2.7~12mm motorized zoom focus lens, dark gray housing
SPECIFICATIONS
Image Sensor.................. 1/2.8” SONY STARVIS 5MP Sensor
Minimum Illumination....... 0.00 lux (IR LED ‘on’)
Effective Pixels................ 2616 (H) x 1964 (V)
Total Pixels...................... 2704 (H) x 2104 (V)
Scanning System............ Progressive
S/N Ratio......................... More than 50dB
Video Output.................... 1.0Vp-p / 75 Ohms
Electronic Shutter............ Auto / Manual (1/30 – 1/30,000 sec.)
WDR................................ On (Low / Middle / High) / Off
Day / Night....................... Auto / Intensifier
Test Monitor Output......... TVI out
Power............................. 12VDC / 24VAC
Power Consumption........ 700mA max. (DC), 500mA max. (AC)
Operating Temperature.... -40
°F – 140°F
Unit Dimensions.............. 3.97” (H) x 5.23” (Dia.)
Unit Weight...................... 1.4 lbs (camera), 0.7 lbs (junction box)
Certifications.................... FCC, RoHS
• Flexible Intensifier Technology
® fits any lighting application
• Supports 4MP @ 30FPS
• True WDR operation
• Adaptive IR LED’s
• Presets: Outdoor, Low Light, Hallway, Lobby, Elevator, Indoor
• Built-in heater and anti-fog glass reduces condensation
• 3-axis for wall and ceiling mounting
• Chameleon Cove : snaps on and can be painted to
match any décor!*
• Full OSD and Zoom / Focus control through on-board and UTC
• Signal distance up to 1600 feet*
• Vandal / tamper resistant
• IP67 compliant, weather resistant
• 12VDC & 24VAC dual voltage operation
• 5 year warranty
OSD MENU TREE
PRESET MODE
•OUTDOOR •INDOOR
•LOW LIGHT •LOBBY•HALLWAY •ELEVATOR
MAIN SETUP
EXPOSURE
• • •LOW MIDDLE HIGH
• • •SHARPNESS GAMMA MIRROR •FLIP
DAY / NIGHT
COLOR
SPECO DNR
EXIT
• •BRIGHTNESS SHUTTER
BACKLIGHT
•HLC•BLC•WDR
•AUTO
• •AWB COLOR GAIN
• •ACE DEFOG
SYSTEM
• •INTENSIFY AGC
•INTENSIFIER
IRIS
MOTION
•SHADING

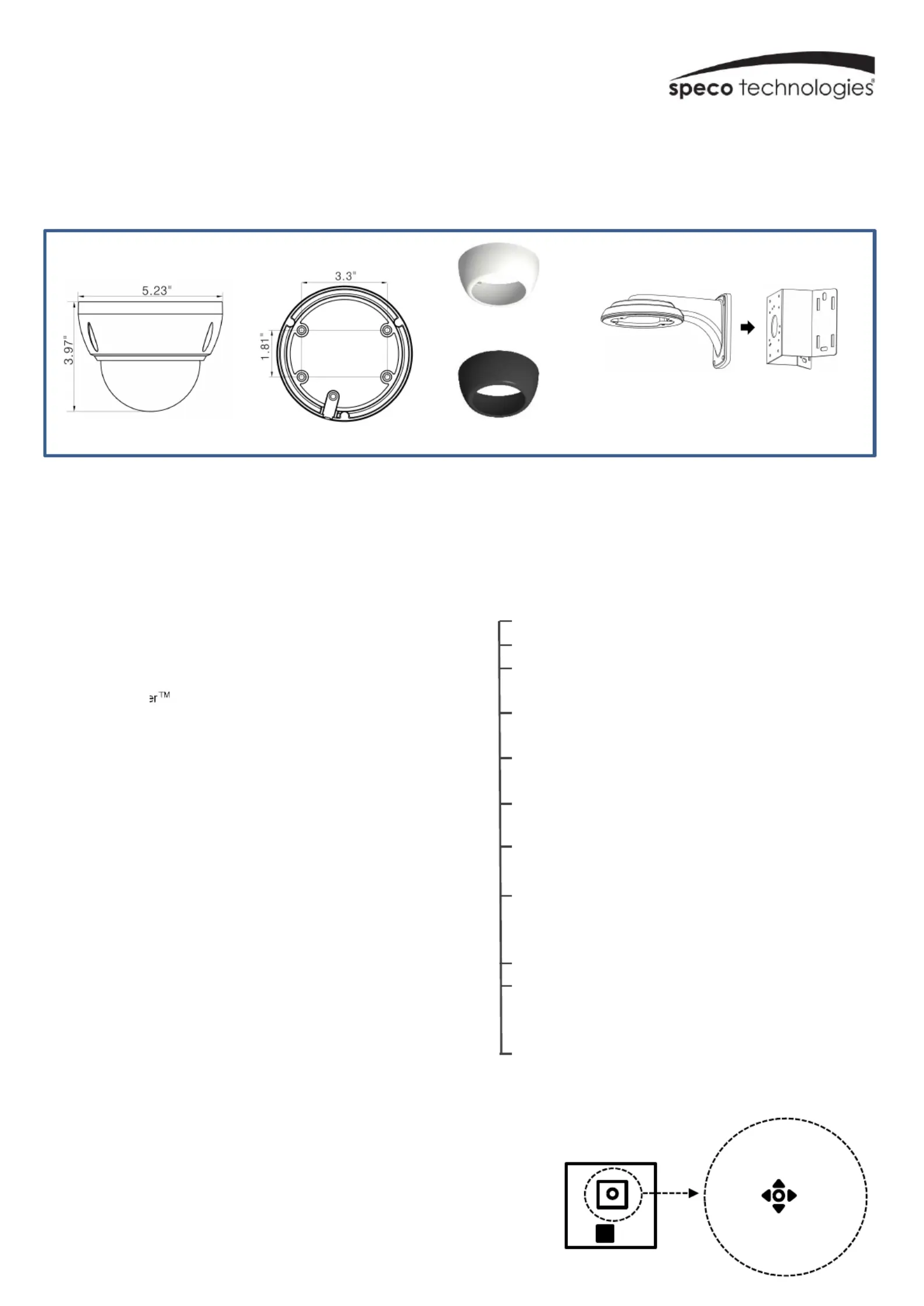

DIMENSIONS
Bottom View
Side View Optional Accessories
Unit : inch
White Cover
(Included)
Black Cover
(Optional)
•CAMERA TITLE
• •COMM IMAGE RANGE •COLOR SPACE
•OUTPUT
•LANGUAGE
•COLOR BAR •RESET
OSD Joysck
Video Test
(TVI OUT)
Right (Near)
Up (Zoom-In)
Down (Zoom-Out)
Le (Far)
OSD CONTROL
•D-ZOOM
•PRIVACY
MOTORIZED
INTCM1
(Pole/Corner Mount)
INTWM1
(Wall Mount)
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specicaons without
noce and without incurring any obligaon. Rev. 240315
200 New Highway, Amityville, NY 11701
800-645-5516 / www.specotech.com
OSD MENU Details
SYSTEM : Adjusts various camera system opons.
COMM.
- CAM ID : Sets the camera ID for the RS-485 (0~255)
- BAUD RATE : Sets the baud rate for the RS-485 (2400~115200).
OUTPUT
FRAME RATE 1440p 30
1080p 30
720p 30
1944p 12.5
1944p 20
2160p 15
CONFIRM YES
IMAGE RANGE
COLOR SPACE
COLOR BAR : Manufacturer’s opon
LANGUAGE : Sets the desired OSD language
CAM TITLE
RESET: Press with long to reset all sengs to factory defaults.
4MP Flexible Intensifier® HD-TVI Motorized Zoom Focus Camera
with Junction Box, Wall/Ceiling Mount, Dual voltage
H4FD2M – 2.7~12mm motorized zoom focus lens, dark gray housing
OSD MENU Details
BACKLIGHT : Adjusts backlight opons.
WDR : WDR illuminates darker areas of an image while retaining the
same light level for brighter areas to even out the overall brightness
of images with high contrast between bright and dark area
- Adjusts the WDR Weight (LOW/MIDDLE/HIGH)
BLC : Produces a clearer image of an object darkened by strong backlighng.
- H-POS : Adjusts the horizontal posion(0~20)
- V-POS : Adjusts the Vercal posion(0~20)
- H-SIZE : Adjusts the horizontal block size (0~20)
- V-SIZE : Adjusts the vertical block size (0~20)
HLC : Uses to contain extremely bright areas such as from car headlight,
the light can be masked out much of the on-screen details.
IMAGE : Adjusts various image opons.
SHARPNESS : Adjusts sharpness level. Increasing this value, the picture
outline becomes stronger and clear. (0~10)
GAMMA : Sets the desired Gamma value. (0.45 ~ 0.75)
MIRROR : Change the video direcon horizontally.
FLIP: Change the video direcon perpendicularly.
D-ZOOM : Digital zoom up to p2-x8 will be acvated.
ACE (D-WDR) : Uses a digital wide dynamic range to balance dark and over
saturated areas within the image.
DEFOG : Acvated this mode when the video or the weather is foggy.
SHADING : Sets the Lens Shading Compensaon value. (ON/OFF)
PRIVACY : Used to hide regions of the image.
IRIS : ‘ALC’ as a default value
EXPOSURE : adjusts exposure sengs.
BRIGHTNESS : Adjusts image brightness. (0~ 20)
SHUTTER : Outdoor / Indoor / Deblur
INTENSIFY : Sets the desired mulple of the digital exposure length.
AGC(Auto Gain Control): Adjusts the AGC level. (0~10)
DAY / NIGHT : Adjust Day / Night opons.
AUTO : Day / Night is switching automacally
- ANTI-SAT. : Adjusts the An Saturaon level (0~20)
- D > N THRES : Adjusts AGC THRES (0~20)
- N > D THRES : Adjusts AGC THRES (0~20)
- DELAY : Adjusts the changing delay me (LOW/MIDDLE/HIGH)
INTENSIFIER : Always Color mode
COLOR : Adjusts white balancing opons.
AWB : it goes to opmized color level automacally.
COLOR GAIN : Sets the desired Color Gain value (0~20)
SPECO DNR : Uses to reduce the background noise in a low luminance
environment with 2D + 3D ltering system.
MOTION : Adjust moon detection sengs.
DET WINDOW
SENSITIVITY : Sets the desired of “Moon” (0~20)
MOTION OSD
TEXT ALARM
SIGNAL OUT
