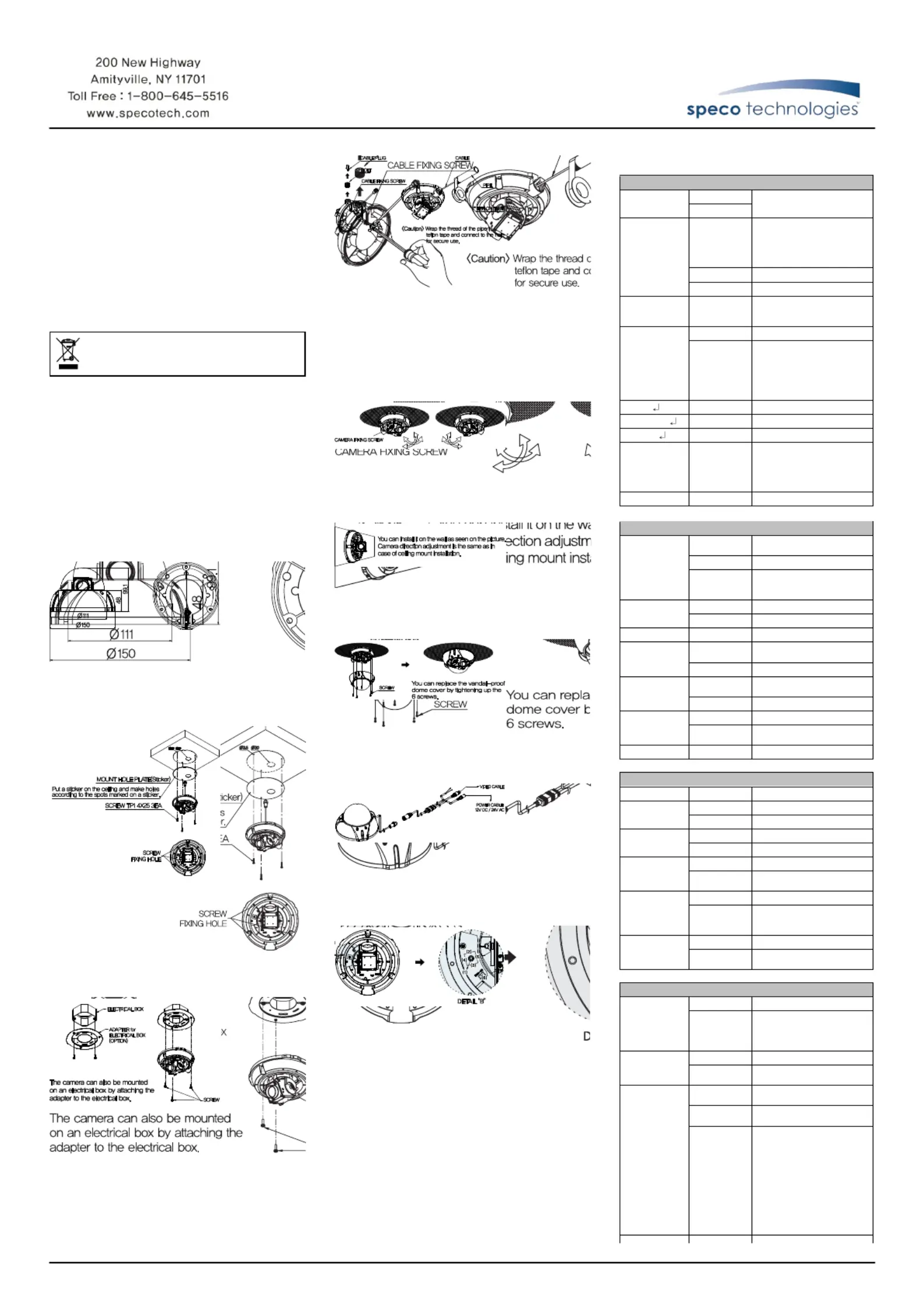

Sida 1/2
PRECAUTION
1. You can install the camera indoors or outdoors.
2. Choose an ideal location for the camera, since a camera
unit must be protected against vibration.
3.
Be careful not to scratch the lens or dome cover.
4. Use the camera within the temperature(-10 ~ +50).
5. Handle with care. Dropping it can cause serious dam-
age to the camera.
6. Avoid any direct sun light toward the lens.
7. Use the AC adaptor 12V DC regulated.(1A recom-
mendddded)
(24V AC available-Dual power version only) of time.
◐
◐
◐
◐◐FEATURES
1. IP67(Waterproof)
2. Durable MATERIAL : Body-Aluminum,
Dome : Polycarbonate
3. Wall & Ceiling mount available
4. New method to adjust the camera direction
DIMENSION
INSTALLATION
1-1. Ceiling mount installation
1-2. Mounting camera to electrical box
1-3. Pipe application
(1) Remove the bolt, the cable fixing screw and the
cable plug on the bottom of the base.
(2) Use the TEPLON tape to wipe the pipe.
1-4. Camera direction adjustment and fixing
(1) Cover can be installed four directions using two screws
beside the cover.
(2) After loosening two screws on the cover, you can
adjust the direction of camera.
(3) You can tighten up two screws again to fix the direction.
2. Wall mount installation
3. Finishing installation
◐
◐
◐
◐◐CONFIGURATION
◐
◐
◐
◐◐HOW TO USE THE JOG LEVER
(1) MENU : To access the main setup menu. Push
this button for 1 second.
(2) TELE / UP : To close in on a far object.(ZOOM-IN)
/To move the arrow indicator to up.
(3) WIDE / DOWN : To widen the view.(ZOOM-OUT)
/ To move the arrow indicator to down.
(4) NEAR / LEFT : To see a near object clearly.
/ To move the arrow indicator to left.
(5) FAR / RIGHT : To see a far object clearly.
/ To move the arrow indicator to right.
(6) EXT. VIDEO : Plug your test monitor in here.
(The cable is option)
◐
◐
◐
◐◐CAMERA FUNCTION SETTING
MAIN SETUP
OFF
CAMERA
TITLE
ON
Set Camera Title String and
OSD Display Position.
ATW–MODE :
OUTDOOR
INDOOR
ATW is controlled by color
tem-perature range
*MODE
- INDOOR : 3000~10,500°K
- OUTDOOR : level
AWC SET →
ONE PUSH
WHITE BAL
MANUAL
RED / BLUE Adjustable.
BACKLIGHT
OFF / LOW /
MIDDLE /
HIGH
Backlight compensation.
OFF
Motion detection off
MOTION
DETECTION
ON
AREA(4 Programmable zone/
SIZE)
The words "MOTION
DETECTED" appear on the
screen and MD output signal
when movement is detected.
FOCUS
Refer to focus setup
EXPOSURE
Refer to exposure setup
SPECIAL
Refer to special setup
RESET
Returns to the level which was
set by the manufacturer for
shipment.
(except for communication and
Day & Night)
EXIT
Saves all settings, then exits.
FOCUS SETUP TABLE
AUTO
Focus is controlled
automatically
MANUAL
Focus is controlled manually
MODE
ONE-PUSH
Focus is automatically adjusted
just once, after zoom position
is changed.
OFF
Zoom tracking off
ZOOM TRK
ON
Zoom tracking on
ZOOM SPEED
FAST / SLOW
Zoom speed Control
ON
Digital zoom limit selectable
(x2 ~ x10).
D-ZOOM
OFF
Digital zoom off
ON
Zoom magnification set at power
on (x1 ~ x10)
DIS ZOOM
MAG
OFF
Zoom magnification display off
ON
Zoom magnification display on.
ZOOM POS
INIT
OFF
When initialized, zoom position
is disabled.
LENS INIT
Execute lens initialization.
EXPOSURE SETUP TABLE
BRIGHTNESS
Brightness level adjustment.
MANUAL
IRIS is controlled manually.
IRIS
AUTO
IRIS is controlled automatically.
MANUAL
Shutter is controlled manually
SHUTTER
A. FLK
Anti-flicker
OFF
Automatic gain control off.
AGC
NORMAL /
HIGH
Automatic gain control limit set.
OFF
Noise reduction off.
SSNR
LOW /
MIDDLE /
HIGH
Noise reduction level set.
OFF
Sense-up off
SENS-UP
AUTO
Sense-up limit selectable
(x2 ~ x128)
SPECIAL SETUP TABLE
OFF
Turns function off
USER PRESET
ON
Using the position preset function,
8 sets of camera shooting
conditions can be stored and
recalled.
OFF
Privacy mask off
PRIVACY
ON
AREA(4 Programmable zone)
/ SIZE / TONE adjustable.
COLOR
IR-Cut Filter is fixed to color
position.
B/W
IR-Cut Filter is fixed to B/W
position.
Day Night
AUTO 1, 2
When Input luminance level is
low, IR Cut Filter is switched
to the B/W position for
increasing
infrared sensitivity automatically.
And, it switches back to Color
position when luminance
is quite increased. Auto 1
mode is switched to IR Cut
Filter more quickly than Auto
2.
INT
Internal Sync
If the product is to be put out of operation
definitively, take it to a local recycling plant for a
disposal which
COMMUNICATION SETUP TABLE
OFF
ID not displayed
CAM ID
ON
Camera names are displayed
OFF
Communication ID display off.
DISP CAM ID
ON
Communication ID display on.
BAUD RATE
2400 ~ 57600
Baud-rate set
(factory default : 2400).
UART MODE
8-E-1 / 8-0-1 /
8-N-1
Parity bits selectable.
(factory default : 8-N-1)
DISABLE
Do not send a command
back to the control & device.
RET PKT
ENABLE
Returning the data when
com-munication.(Caution :
Activate this function to use
D&N.)
* Protocol: Pelco-D
IMAGE SETUP TABLE
OFF
Freeze image : OFF.
FREEZE
ON
Freeze image : ON
OFF
Horizontal reverse : OFF
H-REV
ON
Horizontal reverse : ON
OFF
Vertical reverse : OFF
V-REV
ON
Vertical reverse : ON.
OFF
Sharpness control is disabled.
SHARPNESS
ON
The Sharpness can be adjusted.
COLOR GAIN
The Color level can be
adjusted
(0~100)
◐
◐
◐
◐◐SPECIFICATION
Model
HT65010XS, HT65010XW
Camera Type
100X Day & Night Auto Focus Zoom
Dome Camera
Image Sensor
1/4" COLOR SONY SUPER HAD CCD
Effective Pixel
768(H) x 494(V)
TV Type
NTSC
Scanning System
2 : 1 Interlace
Sync. System
Internal / Line-Lock
Scan. Freq.(HORI)
INT: 15.734KHz
L/L: 15.750KHz
Scan. Freq.(VERT)
INT: 59.94Hz
L/L: 60.00Hz
Resolution
560 lines resolution
Video Output
1.0 Vp-p(Sync. Negative) with
75 Termination Ω
S/N Ratio
More than 50dB(Weight on)
Min. Illumination
0.02 Lux(F1.8) / 50IRE
Gamma
γ = 0.45
Shutter Speed
Auto(x128 ~ 1/60 ~ 1/120,000sec)
Sense-up and Sense-up limit is selectable,
Flickerless
White Balance
ATW / AWC / Manual(1,800 ~ 10,500°K)
SSNR
LOW / MIDDLE / HIGH / OFF
Motion Detection
ON / OFF
(4 programmable zone per screen)
Privacy Function
ON / OFF
(32 zones, It consists of 8 group 4
programmable, zone per screen)
Flip
Vertical, Horizontal, Vertical-Horizontal,
OFF
Preset
8 position
OSD
Yes
Zoom
Optical zoom 10X, Digital zoom 10X
Focal Length
f = 3.8 ~ 38(F 1.8)
Angle of View
51.2°(Wide End), 5.58°(Tele End)
Min. Working
Distance
1M
Communication
RS-485
Power Supply
24 Volts AC, 12 Volts DC - Dual Voltage
Current
Consumption
Max. 500mA
Operating Temp.
-14 °F to 120 °F
Preservation Temp.
-4 °F to 140 °F
Dimension
Ø150 x 99.1(H)mm
Weight
1.9 Ibs.
※AII specification is subject to change without notice to
improve the quality
3B05754A
