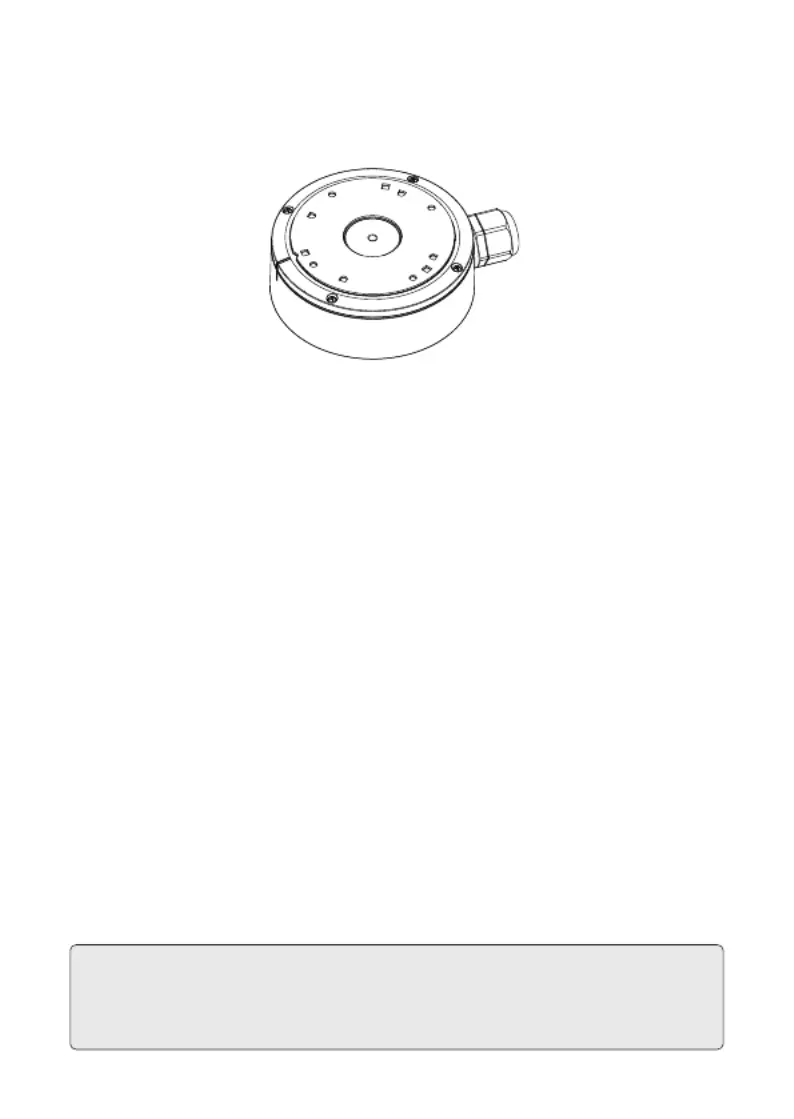

Junction Box
Quick Star t Guide
Thank you for purchasing our products. All examples and pictures
used in this manual are only for reference purpose. Please take the
real object as the standard.
Before installation, make sure that the wall is strong enough to withstand 3
times the weight of the junction box and the camera. We only introduce the
installation of some cameras with junction box in this manual.
Mount the Junction Box and Bullet Camera
1. Drill the screw holes on the wall
according to the drill template.
2. Open the mounting base and the upper
cover of the junction box.
Mounting Base
Upper Cover
3. Push the expansion screws into the screw
holes (if the wall is wooden, please skip
this step) and then fix the mounting base of
the junction box to the wall with screws.
4. Fix the mounting base of the camera to the
upper cover of the junction box. Then route
the cables through the cable hole (take side
conduit cabling for example) and connect the
cables.
5. Reinstall the upper cover to the junction
box.
6. Adjust the view angle of the camera.
Screw waterpro of ring

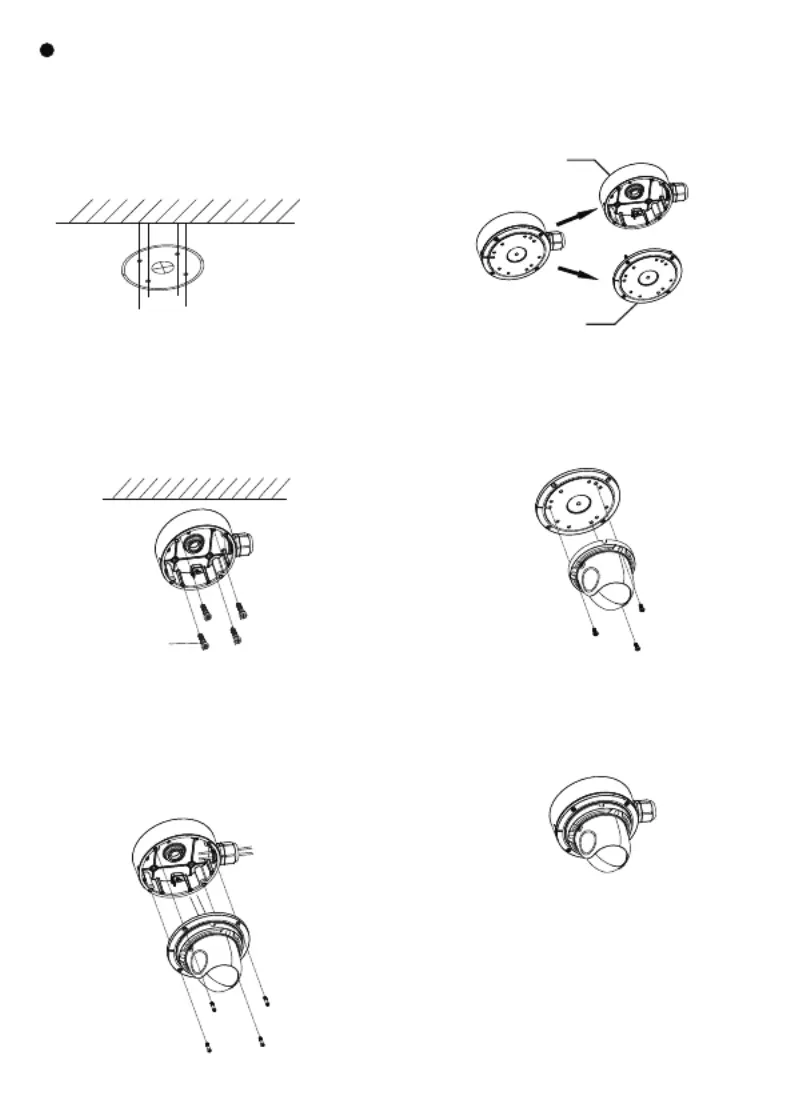

Mount the Junction Box and Dome Camera (1)
1. Drill the screw holes on the wall
according to the drill template.
2. Open the mounting base and the upper
cover of the junction box.
Mounting Base
Upper Cover
3. Secure the mounting base of the junction
box to the wall.
4. Fix the camera to the upper cover of the
junction box.
5. Route the cables through the cable hole
(take side conduit cabling for example)
and connect the cables. Then reinstall the
upper cover to the junction box.
6. Adjust the view angle of the camera.
Screw waterproo f ring
