Junction Box

Quick Star t Guide

Thank you for purchasing our products. All examples and pictures

used in this manual are only for reference purpose. Please take the

real object as the standard.

Before installation, make sure that the wall is strong enough to withstand 3

times the weight of the junction box and the camera. We only introduce the

installation of some cameras with junction box in this manual.

Mount the Junction Box and Bullet Camera

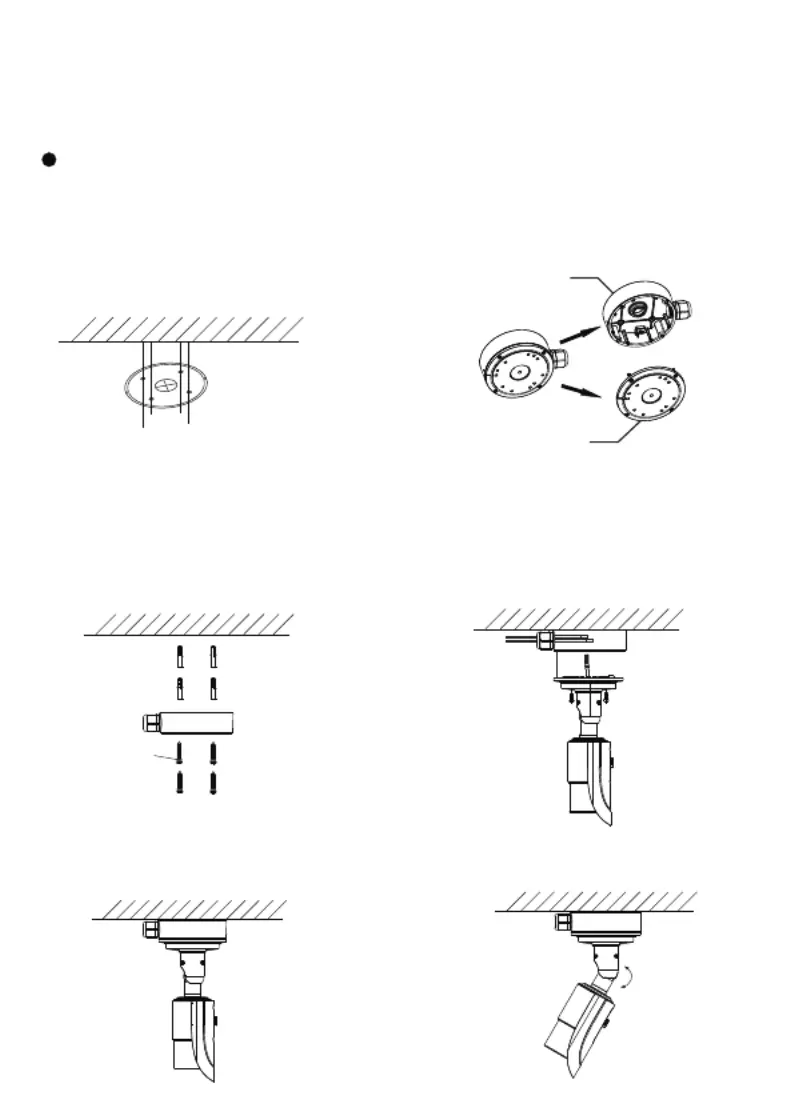

1. Drill the screw holes on the wall

according to the drill template.

2. Open the mounting base and the upper

cover of the junction box.

Mounting Base

Upper Cover

3. Push the expansion screws into the screw

holes (if the wall is wooden, please skip

this step) and then fix the mounting base of

the junction box to the wall with screws.

4. Fix the mounting base of the camera to the

upper cover of the junction box. Then route

the cables through the cable hole (take side

conduit cabling for example) and connect the

cables.

5. Reinstall the upper cover to the junction

box.

6. Adjust the view angle of the camera.

Screw waterpro of ring

Mount the Junction Box and Dome Camera (1)

1. Drill the screw holes on the wall

according to the drill template.

2. Open the mounting base and the upper

cover of the junction box.

Mounting Base

Upper Cover

3. Secure the mounting base of the junction

box to the wall.

4. Fix the camera to the upper cover of the

junction box.

5. Route the cables through the cable hole

(take side conduit cabling for example)

and connect the cables. Then reinstall the

upper cover to the junction box.

6. Adjust the view angle of the camera.

Screw waterproo f ring
