PVMMT75 Clamp-on Mount Installaon Manual
Nong: This mount is only for VESA 75x75mm PVM/Monitors
Cauon: Max Load Weight 6KG
Accessory List
Solid Wrench x1
Hexagonal Wrench x1
33-57mm Stainless Clamp x2
65-89mm Stainless Clamp x2
M6x90 Screw x2
Cushion for M6x90 Screw x2
Cap for M6x90 Screw x2
Metal Transfer Plate x1
M6x12 Screw for Transfer Plate x2
Installation

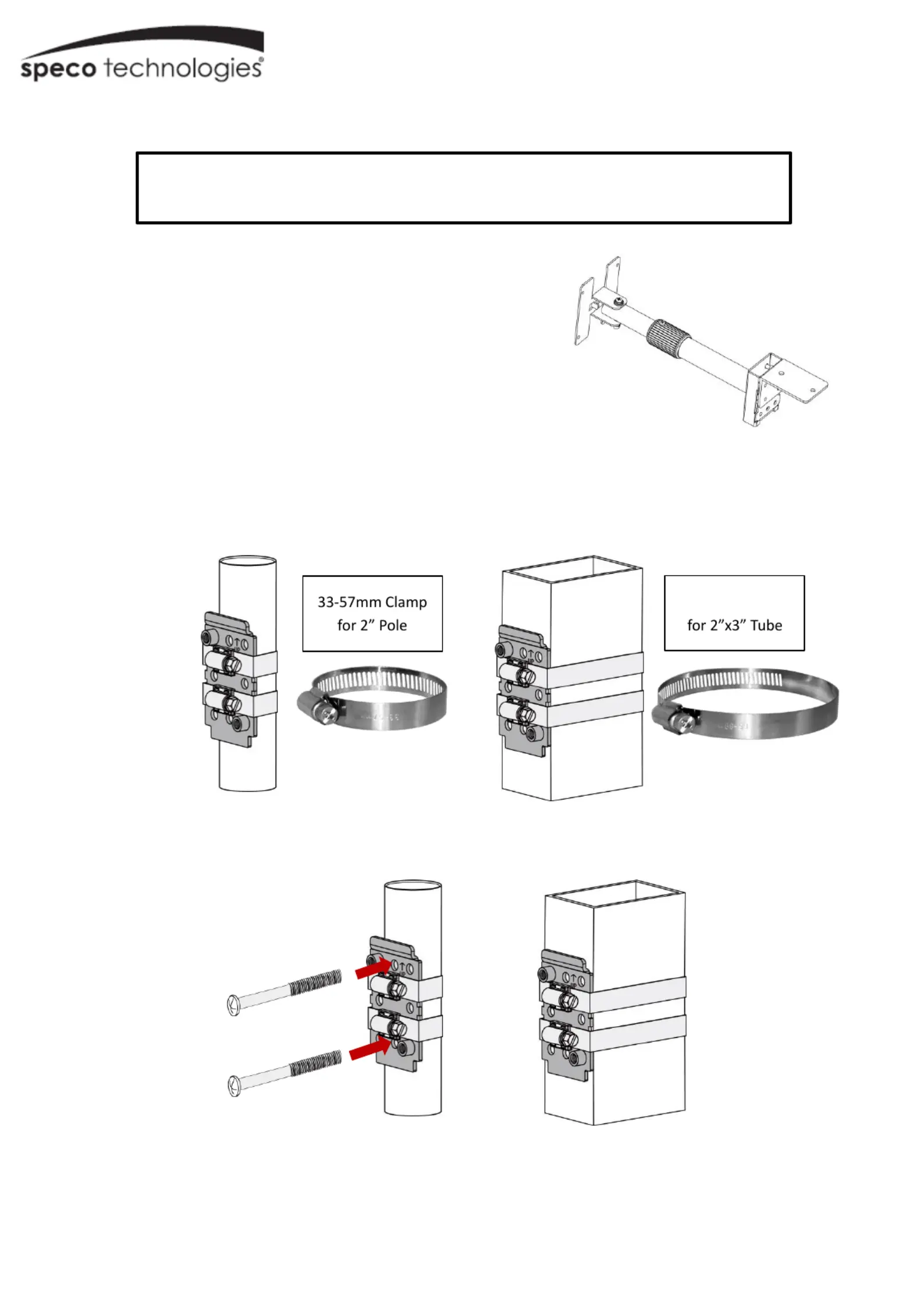

1) Aach the plate base to the pipe or tube, then use stainless clamp to x.
2) For added security to the clamps, you can install 2pcsalso
M6x90 screws to x.(Please use cushion and cap to x with M6x90 screw)
65-89mm Clamp

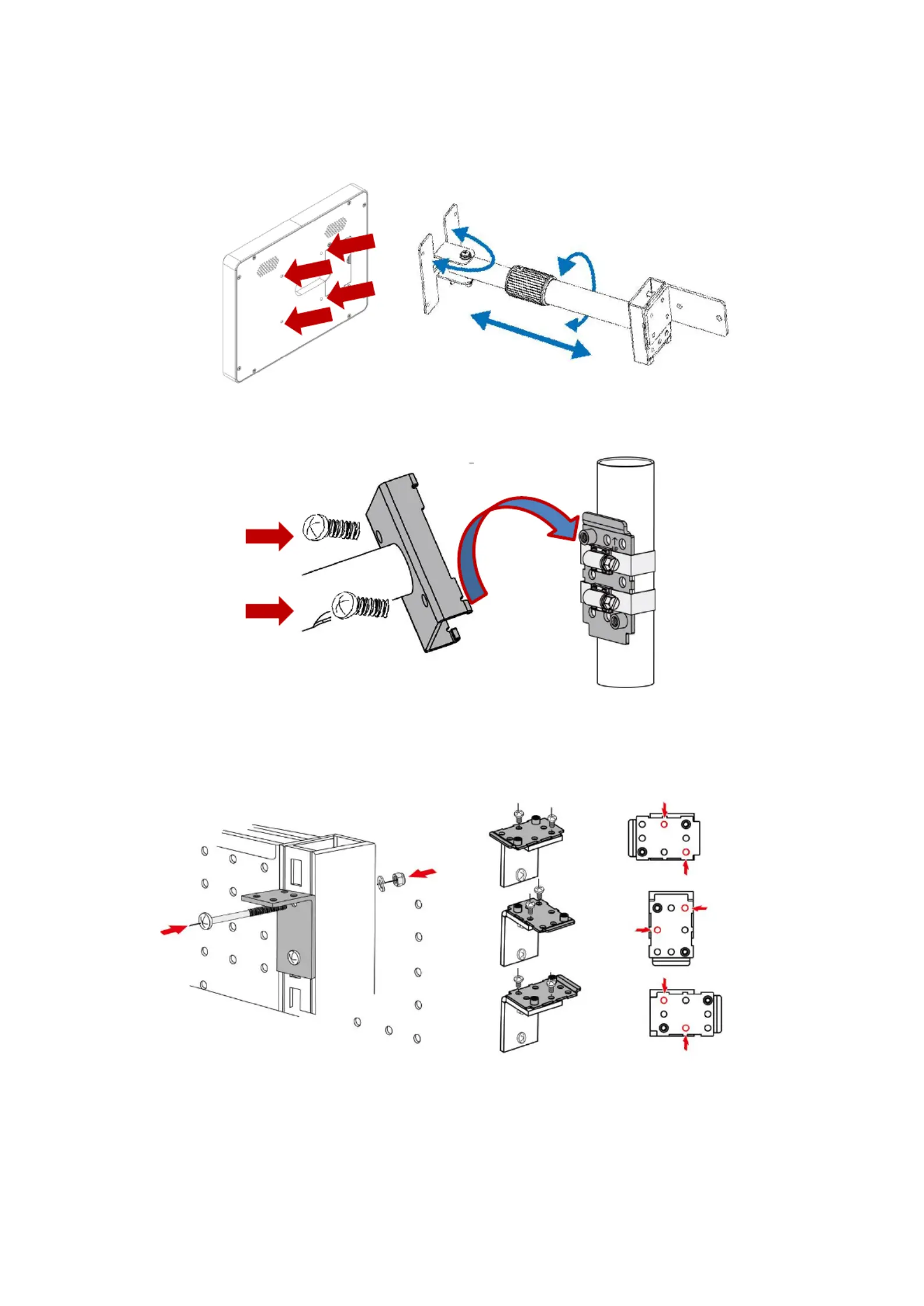

3) Use M4x8 screws to install the PVM with the VESA 75x75mm plate; and you can
adjust the mounng ang /length as below by loosening the xing screw.le
4) Aach the whole mount bracket to the plate base, and then use M6x12 screws to
lock the bracket and plate base.
5) In applicaons, you will need to usevertical mounting metal transfer plate. Then mount as
above.
