1

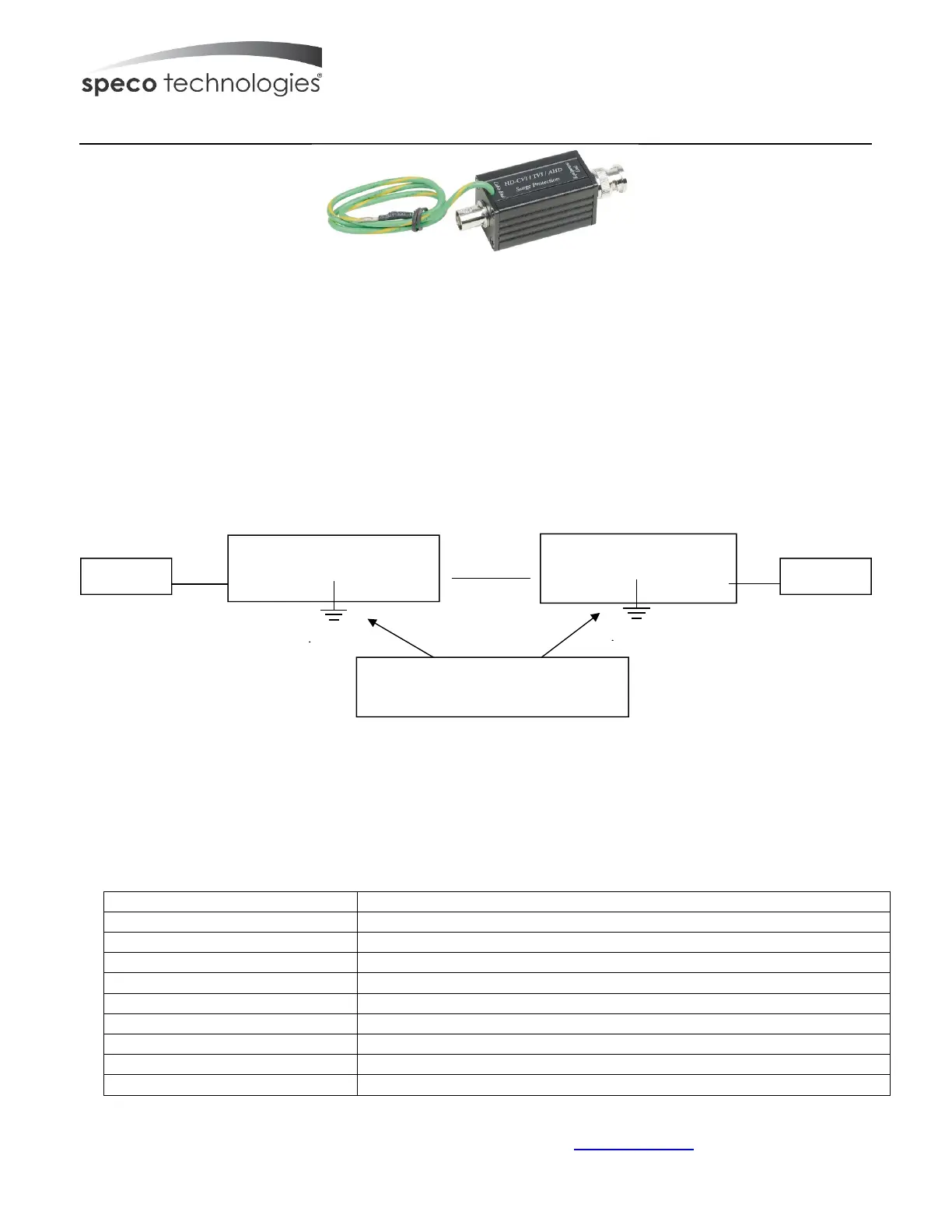

SPCOAX2 HD-TVI/HD-CVI/AHD/CVBS Surge Protector
Thank you for your choice of Speco Technologies surge protector. This unit is designed to provide a sturdy option for SPCOAX2
protection from high voltage surges, such as those that may be caused by lightning strikes. Because of the physical length of
ground wires, unprotected UL grounding systems may appear as an open circuit to lightning-caused high frequency surges and would
normally provide little or no protection from these surges getting into a home or business and destroying CATV converters, TV sets,
DVRs, Cameras, etc. This unit can complement UL grounding requirements for coaxial cable and offers protection from hazardous
voltages that may occur on the shielding.
FEATURES
BNC male to BNC female.
Provides protection for analog HD-TVI, HDCVI, AHD, & CVBS cameras and DVRs.
Complies with IEC 61000-4-5.
Built in EFT (impulse noise) lightning protection.
Sold each, but recommended to use in pairs to protect both cameras and recorders
INSTALLATION VIEW
APPLICATIONS
Cable TV Systems
Coaxial Antennas
HD-TVI/HDCVI/AHD/CVBS Cameras and DVRs
RECOMMENDED CABLE
Its recommended to use high quality 75Ω Coaxial Cable & BNC connectors. If you use low quality coaxial cable there is the risk
of signal loss and it could affect transmission distance and reliability.
SPECIFICATIONS
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Speco Technologies . 200 New Highway . Amityville . NY . 11701 . www.specotech.com
Rev. 04/21/20
Input and output int
erface
BNC (Male) x 1
/
Surge Protection Attack Time
< 1nS
Starting voltage surge
6V
Maximum Clamping Voltage
25 V
Reference Standard
IEC 61000
-
4
-
5
Signal insertion loss
0.
8
db @
42
MHz
Maximum discharge current
15
KA ( MAX )
Environ
mental Specifications
operation: 0 to 55
, Storage:
-
20 to 85
, Humidity: up to 95%
Dimensions
3.12” x 1” x 1” (79.3 x 25.4 x 25.4 mm)
Weight
0.2 lbs (
75 g
)
Note:
To ensure the unit can protect equipment,
the cable must be connected to ground.
Coaxial Cable
HD-DVR HD Source
Ground Ground
HD-TVI
/
HDCVI
/
AHD
Surge Protection
Equipment
End
Cable End
Equipment
End
Cable End
HD-TVI/HDCVI/AHD
Surge Protection
