Sida 1/2

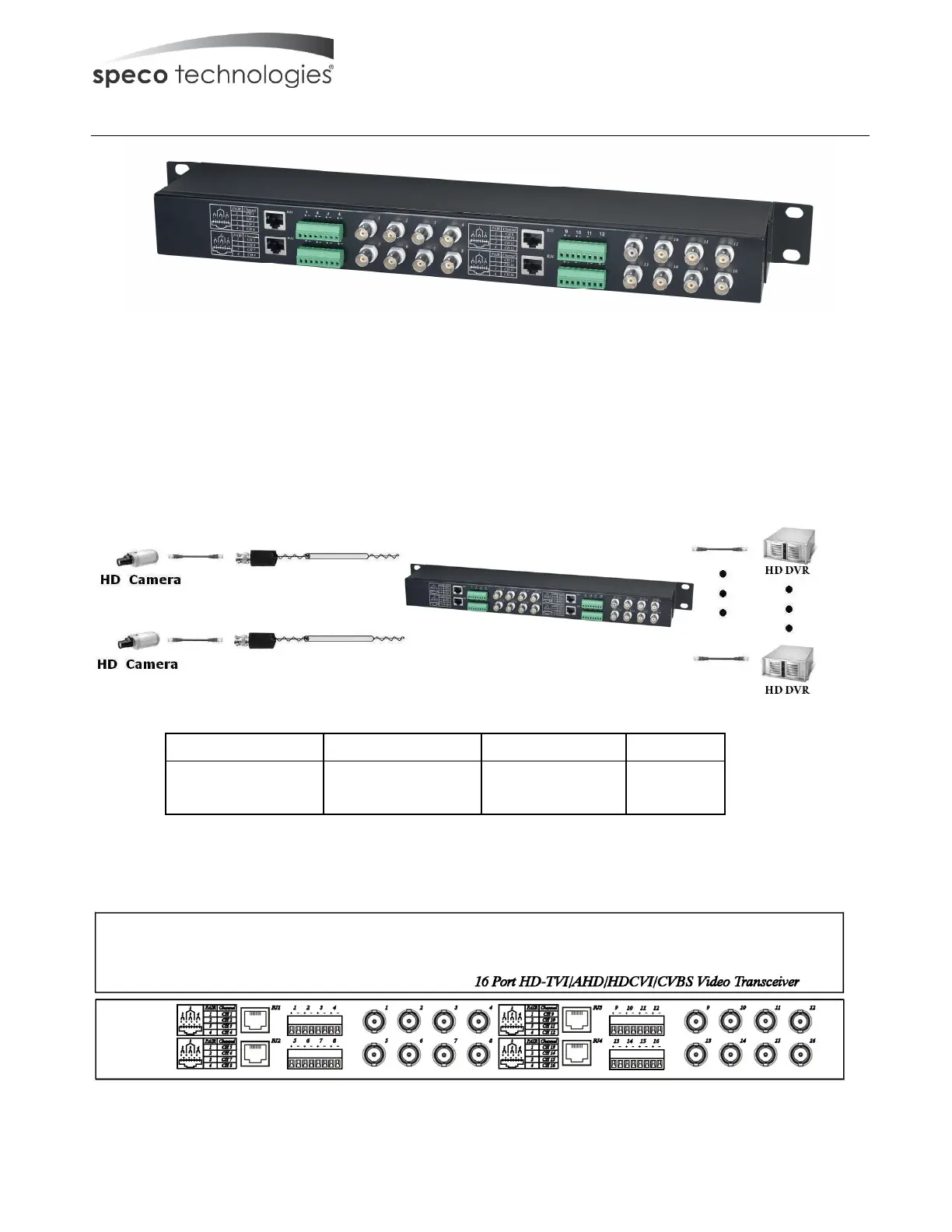

1
TVI16UTP 16-Channel HD Video Passive Transceiver
FEATURES
Built in 16-port passive HD video transceiver in 1U 19” rack mounting panel.
Choice of 4 x RJ45 or 4 sets x 8 pin removable screw terminal for 16 channel inputs /outputs.
Used to send HD-TVI/AHD/CVI/CVBS signal over UTP cable.
Good for resolutions up to 5MP.
Passive, no power required.
Eliminate coaxial cable.
Use in conjunction with TVIUTP or TVIUTPPT (Sold Separately).
Built in ESD, EFT (impulse noise) and transient protection.
INSTALLATION VIEW
HD-TVI/AHD/HDCVI/CVBS Video Balun Distance Chart
HD-TVI AHD HDCVI CVBS
1080P 820’ (250M)
5MP 656’ (200M)
1080P 820’ (250M)
4MP 656’ (200M)
1080P 984’ (300M)
5MP 656’ (200M) 984’ (300M)
The distance may affected by the quality of cable, camera, DVR, etc. This installation should be made by a qualified
service person and should conform to all local codes.
PANEL VIEW

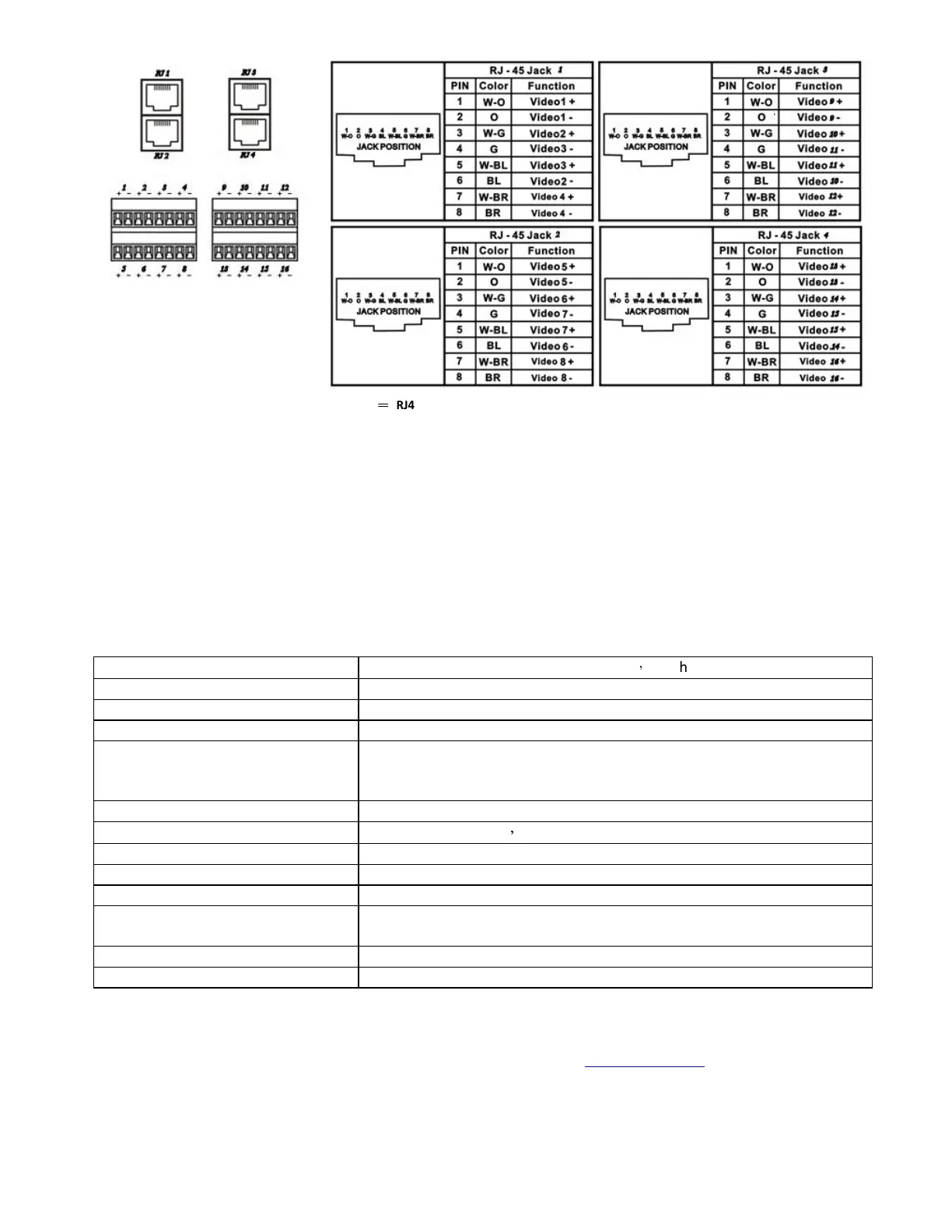

2
RJ45 JACK PIN DEFINITION
NOTE: These devices are reversible, BNC connector RJ45
This installation should be made by a qualified service person and should conform to all local codes.
RECOMMENDED CABLE
Use high quality CAT5e UTP or CAT6 UTP cable. The maximum working distance is 984’ (300m). The distance may affected by the
quality of cable, camera, DVR.
CAUTION
1. The cabling must be kept away from any equipment with electromagnetic waves, i.e.: microwaves, radio equipment,
high voltage, etc.
2. Must use the same video format camera to avoid any interference.
SPECIFICATIONS
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Speco Technologies . 200 New Highway . Amityville . NY . 11701 . www.specotech.com
Rev. 04/21/20
Video Input
BNC x 16 (1 Vp-p 75 Ohm)
RJ45 Output
8 Pin removable terminal p2-x4 (100 Ohm) /RJ45 p
Cable
CAT5e/CAT6
or
UTP
Bandwidth
50Hz ~ 60MHz (
-
3dB )
Transmission Distance
1080
P: HD
-
TVI
820
(
250M
)
,
AHD
820
(
25
0M
)
, HD
-
CVI
984
(
30
0M
)
4M/5MP: HD-TVI 656’ (200M), AHD 656’ (200M), HD-CVI 820’ (250M)
CVBS: 984’ (300M)
Power
Passive
ESD protection
30 KV(Air) 15 KV (Contact) ; IEC 61000-4-2 compliant
EFT protection
40A(5/50ns) ;
IEC 61000
-
4
-
4
compliant
Lightning protection
2A (8/20μs) ;
IEC 61000
-
4
-
5
compliant
Surge Protection Attack Time
< 1 nS
Environmental Specifications
Op
eration:
32 to 131
°
F (
0 to 55
)
, Storage:
-
4 to 185
°
F
(
-
20 to 85
)
Humidity: up to 95%
Dimensions
(
W x H x D
)
1
9
(
483
mm)
x
4.1
(
103.5
mm)
x
1.73
(
44
mm)
(1U)
Weight
3 lbs.
(
1380
g)
