32X AUTOMATIC LEVEL KIT AL32
1-77-238/241
2 • AL32 FATMAX
12
13
6
7
4
11
10
8
9
1
2
3
5
A B
C
A B
C
Fig. 1
Fig. 2
AL32 FATMAX • 3

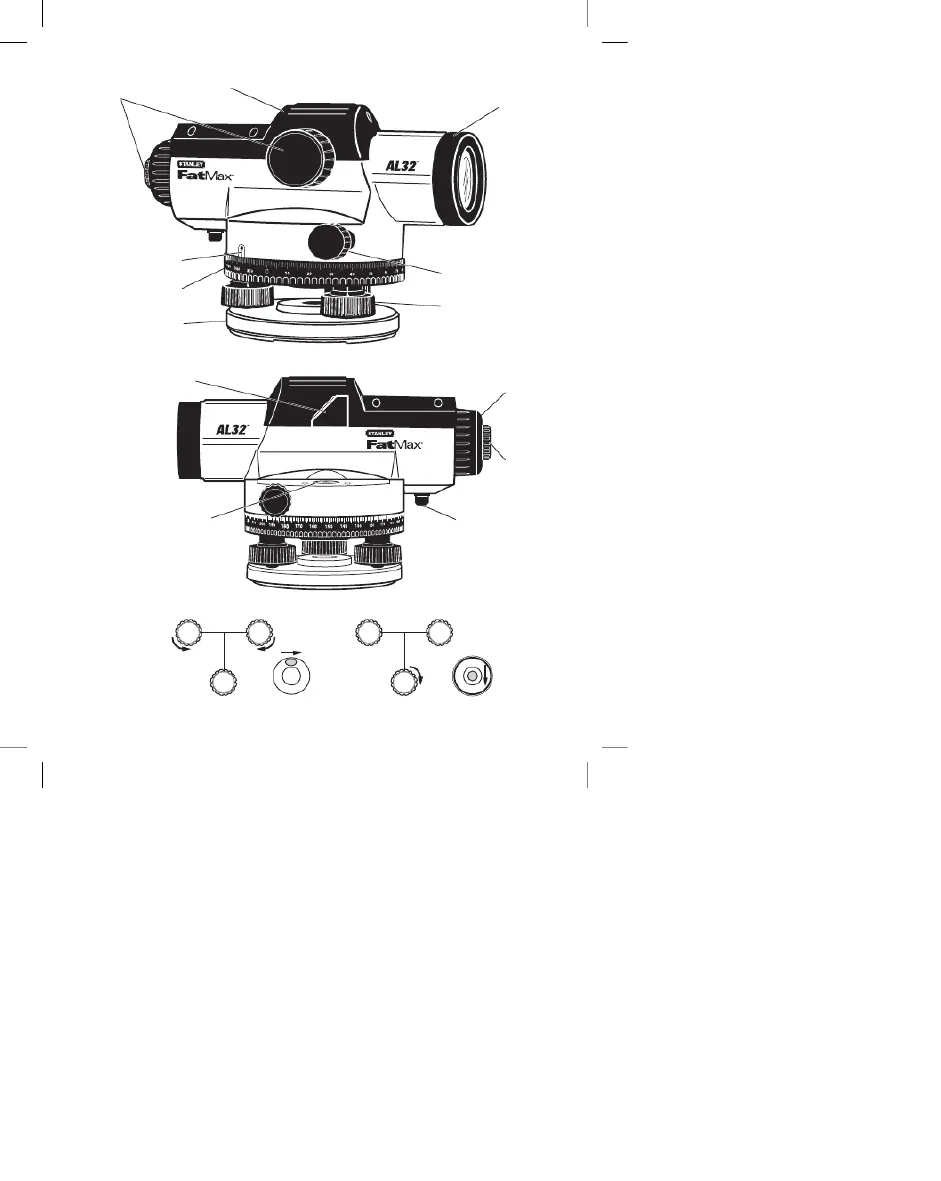

FEATURES (Fig. 1)
1 Base Plate 2 Horizontal Circle
3 Horizontal Circle Reference Mark 4 Compensator Lock
5 Focusing Knobs 6 Optical Peep Sight
7 Sunshade / Objective Lens 8 Horizontal Drive Screw
9 Leveling Screw 10 Circular Bubble Vial
11 Vial Sighting Prism 12 Eyepiece Cover
13 Eyepiece Focusing Knob
FEATURES
32x Magnification
for optimum range Wire-hung, magnetically dampened compensator
and accuracy.
protects instrument during transport or storage; the Compensator lock
lock can also be used as a handy compensator checking tool.
and minimum focus of 0.3 m.Large effective aperture
Top-mounted optical peep-sight for quick reference.
Large, easy-to-use precise focusing knob.
Easy-to-read horizontal circle.
for easy bubble viewing.Penta prism
Sealed, dust-protected leveling screws.
plus sunshade for use in various Water resistant, sealed construction
weather conditions.
on left and right sides with friction-braked Fine adjustment knobs
rotation, endless horizontal drive.
stadia for distance estimation.1:100
to fit standard tripods.5/8- 11 threads
