Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: June 18, 2020

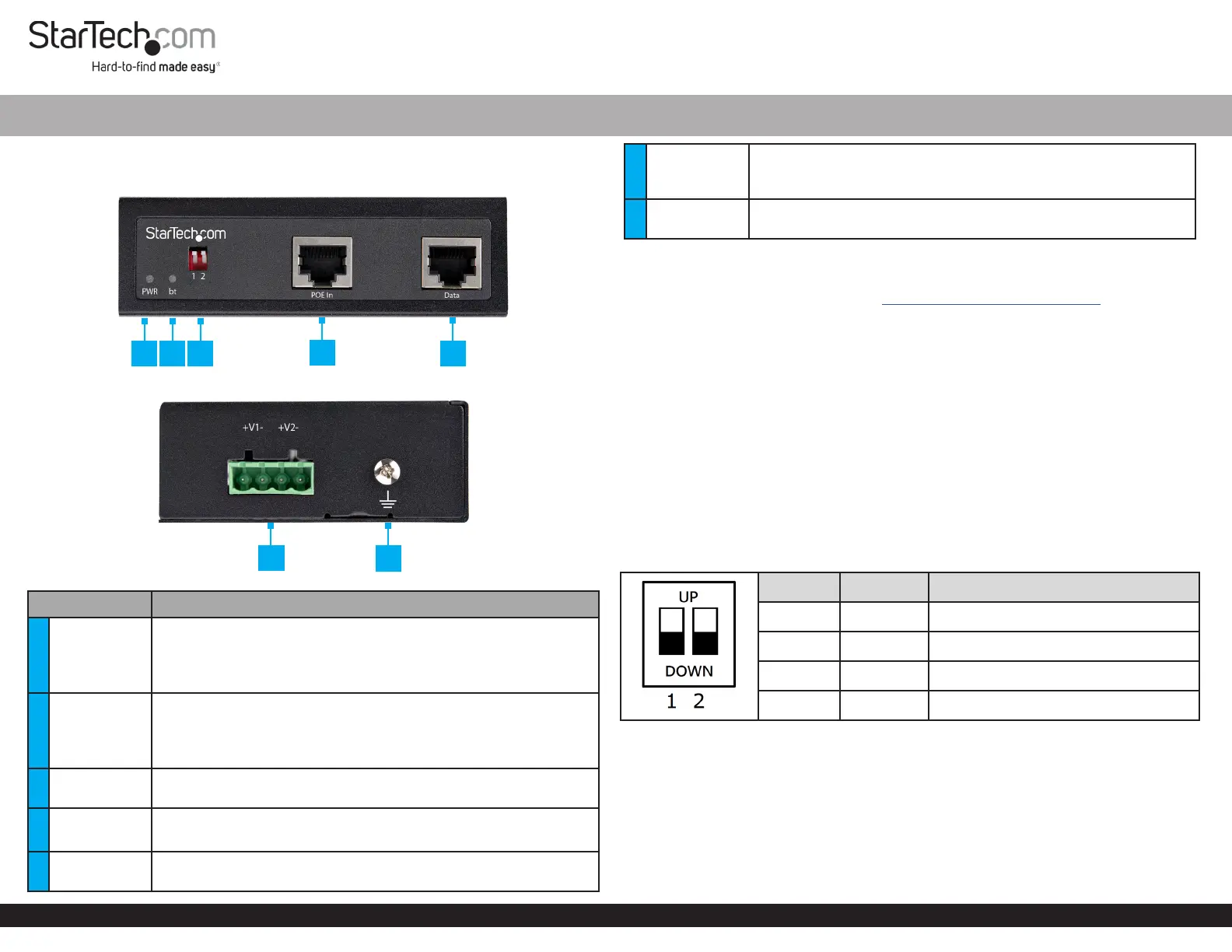

Product Diagram (POESLT1G48V)

Front View

Side View

Component Function

1PWR LED

Indicator

• On Terminal Block Power - Power output is detected on

Output Port

• O Terminal Block Power - Power output is not detected

Output Port

2bt LED

Indicator

• On Power Source Equipment - POE IEEE 802.3bt and (PSE) is

detected on PoE Input Port

• O PSE PoE Input - POE IEEE 802.3bt and is not detected on

Port

3DIP Switches

1 and 2

• Select the desired output voltage for the Terminal Block Power

Output Port

4PoE Input

Port

• Connect via PSE RJ45 Terminated Network Cable

• Supported power input voltage range is 15W up to 90W

5Data Port • Connect a via Non-PoE Device RJ45 Terminated Network

Cable

60W Industrial-Grade Hardened 802.3bt PoE Splitter 10/100/1000Mbps (48VDC Max Output)

Terminal

Block Power

Output Port

• Provides power to Non-PoE Equipment

• Supported power input voltage range is 44-57V

7Grounding

Screw • Attach a to protect Grounding Wire Network Equipment

Requirements

For the latest requirements, please visit .www.startech.com/POESLT1G48V

• Power Source Equipment (ex. PoE Gigabit Switch, PoE Injector) x 1

• RJ45 Terminated UTP/STP Cat 5e (or better) Network Cable (sold separately) x 2

• Earth Ground Connection x 1

• Grounding Wire x 1

• (Optional - for power) Flat Head Screwdriver x 1

• (Optional - for mounting) Phillips Head Screwdriver x 1

• (Optional - for mounting) Screws x 2

Installation

Select DC Output Voltage using the DIP Switches

Toggle the up and/or down to select the output voltage of the DIP Switches Terminal

Block Power Output Port.

Grounding the PoE Extender

Connect a to the on the and to the Grounding Screw Grounding Point PoE Splitter

Earth Ground Connection.

Connecting the PoE Splitter

1. Connect a to the Network Cable PoE Output Port of the Power Source Equipment

and to the on the .PoE Input Port PoE Splitter

6 7

51 4

2 3

DIP1 DIP2 Output voltage / Output current

UP UP 48VDC / 1.5A (default)

DOWN UP 24VDC / 2.3A

UP DOWN 16VDC / 2.3A

DOWN DOWN 12VDC / 2.3A

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC

rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the equipment.

Industry Canada Statement

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [A] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (A)/NMB-3(A)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two

conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-

party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the

property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Warranty Information

This product is backed by a two-year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or

agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots,

loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the

product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the

limitations or exclusions contained in this statement may not apply to you.

Safety Measures

• If product has an exposed circuit board, do not touch the product under power.

Mesures de sécurité

• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.

安全対策

• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。

Misure di sicurezza

• Se il prodotto p2-ha un circuito stampato visibile, non toccare il prodotto quando è acceso.

Säkerhetsåtgärder

• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Cres

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Rd,

Brackmills

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

2500 Creekside

Parkwy

Lockbourne, Ohio

43137

U.S.A.

DIN Rail Mounting

1. Align the holes in the with the holes in the back of the DIN Rail Bracket PoE

Splitter.

2. Insert three through the and into the Phillips Head Screws DIN Rail Bracket PoE

Splitter.

3. Tighten the using a .Phillips Head Screws Phillips Head Screwdriver

4. Hang the top of the (the section with the two metal clips) onto a DIN Rail Bracket

Top Hat DIN Rail style .

5. Press the down and forward to lock the bottom section onto the DIN Rail Bracket

DIN Rail.

2. Connect a to the on the and to the Network Cable Data Port PoE Splitter Network

Port Non-PoE Equipment on the .

Powering the Non-PoE Equipment

Connecting and installing the Terminal Block must be completed by a licensed

Electrician.

Notes: Make sure that you turn o the Power Source before connecting the Power

Wire to the Terminal Block.

Do not exceed the recommend voltage as it may result in personal or product damage.

Connect the from a to the Power Wires DC Power Source (44 - 57V DC) Terminal

Block Connectors Switch on the . The terminals are marked on the exterior of the

Switch Positive Wire V+ Negative Wire V- (connect the to and the to ).

• Secure the by tightening the in the with a Wires Screws Terminal Block Flat Head

Screwdriver

Mounting the PoE Splitter

Wall Mounting

1. Align the holes in the with the holes in the back of the Wall Mount Brackets PoE

Splitter.

2. Insert two through each and into the Phillips Head Screws Wall Mount Bracket PoE

Splitter.

3. Tighten the using a (sold Phillips Head Screws Phillips Head Screwdriver

separately).

4. Insert two (sold separately) through the and into the Screws Wall Mount Brackets

Mounting Surface.

5. Tighten the using the appropriate .Screws Screwdriver
