Ethernet ports

PCIe p1-x4 connector

Quick-start guide

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

Manual Revision: 07/13/2017

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/ST10GPEXNDPI.

Package contents

• 1 x network card

• 1 x low-prole bracket

• 1 x quick-start guide

Requirements

• PCI Express enabled computer with a PCIe slot (x4, x8, or x16)

• Any of the following operating systems:

• Windows® 10 (64-bit)

• Windows 8.1 (64-bit)

• Windows 7 (64-bit)

• Windows Server® 2012

• Windows Server 2008R

• Linux®

Requirements are subject to change. For the latest requirements,

please visit www.StarTech.com/ST10GPEXNDPI.

ST10GPEXNDPI

2-Port 10GBase-T / NBASE-T Ethernet Network Card - with Intel X550 Chip

*actual product may vary from photos

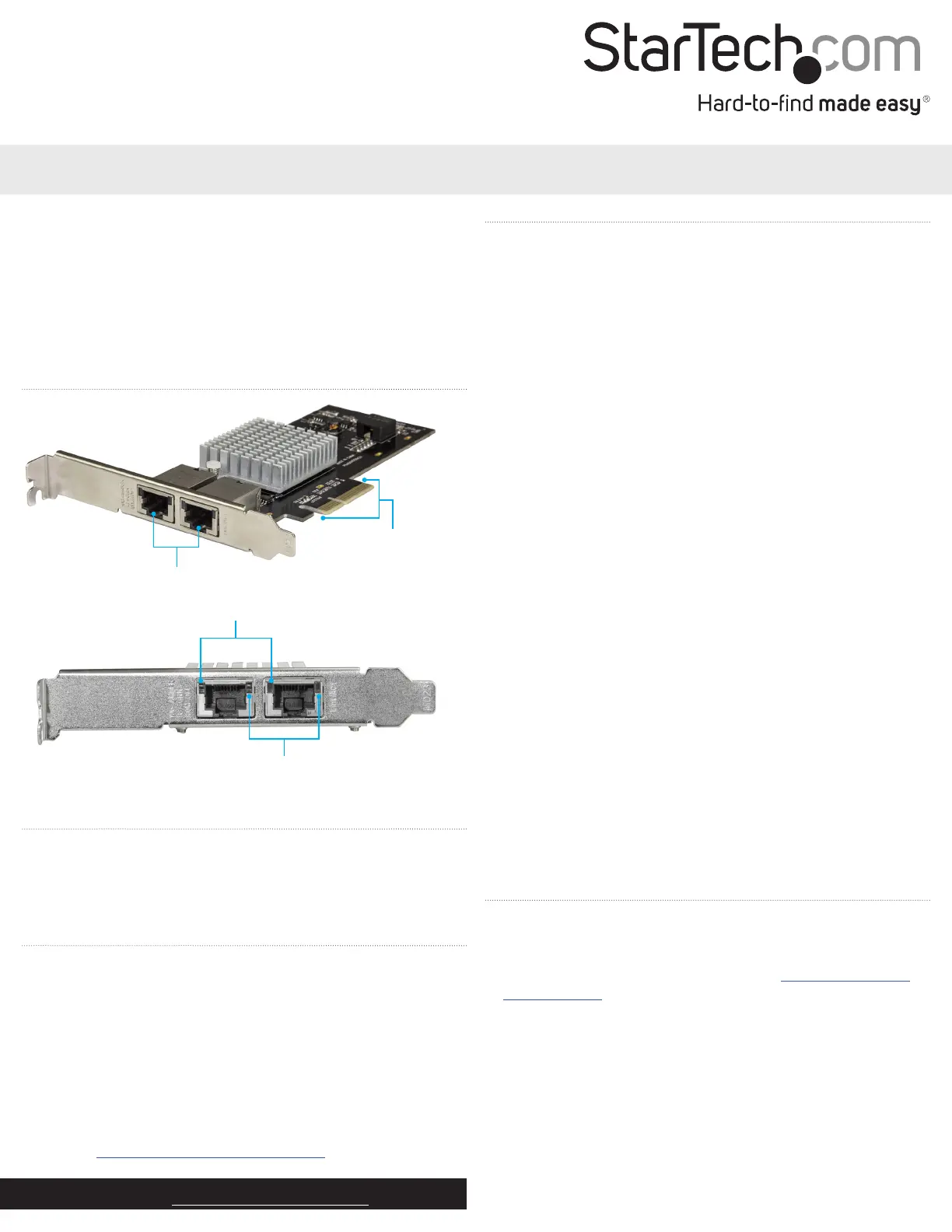

Product diagram

Link speed LEDs

Link state and activity LEDs

Install the network card

Warning! Network cards can be severely damaged by static

electricity. Make sure that you are properly grounded before you

open your computer case or touch your PCIe card. You should wear

an anti-static strap when you install any computer component.

If an anti-static strap isn’t available, discharge any built-up static

electricity by touching a large grounded metal surface for several

seconds. Only handle the PCIe card by its edges and don’t touch the

gold connectors.

1. Turn o your computer and any peripherals that are connected

to it (for example, printers, external storage, and so on).

2. Unplug the power cable from the back of your computer.

3. Disconnect any peripheral devices that are connected to your

computer.

4. Remove the cover from your computer case. For more

information about how to do this, consult the documentation

that came with your computer.

5. Locate an open PCIe slot and remove the corresponding metal

cover plate from the back of your computer case. Consult the

documentation that came with your computer for details about

how to do this safely. This card works in PCIe slots of additional

lanes (x4, x8, or x16 slots).

6. Gently insert the card into the open PCIe slot and fasten the

bracket to the back of the case.

Note: Install the card into a small form factor or a low-prole

desktop system, it may be necessary to replace the preinstalled

standard-prole bracket with the included low-prole (half-height)

installation bracket.

7. Place the cover back onto your computer case.

8. Reconnect the power cable to the back of your computer.

9. Reconnect all of the peripheral devices that you disconnected in

step 3.

10. Turn on your computer and peripherals.

Install drivers on your computer

1. If the Found New Hardware dialog box appears on your screen,

close the dialog box or click Cancel.

2. To download the latest drivers, navigate to www.StarTech.com/

ST10GPEXNDPI.

3. Click the tab.Support

4. Under , locate and download the drivers for the Driver(s)

operating system that you’re currently running.

5. When the download is complete, right-click the .zip folder that

you downloaded, and click .Extract All

6. Double-click the folder for the version of operating system that

you’re currently running, and follow the on-screen instructions to

complete the download.

7. Restart your computer, when prompted.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the

equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and

access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not

allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Verify driver installation

1. On your computer, navigate to .Device Manager

2. Under , right-click Network adapters Intel Ethernet Controller

X550 Properties and click .

3. Conrm that the driver is installed and working as expected.

About LEDs

There are two LEDs next to either side of both of the Ethernet ports

on the network card.

Consult the tables below for more information about what the LED

behavior signies.

Link speed LEDs

LED behavior Scenario
